Products Description

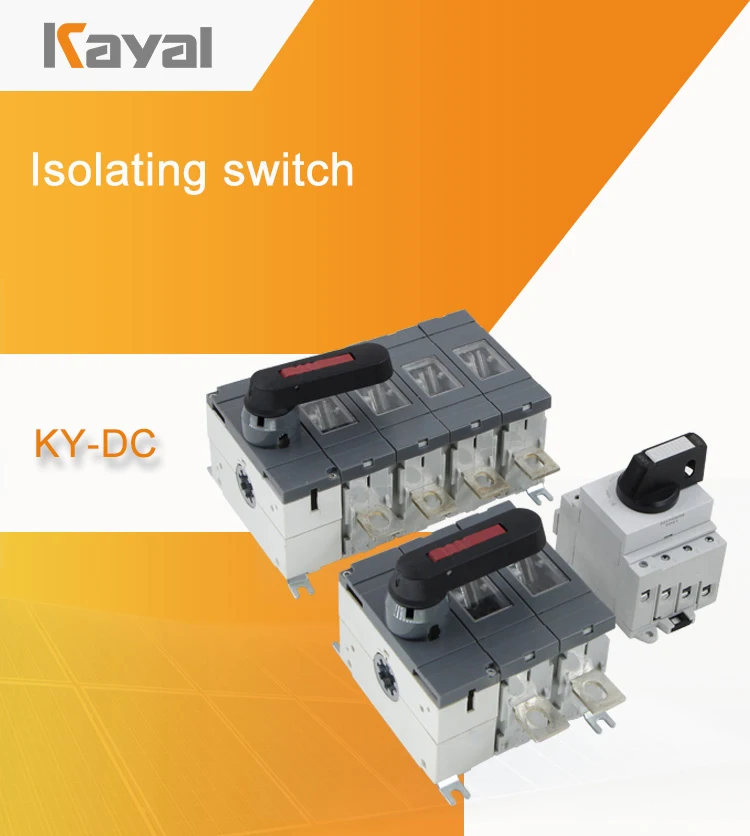

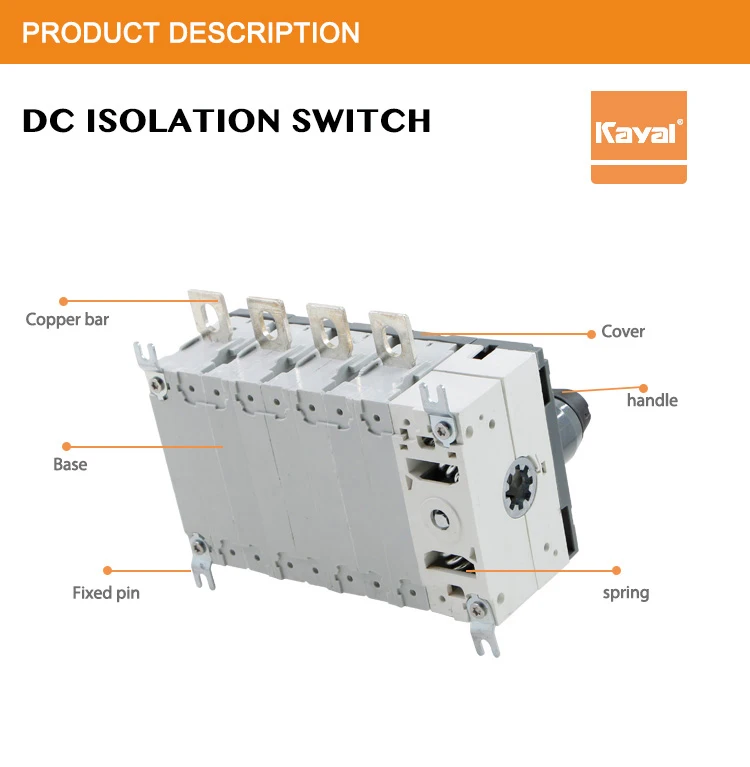

DC Isolator Switches
Application

KYT series DC Isolator Switches are applied to 1-20KW Inverter, Controller, DC Combiner Box, used for Residential or Commercial PV solar power system (on-grid/of-grid). Arcing time less than 3ms, that make PV solar system effectively disconnected.
KYT.2-32 DC Isolator Switches
• DIN Rail Mounting
• KYT.2-32 Rated Voltage 1200V DC
• OFF LOCKABLE
• Flame-Retardant
• Arcing Time < 3ms
• IEC60947*3
• 4Potes(Single/Double Strings Available)
• DC-21B:16A.25A.32A up to 1200V DC


Parameter
Etectrical Characteristics
Function
Isolator, Control
Comply with
IEC60947-3
Pole
4P
Max Rated Current
32A
Rated Working Voltage Ue
1200V DC
Rated Current In
16A/25A/32A
Rated Insulated Voltage Ui
1200V DC
Rated Impulsed Voltage Uimp
8KV
Service Life/Cycle Operation
10 years
Mechanical
20000
Electrical
2000
Installation Environment
Diversified
Size of Terminal Screw
M4
Tightening Torque
2.5
Maximum Cable Cross Sections
4-16
Ingress Protection
IP40
Storage Temperature
-5℃ ~ 80℃
