Лидер продаж giicl стандартный гибкий крутящий момент редукторный двигатель барабанного

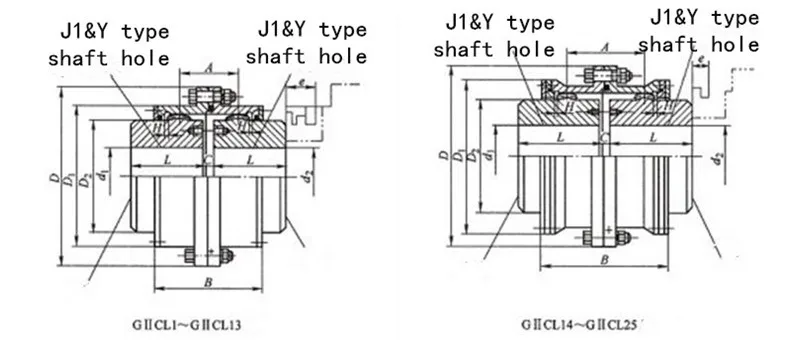

Product Drawing

Introduction Of GIICL Drum Gear Flexible Coupling

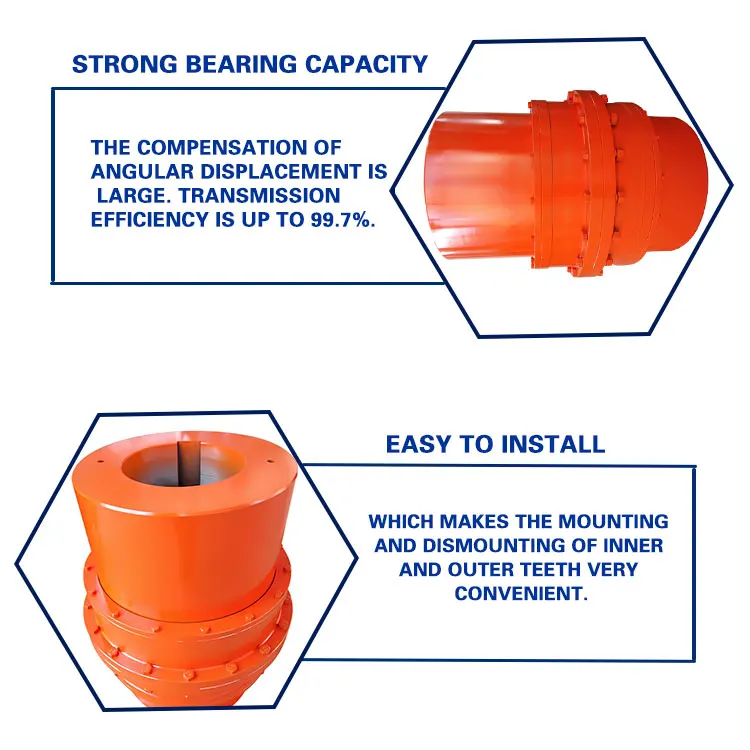

    GIICL Standard Type Drum Gear Coupling are flecible coupling, gear coupling is composed of inner gear and the same number of teeth of the flange half band coupling parts etc.. External teeth into straight teeth and two kinds of drum gear tooth, the drum tooth is teeth made of the outer sphere, spherical center of the gear axis, gear backlash is large, the G II type CL giicl allows a larger angular displacement (relative to the straight tooth coupling), contact the condition can improve the tooth, improve the ability to transfer torque, prolong the service life. The contact state along the width of the tooth with angular displacement. With the radial, axial and angular and axial deviation compensation ability, has the advantages of compact structure, small turning radius, its large carrying capacity, high transmission efficiency, low noise and long maintenance cycle, especially suitable for low speed and heavy load condition, such as metallurgy, mining, lifting, transportation and other industries are also applicable to the drive shaft of petroleum and chemical industry, general machinery and other kinds of machinery.

        Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

        Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

        The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.

Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2:Do you provide samples ? is it free or extra ?

A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.

Q3: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.

Q4:How long is your warranty?

A: Our Warranty is 12 month.

Q5 :Do you have inspection procedures for coupling ?

A:100% self-inspection before packing

Q6. What’s your payment?

A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.

If you are interested in our products,and want to know more details,

you can click the below or click here to send us your inquiry.

we will reply immediately.

→ Click Here To Homepage
