GDSTIME 5015 маленький MOQ мощный бесщеточный осевой охлаждающий вентилятор постоянного тока 50 мм 50x50x15 5 12
- Категории: Fans & Cooling >>>
- Поставщик: Shenzhen,Gdstime,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

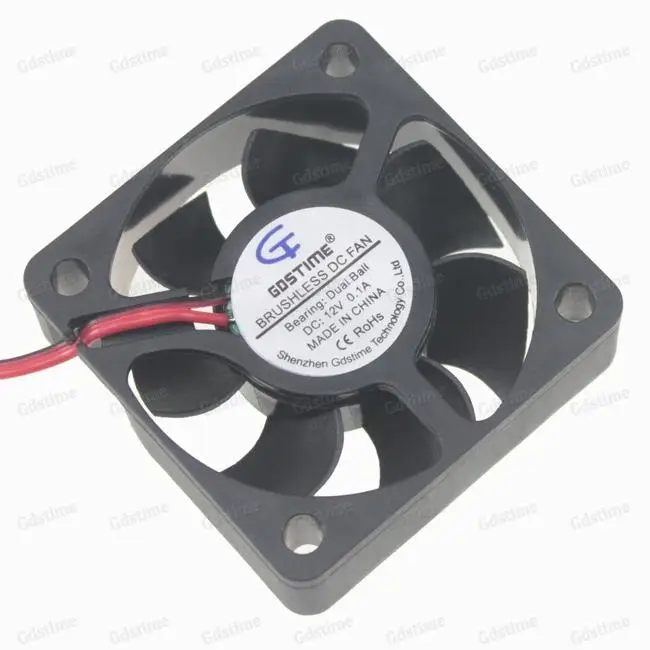

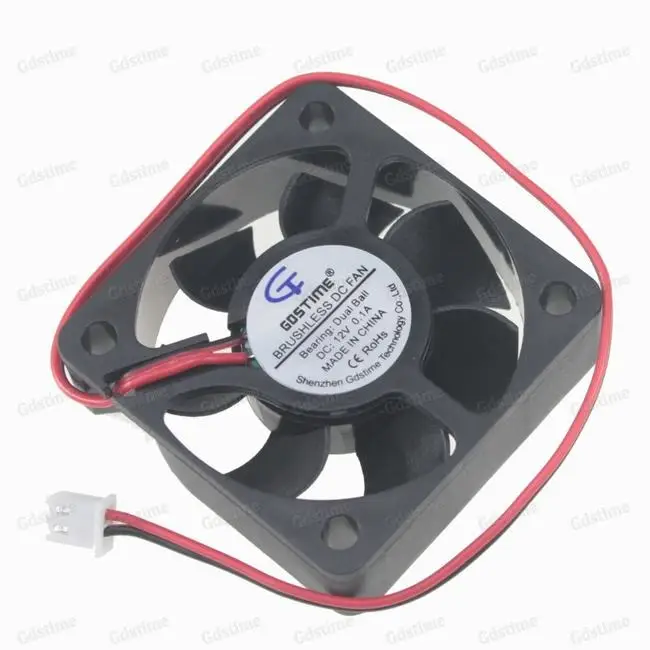

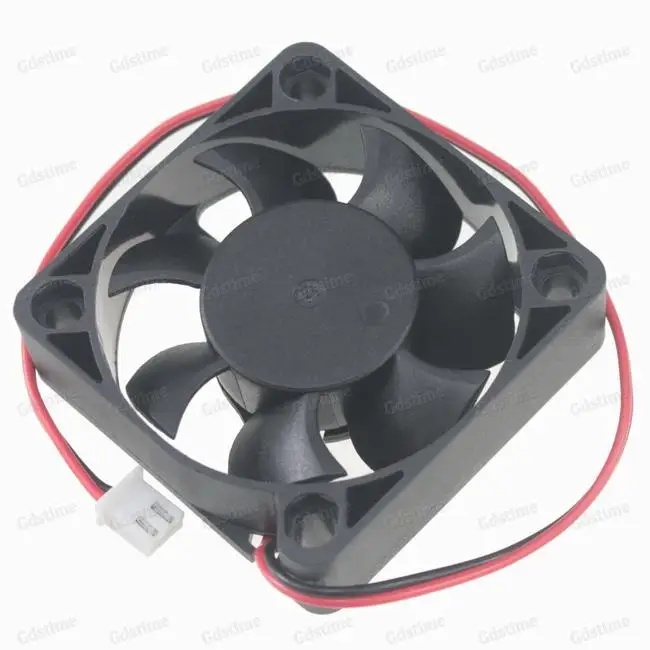

DC 50x50x15MM 50MM Brushless Fan
Product Description
Parameter:
Rated Voltage: DC 5-24V
Rated Current:0.09-0.24A
Bearing: Sleeve/Ball/Hydraulic Bearing
Fan Speed:3500-6000RPM±10%
Noise Level: 25.7-38.9dBA±10%
Air Flow: 8-16CFM
Weight: 27g/pcs
Fan size:50mm x 50mm x 15mm
Waterproof: IP45-67
Advantage:
Function
A,Motor Protection
1,RP: Reverse Protection
2,SS: Soft Start
3,AS: Auto Restart
4,CL: Current Limit
B,Singal output
1,FG: Frequency Generator
2,RHD(RD): Rotation Detection(High)
3,RDL: Rotation Detection(Low)
4,LD: Low Detection
C,Speed control mode
1,PWM: Pulse Wide Modulation
2,TC: Temperature Control
3,VC: Voltage Control
4,RC: Resistor Control
5,SC: Const Speed
Parameter
| Model | Bearing | Rated Voltage | Operating Voltage Range | Rated Current | Speed RPM | Air Flow CFM | Air Pressure (In H2O) | Noise LeVel dBA |
| GDA5015 | Sleeve / Ball | 5V | 4-5.5V | 0.12 | 3500 | 8.9 | 0.08 | 21.8 |
| 0.18 | 4500 | 11.6 | 0.13 | 28.1 | ||||
| 0.22 | 5000 | 12.5 | 0.16 | 31.2 | ||||
| 0.3 | 5500 | 14.1 | 0.19 | 32 | ||||
| 12V | 7-13.5V | 0.08 | 3500 | 8.9 | 0.08 | 21.8 | ||
| 0.09 | 4500 | 11.6 | 0.13 | 28.1 | ||||
| 0.1 | 5500 | 14.1 | 0.19 | 32 | ||||
| 0.14 | 6500 | 16.3 | 0.27 | 36.4 | ||||
| 24 | 14-26V | 0.07 | 4500 | 11.6 | 0.13 | 28.1 | ||
| 0.1 | 5500 | 14.1 | 0.19 | 32 | ||||
| 0.12 | 6000 | 15.3 | 0.22 | 34.6 | ||||
| 0.15 | 6500 | 16.3 | 0.27 | 36.4 | ||||
| If you want other Airflow/Voltage/Functions fan which is not in the list ,please contact us , thanks. | ||||||||
Company Information
Gdstime is a professional manufacturer and supplier in Guangdong, China.
We Have Years’ experience in Industrial Cooler.
We devote ourselves to offer high quality products to our clients in a competitive price, we also provide top quality service to clients.
Our company produce Cooling products: AC Fan, DC Fan, Thermal pad, Cooling Heat sink, and other refrigeration products. All of our products have passed the CE & ROHS certificate. We also accept customized products. Please contact us if you have any needs anytime. We will reply within 24H.
Packaging & Shipping
FAQ
Our Services
Tips: We can Supply free samples.
*Every Product will be test carefully before shippment.
*This commitment to quality problems have any free replacement, but does not include installation, the buyer will not fail, buy error, install artificial damage, etc. (In a Full Year)
