                                 SBW 500KVA 380V /400V large power

                 3 phase AC automatic compensated voltage regulator stabilizer AVR



It's Features:



AVR series AC compensation voltage stabilizer(hereinafter referred to as voltage stabilizer). it is an power supply product which is developed by our company and combines the international advanced technology and our nationl condition.it can keep the output voltage stabilized while the input voltage changes.

It's funtions:



Over&low voltage protection,over-heat/load protection,short circuit protection etc.

Advanced design:



LCD display which can show all protection functions more clearly.



Why choose us:

Our this servo motor type's accuracy is 1±%,the response time is 0.1s. effeciency is >98%,

the price is still competitive.This our new improved technology, Choose us, we can help you get

high quality products,  Newest R&D technology support ,More newest type product and get more

customer opportunities.



500kva automatic voltage stabilizer AVR Specifications:

1

Type

AVR

2

Capacity

500KVA

3

AC Input voltage

Switch

3P800A(Chint brand)





Phase

Three Phase





Voltage

304V-456V  ( or customized)





Frequency

50/60HZ

4

AC Output voltage

Phase

Three Phase





Voltage

380V    ( or customized)





Frequency

50/60HZ

6

Voltage Accuracy

±1-5%V Adjustable(Factory set±1%)

7

Load working

 continuous no interrupt working keep 80% load

8

Efficiency

>98%

9

Insulation strength

2500V/Min

10

Insulation Class

 H class

11

Cooling method

Natural cooling/ Fan system cooling

12

Resist electric strengh

2500VAC/min

13

Noise

≤60db(Noclude forced air cooling system)

14

Temperature Rise

≤75℃

15

Size:

Length1200 *Width 800* High1800(mm)

16

Weight :

Net weight:1280KG   Gross weight: 1350KG

17

Warranty

2 years

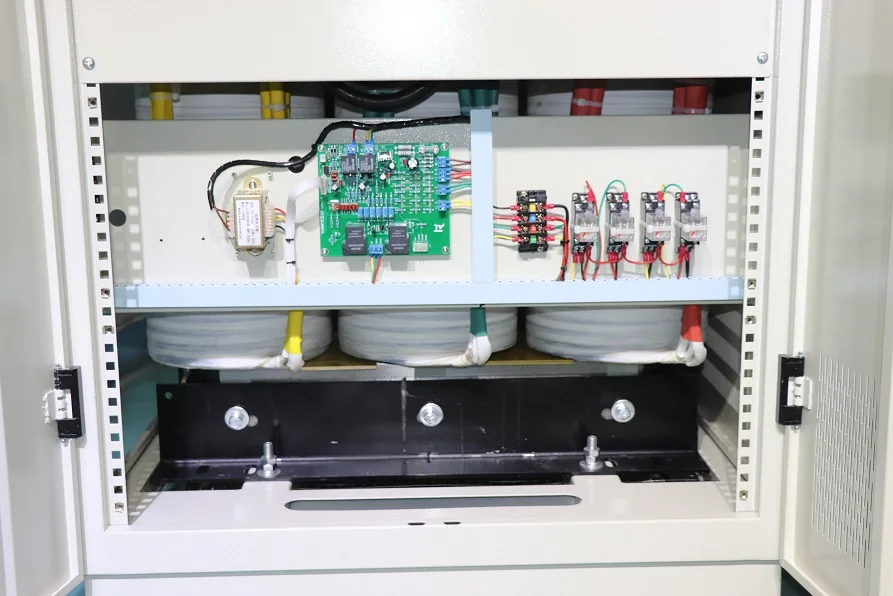

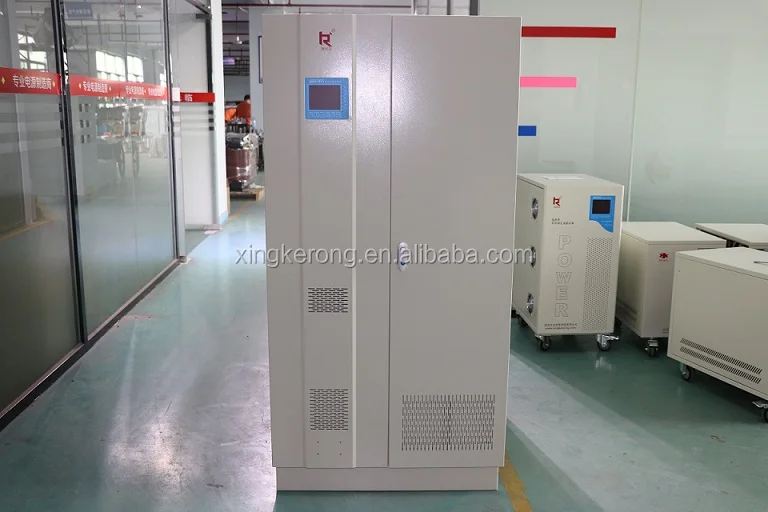

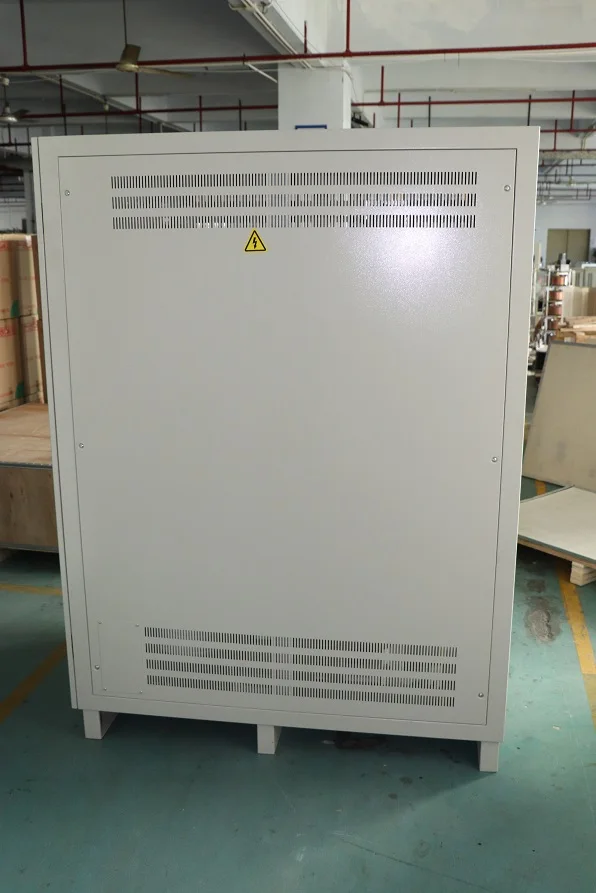

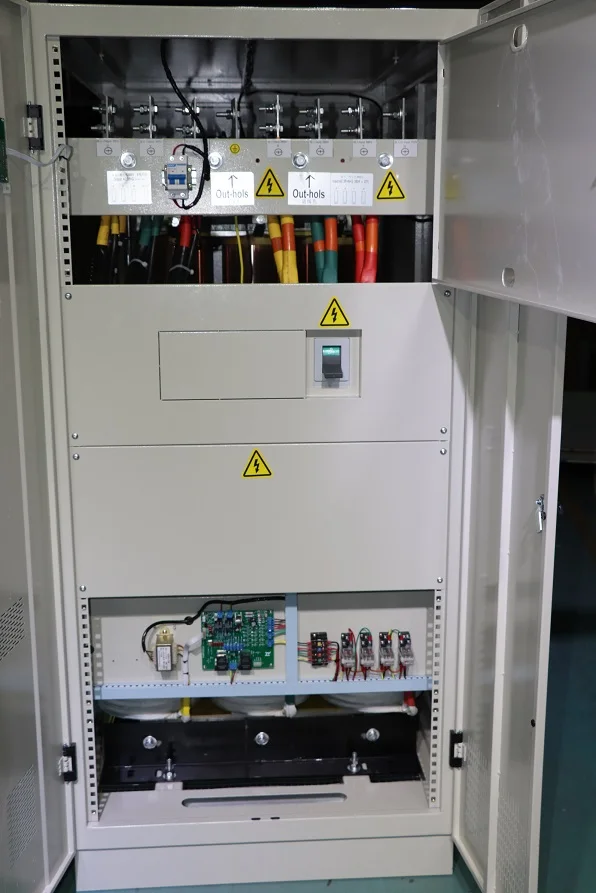

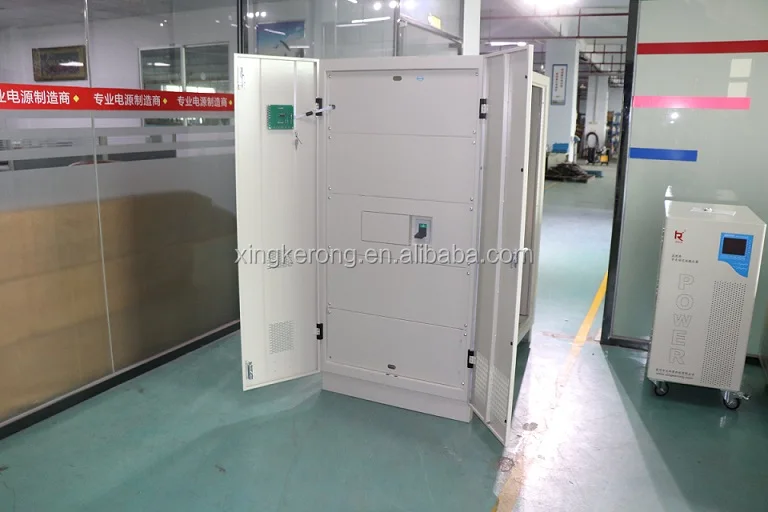

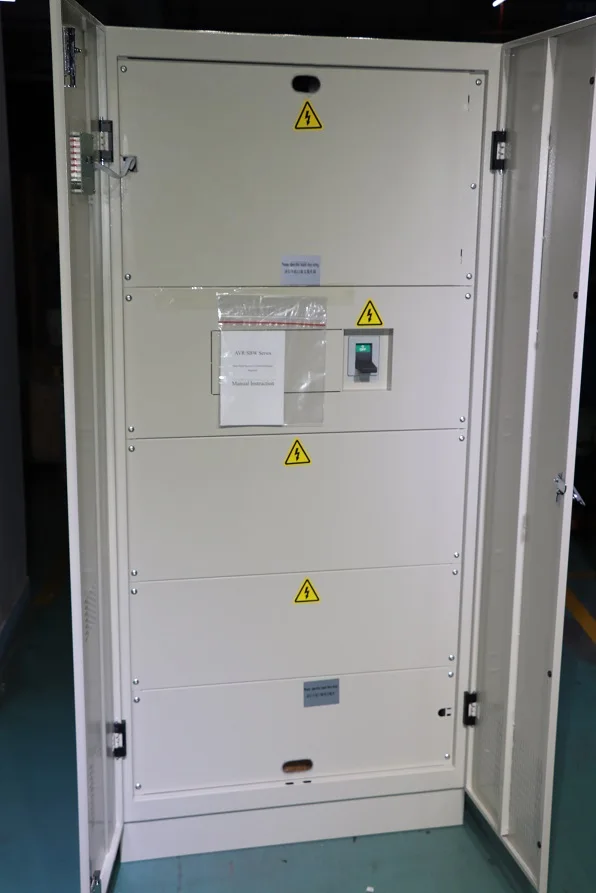

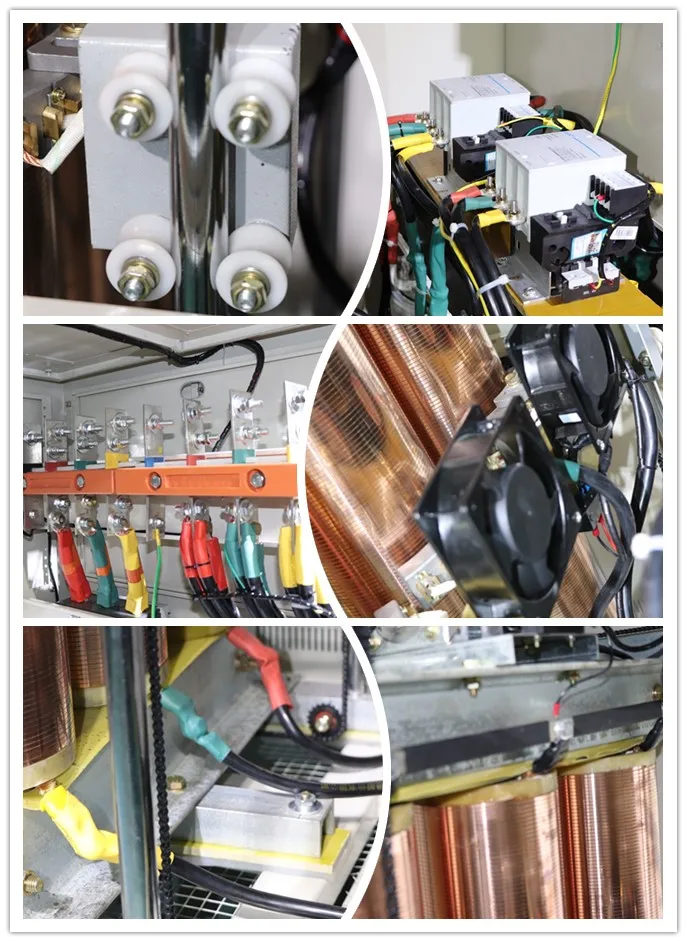

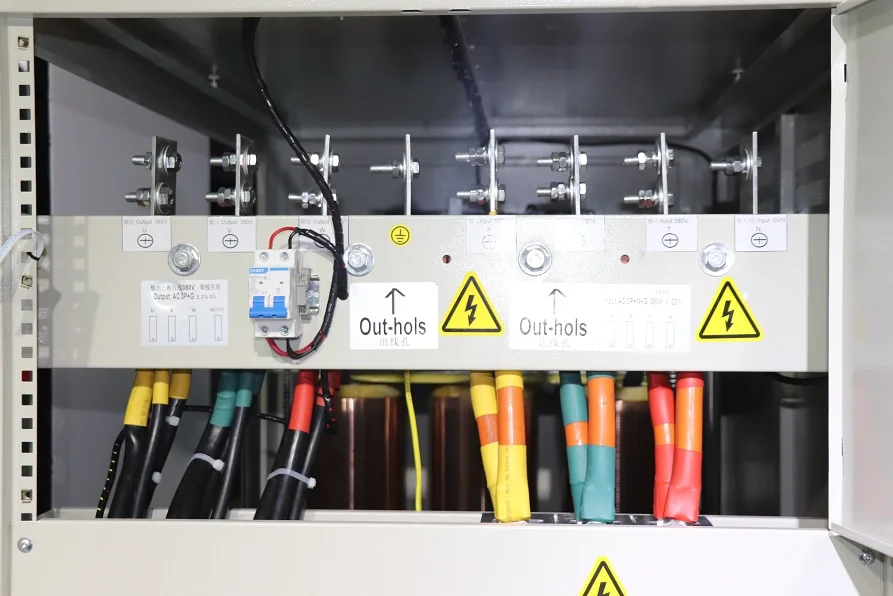

500kva stabilizer regulator detail pictures:


5.JPG600KVA (34).JPG600KVA (21).JPG600KVA (25).JPG600KVA (10)_.jpg600KVA (40).JPG600KVA (63).JPG

Our customer



4_074_084_094_05



FAQ:

Q 1. what's the payment term?

A. We accept TT,L/C, or alibaba credit order.



Q 2. How is your delivery time ?

A. For bulk order usually it will take about 10-25 days for production.For sample order need 7 days.



Q 3.What's your packaging material?
A. Using strong wooden case for protection.

Q 4.Do you  accept to use our logo ?
A.Our logo is R(please kindly find the previous pic to check).If your order has good quantity,it absolute no problem to do OEM.
   But you use our logo R will be high appreciated.

Q 5.What's your month capacity?
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 5000pcs   and big capacity near 1000pcs.

Q 6. What's the materials ?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your require.     In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay       type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
   For transformer,Aluminum or Copper material is accorsing your demind.

Q 7.Could you offer Form A or other original documents?
A. Yes, we can offer. please tell us all your requires after you pay.


 Q 8. what kind of certificate you got?
A. Our company already obtained CE,ISO9001, ROHS, SGS,design and technical patents certificates.

Q 9.Where is your market?A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern      Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join    us and make mutural benifit from our cooperation.

 Q10.Do you accept the Customized?
A: Yes,Welcome customized. sending us your requires,we will draw a drawing for you checking soon.
