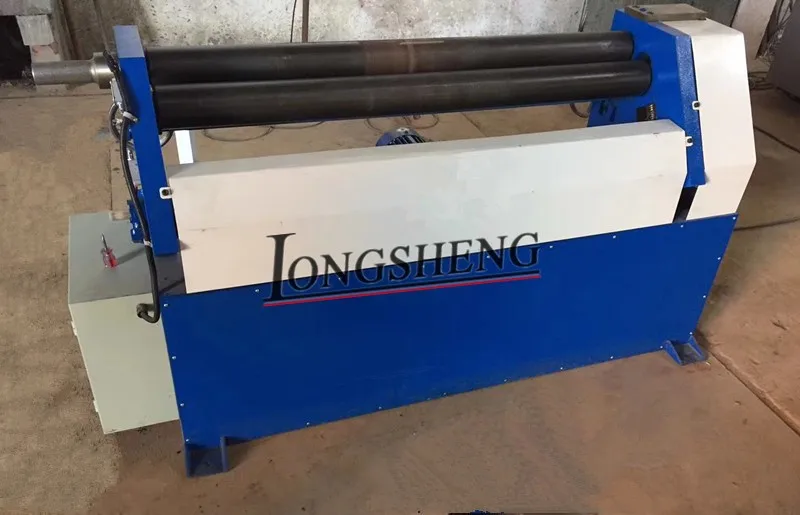

W11F Асимметричный Механический 3-ролик листопрокатного

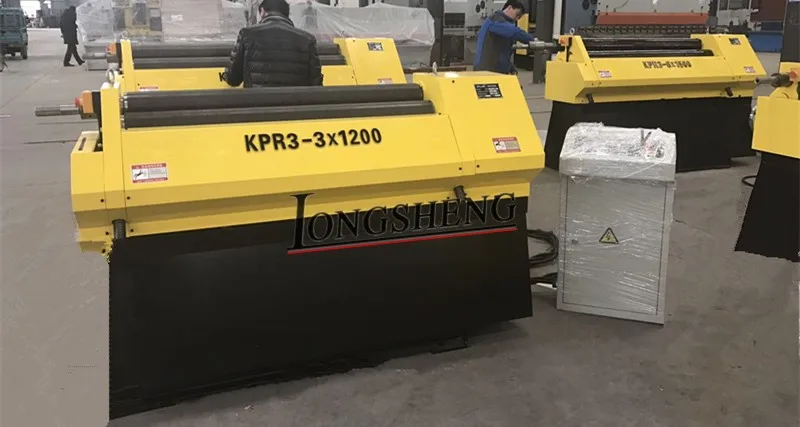

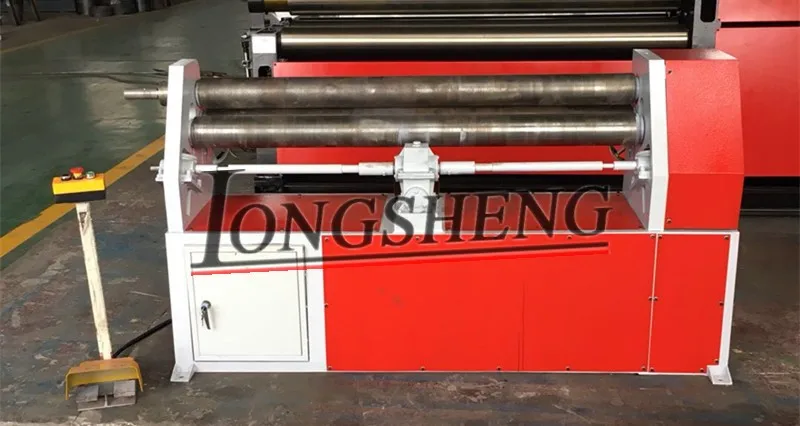

Technical specification of this 3 rollers asymmetrical plate rolling machine :
two rolls powered by a single gearbox and gear system for top and bottom rolls;
rigid steel frame;
manual drop end;
induction hardened rolls;
digital read out for rear roll optional;

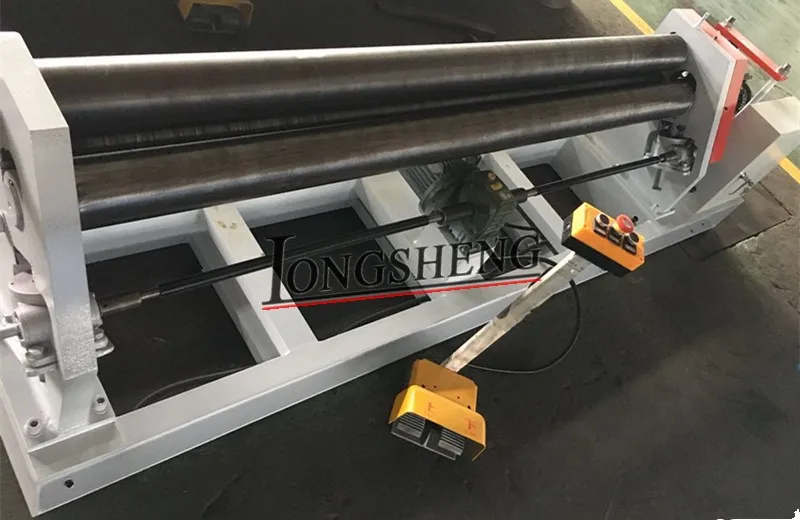

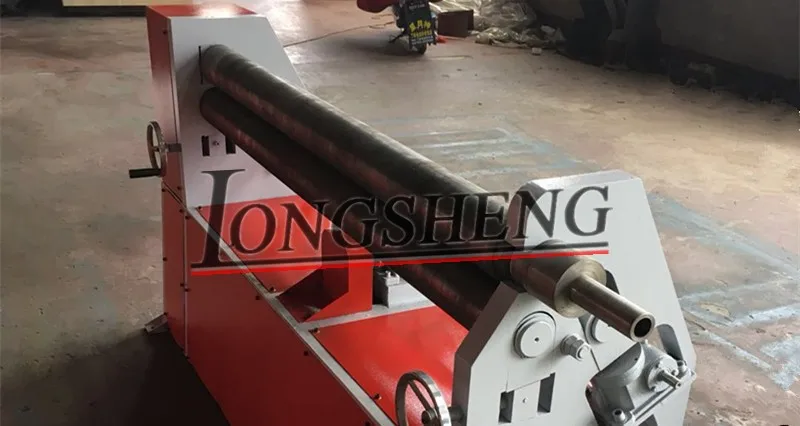

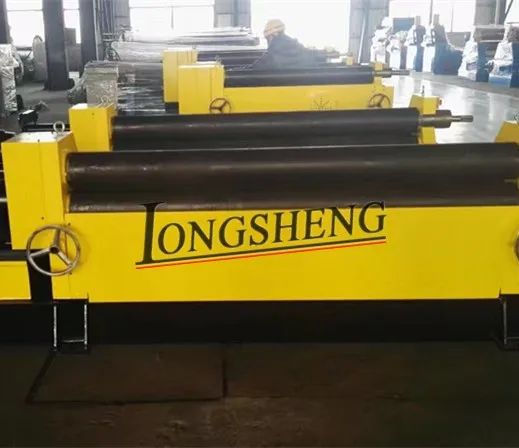

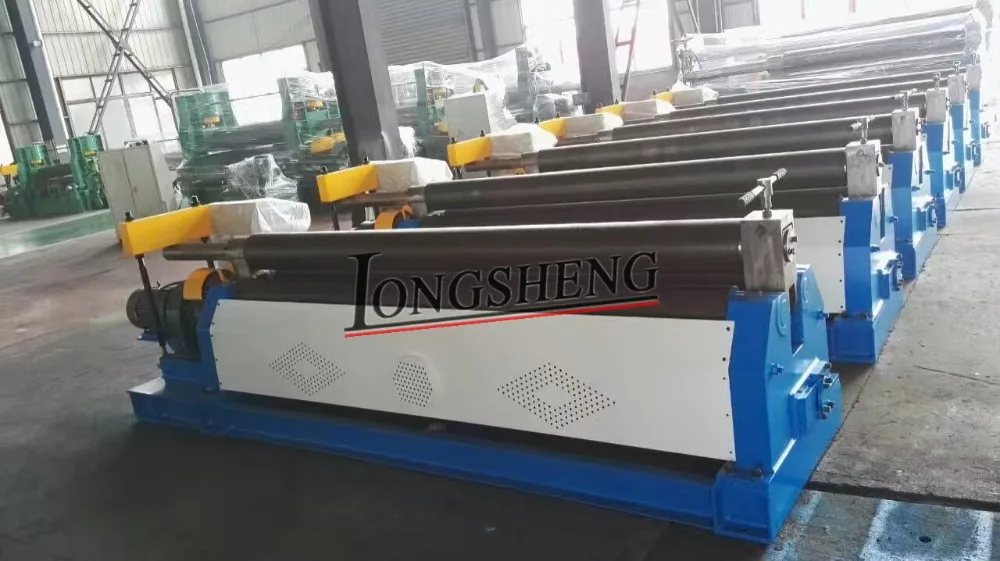

Main structure of this 3 rollers asymmetrical plate rolling machine :
1.The down rollers is the main drive, do the movement of elevation. Through the meshing of the gear

between the up and bottom roller to drive the upper roller rotate. The side roller for tilting lifting motion.It's have double function of pre-bending and circle.Compact structure and easy operation and maintenance.

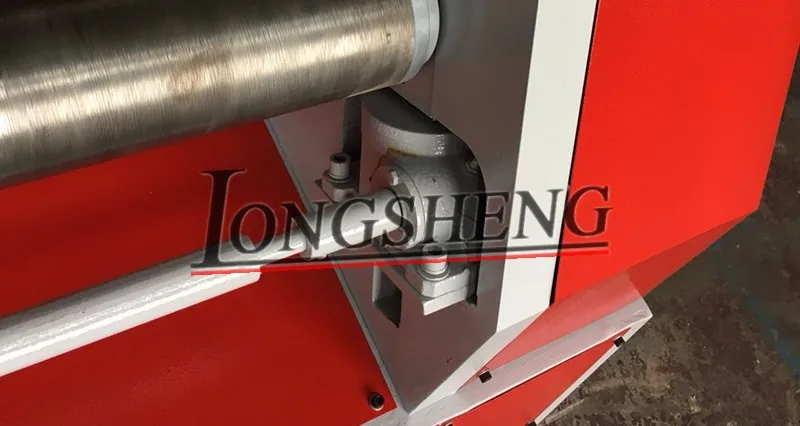

2.The machine consists of two parts, the operation part and the transmission part which are welded at the whole bottom pallet. The operation part consists of left and right bearing housing, one upper roller, one lower roller and one side roller, lifting gears and some accessories. The lower roller is the main one, upper roller can be adjusted at the height. The transmission part consists with the main motor, speed-reducing motor and other accessories.
3.The lower roller is driven by the main motor through the reducer. The main reductor output shaft transmits to the two lower rollers through a group of gear wheel. Through the meshing with lower roller gear and upper roller gear to drive the upper roller.

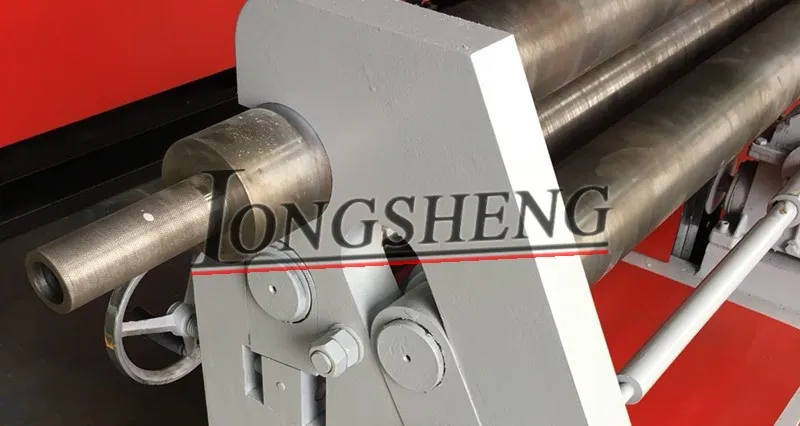

4.The down rollers' elevation come from the handle wheel rotate to drive the cam.
5.The auxiliary engine drive the worm screw, worm wheel,screw nut,screw mandrel to make the side roller do elevation movement.
6.Drop the roller to the appropriate height when unloading.After the machine stopping,take the sliding set from upper roller.Turn the upper roller to certain angle,the rolled metal cylinder can be dropped out from one side of the upper roller.

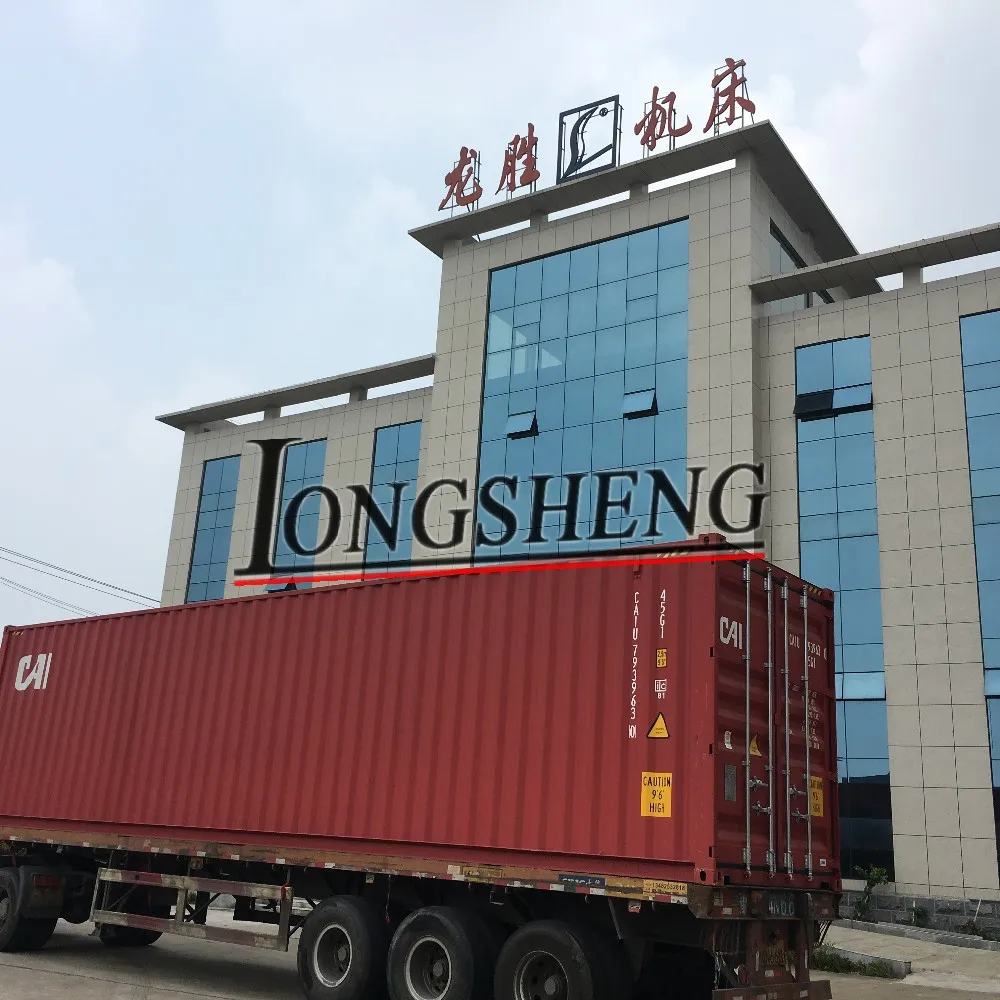

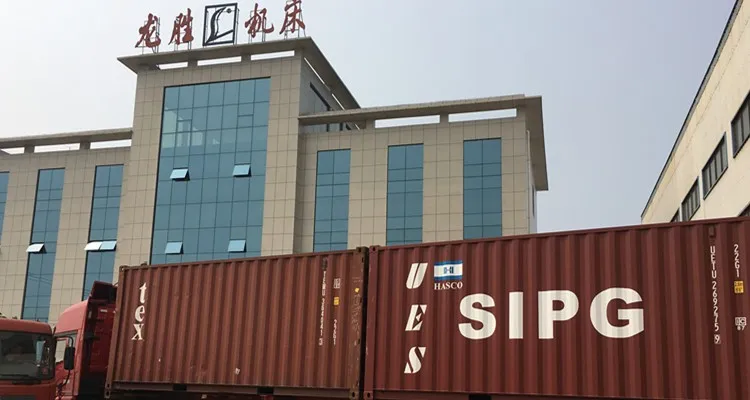

Jiangsu Longsheng Machine Tool Manufacturing Co.,Ltd is a competitive company, which is dedicated to development, production and sales of plate rolling machine and other sheet metal equipment with over 13 years. Adhering to the advanced European design concept, Longsheng follow the technology of Spain Sahinler and Italy Davi, combine with the actual needs of customers, and make well-structured and high-quality sheet metal fabrication equipment.Most importantly, it makes us be the professional sheet metal processing equipment supplier.
