Печатный ролик для текстильной бумаги сублимационная

Описание и отзывы

Характеристики

Technical arameters

Model	CO-ODP2
Maximum Media Width	1700mm
Blanket width	1650mm
Diameter of Drum	420mm
Transfer Speed	1-8M/Min
Power(KW)	27 KW
Working Table	Including working table
Fed-in media	Transfer paper,fabric, protective paper
Voltage/ Heating Power	220/380 Three phase four wire
Machine size	3000*1770*1770MM
Weight	2100KG
Available sizes	120/170/180/200/320CM (custom sizes by special order!)
Scope of Delivery	Roller heat transfer machine, Power cable without plug, some   electronic spare parts for free.

•
  According to human mechanics, change to upward material feeding. Suitable for pack atamping, solve the problems of difficult to align and receive materials, safe reliable, greatiy improve the product ioneffiency, electrical control uses the latest advanced technology, machine cooling is not requires, blanket and cylinder can be individually isolated.


• With power failure protection function.


• Add new assembly line material receining rack, convenient to put clothing on, safe and fast; mukti-purpose, both roll and pieces are universal.


• Muiti-function design allows piece transfer, cutting and ribbon heat pressing,improving the efficiency by 2-3times.


• Electonic digital temperature control, high rigidity,wear resistant, anti-sticking, excellent transfer effect.


• Chrome plated cylinder technology, high rigidity, wear resistant, anti-sticking, excellent transfer effect.

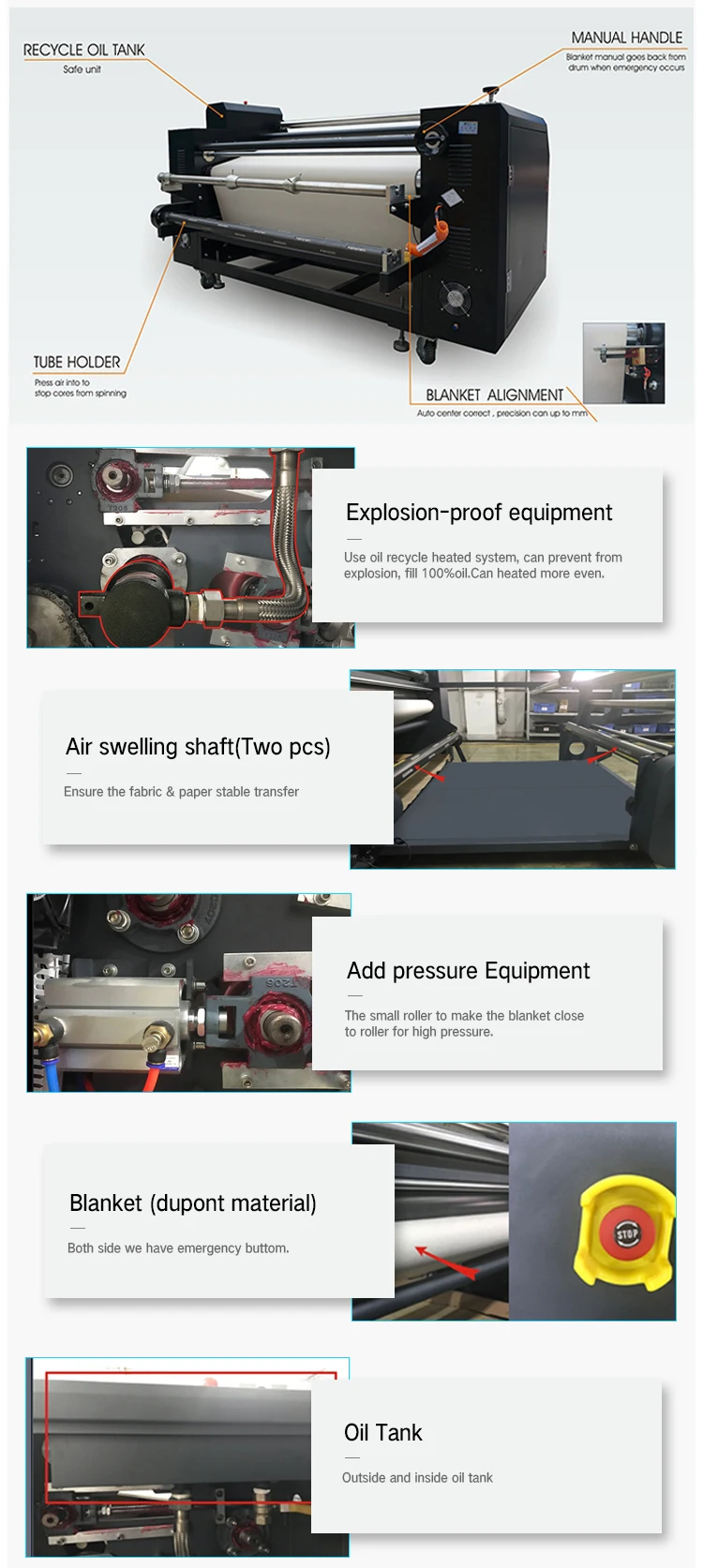

• Use advanced oil temperature heating technology, liquid circulation thermal conductivity, even heating, and excellent therml conductivity.


• Peripheral fuel tank, automatic shut-off valve, convenient to change heat transfer oil, highly safe, explosion-proof.
