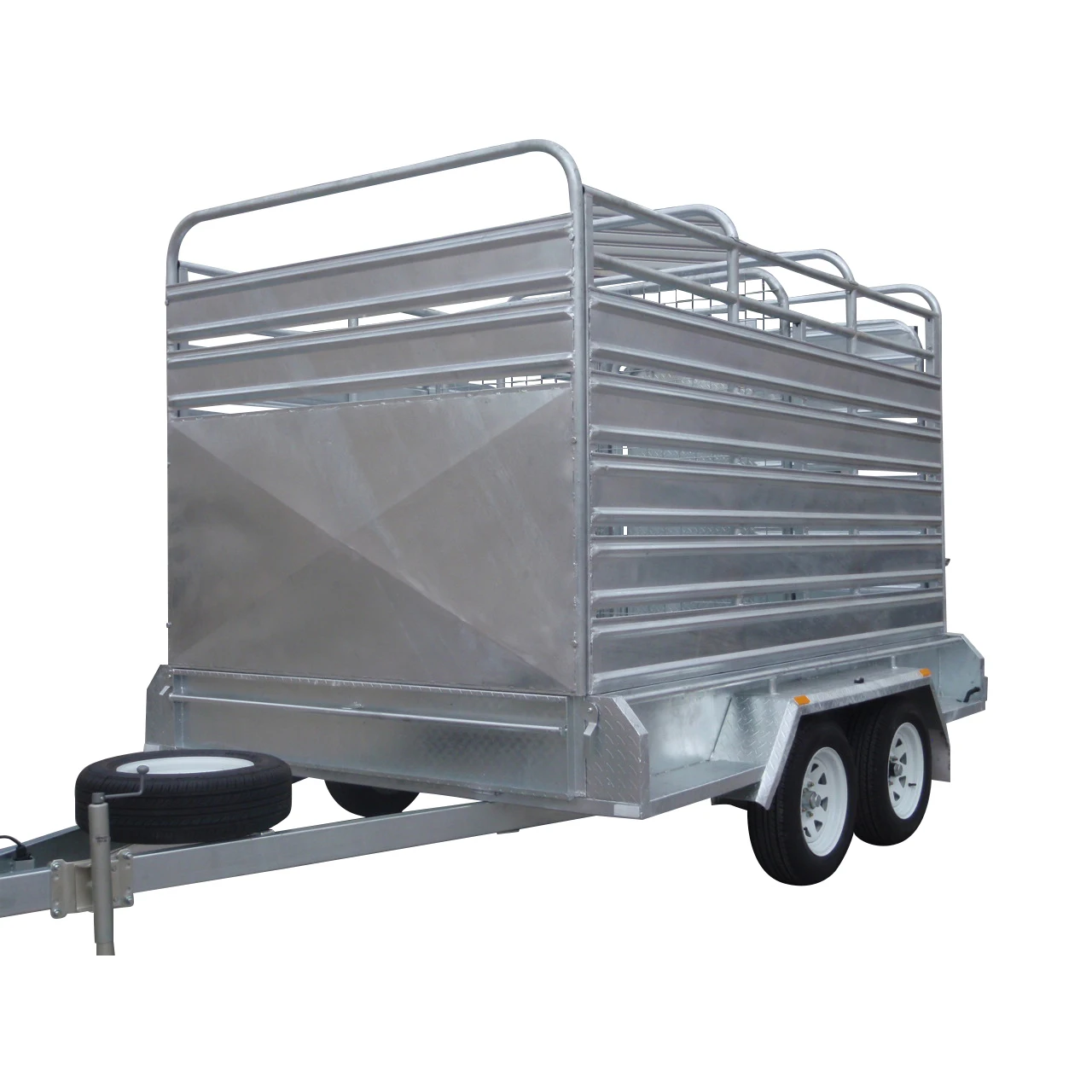

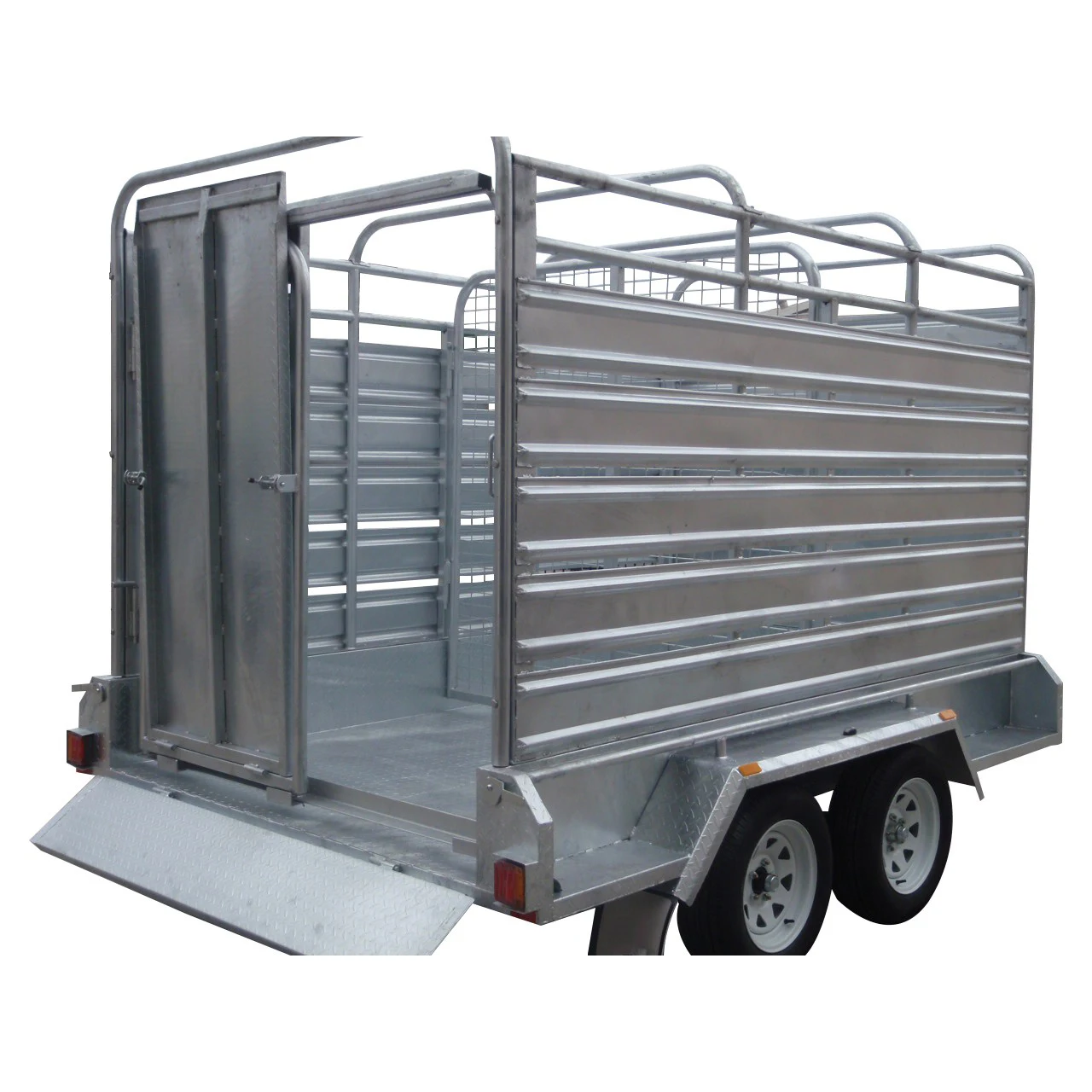

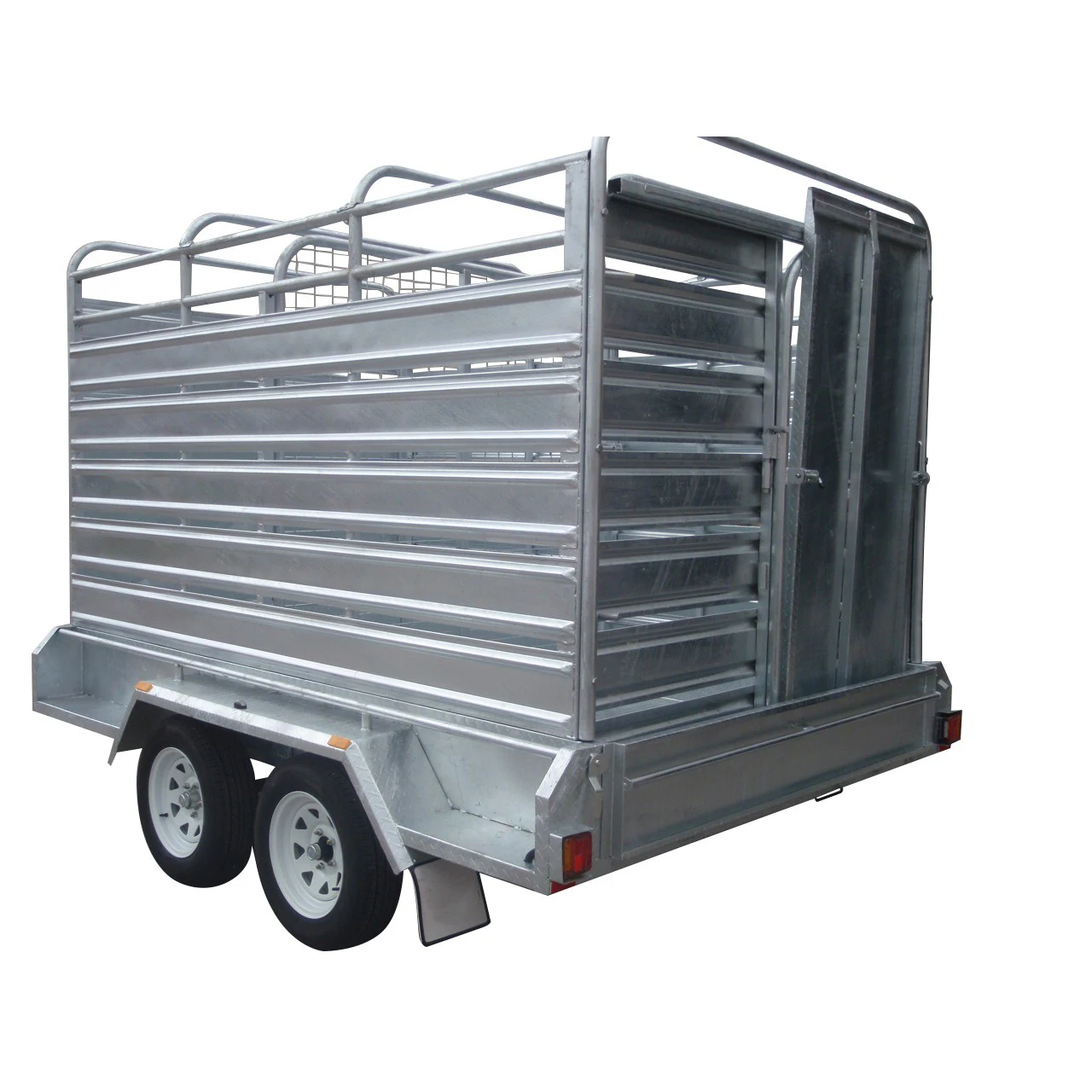

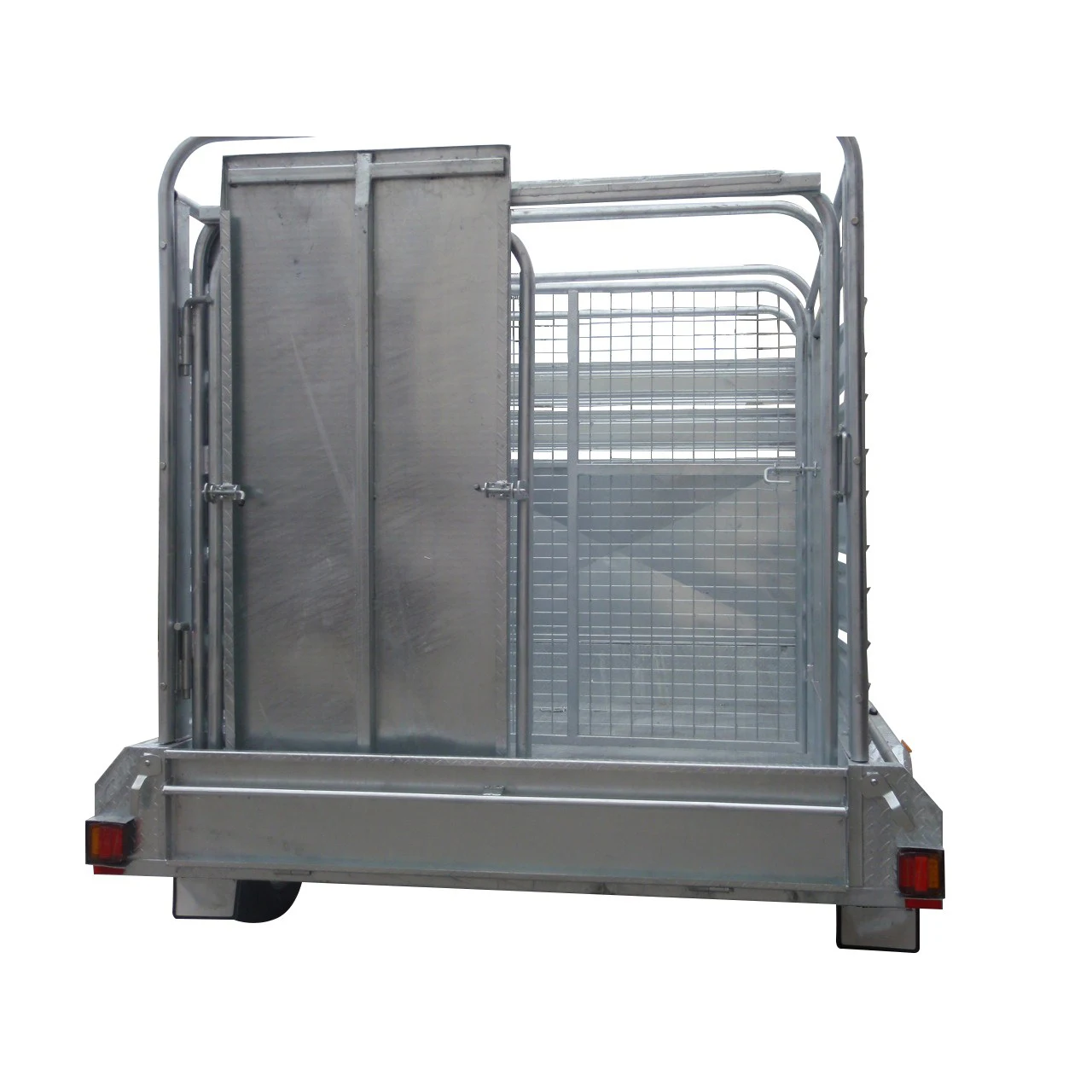

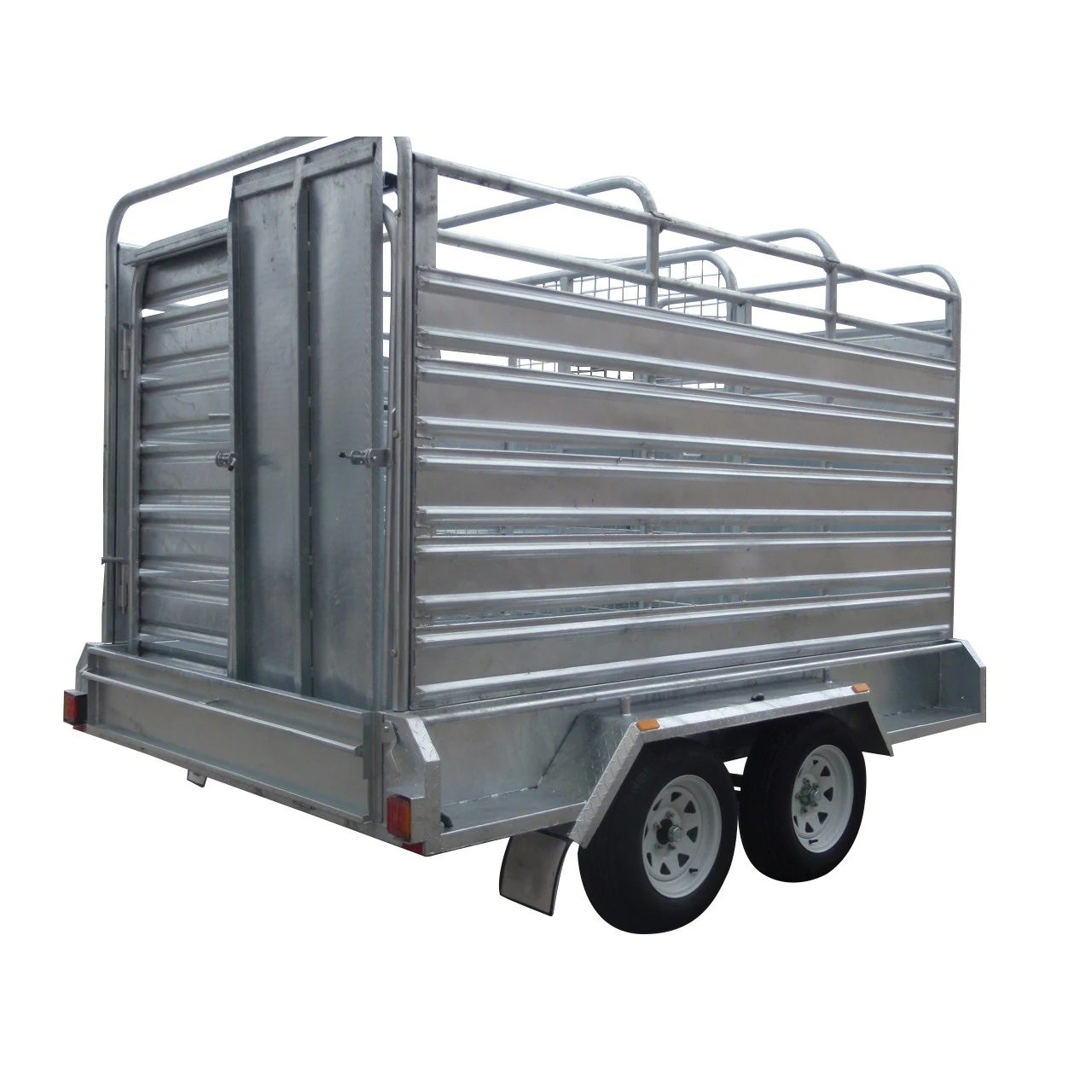

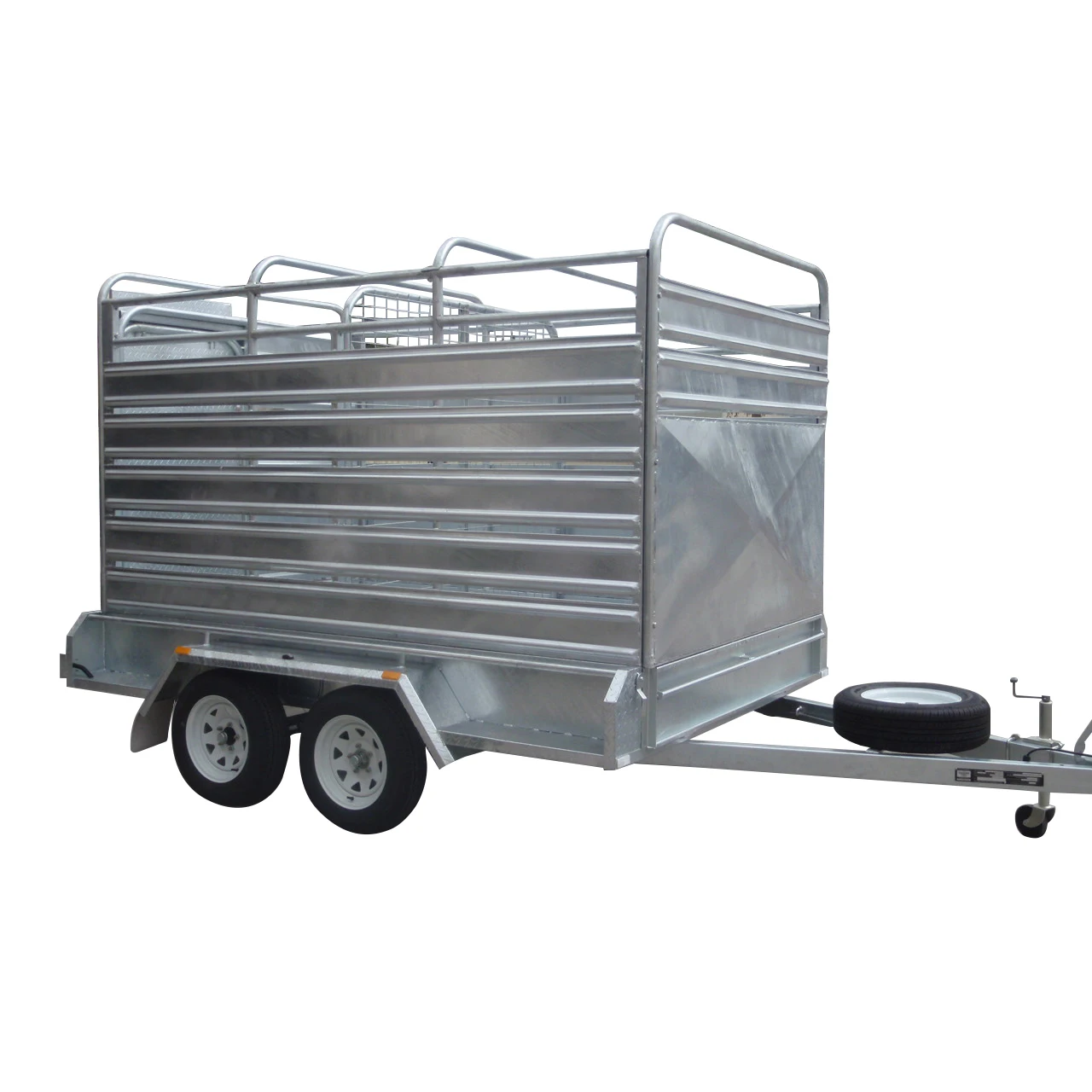

 The 10x6 tandem fully galvanised cattle trailer a perfect stock trailer built to last. Being hot dip galvanised it will help withstand the corrosive pressure of livestock discharge. The 3 in 1 rear door means you will gain versatility to also use cattle trailers in Australia to carry many different items around the farm.











HOT DIPPED GALVANIZED CATTLE TRAILER

l Fully welded not bolt on

l Australian compliance plate

l Inside sizes : 3000x1800x1800mm

l Over all measurement:5400Lx2320Wx2130H

l 1800mm removable cattle crate

l Cattle sizes: 40mmx30mm round frame tube

l From mudguard to mudguard sizes:2320mm

l Wheel base :4050mm

l From hub to hub :800mm

l Draw bar length :1900mm

l Draw bar size: 100x500x3mm

l Total heights from the ground to the top of the mesh cage 2130mm

l Bars underneath the trailer size:40x40x2mm

l Distance support underneath the tray 350mm between bars

l Drop down removable rear and front gate free charge

l Safety chain

l Four Brand new tubeless tires & Steel rims Powder coated (185/70R14)





 1. Hot Dipped Galvanized Tandem Trailer – ATM 3000KG
2. Removable Cattle Crate 1700mm High
3. Rear Gate with Slide / Drop Down Ramp
4. 1900mm Ultra-long Draw Bar
5. 15″ Brand New Sunraysia Rims and Light Truck Tyres
6. Electric Brake System (drawbar mounted Electric Brake Controller available if no    controller in your vehicle)
7.Reinforced Under Floor with Extra Support Beams
8. Fully Welded Heavy Duty Body with RHS Tube Chassis
9. 7 Leaf Heavy Duty Springs with Rocker Roller Suspension
10. Heavy Duty 2.5mm Checker Plate Floor and Guards All Around
11. Front and Rear Fold Down Gates (Removable)
12. Mesh Door Inside of Cattle Crate
Tie Down Rails all Around
Swing up Jockey Wheel
LED Tail Lights
ADR Standard Heavy Duty Chain & Load Rated Shackle
Flat 7 Pin Plug
Total Trailer Height: 2.57m

Options
145.00  Spare Wheel
65.00  Upright Wheel Holder
300.00  Mower Box - Small (takes 25" mower)
350.00  Mower Box - Large (takes 35" mower)
300.00  Tool Box - Rectangle Small 950x500x500mm
300.00  Tool Box - Triangular Small 1200x500x400mm
400.00  Tool Box - Rectangle Large 1200x500x500mm
