Китай высокое качество M430D 2-фазный шаговый мотор

Описание и отзывы

Характеристики

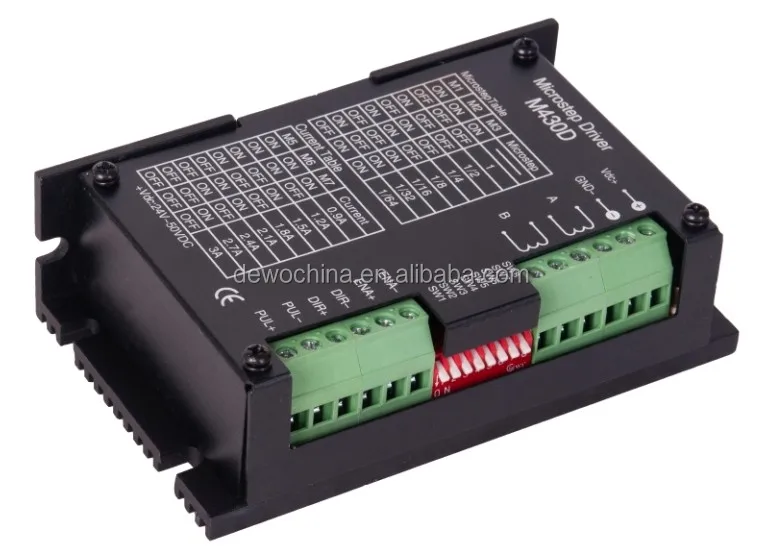

M430D 2 phase stepper motor driver

M430D stepper motor driver features

1.Using brand new imported chips ,adoption of bipolar constant -current chopper technology.

2.Low-noise,Low-vibration and low temperature rising.

3.Voltage 18-40VDC.

4.With 8 stalls output current setting,peak current 3.0A.

5.With 7 stalls microstep subdivision setting.

6.Automatic half current,motor wires miscommected protection.

7.Internal optical isolation,highest frequency response 100KHZ.

8.Suitable for current 0.9-3A 2,4 phase hybrid stepper motor.

Microstep selection

Pulse/Rev	SW1	SW2	SW3
200	off	off	off
400	on	off	off
800	off	on	off
1600	on	on	off
3200	off	off	on
6400	on	off	on
12800	off	on	on

Current Selection

Peak	RMS	SW5	SW6	SW7
0.9A	0.65A	on	on	on
1.2A	0.86A	on	on	off
1.5A	1.10A	on	off	on
1.8A	1.28A	on	off	off
2.1A	1.50A	off	on	on
2.4A	1.72A	off	on	off
2.7A	1.93A	off	off	on
3.0A	2.14A	off	off	off

Dimensions
