AIO 7'' PC industrial Android MINI LCD capacitive touch screen panel fanless PC pad for video baby monitor multi points
Processor | A83T/A64 Cortex-A7 Octa core 2.0Ghz |
Memory | 2G DDR3, 4G/8G optional |
Hard Disk | 8GB EMMC,16G/32G optional |
Network | 3G/4G,Ethernet,WIFI,Wireless device |
Graphics Card | Integrated Graphics Card |
Speaker | Built-in Speaker |
Display Screen | 7 inch LCD screen with LED backlight |
Screen Resolution | 800*480 |
Luminance | 400cd/m2 |
Display color | 16.7M |
Dot Pitch | 0.264mm |
Touch Screen | capacitive/resistive/IR/non-touch |
Bezel Thickness | 3mm or 10mm optional |

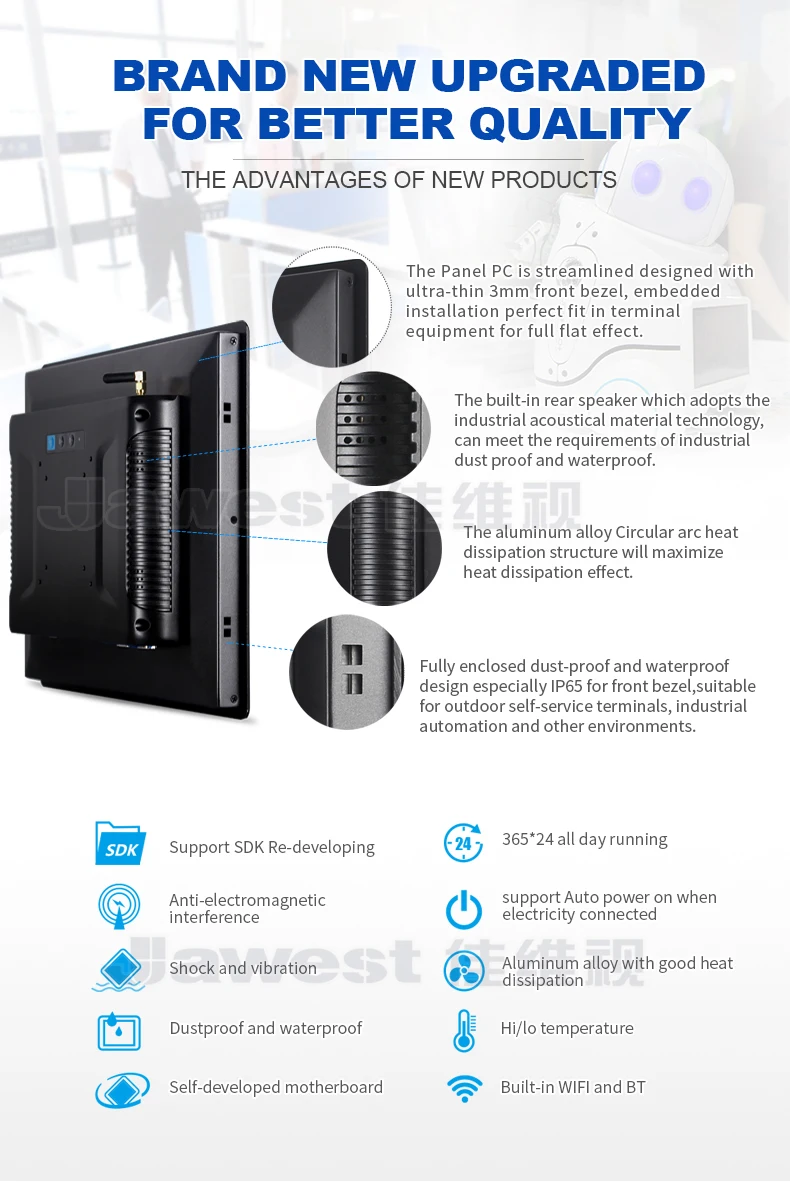

Shell Material | Aluminium Alloy |

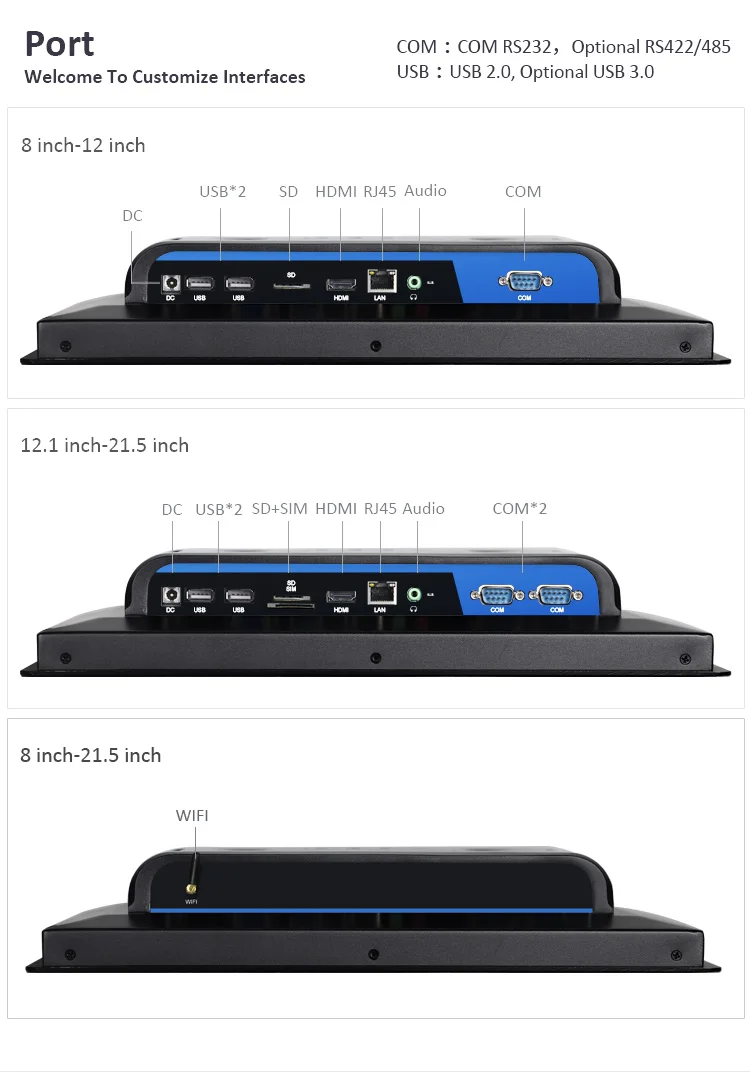

Interface: | USB2.0(OTG)*1 USD2.0(HOST)*1 COM*1 default RS232 protocol HD*1 RJ45*1 network interface Audio I/O *1 WIFI antenna*1 DC 12V power interface*1 TF card slot*1 Other interface need to be customized. |
Power Supply | DC 12V input Voltage |
Power Consumption | ≤60W |

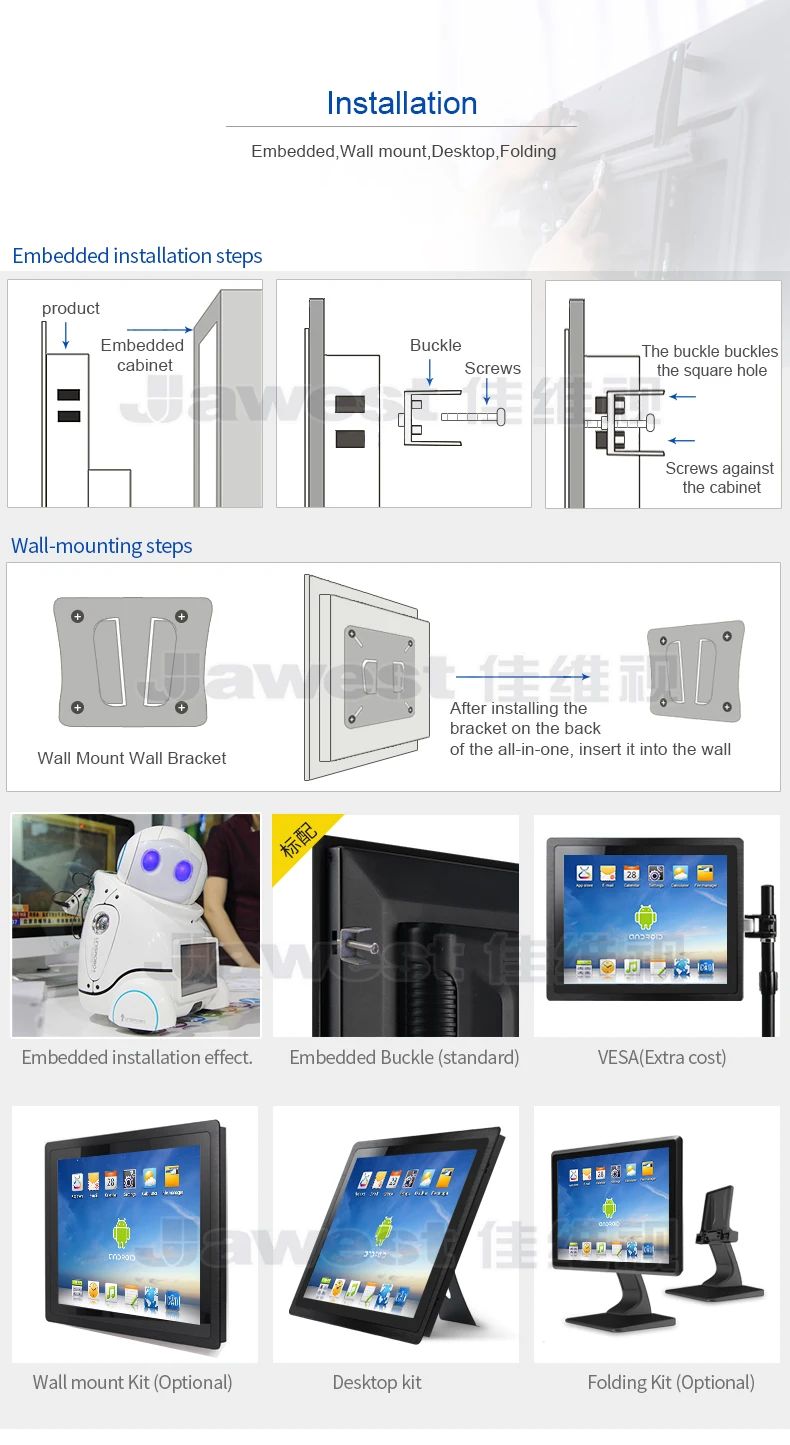

installation | Embedded,Wall-mounted,Desktop,Folding bracket/VESA bracket. |
OS | Pre install Android 4.4, Android5.1/6.0/7.0 customized. |
Working temperature | -10℃-60℃ |
Storage temperature | -40℃-85℃ |
Relative Humidity | 5-85%(non-condensing) |
View Angle | 160°,customized 178° |

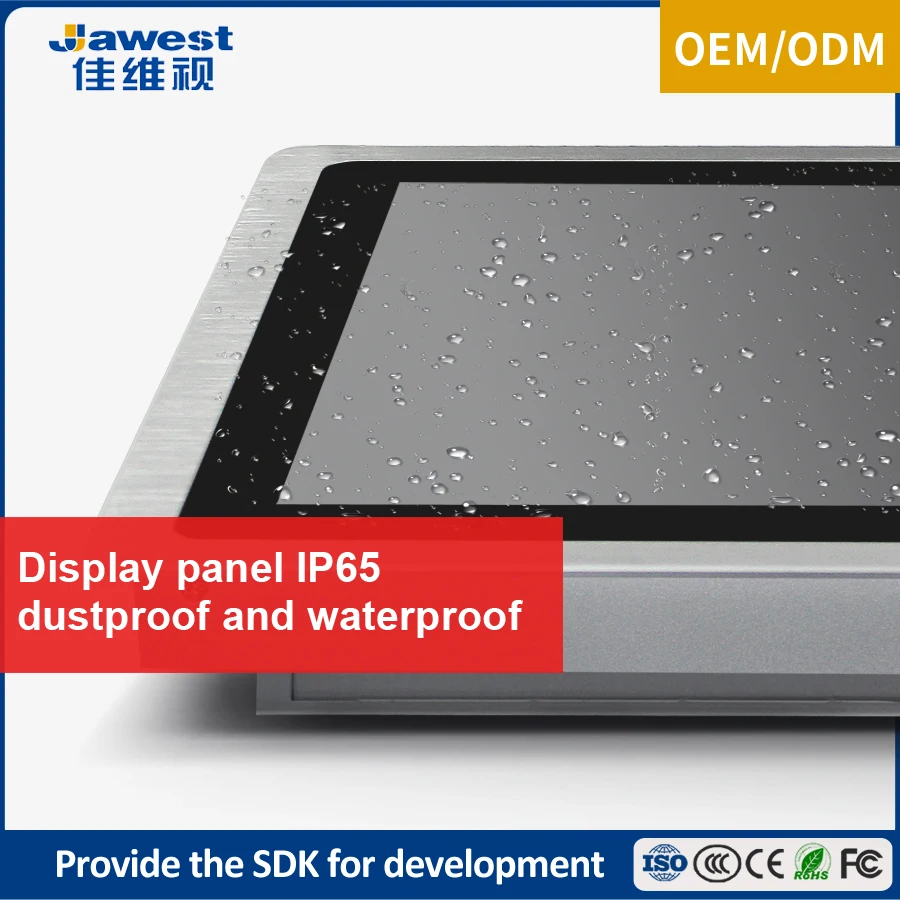

Protection class | Front Panel IP65 dustproof & waterproof |
Lifespan | ≥50000hrs |
GTG | 5ms |
Warranty | 1year |
Click Here for More details

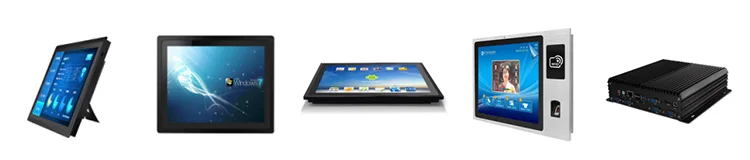

Industrial LCD Monitor | Industrial Panel PC | Android Panel PC | ODM Project | Industrial Box PC |
Packaging Details:carton with foam.
Delivery Time:Shipped in 3-5days after full payment for samples order,Quantity order need 15-20 working days.OEM or ODM order,the lead time is negotiated

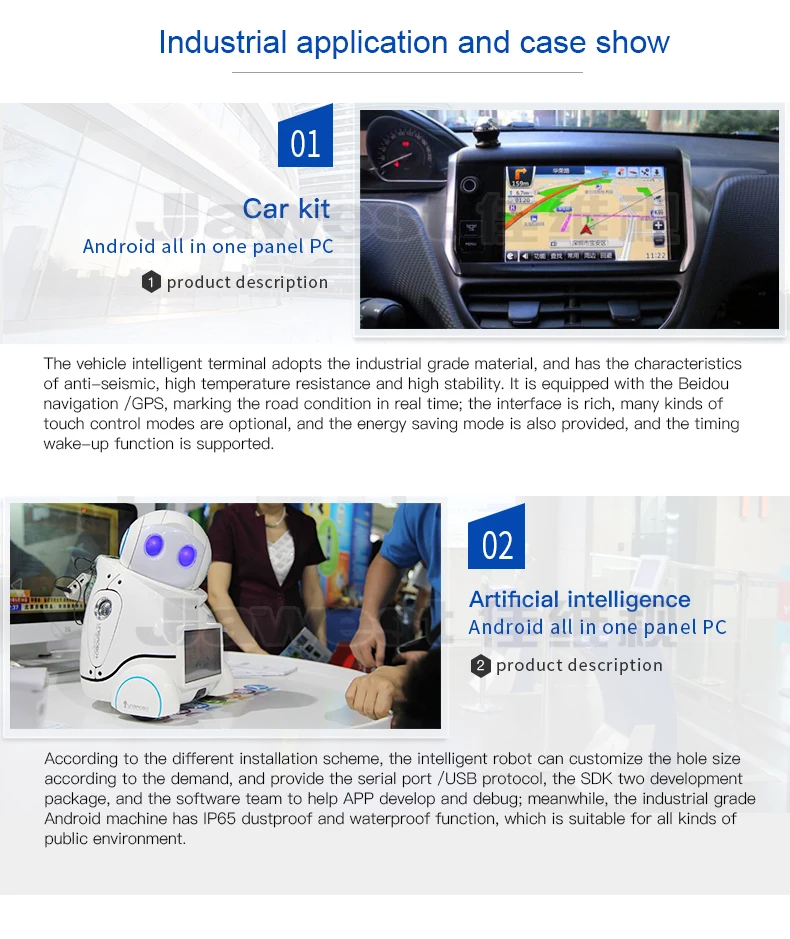

Jawest Electronic Technology Co.Ltd. is a leading and advanced ODM/OEM manufacturer of Industrial Automation equipment.Our products include: Industrial Panel PC, industrial monitor, POS Terminal and biometric scanner. Widely used in the Government and Military, Interactive Kiosk, mechanical equipment, industrial automation equipment, transportation command and control centers,supermarkets, shopping malls, chains store, baking shop, electricity, post, telecommunication, catering, exhibition and other information dissemination occasions.
We sincerely hope that by setting up the standard of top quality with tangible price, we can help restore the true value of a commercial product, and by doing so create a better life for everyone.
Product Size | Screen resolution | Screen Ratio |
8 inch | 800*600,customized1024*768 | 4:3 |
10.1 inch | 1366*768 | 16:9 |
10.1 inch | 1280*800,customized1920*1200 | 16:9 |
10.4 inch | 1024*768 | 4:3 |
11.6 inch | 1920*1080 | 16:9 |
12 inch | 800*600,customized1024*768 | 4:3 |
12.1 inch | 1280*800 | 16:10 |
15 inch | 1024*768 | 4:3 |
15.6 inch | 1366*768 | 16:9 |
17 inch | 1280*1024 | 4:3 |
17.3 inch | 1920*1080 | 16:9 |
19 inch | 1280*1024 | 4:3 |
19 inch | 1440*900 | 16:10 |
21.5 inch | 1920*1080 | 16:9 |
