Портативная лазерная машина для удаления ржавчины с ЧПУ 60 Вт

Описание и отзывы

Характеристики

60 watt 100 watt portable laser rusty removal CNC cleaning machine

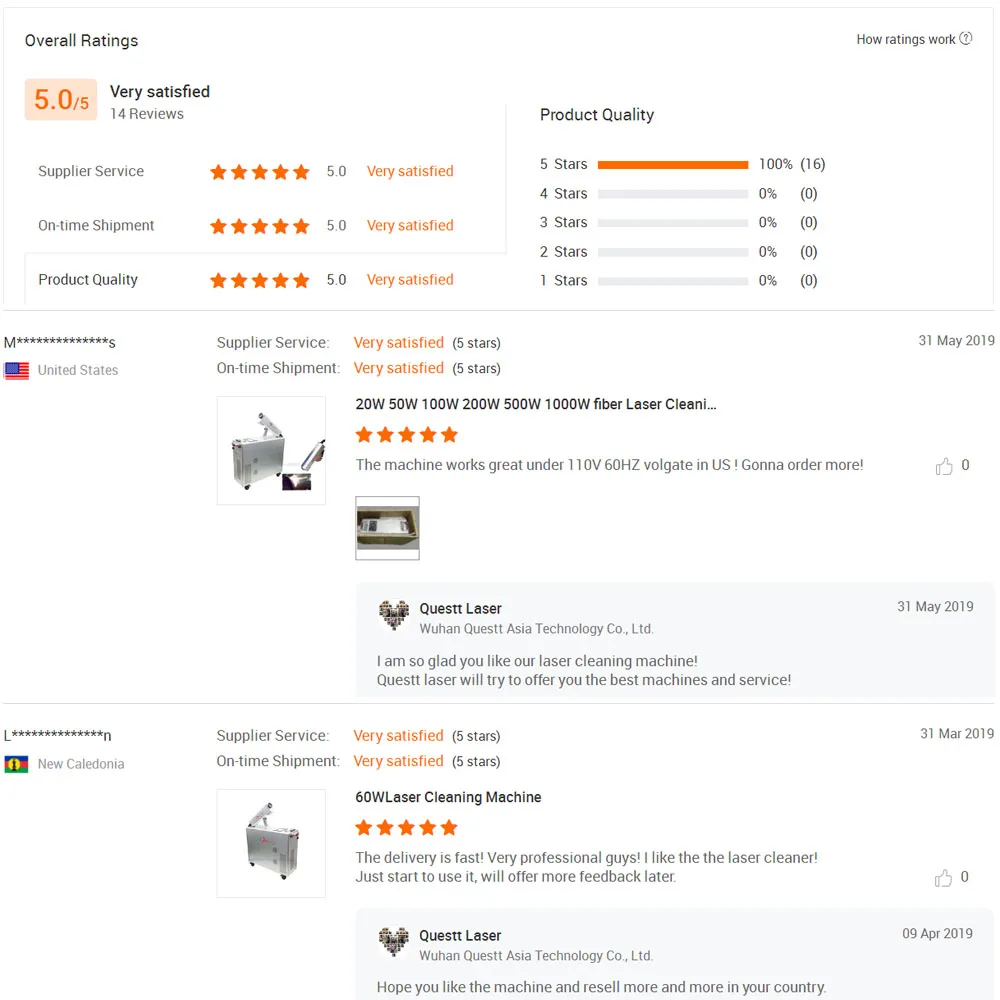

 Reviews of online orders for laser rust removal machine:

Machine introduction

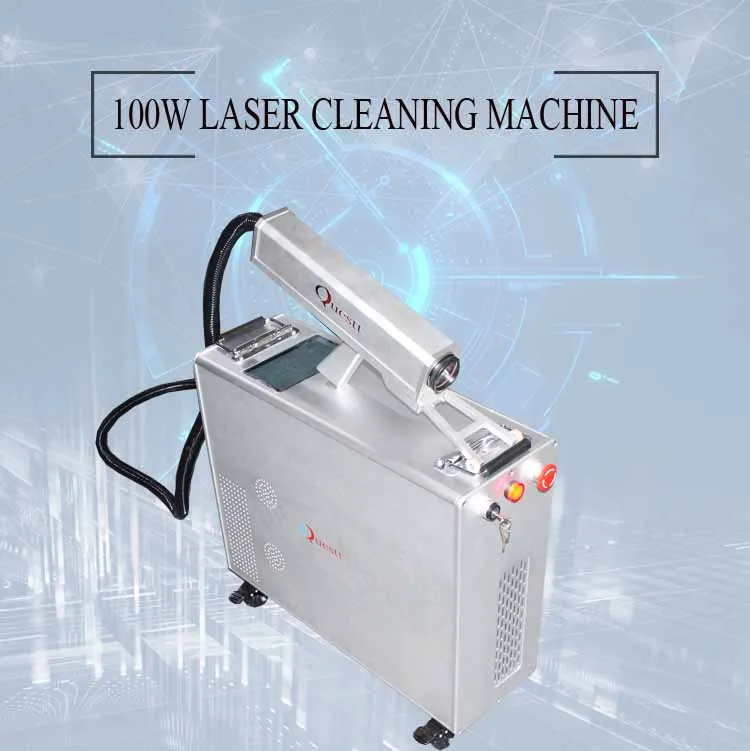

Laser cleaning Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.



Contaminant



The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure 1) are the most difficult to destroy. Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants



Specification



Model	QA-LC50	QA-LC60	QA-LC100	QA-LC200
Laser source	Fiber	Fiber	Fiber	Fiber
Laser Power	50W	60W	100W	200W
Laser Wavelength	1060um	1060um	1060um	1060um
Pulse frequency	20-100KHz	20-100KHz	20-100KHz	20-100KHz
Cooling	Air	Air	Air	Water chiller
Dimension	760*780*790mm		1100*950*700mm
Weight	40Kg	42Kg	66Kg	178Kg
Scanner width	10-60mm	10-60mm	10-60mm	10-60mm
Optional	Manual/Automation/Customers
Temperature	5-40 ℃	5-40 ℃	5-40 ℃	5-40 ℃



Principle

1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;

2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;

3 instant to make the dirt molecules evaporate, gasification or decomposition



Application

Widely used for the surface laser degreasing, laser paint removal, laser removal of zinc, laser film removal, laser cleaning, such as coating, etc

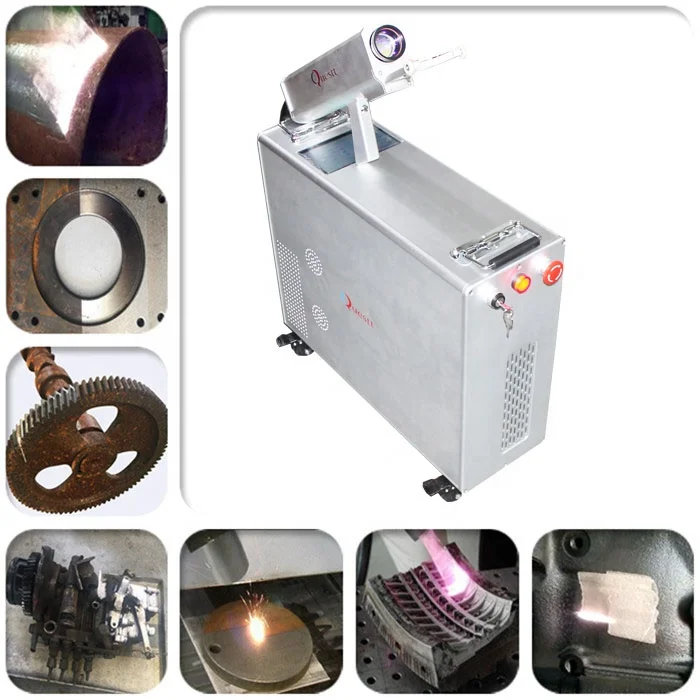

Cleaning Samples



1.Q:What is the warranty of the laser cleaning machine?

   A:2 years.

2.Q:Are you a factory or trading company?

   A:Quesstt Laser is a factory for 22 years.Got import and export License.

3.Q:How about the quality?

   A:Technology is from Germany.High quality best price.

4.Q:What is your after-sale service?

   A:If needed,Questt Laser offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!

5.Q:How do i get technical support after purchasing?

   A:Questt Laser offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.

 6.Q:How can i get assurance of my Payment?

 A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
