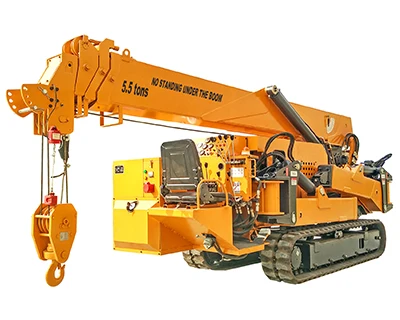

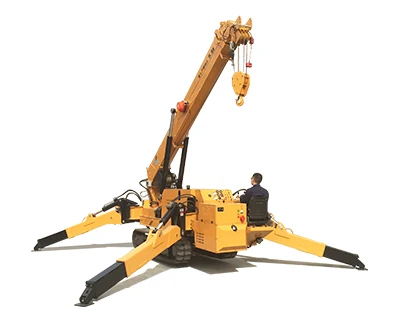

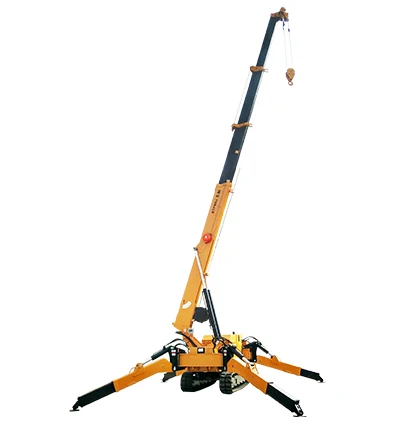

Портативный строительный мини-кран Beta 16 6 м 5 тонн мобильный кран с

Цена:60 000,00 $ - 79 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Products Description

Technical data:

Model			HXB 5.5
Crane capacity			5.5tx1.8m
Max working radius			12.8m
Max lifting height			14m
Max underground lift			21m
Winch	Hook up speed	10m/min（4 falls）
Winch		Diameter and length of wire rope	Ø10mm×80m
Telescopic system	Boom length	4.7-13.5m
		Telescoping speed	8.8m/27.6 seconds
		Boom type	4-section hydraulically box beam ，telescoping boom
Derrick	Derricking angle/speed	0-80°/25 seconds
Slewing	Slewing angle	360° (continuous) 1.6rpm
Outrigger	Form of outrigger	Automatic
Outrigger		Max extend range	5170×5807×5423mm
Traction system	Drive	Hydrostatic，stepless forward and reverse
		Travel speed	0-3km/h
		Gradeability	32%
		Track	Synthetic rubber
		Track ground length	2.1m
		Track ground pressure	41.3Kpa
		Track width	300mm
Engine	Diesel	Diesel engine ：Weichai WP3.2 36.8kw tank capacity 50L
Dual power optional			Diesel + Electric motor
Motor	Power	7.5KW
Motor		Voltage	380V/50Hz and optional for others
Remote control	Operation	Boom rotation, boom luffing, boom telescopic, hook up and down, emergency stop button
Dimension	Folded	4960(l) x 1360(w) x 1980(h)mm
Weight	Unladen	5500Kg
Hydraulic tank capacity			90L
