Горячеоцинкованный забор ящики для свиней оборудование

Main Features

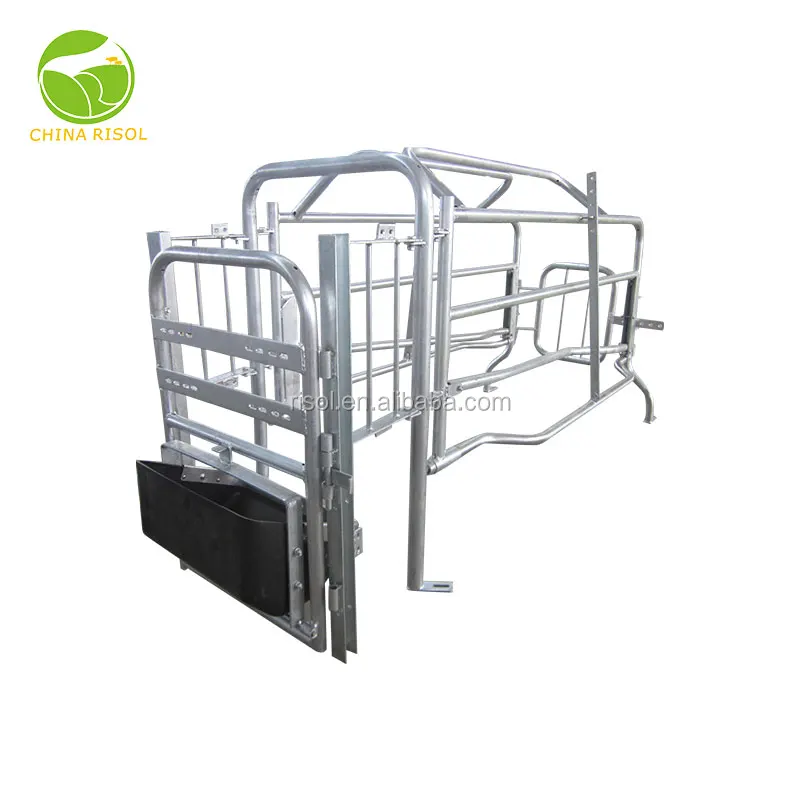

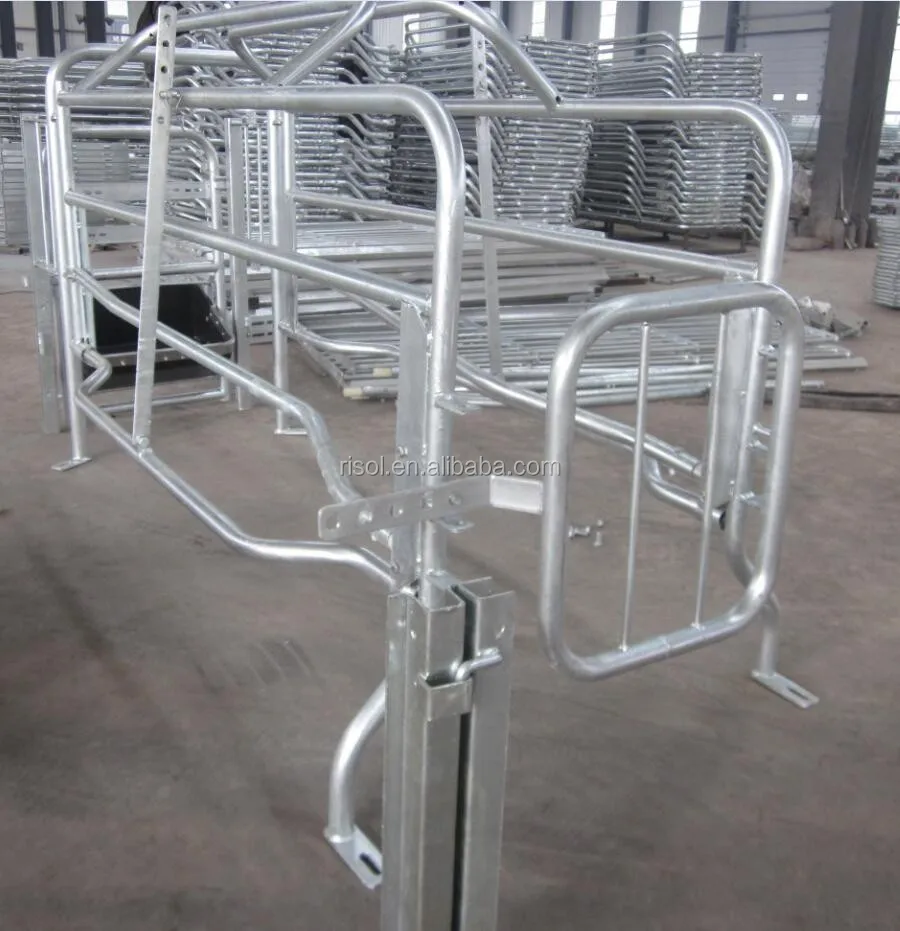

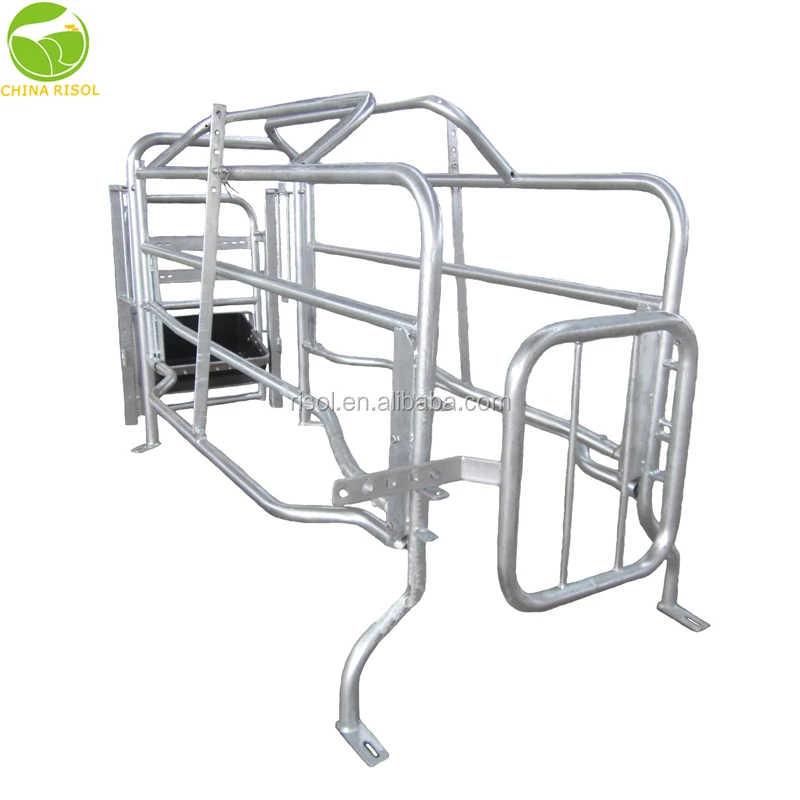

Name: Sow crates

Brand: China Risol

Original: China

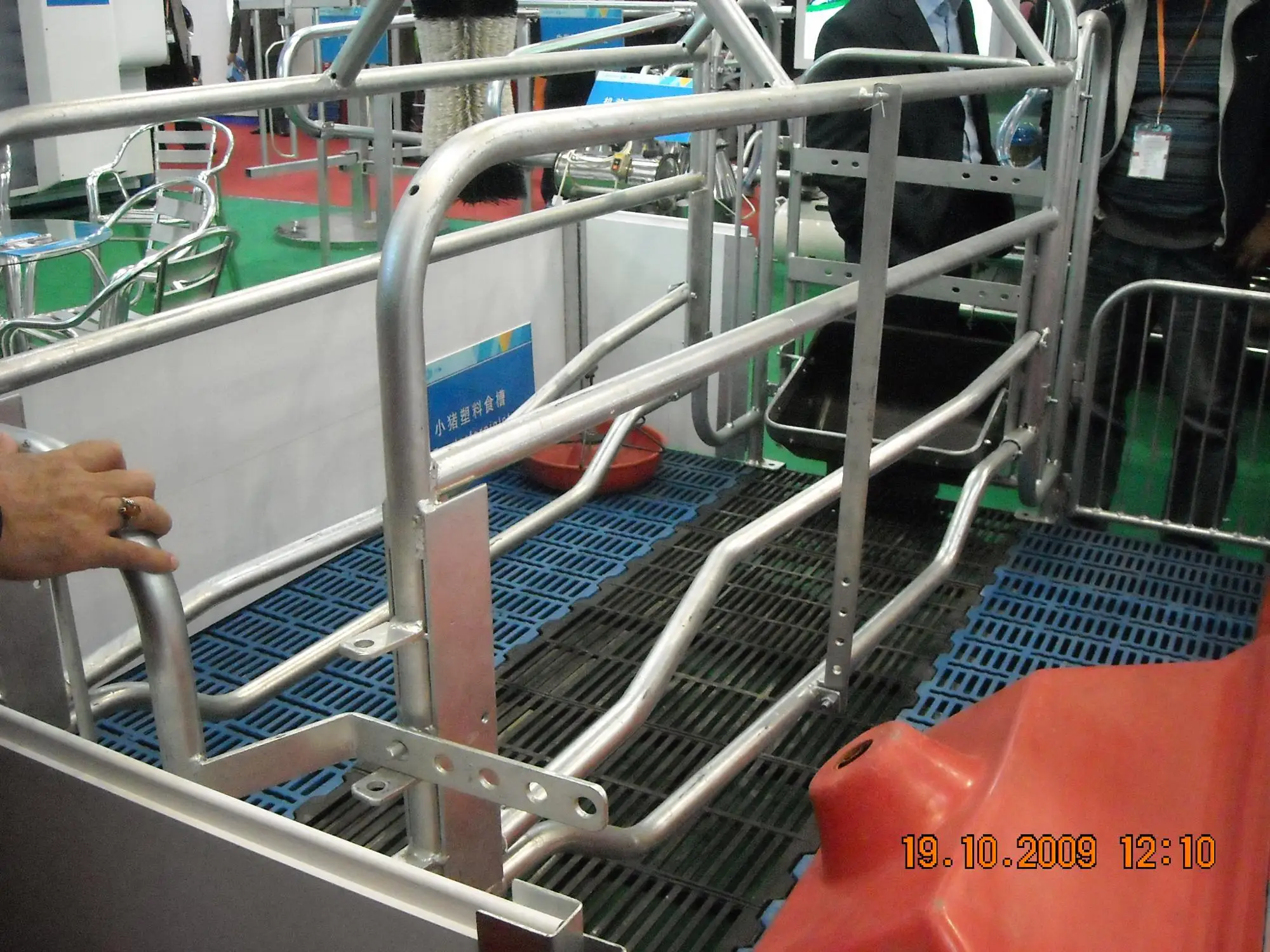

The 2 pieces anti-pressing bars shortest distance is 35 cm between with each other and will slow down the speed of sow lying rate, protect the piglet. There are enough free safe passage for piglets.

The High pressure double crank to control the die opening and closing. 2 pieces adjusting mechanism, adjustable rail so the piglets can have full access to the teats.

The back door of crate could be adjustable and suitable for the different stage of sow growth and provide more space for the sow.

Main Features

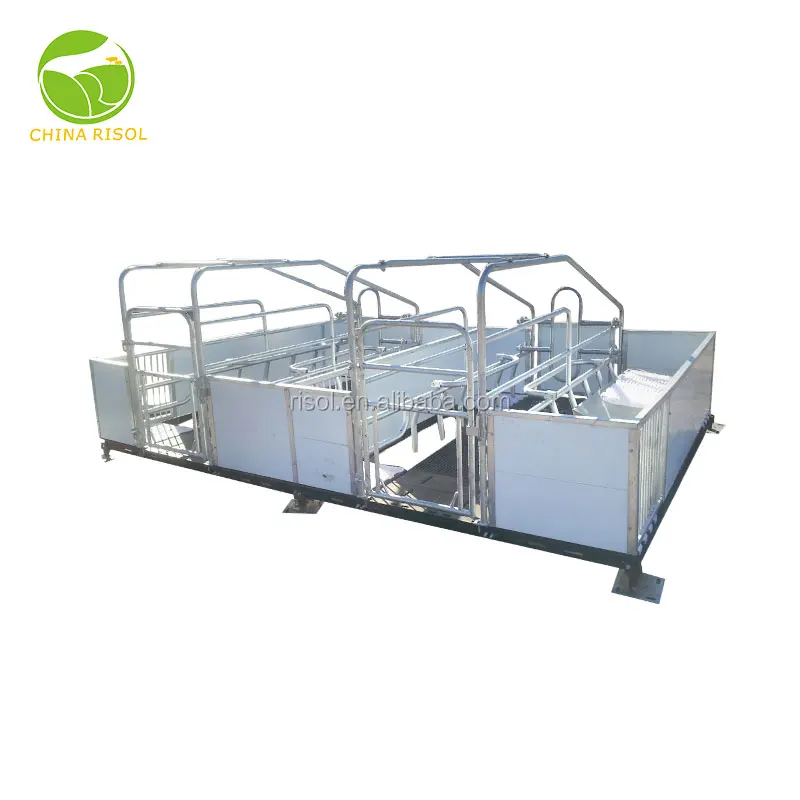

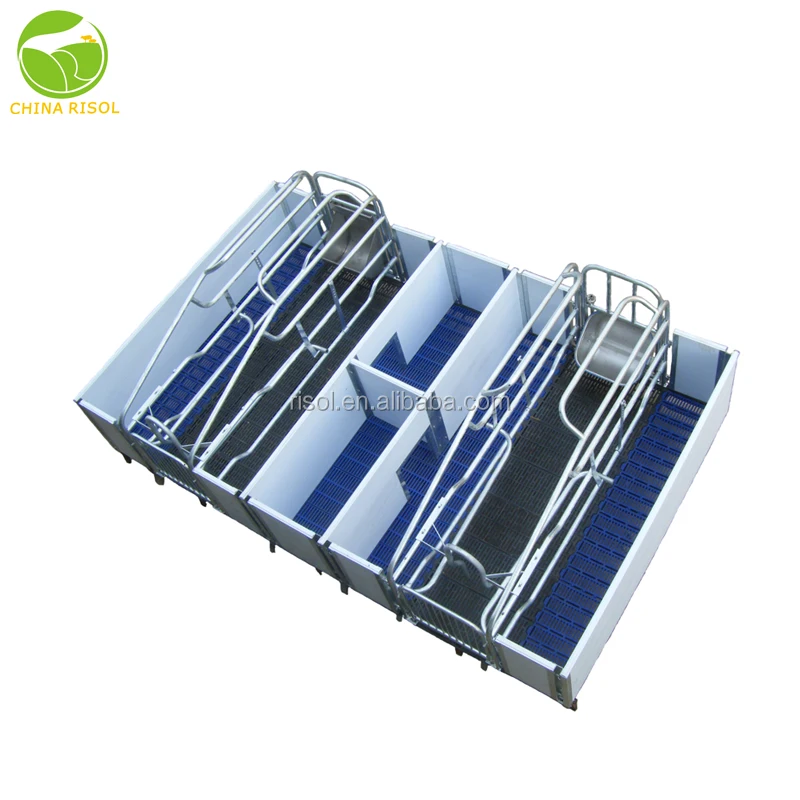

Name: Piglets PVC panel
Brand: China Risol
Original: China

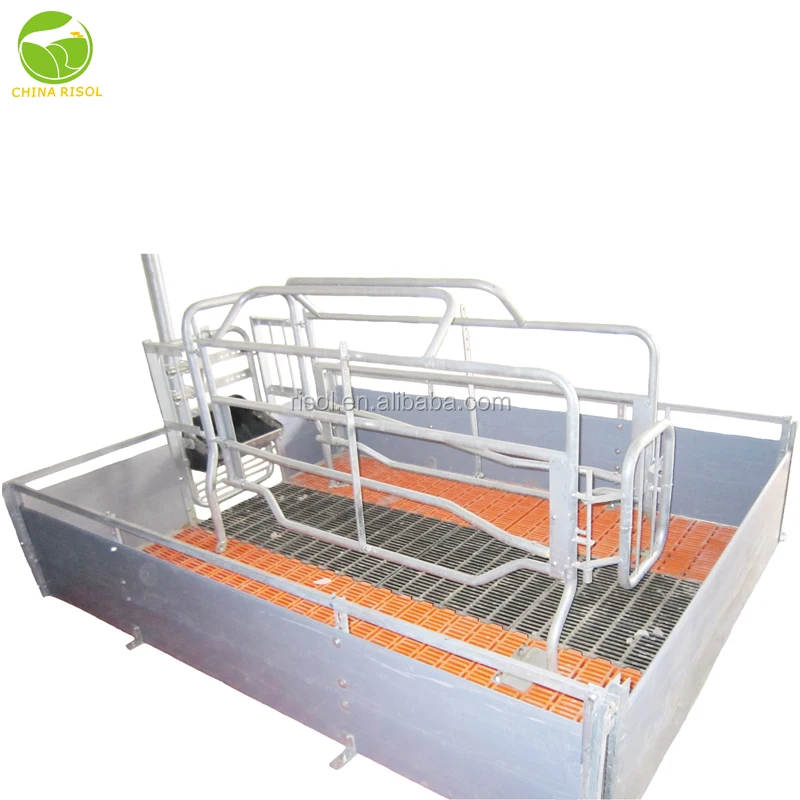

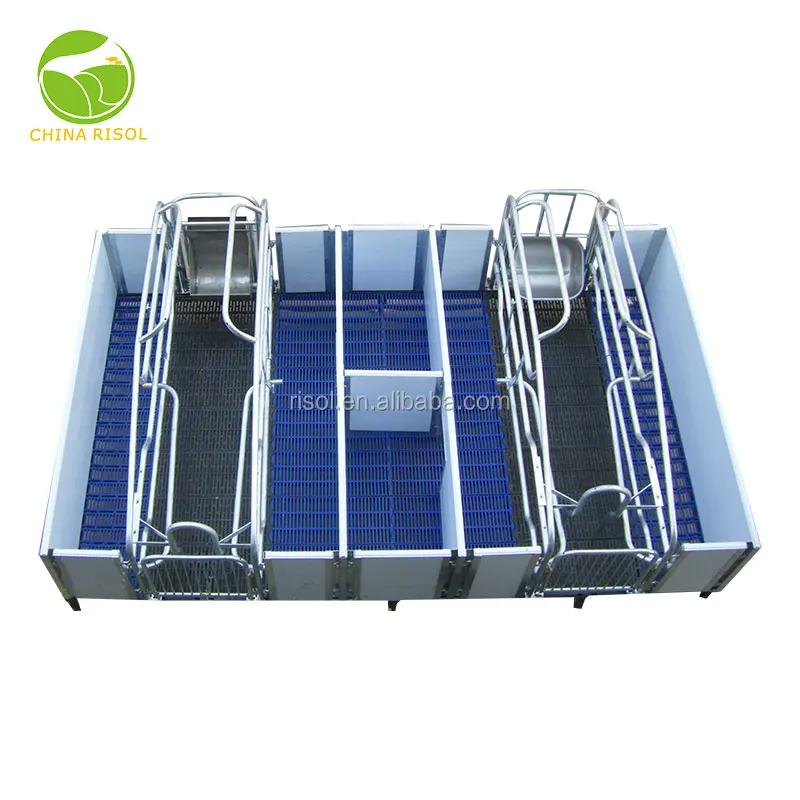

Between galvanized sow crate and PVC panel, there is 20 mm width piglets passage. The piglet can walk around the sow, increase piglet activity, and good for its growth and health. The 1800 mm length PVC back door could be completed easily removed by one person and special design of back door is convenient to drive out pigs.

Main Features

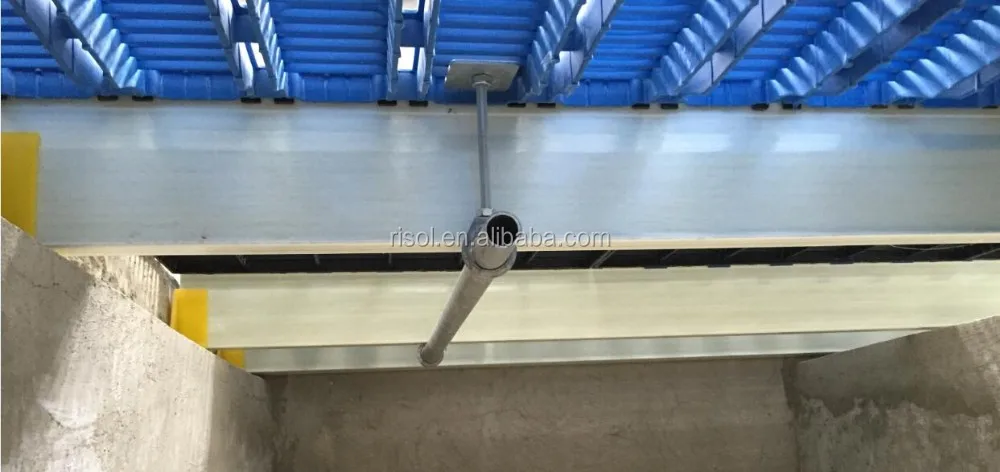

Name: Pig slat floor and support beam
Brand: China Risol
Original: China
Sow floor 600 mm width ductile iron floor protect sow trample the piglet plastic floor. The last cast iron floor could be chosen with big leakage dung hole which is convenient to clean pig manure.

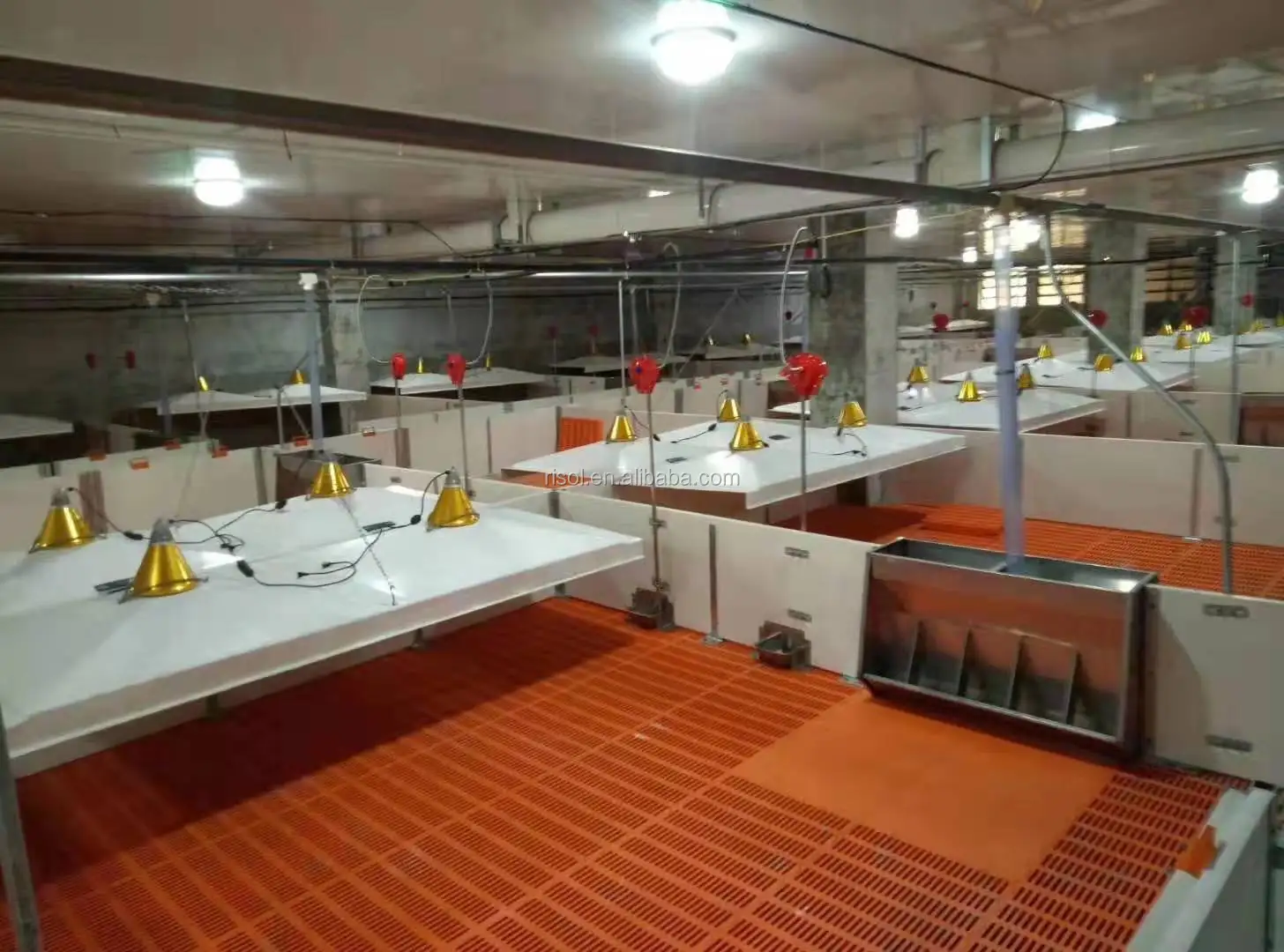

Piglet plastic floor is for piglet area and dropping manure wide is 10 mm. Pay attention to the blind floor or rubber mat under the heat lamp. Ensure the insulation effect and reduce the risk of diarrhea in piglets
Support beam 2.4 m length beam FRP beam or cast iron, galvanized beam

Main Features

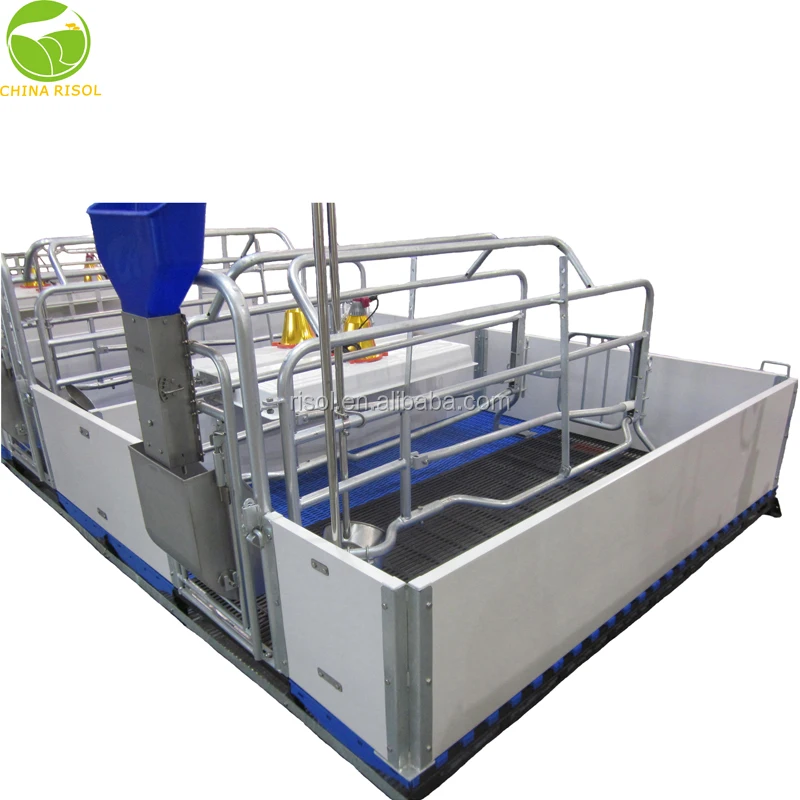

Name: Sow feeder
Brand: China Risol
Original: China

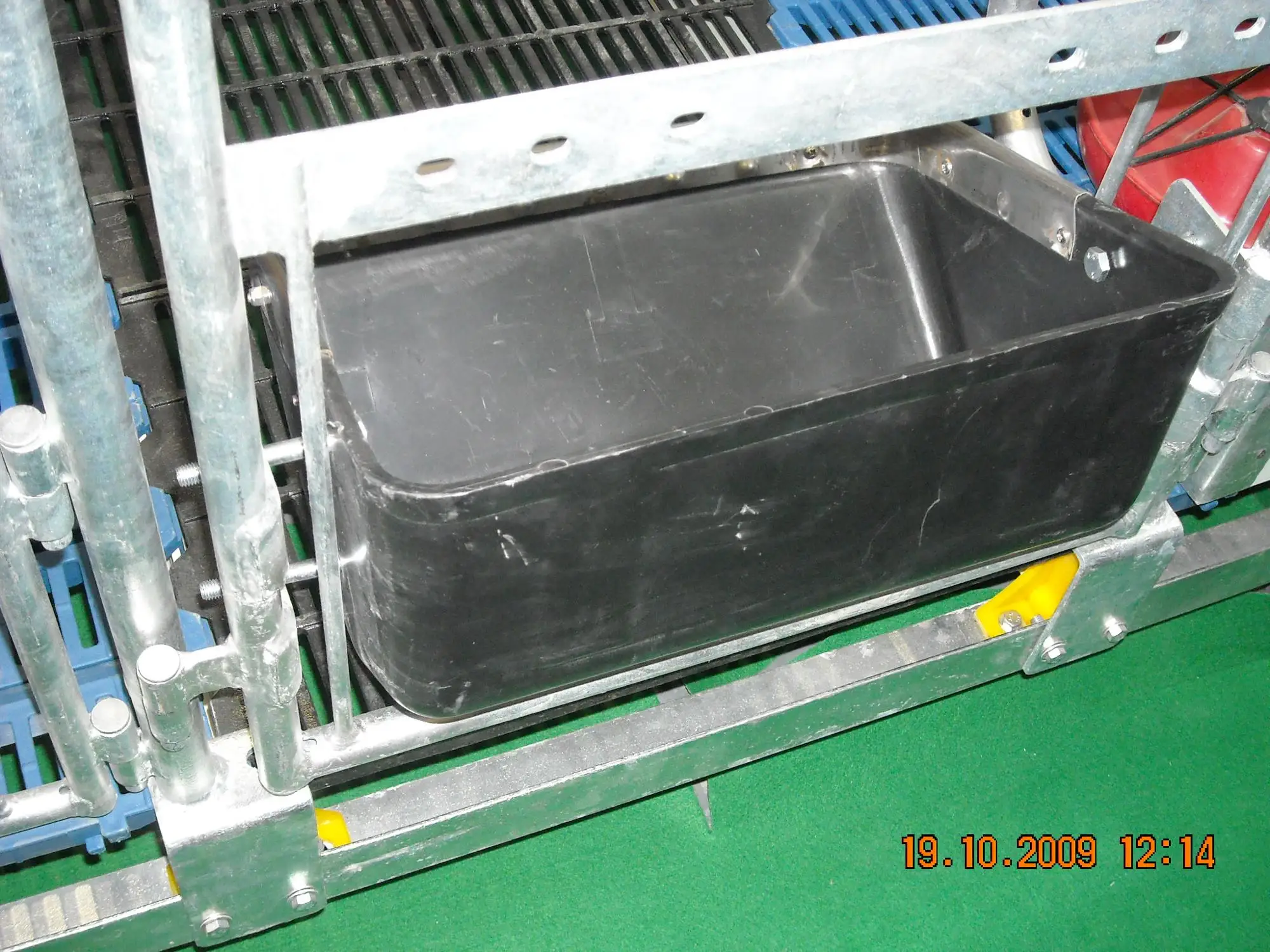

It is including PE feeder with SS fold edge, one time molded SS feeder and welded SS feeder. The flip bracket for sows feeder is hot-dip galvanized material.
