Портативный лазерный аппарат для удаления краски IPG машина ржавчины 1000 Вт производитель

Описание и отзывы

Характеристики

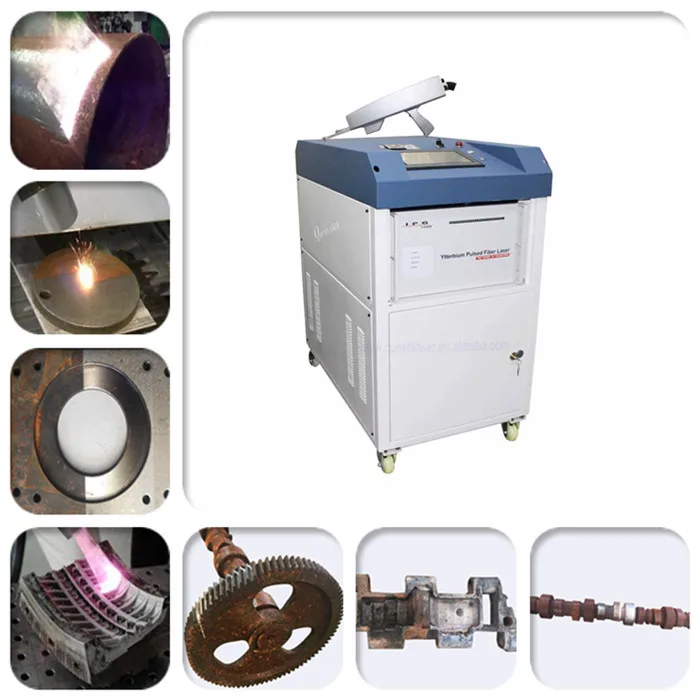

Portable IPG laser paint removal machine rust cleaning machine 1000watt wuhan manufacturer

Machine introduction

Laser cleaning Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.



Laser dry cleaning method:
Use pulses laser to clean rust directly, it will generate vibration after the laser energy is absorbed by the base or particles, then seperate the base and comtaminant.



Specification



Model	QA-LC60	QA-LC100	QA-LC200	QA-LC500
Laser source	Fiber	Fiber	Fiber	Fiber
Laser Power	60W	100W	200W	500W
Fiber cable L	3 M	3 M	5 M	10M
Pulse Energy	1.5 mJ	1.5 mJ	10 mJ	50 mJ
Wavelength	1060nm	1060nm	1060nm	1060nm
Frequency	50-500KHz	50-200KHz	20-50KHz	10-50KHz
Clean speed	≤5 M²/Hour	≤10 M²/Hour	≤15 M²/Hour	≤50 M²/Hour
Scann speed	0-7000mm/s	0-7000mm/s	0-7000mm/s	0-7000mm/s
Cooling	Air cooling	Air cooling	Water cooling	Water cooling
Dimension	450*350*500	500*400*550	900*600*1100	1600*1100*1800
Weight	30Kg	40Kg	120Kg	300Kg
Beam width	10-100mm	10-100mm	10-100mm	10-100mm
Optional	Manual	Manual	Manual	Manual
Temperature	5-40 ℃	5-40 ℃	5-40 ℃	5-40 ℃
Voltage	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ	Single Phase 220V, 50HZ

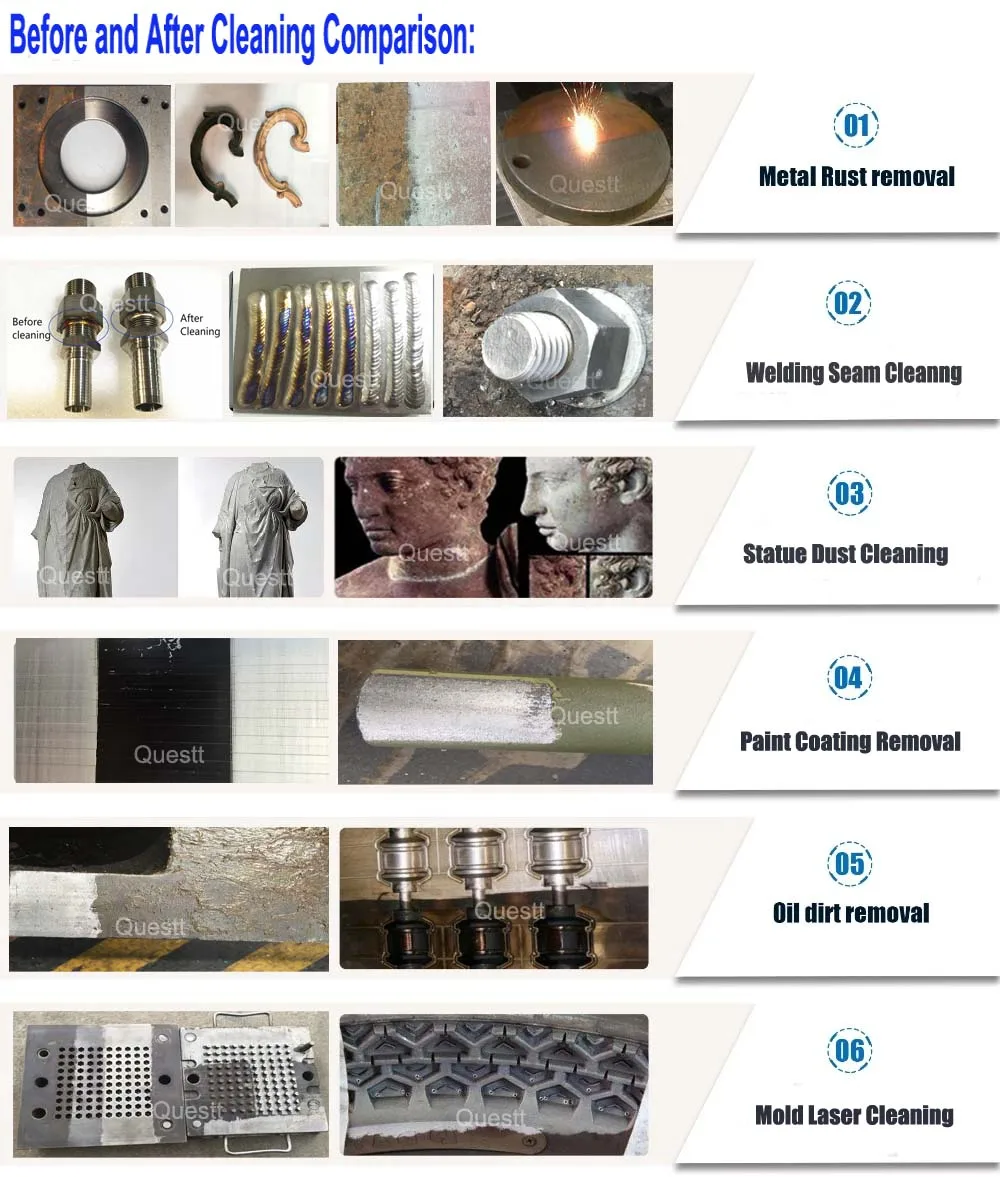

Application

Laser rust removal 60w is widely used for the surface laser degreasing, laser paint removal, laser removal of zinc, laser film removal, laser cleaning, such as coating, etc







1.Q:What is the warranty of the laser cleaning machine?

   A:2 years.

2.Q:Are you a factory or trading company?

   A:Quesstt Laser is a factory for 22 years.Got import and export License.

3.Q:How about the quality?

   A:Technology is from Germany.High quality best price.

4.Q:What is your after-sale service?

   A:If needed,Questt Laser offer door to door service !we can send engineers to your factory for assembling ,adjusting and training!

5.Q:How do i get technical support after purchasing?

   A:Questt Laser offer online service in English through Skype,WhatsAPP,Wechat or Email etc .If need remote operation,we can use TeamViewer software.

 6.Q:How can i get assurance of my Payment?

 A:Alibaba have Trade Assurance,you can pay throught Alibaba first.
