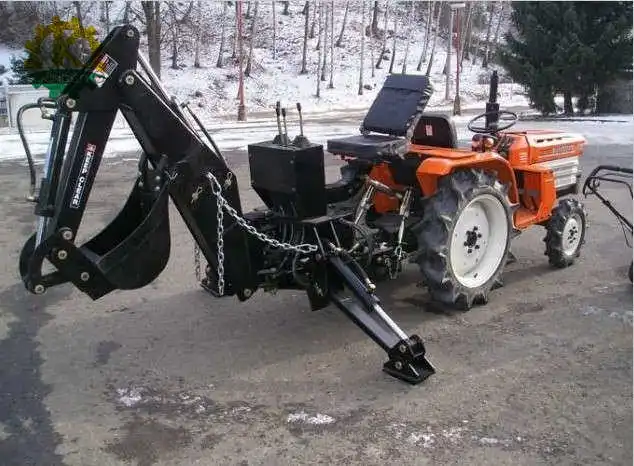

Mini Backhoe Loader used different size digging buckets

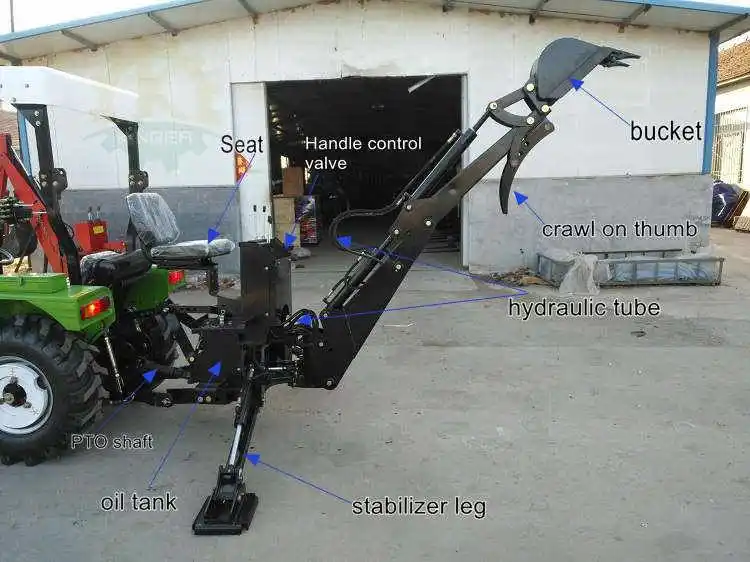

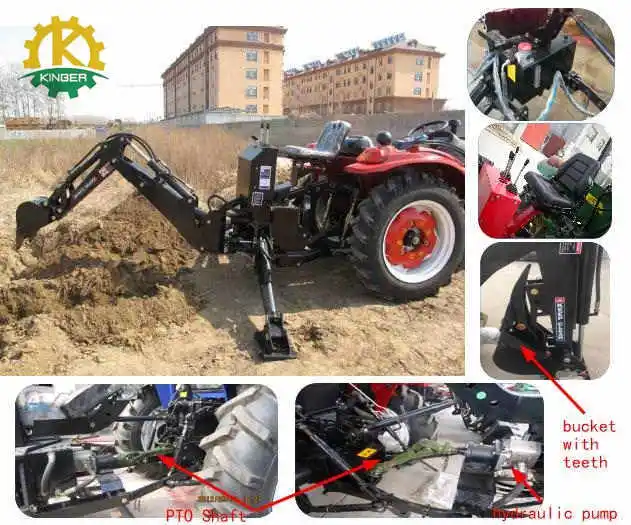

Feature of backhoe loader:
1. Matched any tractor .
2.Powered by PTO driven with hydraulic pump.
3.3-point hitched backhoe,steady structure
4.Oil tank ,oil show, gas-permeable cap
5.claw on boom, handed control valve
6.luxury spring seat and safety belt.
7.Optional buckets
8.Work independently, only need vehicle to tow to the working destination
9.Can be used for garden digging and construction digging
Detailed Specification of backhoe loader:
Model | LW—6 | LW—7 | LW—8 | LW—9 | LW—10 | LW—12 |
Fitting power | 16-35 hp | 25-75 hp | 45-85hp | 50-100hp | 70—125hp | 80-150hp |
Max. digging depth | 1850 mm | 2150 mm | 2640 mm | 2900 mm | 3000 mm | 3500 mm |
Digging depth Flat bottom | 1600 mm | 2000 mm | 2500 mm | 2760 mm | 2800 mm | 3350 mm |
Max. digging height | 2500 mm | 3400 mm | 3510 mm | 3900 mm | 4000 mm | 4300 |
Loading heigh | 1400 mm | 1760 mm | 2000 mm | 2362 mm | 2337 mm | 2700 |
Unloading heigh | 1733 mm | 1878 mm | 1952 mm | 2413 mm | 2540 mm | 2770 |
Max. digging radius | 2800 mm | 3360 mm | 3930 mm | 3977 mm | 3886 mm | 4300 |
Max. digging load | 1300 kg | 1200 kg | 1600 kg | 1900 kg | 2600 kg | 2700 |
Bucket rofation (°) | 160° | 160° | 160° | 150° | 150° | 172° |
Swing angle (°) | 140° | 140° | 140° | 160° | 160° | 180° |
Valve standard press | 16 Mpa | 16 Mpa | 16 Mpa | 16 Mpa | 16 Mpa | 16 Mpa |
Bucket width | 300 mm | 400 mm | 450 mm | 480 mm | 500 mm | 550 mm |
Bucket volume | 0.03 m3 | 0.036 m3 | 0.048 m3 | 0.054 m3 | 0.06 m3 | 0.07 m3 |
Weight | 580 kg | 670 kg | 760 kg | 820 kg | 870 kg | 960 kg |
Mini Backhoe Loader used different size digging buckets
Mini Backhoe Loader used different size digging buckets
Q1:Why choose Kinger?
A1: * Kinger has 8 years experience in manufacturing argriculture implements,more specialized in bulk production;
*More professional team in purchasing,producing,sales and technology,with excellent equipments;
*Have fast after-sales service ;
*More innovative, 3 new products annually .
Q2: What's the Min. order quantity?
A2: we accept 1set sample for testing.
Now our agri machines are exported in large quantity.
If you need one sample for test, we advise you to get this sample as test
Q3:What is your payment term?
A3: By bank transfer or Alibaba trade assurance(credit card is available).
Q4: How to order?
A4: * first pls tell us which model do you need? or your working requirements?
* we will supply the quotation list and solution;
* we send proforma invoice or start order from Alibaba for payment;
* we will arrange the production and shipment after confirma payment.
Q5: warranty & sales service:
A5: we supply 1 year warranty and machine life sales serive.
If any problems during using, please freely let us know, thanks.
