Высокопроизводительный Алюминиевый клапан-бабочка используемый с электрическим

Application:

Butterfly valves are used for regulating and cutting off the medium flow in the pipeline;

suitable for conveying pipelines of corrosive and non-corrosive fluid medium in furnace,coal gas, natural gas, LPG, city gas, hot&cold air, chemical smelting and power generation environmental protection engineering systems

Feature:

1.Simple and compact structure with light weight, easy to assemble and disassemble.

2.Low torque with 90°, easy to open and close with high speed.

3.Small flow resistance, flow curve goes in slope line, power saving.

4.customized products according to specific materials requirements of the client, suitable for various gases and environment.

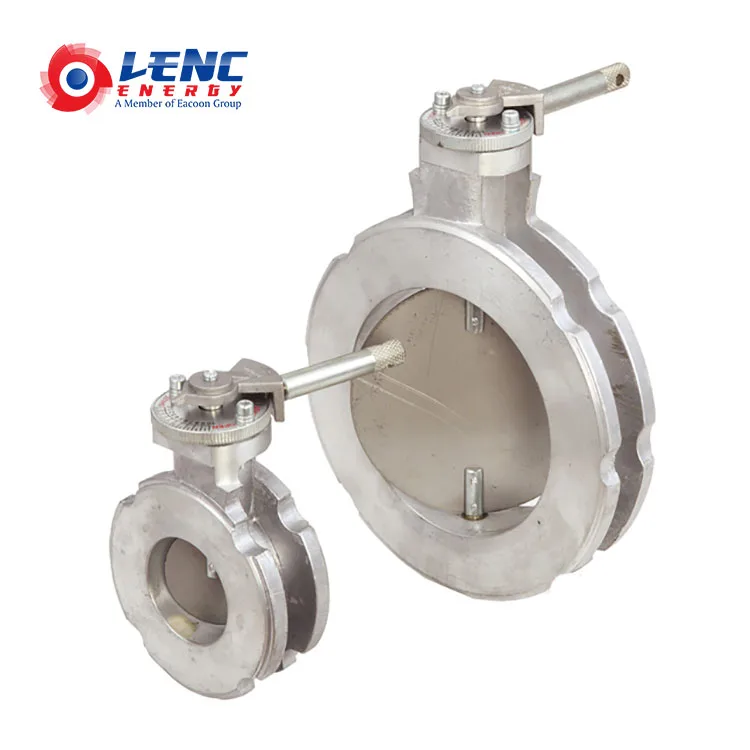

Pneumatic valve, aluminum valve body clip type, NW25 mold, round hole butterfly, 1"

The butterfly valve has a maximum operating temperature of 350 degrees.
The maximum operating pressure of DN20-DN100 is 1000 mbar.
The maximum operating pressure of DN125-DN300 is 500 mbar.

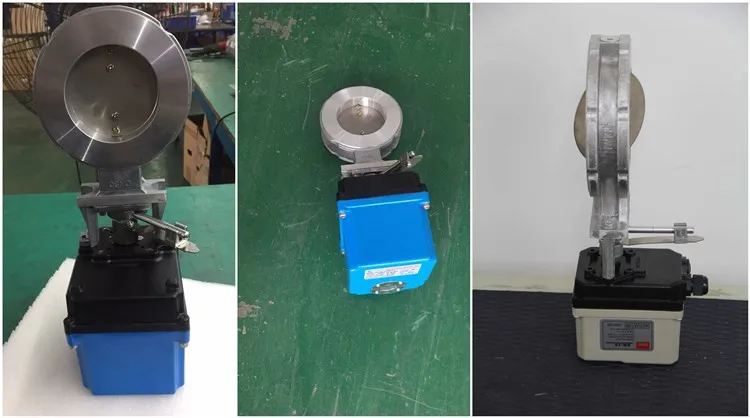

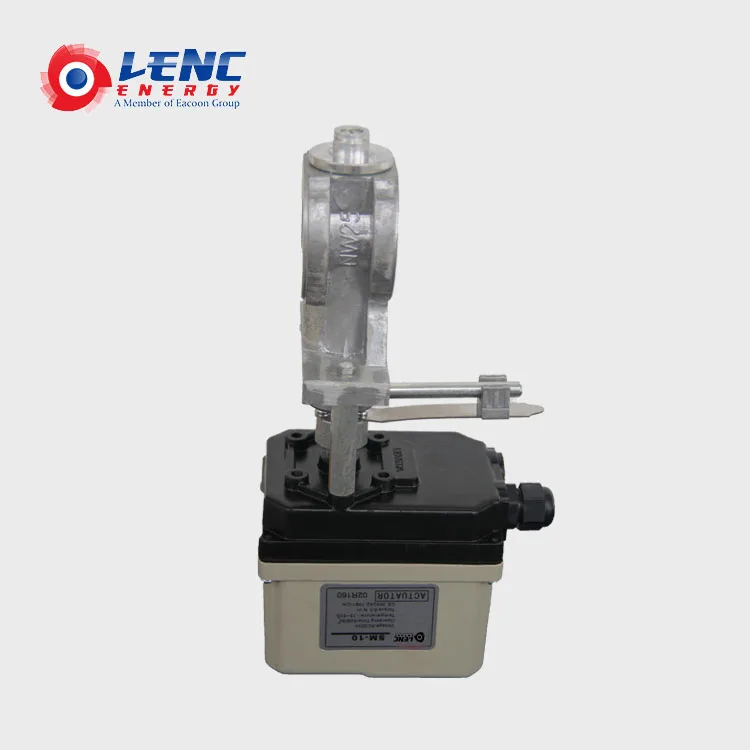

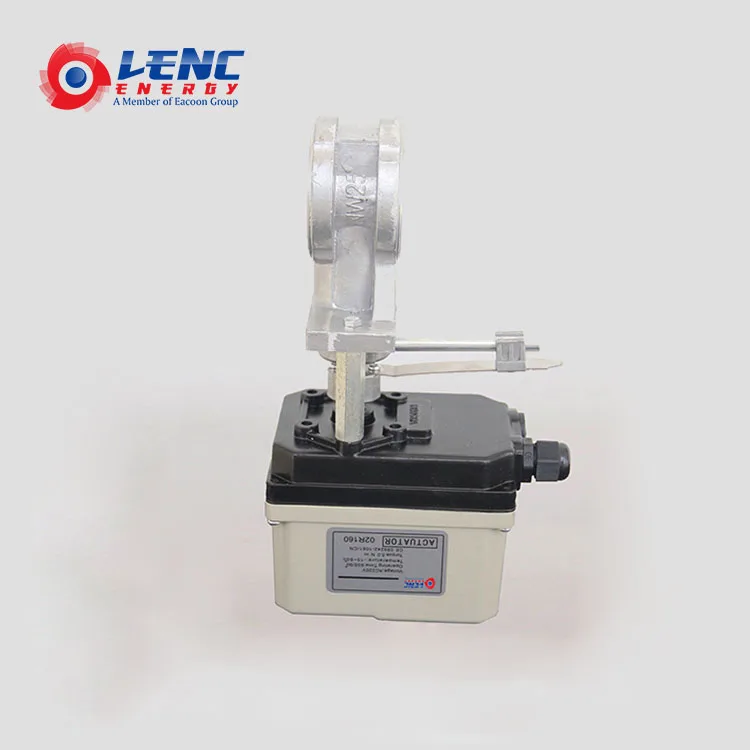

                                                   Butterfly valve equipped with electric actuator

                                          LC-VT Series                                                                LC  -VF Series

Located in GZ city, Guanghzou Liancheng Energy Technology Development Co. Ltd., a subsidiary of Eacoon Group, is a high-tech energy-saving enterprise that integrates R&D, design, production, installation, commissioning ,exporting and service for gas heat energy equipment, valves and accessories.

Established in 2000, we have developed an excellent sales team and after-sales services, thus not only gained our customers’ trust and support, but also the respect and praise from both consumers and competitors.

Combining the techniques and values from around the globe and integrating them with the excellent production capabilities of domestic companies, we have launched our own brand “LENC”, which specializes in exporting burner accessories, such as, burner ignition transformer, solenoid valves, actuators, etc.

In the future ,LENC will focus on providing advanced and reliable solutions for customers and make contribution in the field of energy conservation.

 Our Factory

Project Case
