Сверхмощная гидравлическая Горизонтальная ленточная пила GH4270 с
- Категории: Другое станочное оборудование >>>
- Поставщик: Tengzhou,Topway,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
GH4270 Metal Cutting Band Saw Machine
Features:
1.Double Column Structure vertical lifting high stability.
2.The hydraulic presure controls the speed of saw stepless speed regulation.
3.The camp of workpieces and hydraulic,control easily.
4.Can make 3 hydraulic tension saw blades per request
Specification:
| Model | GH4250 | GH4270 | GH4280 | GH42100 |
| Cutting capacity(mm) | 500-500X500 | 700-700X700 | 800-800X800 | 1000-1000X1000 |
| Blade size(mm) | 5800X41X1.3 | 7205X54X1.6 | 8820X67X1.6 | 9820X67X1.6 |
| Blade speed(m/min) | 27,45,69 | 18-60 | 27,45,69 | 18-60 |
| Clamping type | Hydrauli c | Hydraulic | Hydraulic | Hydraulic |
| Main motor power(kw) | 5.5 | 5.5 | 7.5 | 11 |
| Motor hydraulic(kw) | 0.75 | 1.1 | 2.25 | 3.75 |
| Coolant pump(kw) | 0.125 | 0.125 | 0.125 | 0.09 |
| Overall dimension(mm) | 2800X1300X2000 | 3500X1800X2500 | 4130X2150X2500 | 4560X2170X3040 |
| Packing size(mm) | 2850X1350X2150 | 3550X1850X2550 | 4180X2200X2650 | 4610X2220X3190 |
| N.W(kg) | 1900 | 4500 | 5500 | 8000 |

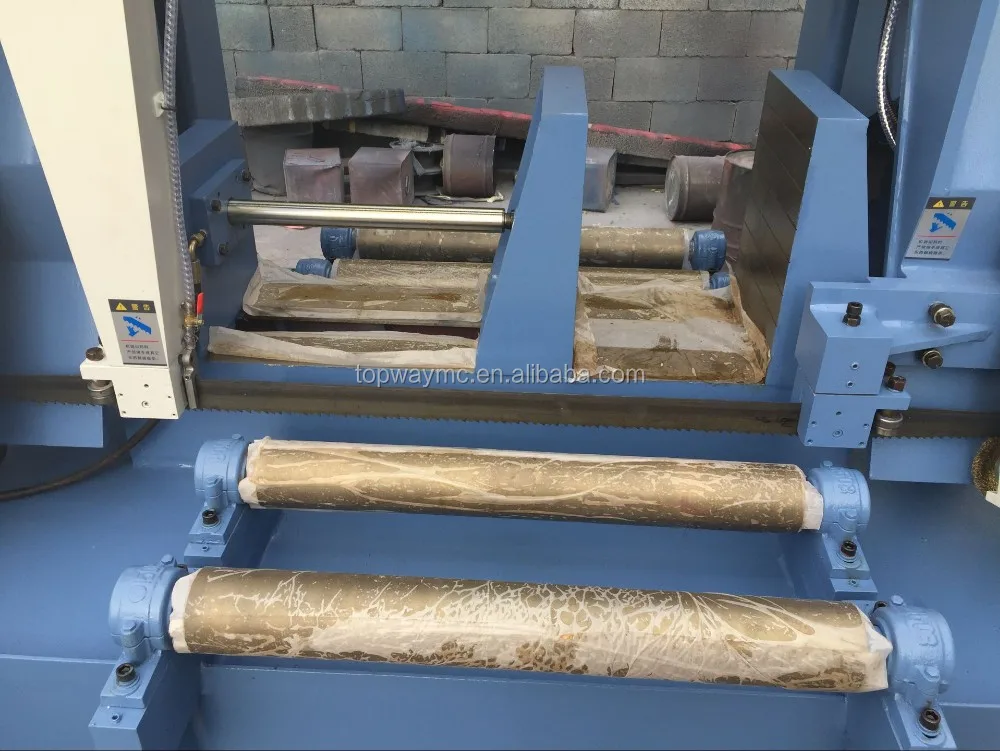

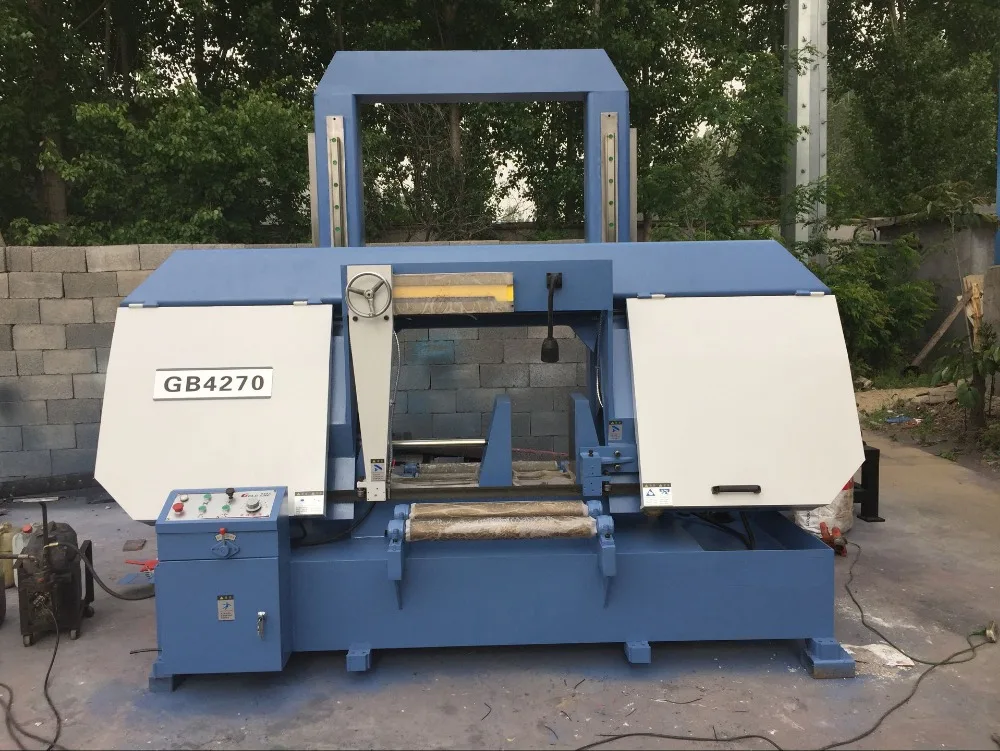

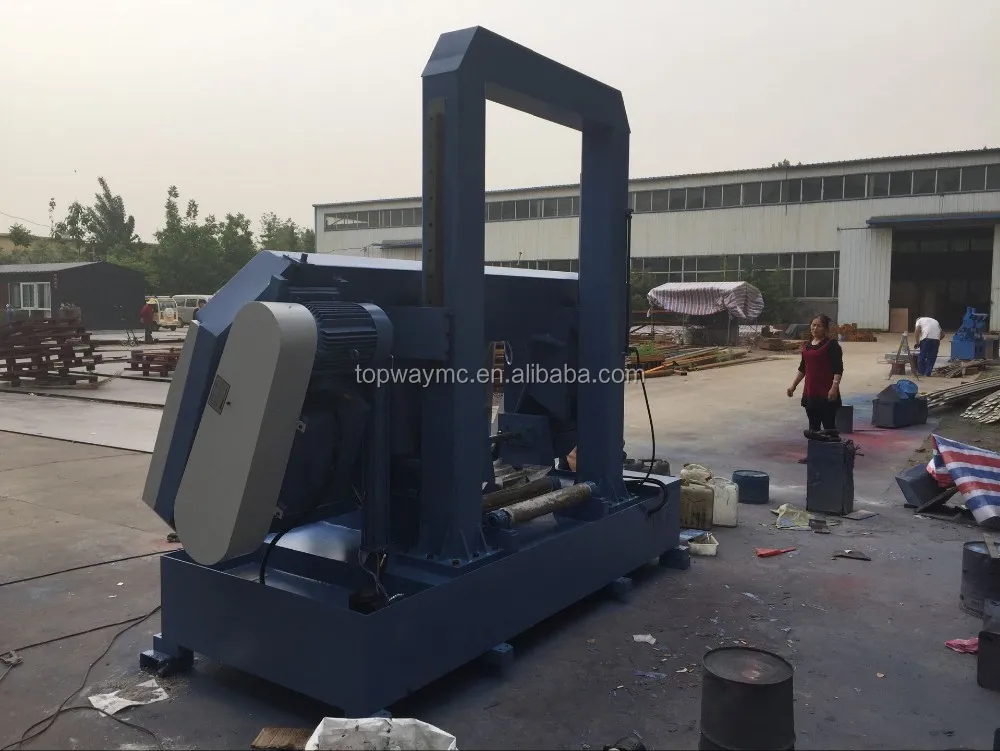

Details of Machine:
