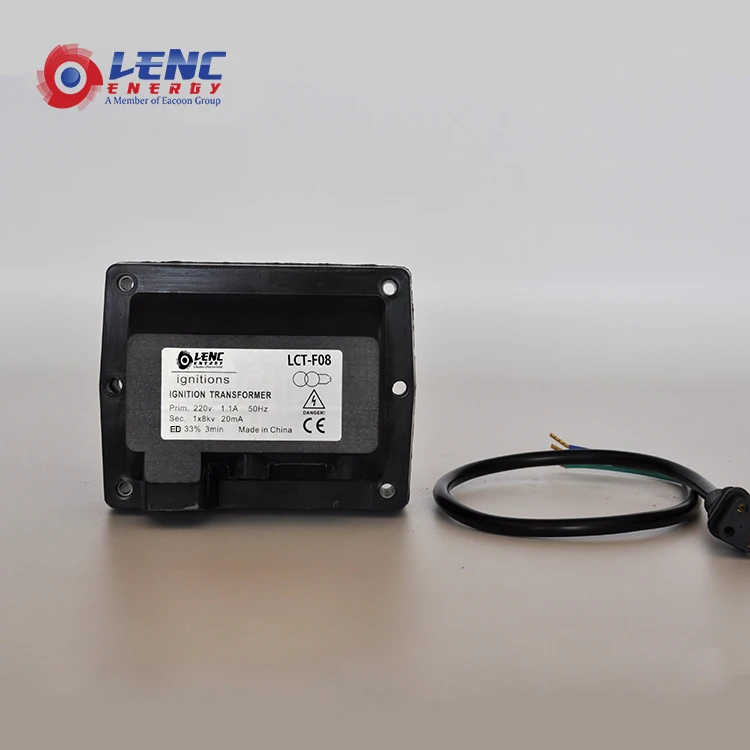

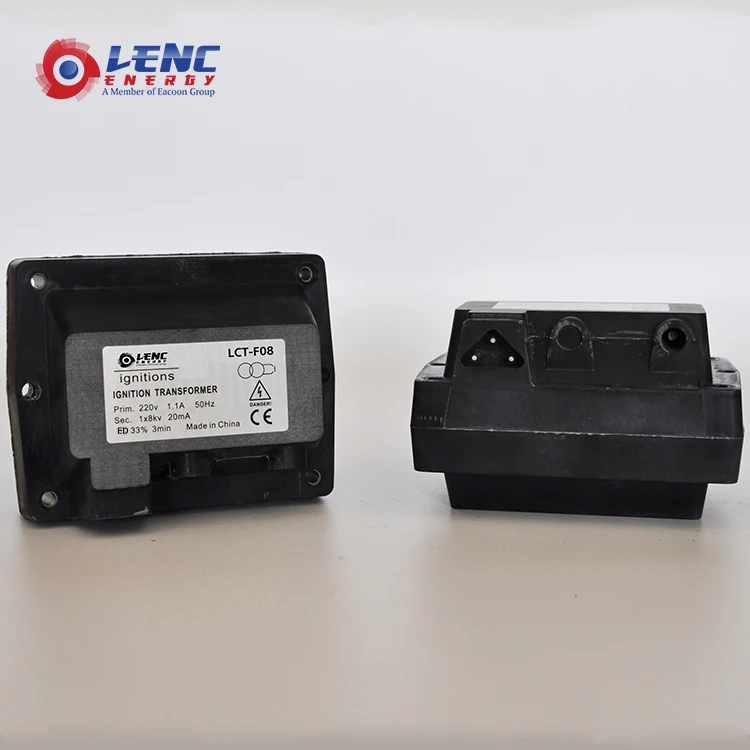

Горячая Распродажа высококачественный трансформатор зажигания для газовой

High-voltage ignition transformers are widely used for ignition of small burners, fuel gas burners, integrated burners, industrial combustion equipment, and etc.

Technical Parameters:
Input: 220V ≤1.1A 50Hz
Output: ≥1×8kV 20mA
Dimensions: 110 × 86 × 68mm
Ignition distance: 3 ~ 5mm
3 minutes ignition efficiency: 33%, 100%
Input form: with line, plug-in
Output form: self-tapping, regular

Installation dimensions:

Note: Input double color line and must be well grounded when using!

Located in GZ city, Guanghzou Liancheng Energy Technology Development Co. Ltd., a subsidiary of Eacoon Group, is a high-tech energy-saving enterprise that integrates R&D, design, production, installation, commissioning ,exporting and service for gas heat energy equipment, valves and accessories.

Established in 2000, we have developed an excellent sales team and after-sales services, thus not only gained our customers’ trust and support, but also the respect and praise from both consumers and competitors.

Combining the techniques and values from around the globe and integrating them with the excellent production capabilities of domestic companies, we have launched our own brand “LENC”, which specializes in exporting burner accessories, such as, burner ignition transformer, solenoid valves, actuators, etc.

In the future ,LENC will focus on providing advanced and reliable solutions for customers and make contribution in the field of energy conservation.
