Product Description

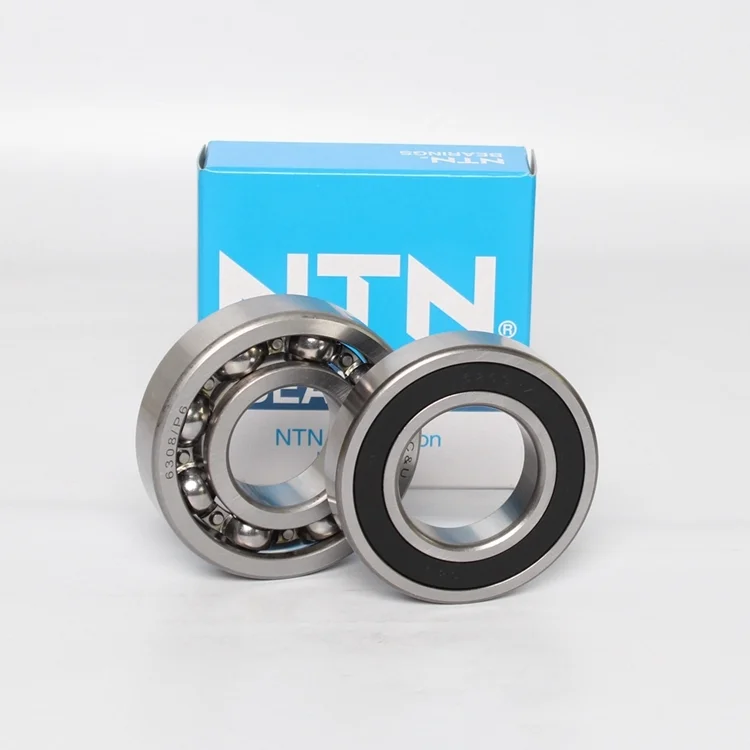

Japan NTN 6209 Deep Groove Ball Bearing 6209 ZZ 2RS
| Brand | NTN |
| Structure | Deep Groove Ball Bearing |
| Model Number | 6209 |
| Dimension | 45*85*19mm |
| Inner / outer ring | Chrome steel/Gcr15 |
| Cage | Chrome steel/Gcr15 |
| Ball | Si3N4 |
| Precision Rating | P0 P5 P6 |
| Certification | BV & ISO9001:2008 |
| Packing | Poly bag/Color box/5 layer carton/Pallet |
![~6]8SF(G8Q`]%II${QIR~EP.png](http://sc01.alicdn.com/kf/HTB13pAeXOzxK1Rjy1zk761HrVXaX/200856328/HTB13pAeXOzxK1Rjy1zk761HrVXaX.png)
Click "Here" for more product details.
Other hot models of deep groove ball bearings
| Bearing No. | principle dimensions (mm) | limiting speeds(rpm) | basic load ratings(kn) | mass (kg) | |||||
| d | D | B | rsmin | Grease | oil | dynamic | static | approx | |
| 626 | 6 | 19 | 6 | 0.3 | 32000 | 40000 | 2.34 | 0.885 | 0.0085 |
| 627 | 7 | 22 | 7 | 0.3 | 32000 | 37000 | 3.35 | 1.4 | 0.013 |
| 628 | 8 | 24 | 8 | 0.3 | 31000 | 36000 | 4.0 | 1.59 | 0.017 |
| 629 | 9 | 26 | 8 | 0.3 | 30000 | 35000 | 4.55 | 1.96 | 0.020 |
| 6200 | 10 | 30 | 9 | 0.6 | 25000 | 30000 | 5.10 | 2.39 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 22000 | 26000 | 6.10 | 2.75 | 0.037 |
| 6202 | 15 | 35 | 11 | 0.6 | 19000 | 23000 | 7.75 | 3.60 | 0.045 |
| 6204 | 20 | 47 | 14 | 1.0 | 16000 | 18000 | 12.8 | 6.65 | 0.108 |
| 6205 | 25 | 52 | 15 | 1.0 | 13000 | 15000 | 14.0 | 7.85 | 0.127 |
| 6206 | 30 | 62 | 16 | 1.0 | 11000 | 13000 | 19.5 | 11.3 | 0.22 |
| 6207 | 35 | 72 | 17 | 1.1 | 9800 | 11000 | 25.7 | 15.3 | 0.267 |
| 6208 | 40 | 80 | 18 | 1.1 | 8700 | 10000 | 29.1 | 17.8 | 0.367 |
| 6209 | 45 | 52 | 19 | 1.1 | 7800 | 9200 | 32.5 | 20.4 | 0.416 |
| 6210 | 50 | 90 | 20 | 1.1 | 7100 | 8300 | 35.0 | 23.2 | 0.462 |
| 6211 | 55 | 100 | 21 | 1.5 | 6400 | 7600 | 42.5 | 29.2 | 0.602 |
| 6212 | 60 | 110 | 22 | 1.5 | 6000 | 7000 | 52.5 | 36.0 | 0.789 |
| 6213 | 65 | 120 | 23 | 1.5 | 5500 | 6500 | 57.5 | 40.0 | 0.99 |
| 6214 | 70 | 125 | 24 | 1.5 | 5100 | 6000 | 62.0 | 44.0 | 1.084 |
| 6215 | 75 | 130 | 25 | 1.5 | 4800 | 5600 | 66.0 | 49.5 | 1.171 |
| 6216 | 80 | 140 | 26 | 2.0 | 4500 | 5300 | 72.5 | 53.0 | 1.448 |
| 6217 | 85 | 150 | 28 | 2.0 | 4200 | 5000 | 83.5 | 64.0 | 1.803 |
| 6218 | 90 | 160 | 30 | 2.0 | 4000 | 4700 | 96.0 | 71.5 | 2.172 |
| 6219 | 95 | 170 | 32 | 2.1 | 3700 | 4400 | 109.0 | 82.0 | 2.62 |
