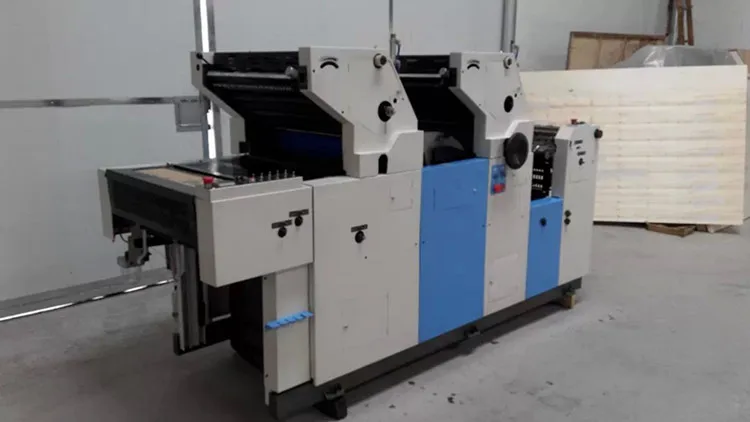

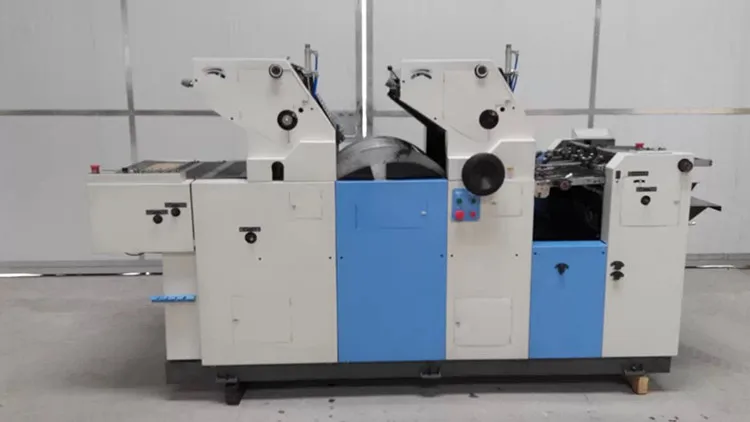

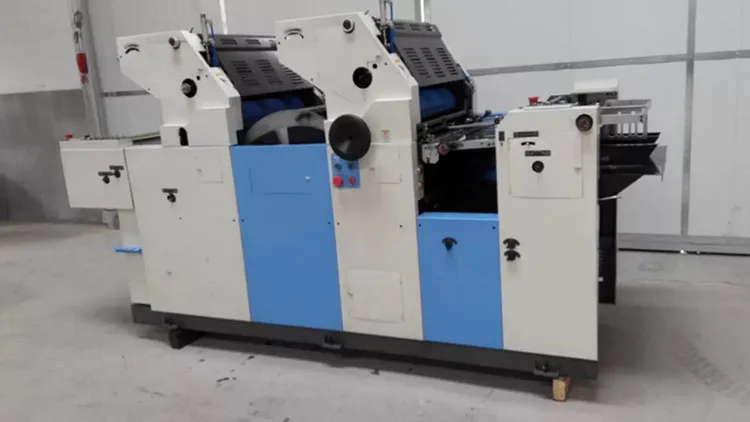

Parameter of HC256 Books Bills Two Colors Offset Printing Machine
Model number | HC256 |
Printing colors | 2 colors |
Max.sheet size | 560*400mm |
Max.printing area | 550 *375mm |
Paper weight | 28-250g/sqm |
Plate size | 560 *420 * 0.15mm |
Blanket size | 560 * 460 *1.95mm |
Printing speed | 2000-7000 sheets/hour |
Ink rollers | 10pcs(2 Forme Inking Rollers) |
Dampening roller | 4pcs(1 forme dampening roller) |
Molleton | thick: 76 stitches; thin: 44stitches |
Power of air-pump motor | 0.55 KW |
Main Power Motor | 1.1KW |
Power supply | Single-phase: 220v, 50Hz |
Dimension | 1810*1110* 1470mm |
Gross Weight | 1380kg |
Features of HC256 Books Bills Two Colors Offset Printing Machine

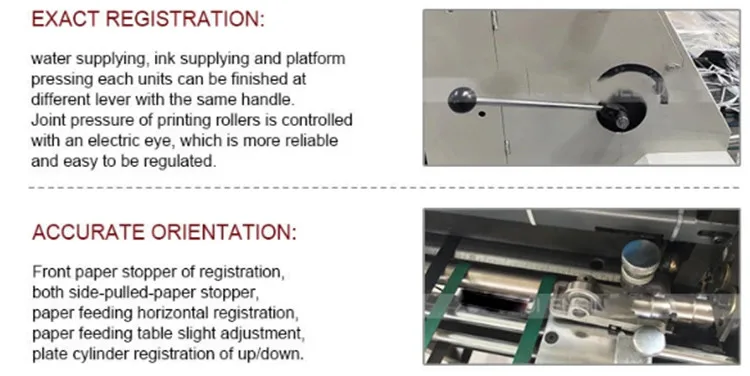

1. Easy operation: Using the same handle with different levels for supply water, ink and adjust pressure. The pneumatic form rollers is controlled by electrical eye so that the pneumatic will be more accuracy and credible.
2. Nicety locate: Adopts front baffle and double side baffle to orientation. And it also have imperceptable adjust of landscape orientation in paper table
3.Separated ink and water supply system: adjust the water and ink freely, satisfied requirement of ink and water according to different products. It is also suitable for colorful overprint.
4. Setup the quantity in advance: the machine adopts electromagnetism arithmometer. It will stop once finish the setuped printing.
5. Inspect double sheets: it can debar double sheet and many sheets effective, and keep printing without turn off the machine.
6. Sprayer device: make spraying and printing run in synchronisation prevent printing paper from dirty.
7. Important part concentrated oil: the machine adopts centralized oil supply, don't delay machine run properly.
8. The machine adopts PLC computerized control and has the function of stopped automatic when sucked paper.
Terms of payment | T/T, L/C, Westion Union etc, |
Terms of trade | FOB, CFR, CIF etc. |
Mode of transportation | By Sea/By Air/By courier |
Port of shipment | Main China Port |
Rerfence date of delivery | About 10 days |
Zhengzhou Zomagtc Company Ltd. have been designing, developing, manufacturing
and marketing Machinery for more than 10 years. Firstly we mainly sever china mainland
customers. In order to adapt to world market development, now we do the exporting
business directly. After these years of development, we have high quality professional
teams,skillful talents, strong technical force, strong and independent research and
development capabilities, advanced productione quipment and a perfect after-sales
service system.
