co2 laser machine air filter for clean smoke
Product Description
1. Fume extrator's Fliter Data
Filter Elements Data | ||
Item | Technical Data | Remark |
Pre-filter | F5 class, life-time 1-3 months | PP pre-filter. |
Main-filter | H14 class HEPA, life-time 6-10 months | Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron. |
Air-filter | Chemical material, life-time 5-6 months | Chemical molecular, Oxidant & Active carbon adsorb noxious gas. |
Average filtration rate | ≥99.7% | It will be a little fluctuation according to different materials. |
2. Fume extractor's Technical Paremeters
Blower Technical Data | ||
Item | Technical Data | Remark |
Running period | more than 10,000h | One year guarantee |
Max. air flow | 1500m³/h | / |
Input capacity | 800W | Low capacity |
Air pressure | 3000pa | High pressure |
Running sound | ≤65dBA | / |
Input power | 110/220V, 50/60Hz | International standard |
Equipment Data | ||
Item | Technical Data | Remark |
Fume & dust inlet | 150mm | Single/Double fume inlets, include one/two set fume extract tubes |
Fresh air outlet | 200mm | Trapezoid hole |
Machine weight | 98KG (N.W.) | Machine with all elements |
Dimension | 670*700*1420mm | Machine size |
Package dimension | 770*800*1520mm | Packed by plywood crate |
Packaging & Shipping
FAQ
1. How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

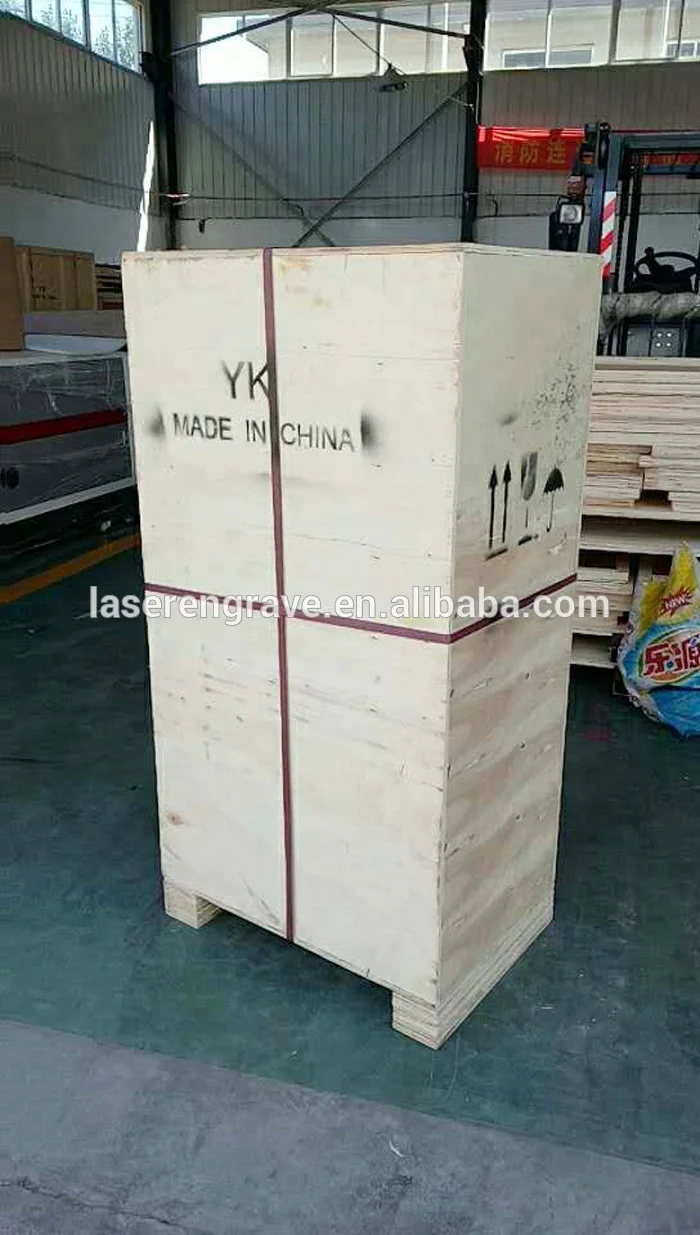

4. How is the packing?
Water-proof plastic film package with foam protection in each cornerSolid Seaworthy Wood Box Package with Steel BeltSave space as much as possible for container loading .
