Shantui 6 тонн шарнирный погрузчик рок ведро четырехколесный
- Категории: Loaders >>>
- Поставщик: Shandong,Infront,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Home of value that works!
We provide you with the best quality of BULLDOZER, EXCAVATOR,COMPACTOR, FORKLIFT, MOTOR GRADER,WHEEL ROADER,ETC.
Also we specialized in all kinds of MACHINERY PARTS related to construction machine with competitive price. In China, Shantui's name is synonymous with bulldozers. In fact, Shantui has been King of the Hill for decades, and now Shantui's dozers have cleared the way for the growth in offering a complete line of construction machinery and cement handling equipment.
The best feature of this model is not only its sheer size, but also its tubeless tires that offer deeper treads for greater traction. It offers all the advantages of the SL60W series but with upgraded performance, strength and efficiency. With their tight wheel bases, the turn radius on these machines will amaze you.
Product Description
| SL60W | Overall width: 3082 mm | ||
| Technical specifications: | Overall length: 8351 mm | ||
| Overall height: 3480 mm | |||
| GENERAL SPECIFICATIONS | Operating weight | 19500 kg | |
| Related loading | 6000 kg | ||
| Bucket capacity | 3.5 m3 | ||
| Maximum lifting force | 185 kN | ||
| Static tipping load | 12000 kg | ||
| (full turn) | |||
| Dumping height | 3238 mm | ||
| Dumping reach | 1218 mm | ||
| ENGINE | Engine model | WEICHAI WD10G240E21 | |
| Type | In-line, water-cooled, 6-cylinder, | ||
| direct injection, turbocharged | |||
| Rated power | 175 kW | ||
| Rated speed | 2200 rpm | ||
| Displacement | 9.726 L | ||
| Maximm torque | 920 N·m | ||
| Minimum fuel consumption | 225 g/kW·h | ||
| AXLES AND DRIVES FINAL | DRIVE SYSTEM | Four-wheel drive | |
| Gradeability | 30° | ||
| Maximum traction | 167 kN | ||
| BRAKE SYSTEM: | Service brakes | Air over oil four-wheel dual-loop disc brake system | |
| Parking brake | Automatically air-cut brake, disc brake | ||
| STEERING SYSTEM: | Type | Articulated type, full-hydraulic power steering | |
| Maximum steering angle | 35° each direction | ||
| The center of outside tire | - | ||
| The center of outside bucket | 7200 mm | ||
| TIRES | Type | 23.5-25 16PR | |
| Pattern level | L3 | ||
| Center distance of tires | 2250 mm | ||
| Wheel base | 3250 mm | ||
| HYDRAULIC SYSTEM | Hydraulic cycle time | Lifting time/ Lifting, | 6.0/12.0 s |
| (rated load in bucket) | dumping and lowering | ||

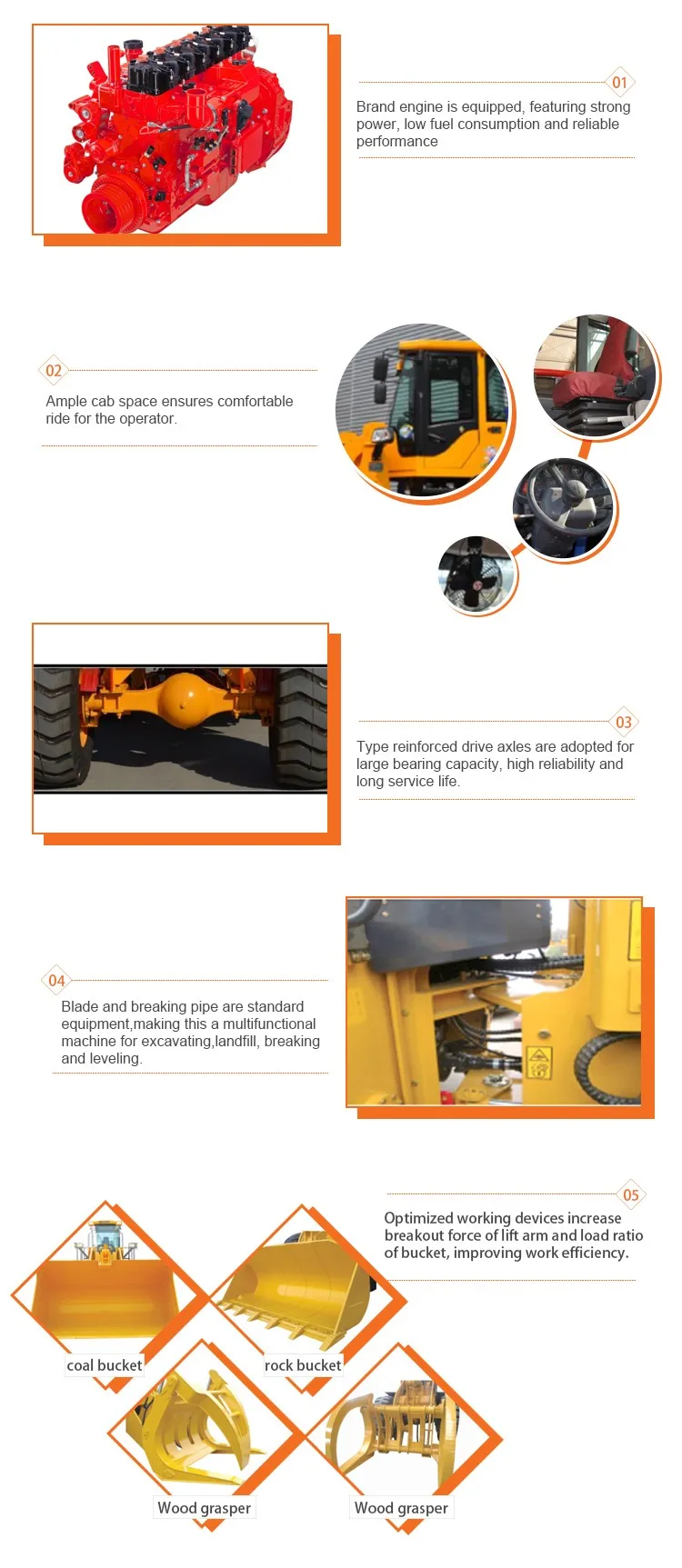

Technical Features
Directly contact me for:LOWEST Price,Weight,Stock,Delivery time,or more productions Product Catalog......
Miss. Yilina Wang
Skype:jkmachinery807 QQ:3149453337
Mobile/Whats up: +0086 135 1867 7059
WeChat: 86 135 1867 7059
Email:sales07@ jkmshantui.com / sales07@ chinaift.com
Working Condition
Related Products
Payment Terms
Our Services
Long Term Business based on Reliable Partnership
RESPONSE -- QUICK , CORRECT
PRICE -- MANUFACTURER BASE
DELIVERY -- EASY, CHEAPEST
