Greenpedel быстрая скорость 48v 1000W 26*4 0 толстые шины колесный двигатель ebike комплект с
Greenpedel быстрая скорость 48v 1000W 26*4 0 толстые шины колесный двигатель ebike комплект с
Greenpedel быстрая скорость 48v 1000W 26*4 0 толстые шины колесный двигатель ebike комплект с
Greenpedel быстрая скорость 48v 1000W 26*4 0 толстые шины колесный двигатель ebike комплект с
Greenpedel быстрая скорость 48v 1000W 26*4 0 толстые шины колесный двигатель ebike комплект с
Greenpedel быстрая скорость 48v 1000W 26*4 0 толстые шины колесный двигатель ebike комплект с
Greenpedel быстрая скорость 48v 1000W 26*4 0 толстые шины колесный двигатель ebike комплект с

Greenpedel быстрая скорость 48v 1000W 26*4 0 толстые шины колесный двигатель ebike комплект с


Поделиться:

Цена:309,00 $ - 359,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description


Riding mode
Pedal Assist System (PAS)/ Throttle/Pedal assist and throttle assist
Motor
Hot sale electric bicyclehub motor kit bike electric 1000W brushless geared motor
1. Brushless geared hub motor
2. Spoked with double-wall Aluminum rim, with eyelets.
3. V Brake/ Disc brake available
4. Rated speed=45KM/H.
5. Load≤150KG
6. Regular connector
Battery
48V lithium battery;
All battery including fuse and BMS.
Front or Rear
Optional
Installation Width
Front fork: 100mm
Rear fork: 135mm - 142mm
Display
LED /LCD Display for option
Throttle
Thumb throttle/Twist throttle for option
Brake
E-brakes levers or E-brake sensor for motor power cut off
PAS
Three option:
♦ 1:1 intelligent pedal assistant system (8P magnents)
♦ Double hall 12 magnet PAS sensor, Disc plate inside.
♦ Double hall 12 magnet & Half-half design style of disc plate, easy to installation.
Wiring
Regular connection(Bullet/PP30 for motor and JST/DJ2.8 for other electric parts)
Color
Silver or black for choosing
Rim
16", 20", 24", 26" or 700C (28inch), etc.
Please confirm the size before order.




Detailed Images

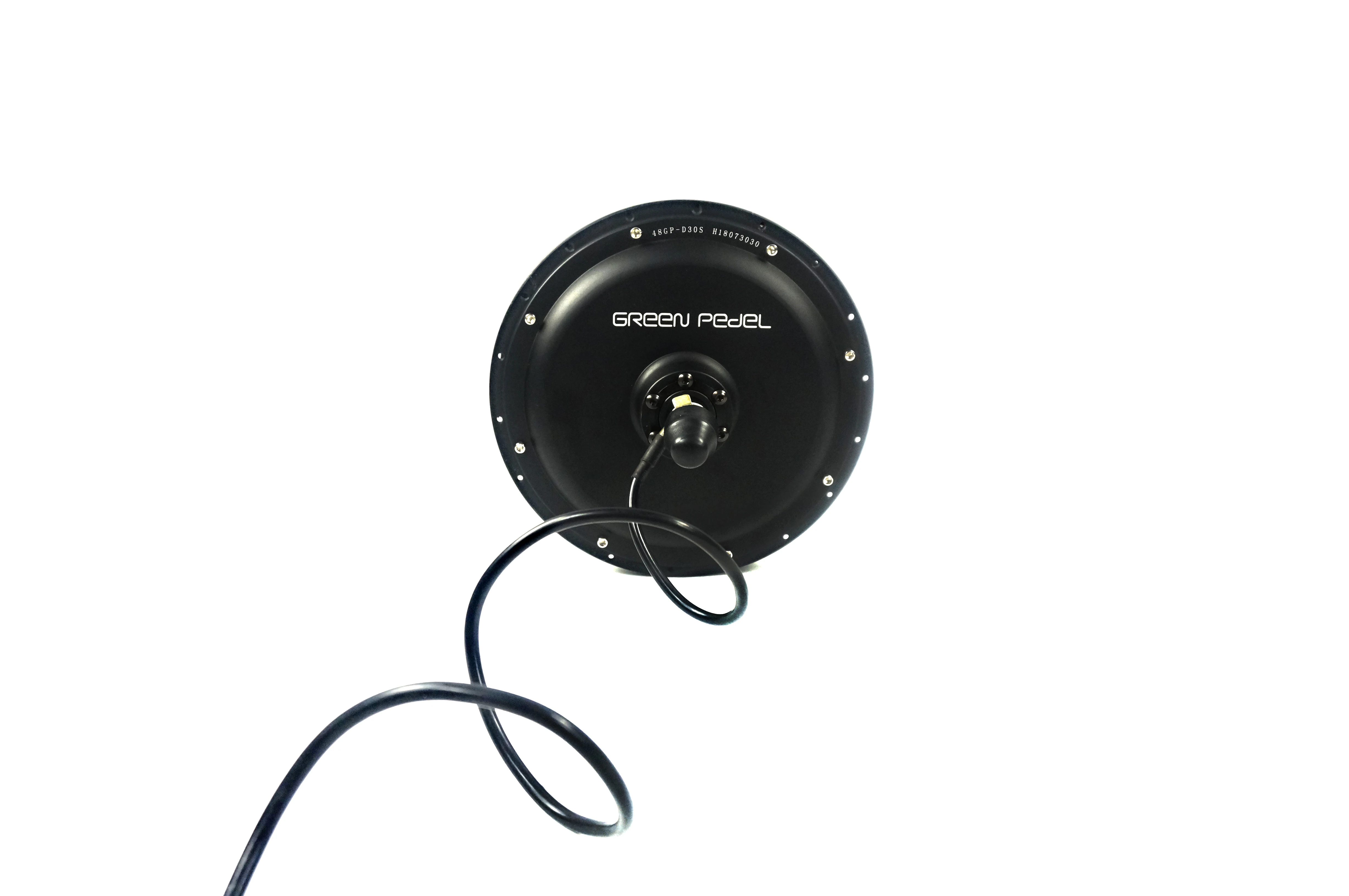

♦ Motor with rim
♦ Thumb throttle
♦ E brake lever
♦ Display
♦ 8P magnets PAS
♦ Controller

♦ Battery

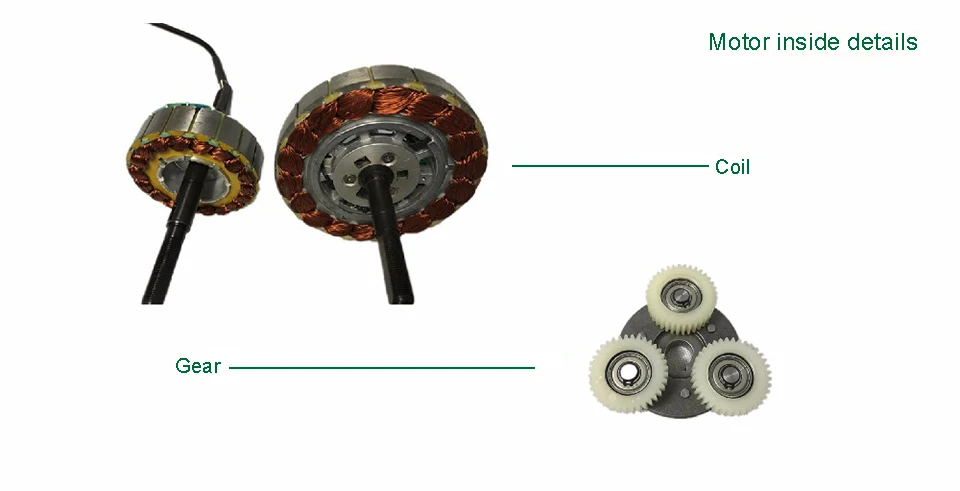

Silicon steel sheet
0.35mmMore efficient, less electrical loss, better torsion than 0.5mm normal silicon steel sheet. Its' properties are beneficial to extend service life of motor.
Bent magnet (cambered) & magnetic tile (arc)
More stable & not easier to fall out & longer service life than normal magnet (block).

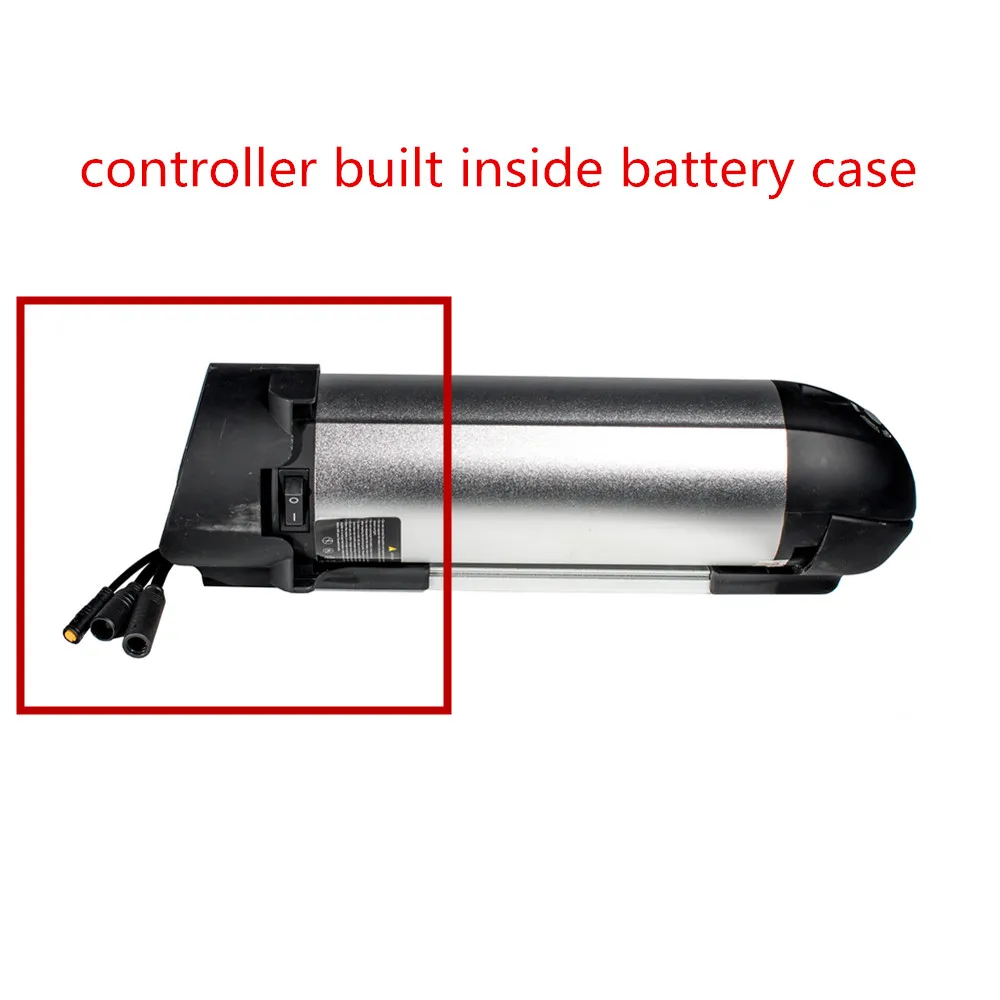

Controller

1) We have waterproof controller and standard controller for option
2) We have Blueth + App controller or standard controller for option
3) We have controller box and controller bag for reservation

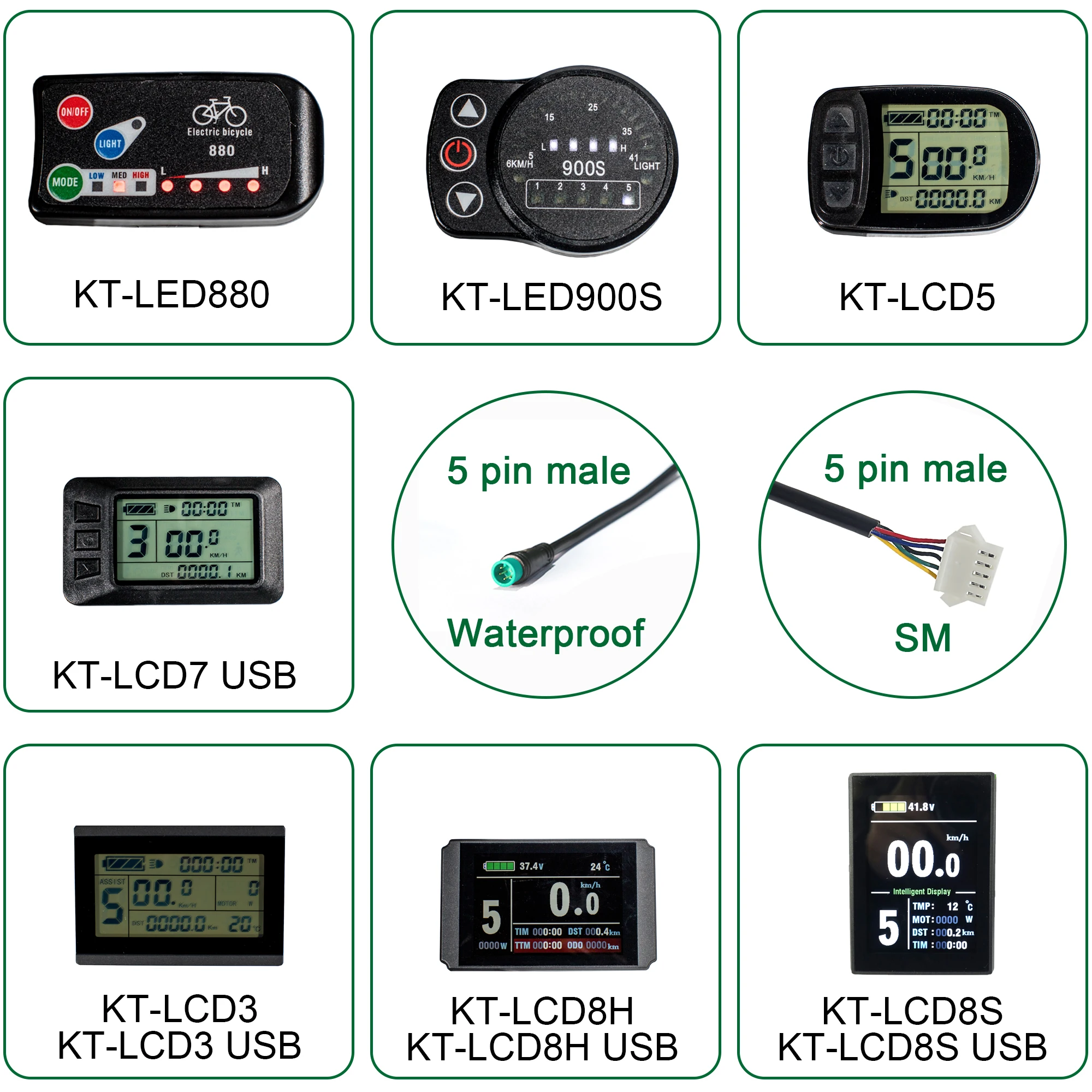

Different Display for Option

♦ Power switch
♦ Battery indicator
♦ Real time showing
♦ Running speed showing
♦ PAS speed change
♦ Continued mileage showing




Throttle

♦ Thumb throttle & twist throttle for choosing.
♦ Standard wiring and waterproof wiring for option
♦ Full twsit throttle and half throttle for option


                      Full twist throttle
                    Half  Twist  Throttle
                      Thumb Throttle


PAS

8P magnet & Double hall 12P magnet for choosing
♦ 8P magnet PAS, need to remove bottom bracket.
♦ Double hall 12 magnet PAS sensor.
♦ Normal PAS and divided PAS for option.


                    8 magnet PAS
                             KT-V12L
                         KT-D12L


Ebrake
We have electric bike brakes, ebike brake sensor for option




Battery

♦ Tube battery, Frog battery, Lift battery, Frog battery, Tigershark battery, Hailong battery and Rack battery
♦ Our lithium battery capacity is usual from 8.8AH to 19.2AH
♦ We have Chinese cell, Samsung cell, Panasonic cell and LG cell for option




Related Products


36v 250w Ebike Kit
   Bafang BBS01 BBS02 Kit
100XS Mini Motor Kit


Packing & Delivery


The outer packing size
1x16"18'20' : 50cm x 50cm x 23cm
1x24" : 55cm x 55cm x 23cm
1x 26" : 60cm x 60cm x 23cm
1x 28"/700c : 65cm x 65cm x 23cm
The above size is not included the tires, it is 5 cm bigger length if u want the tires with motor wheel

Packaging Details:
1,Carton with foam
2.One carton including 1pcs





Our Company


Changzhou Green pedel Co.,Ltd is a professional and scientific enterprise that specialises in researching, producing and selling electric bicycles,electric scooters, K-Shaped cars, Shilly-cars and conversion kits. We ensure the quality of the first-class production equipment and the international standard operating procedures, as well as the professional operating staff. We always uphold the priciples of "quality first , integrity first, and reputation first. " In the past 7 years, our customers vary from government to industrial organizations, from distributors to retailers.






Our Service


1.Warranty :motor is 3years ,battery is 2 years,other ebike parts are 1 year.
2.OEM &ODM are available as customers demand.
3.We have professional team on ebike parts ,10years working experience engineers and sales. 4.Workers are well trained ,testing every single parts before packing.
5.Sales reply to you within 24hours .online time is long ,easy to contact.
6.After service is fast ,send replacement parts as soon as you send fault parts to check.


FAQ


Q1: What are the payment items?
A: We usually accept payment by T/T L/C or Western Union.

Q2: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certifiable company(VIP), and we support standard payment items like T/T L/C to ensure your safety.

Q3: How to make the order?
A: You have four ways to contact us to make the order: by e-mail, by Skype, by phone and by Trademanager.


Contact us
