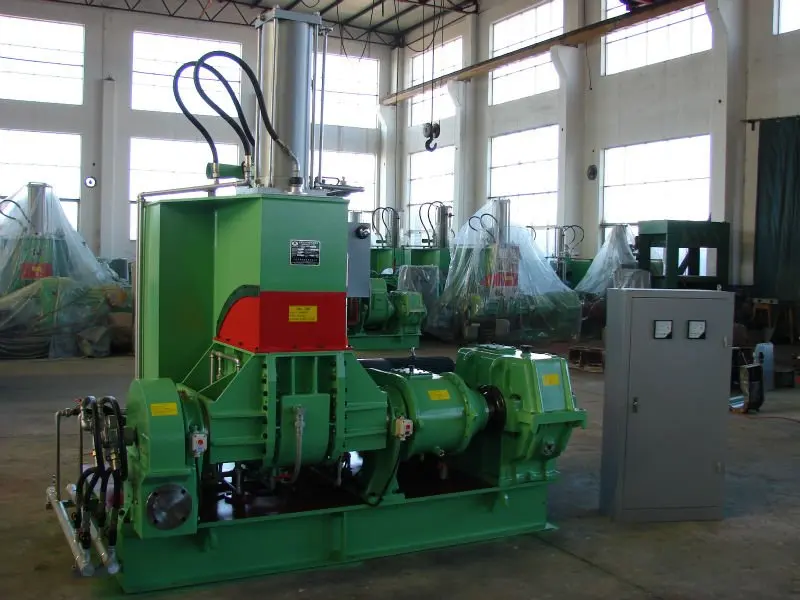

Rubber Compounding Dispersion Pressurized Banbury Kneader Mixer Mixing Machine
Rubber vulcanizing equipment:
Plate vulcanizer is the machinery which produce all of kinds of rubber products, and thermosetting plastic like as related specifications aseling products, projected rubber, rubber plate and so on. this kind machinery has three types of frame type, pillar type, and jaw type. It is economical, advantage of compact structure, high working pressure, high producing efficiency,. Operation is safe and reliable. Also we can provide all kinds of sizes, types, and operation ways according to the customer’s request.
type | XLB-DQ(frame)900*900*1 | XLB-DQ(frame)1200*2000*2 | XLB-DQ(frame)1300*2000*1 |
total pressure(MN) | 250t | 315t | 560t |
Hot plate specification(mm) | 900*900 | 1200*1200 | 1300*2000 |
plate clearance(mm) | 200 | 200 | 400 |
working layer number | 2 | 2 | 1 |
piston stroke(mm) | 400 | 400 | 400 |
plate pressure(Mpa) | 30 | 22 | 21.5 |
main motor power | 3 | 3 | 8 |
Overall dimension(L*W*H)(mm) | 1340*1050*2400 | 1685*1320*2450 | 200*1860*2500 |
weight(kg) | 7500 | 9500 | 17000 |
We can offer more products of different specifications according to your demand.
Type | X(S)N-10X32 | X(S)N-20X34 | X(S)N-35X30 | X(S)N-55X30 | X(S)N-75X30 | X(S)N-110X30 | |
Pinching total cubage | L | 25 | 45 | 75 | 125 | 175 | 250 |
Dense smelting total cubage | L | 10 | 20 | 35 | 55 | 75 | 110 |
Main motor power | KW | 22 | 22 | 55 | 75 | 110 | 185 |
Overturn motor power | KW | 1.1 | 1.5 | 2.2 | 2.2 | 3.0 | 7.5 |
Overturn angle | 0 | 140 | 140 | 140 | 140 | 140 | 140 |
Rotate speed of rotor oxis(front/back)) | r/min | 32/25 | 34/28 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
Pressure of compressing air | Mpa | 0.5~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
Pressure of cooling water | Mpa | 0.2~0.4 | .0.2~0.4 | .0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 |
Pressure of heating vapor | Mpa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
Overall size (L x W x H) | mm | 2640x1650x2350 | 3100x1300x2450 | 3200x1900x2945 | 3300x1900x2900 | 3760x2143x3135 | 4075x2712x3580 |
Weight | kg | 3300 | 4500 | 6500 | 7800 | 10230 | 14970 |
Main Feature:
1. With completely sealed condition, materials are mixed or plasticized under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.
3. Surface where is contracted with the machine are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
4. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam-heating effect and fit in with the needs of plastics and rubber processing technology.
5. Feeding from back door on the frame(or separate top door) is convenient ofr continuous process operation in production line. The mixing chamber is able to turn forward by 140 around th front rotors to discharge and is easy for changing pigments and cleaning the chamber.
6. Programmable logic controller (PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is provided with serial interface of net.
