Product Description

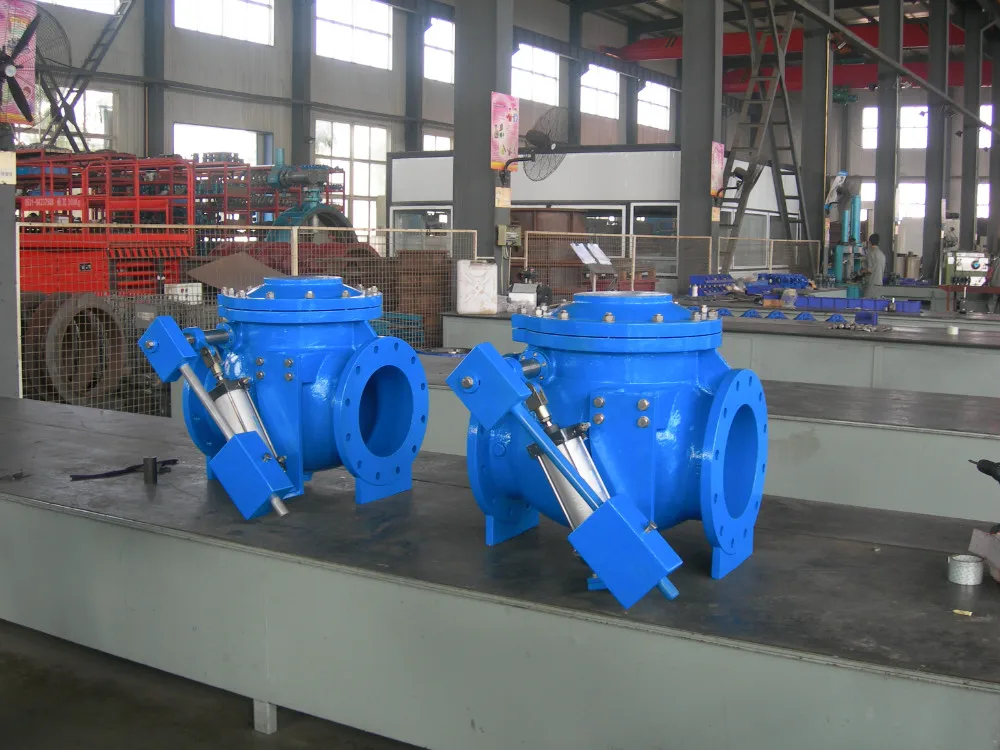

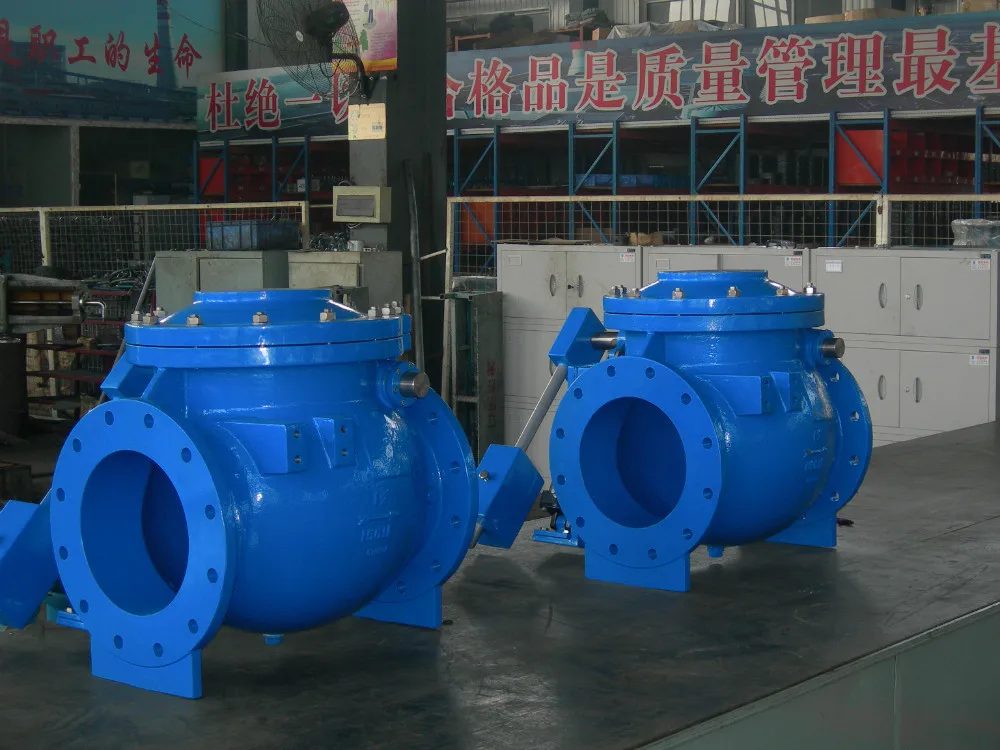

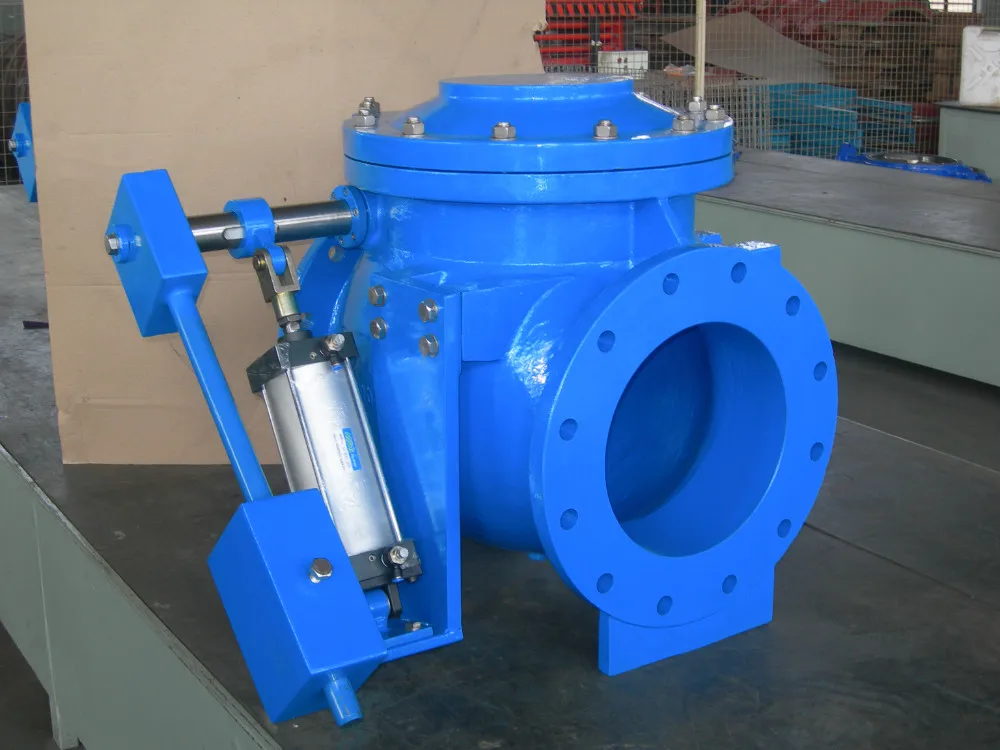

dn150 price pn16 swing check valve with pneumatic cylinder
Specification:
For BS 4504 BS EN1092-2 PN10 / PN16/ PN25 ANSI150LB flange mounting.
Face-to-Face dimension conforms to ISO 5752 / BS EN558/AWWA.
Operatiing: weight and air cushion cylinder
Epoxy fusion coating
Pressure and temperature:
| Working Pressure | PN10 / PN16 / PN25 | |
| Testing Pressure | Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. | |
| Working Temperature | -10°C to 80°C | |
| Suitable Media |
|
Material
| Part | Material |
| Body | Ductile Iron / WCB |
| Disc | Ductile Iron / Al Bronze / Stainless Steel |
| Spring | Stainless Steel |
| Shaft | Stainless Steel |
| Seat Ring | NBR / EPDM |
Related Products
Company Information
Product Process
Packing&Logistics
Contact Us
FAQ
Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment
