Коннектор 5 04 мм Шаг 3row PCB 32P 64P 96P DIN 41612 3*32 контакта вертикальные клеммы штекер коннектор Eurocard с шагом 2
Коннектор 5 04 мм Шаг 3row PCB 32P 64P 96P DIN 41612 3*32 контакта вертикальные клеммы штекер коннектор Eurocard с шагом 2
Коннектор 5 04 мм Шаг 3row PCB 32P 64P 96P DIN 41612 3*32 контакта вертикальные клеммы штекер коннектор Eurocard с шагом 2
Коннектор 5 04 мм Шаг 3row PCB 32P 64P 96P DIN 41612 3*32 контакта вертикальные клеммы штекер коннектор Eurocard с шагом 2
Коннектор 5 04 мм Шаг 3row PCB 32P 64P 96P DIN 41612 3*32 контакта вертикальные клеммы штекер коннектор Eurocard с шагом 2
Коннектор 5 04 мм Шаг 3row PCB 32P 64P 96P DIN 41612 3*32 контакта вертикальные клеммы штекер коннектор Eurocard с шагом 2
Коннектор 5 04 мм Шаг 3row PCB 32P 64P 96P DIN 41612 3*32 контакта вертикальные клеммы штекер коннектор Eurocard с шагом 2

Коннектор 5 04 мм Шаг 3row PCB 32P 64P 96P DIN 41612 3*32 контакта вертикальные клеммы штекер коннектор Eurocard с шагом 2


Поделиться:

Цена:0,50 $ - 1,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

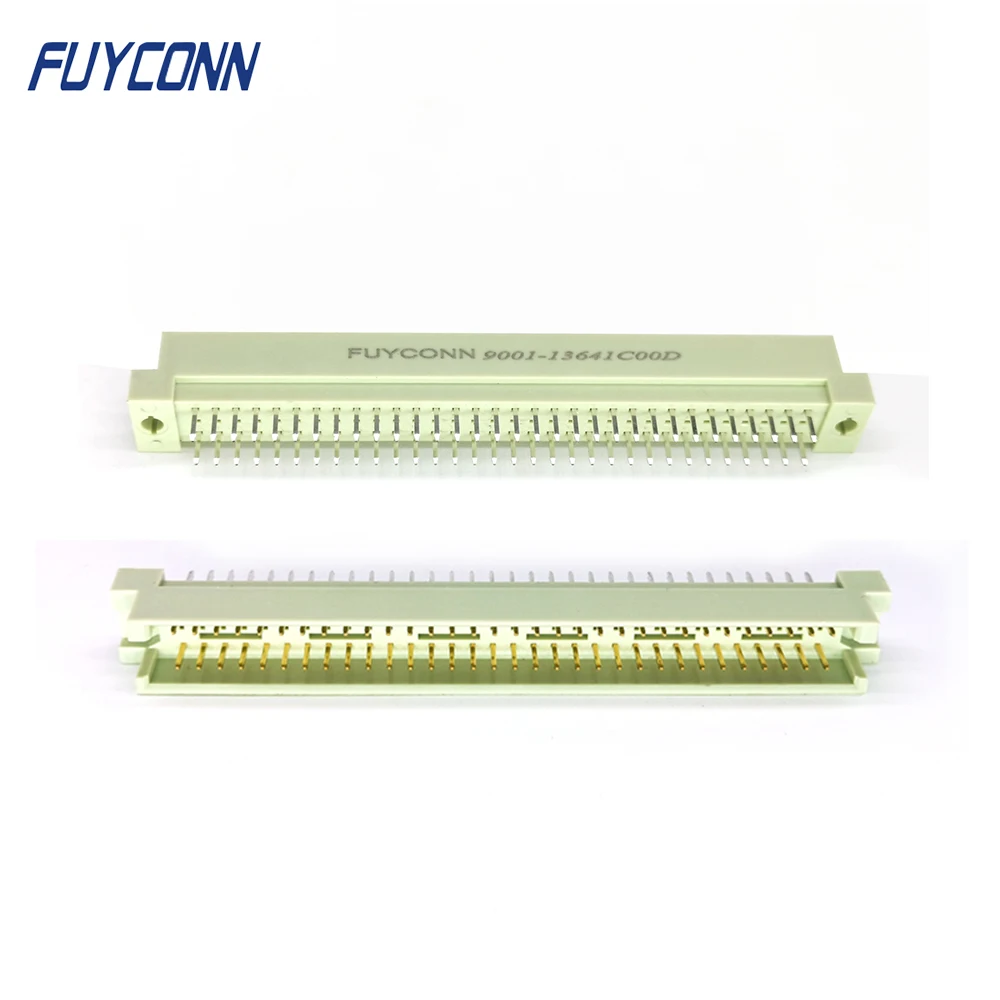

5.04mm Pitch 3row PCB 32P 64P 96P DIN 41612 Connector, 3*32Pin Vertical Terminals Male Plug Eurocard connector with 2.54mm pitch
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. It is available for 1 row 32pin, 2 rows 64pin and 3 rows 96pin, 96 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.


Why Choose Us


1, 16 years Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods


Product Description


 Product features
1. Product Line:
DIN41612 Connector
2. Product Name:
Eurocard Connector
3. Connector Gender:
Male Plug
4.Number of rows:
3 rows
5. Number of Position:
32pin 64pin 96pin
6. Contact Material:
Brass
7. Contact Plating:
1U", 3U", 5U", 10U", 15U",30U"
8. Insulation Material:
PBT
9. Terminal Type
Vertical / Straight
10.Color
Gray
11. Connector Type
PCB connector
12. Pitch
2.54mm or 5.08


Electrical Specifications
Current Rating:
2AMP
Dielectric Withstanding Voltage:
AC 1000V For 1 minute
Insulator Resistance:
1000 MΩ min.at DC500V
Contact Resistance:
30mΩ max. at DC 100MA
Operating Temperature:
-55°C--+105°C


  • Application

Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.





Related Products




Packing&Shipping


Strong Package
1, Vacuum Tray
2, PE Bag
3, Take strong bags/boxes/cartons
4, PE Bag + Strips




Company Profile


Dongguan Fuyconn Electronics Co,. Ltd

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, DIN41612 connector, SCSI series and RJ series. We have over 1,000 models for you choice.

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our product defect rate is less than 0.5% and 99% of our customers repeat their orders with us. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production lines.
