3-рядный 3*16 32 контактный 48-контактный разъем DIN41612 шаг 2 54 мм/5 08 мм Штекерный Eurocard прямой для печатной
- Категории: Other Connectors >>>
- Поставщик: Dongguan,Fuyconn,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

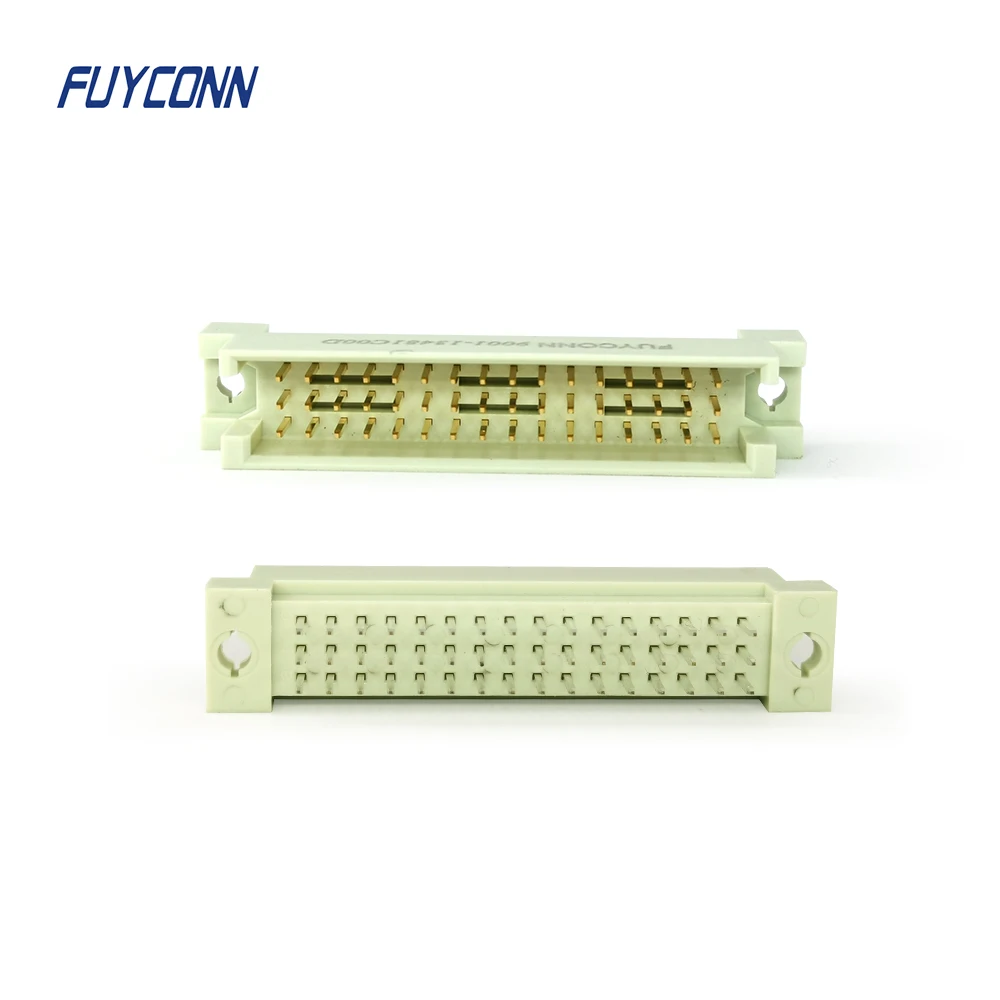

3rows 3*16 32pin 48pin DIN41612 Connector, 2.54mm/5.08mm pitch 48Pin Male Eurocard Straight Terminals connector for PCB Board
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 48 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 48 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.
Why Choose Us
1, 16 years Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
Product Description
Product features | |
1. Product Line: | DIN41612 Connector |
2. Product Name: | Eurocard Connector |
3. Connector Gender: | Male Plug |
4. Rows | 3rows |
5. Number of Position: | 16pin 32pin 48pin |
6. Contact Material: | Phosphore Bronze |
7. Contact Plating: | Gold plating ( 1U", 3U", 5U", 10U", 15U",30U" ) |
8. Insulation Material: | PBT |
9. UL Flammability Rating | UL-94-V0 |
10.Color | Gray |
11. Connector Type | PCB Straight connector |
12. Pitch | 2.54mm or 5.08mm |
Electrical Specifications | |
Current Rating: | 2AMP |
Dielectric Withstanding Voltage: | AC 1000V For 1 minute |
Insulator Resistance: | 1000 MΩ min.at DC500V |
Contact Resistance: | 30mΩ max. at DC 100MA |
Operating Temperature: | -55°C--+105°C |
Application
Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
Related Products
Packing&Shipping
Strong Package
1, Vacuum Tray
2, PE Bag
3, Take strong bags/boxes/cartons
4, PE Bag + Strips
Company Profile
Dongguan Fuyconn Electronics Co,. Ltd
Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, DIN41612 connector, SCSI series and RJ series. We have over 1,000 models for you choice.
Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our product defect rate is less than 0.5% and 99% of our customers repeat their orders with us. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production lines.
