Backplane Connectors 0759101103 Original factory Good Price OEM
US $16.09-$54.30
Вертикальный 3-рядный 32-контактный 48-контактный евро-разъем DIN41612 тип B гнездовой разъем 3*16P 332 348 DIN 41612 с прямыми
- Категории: Backplane Connectors >>>
- Поставщик: Dongguan,Fuyconn,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

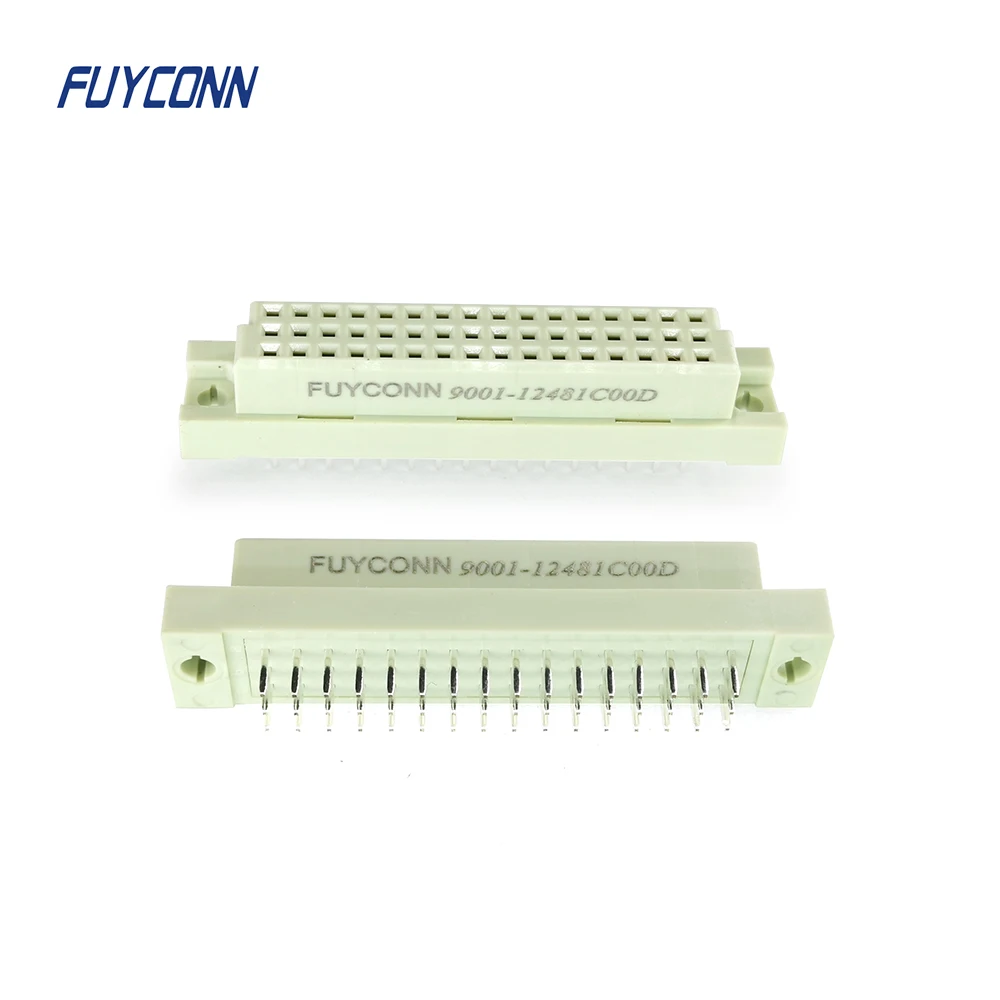

Vertical PCB 3 row 32pin 48pin DIN41612 Euro Connector, B Type Female 3*16P 332 348 DIN 41612 connector with Straight Terminals
DIN 41612 Connector is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.
The DIN 41612 Connector has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 48 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.
The DIN 41612 Connector has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 48 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.
Why Choose Us
1, 16 years Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
Product Description
Product features | |
1. Product Line: | DIN 41612 Connector / Euro Connector |
2. Connector Gender: | Female Receptacle |
3. Row | 3 rows |
4. Number of Position: | 3*16pin 48pin |
5. Contact Material: | Phosphore Bronze |
6. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
7. Insulation Material: | PBT |
8. UL Flammability Rating | UL-94-V0 |
9.Color | Gray |
10. Connector Type | PCB Straight connector |
11. Pitch | 2.54mm |
Electrical Specifications | |
Current Rating: | 2AMP |
Dielectric Withstanding Voltage: | AC 1000V For 1 minute |
Insulator Resistance: | 1000 MΩ min.at DC500V |
Contact Resistance: | 30mΩ max. at DC 100MA |
Operating Temperature: | -55°C--+105°C |
Application
Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 Connector and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
Related Products
Packing&Shipping
Strong Package
1, Vacuum Tray
2, PE Bag
3, Take strong bags/boxes/cartons
4, PE Bag + Strips
Company Profile
Dongguan Fuyconn Electronics Co,. Ltd
Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, DIN41612 connector, SCSI series and RJ series. We have over 1,000 models for you choice.
Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our product defect rate is less than 0.5% and 99% of our customers repeat their orders with us. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production lines.
Certification
Contact us
Grace Zhong
Wechat: +86 18925547246
Skype: fuyconn001
Phone: +86 18925547246
Office Phone: +86 0769 83690889
Add: 1-2/F, No.108 Hengdong Road, Fengda Industry District, Dongkeng town, DongGuan City, Guangdong Province,China
Skype: fuyconn001
Phone: +86 18925547246
Office Phone: +86 0769 83690889
Add: 1-2/F, No.108 Hengdong Road, Fengda Industry District, Dongkeng town, DongGuan City, Guangdong Province,China
