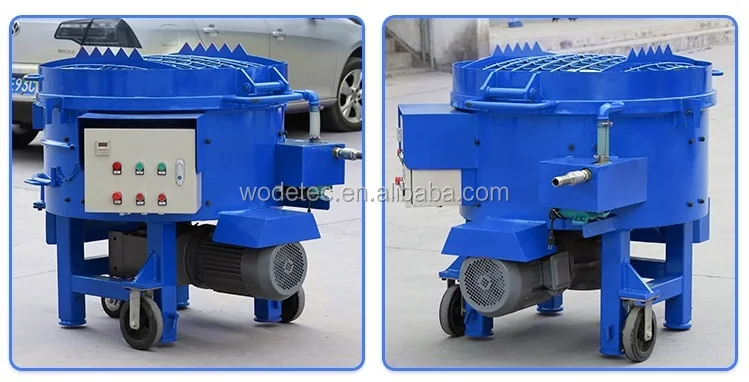

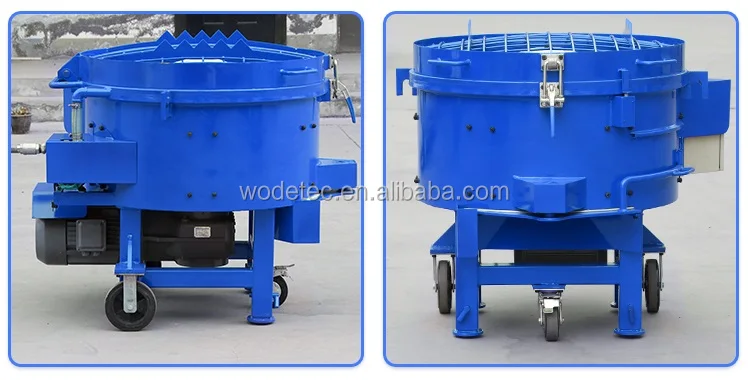

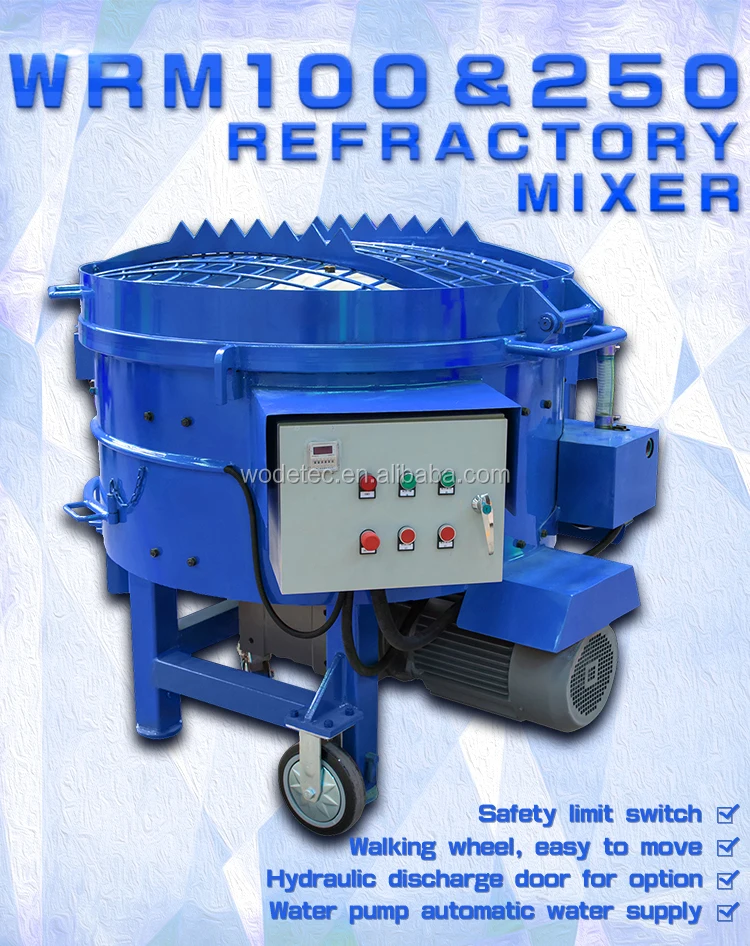

1. WRM250 refractory pan mixer is used to mix raw materials. Mixing capacity is 250kg, power is 7.5kw. We can also customize it according to your needs.
2. Material obtained in the pan blenasonable, easy operation and made full mixing, thereby enhancing the mixing uniformity. Using novel rotor structure.
3. WRM250 electric refractory mixer equipped with walking wheels, two operators could easily move it in working site.
Product structure:

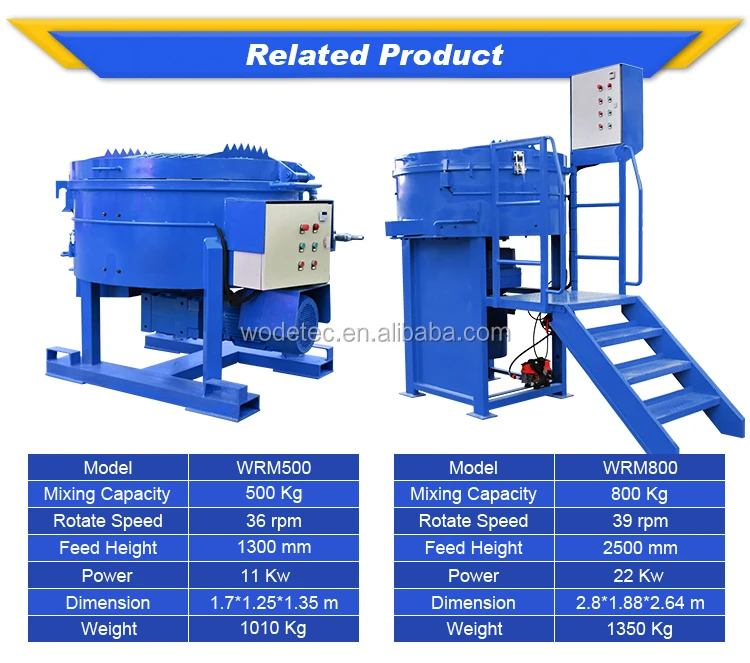

Model |
WRM100 |
WRM250 |
WRM500 |
WRM800 |
WRM1000 |
Mixing Capacity |
100kg |
250kg |
500kg |
800kg |
1000kg |
Rotate Speed |
33rpm |
34rpm |
36rpm |
39rpm |
39rpm |
Feed Height |
1100mm |
1200mm |
1300mm |
2500mm |
2100mm |
Power |
4kw |
7.5kw |
11kw |
22kw |
37kw |
Dimension |
1.4*1.3*1.1m |
1.48*1.38*1.23m |
1.7*1.25*1.35m |
2.8*1.88*2.64m |
1.6*1.5*2.14m |
Weight |
550kg |
650kg |
1010kg |
1350kg |
1680kg |
We are the refractory mixer factory, we can customize according to your requirements. In order to recommend you more suitable models refractory mixer, please let us know clearly about your requirements:
1. What is the output do you need, 100kg, 250kg, 500kg, 800kg, 1000kg or other?
2. The electric motor, voltage 3 phase, 380 V, 50 HZ is ok for you?
3. Do you have any other special requirments for this machine?
We have WRM100, WRM250, WRM500, WRM800 and WRM1000 five different model refractory castable mixer for option. Their batch capacity is 100kg, 250kg, 500kg, 800kg and 1000kg.
WODETEC is leading manufacturer & exporter of refractory castable mixer & refractory pan mixer and castable pan mixer.

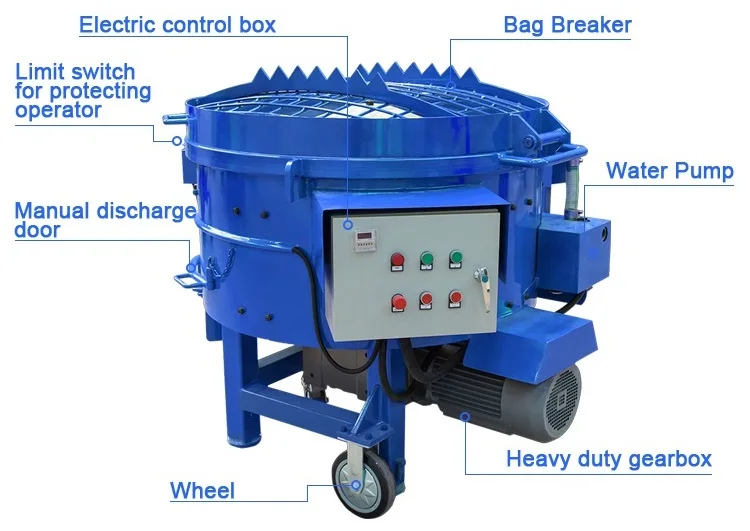

WRM refractory pan mixer all the work body fixed on the rack. The machine frame is made of quality carbon steel plate, channel steel welded together. And adopted a rigorous product certification and specific technical requirements to achieve the purpose of use.
If you are interested in our products, please contact us. Of course, you are welcome to visit our factory.
