Anon SB series combine rice mill is a comprehensive equipment to process paddy into rice. The paddy enters into the machine through the vibrating scree and manget device, and passes through the rubber roller, the blower, to the rice whitener, and completes the processing from the raw paddy to rice. Working process includes the paddy cleaning, husking, blowing and whitening. The chaff, fine bran, blighted grain and white rice should be discharged from the machine separately.
Reasonable layout, compact structure, small volume and light weight. Easy and reliable operation and maintenance. Low noise, less bran rate in finished rice, low broken rice rate, high white rice rate and low energy consumption.
Model Name | SB-5 | SB-10D | SB-30 | SB-50 |
Capacity | 500-600KG/Hour | 900-1200KG/Hour | 1100-1500KG/Hour | 1800-2300KG/Hour |
Power | 5.5KW/8-10Hp | 11KW/15Hp | 15KW/20-24Hp | 22KW/30Hp |
Dimension | 860*692*1290MM | 760*730*1735MM | 1070*760*1760MM | 2400*1080*2080MM |
Net Weight | 130KG | 230KG | 300KG | 560KG |

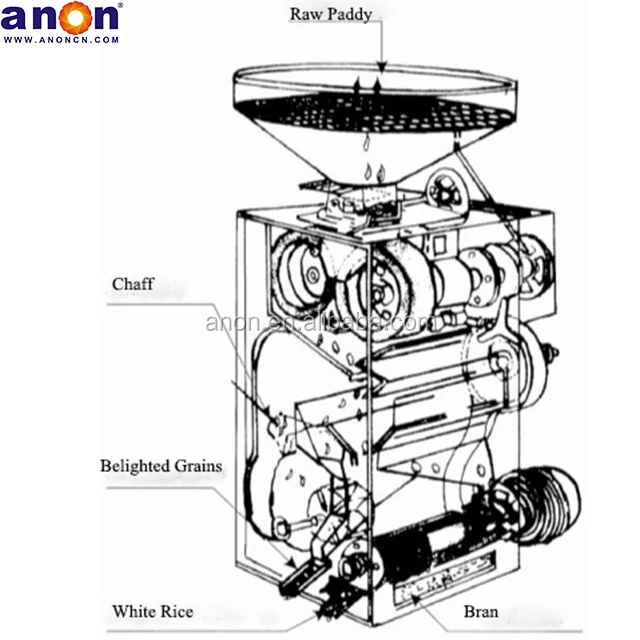

SB Series Combine Rice Mill Flow Chart
