Большой резервуар для черепахи OEM/раковина для разведения
US $1.00-$4.00
Оборудование для очистки морской воды протеиновый скиммер морского аквариума и рыбной фермы
- Категории: Aquariums >>>
- Поставщик: Zhongshan,Ewater,Aquaculture,Equipment,Technology,Limited
Поделиться:
Описание и отзывы
Характеристики
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Protein Skimmer
A protein skimmer is a device used to remove organic compounds such as food and waste particles from water.
It is most commonly used in commercial applications like municipal water treatment facilities and public aquariums. Smaller protein skimmers are also used for filtration of home saltwater aquariums.
Advantages of our Protein Skimmer
1. More air/water interface are generated.
2. Easier to collect the organic molecules at the air/water interface.
3. The bubbles forming this air/water interface can come together to form a foam more quickly.
4. The water in the foam partially will drain without the bubbles popping prematurely.
5. The drained foam is easily separated from the bulk water and discarded.
Specification of eWater Protein Skimmer
The capacity of our Protein skimmer covers from 10 m³/hr flow rate to 200m³/hr.
Product Model | EP-F-20 | EP-F-30 | EP-F-50 | EP-F-60 | EP-F-80 | EP-F-100 |
Flow rate | 20 m³/hr | 30 m³/hr | 50 m³/hr | 60 m³/hr | 80 m³/hr | 100 m³/hr |
Tank diameter | 600 mm | 600 mm | 850 mm | 955 mm | 955 mm | 1200 mm |
Tank height | 2000 mm | 2300 mm | 2100 mm | 2100 mm | 2400 mm | 1800 mm |
Diameter(input) | 75 mm | 90 mm | 90 mm | 110 mm | 110 mm | 160 mm |
Height(input) | 1800 mm | 2100 mm | 1900 mm | 1750 mm | 2350 mm | 2050 mm |
Diameter(output) | 90 mm | 110 mm | 110 mm | 160 mm | 160 mm | 200 mm |
Height(output) | 1700 mm | 2000 mm | 1800 mm | 1650 mm | 2000 mm | 1950 mm |
Power of the Pump | 0.9 Kw | 1.1 Kw | 1.1 Kw | 1.5 Kw | 1.85 Kw | 2.2 Kw |
\t\t\t\t\t\t\t\t\tProcess&Application \t\t\t\t\t\t\t

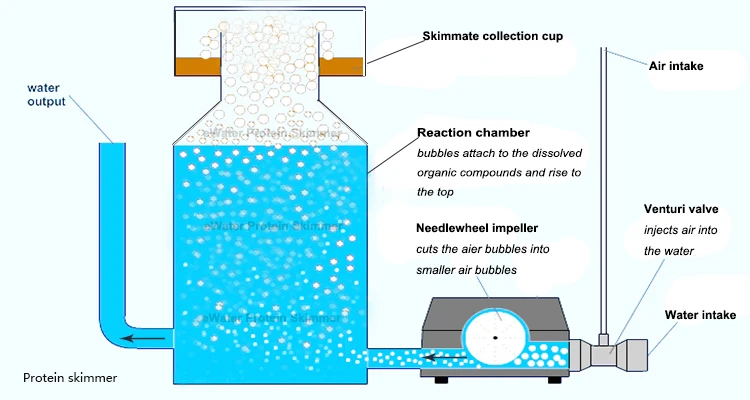

How To work
All protein skimmers have key features in common: water flows through a chamber and is brought into contact with a column of fine bubbles. The bubbles collect proteins and other substances and carry them to the top of the device where the foam, but not the water, collects in a cup. Here the foam condenses to a liquid, which can be easily removed from the system. The material that collects in the cup can range from pale greenish-yellow, watery liquid to a thick black tar.
Recirculating skimmer
Aspirating pump skimmers are the most popular type of skimmer to use recirculating designs although other types of skimmers, such as Beckett skimmers, are also available in recirculating versions. While there is a popular belief among some aquarist that this recirculation increases the dwell or contact time of the generated air bubbles within the skimmer there is no authoritative evidence that this is true. Each time water is recirculated within the skimmer any air bubbles in that water sample are destroyed and new bubbles are generated by the recirculating pump venturi apparatus so the air-water contact time begins again for these newly created bubbles.The recirculating pump pulls water out of the skimmer and injects air to generate the foam or air/water mix before returning it to the skimmer reaction
chamber-thus 'recirculating' it.

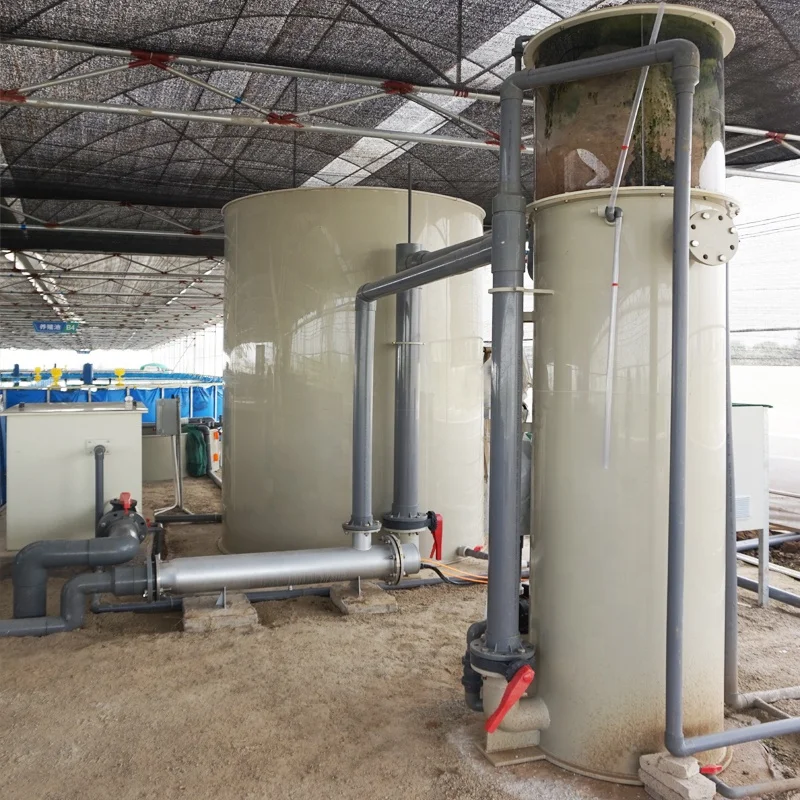

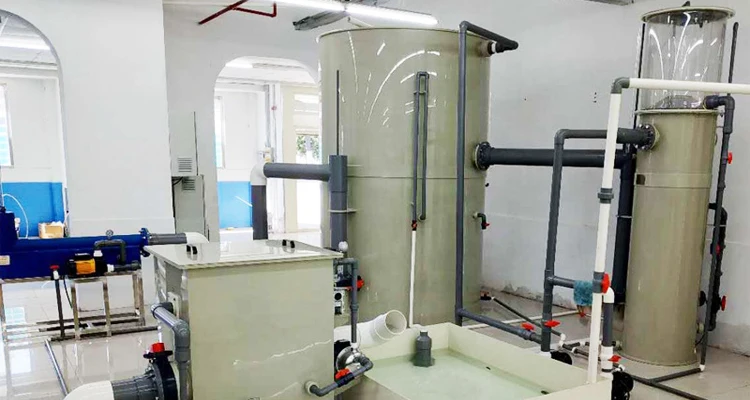

Product Photo
Pump
Solenoid Valve
Valve
\t\t\t\t\t\t\t\t\tAbout eWater \t\t\t\t\t\t\t
Company Profile
Zhongshan eWater Aquaculture Equipment Technology Co., Ltd is a professional company engaged in design, production and sales of Recirculating Aquaculture System as well as aquaculture equipment. Ewater is focused on the development and manufacturing of industrial recirculating aquaculture system solutions, and its product design and production, including drum filters, protein skimmers, biological filters, aeration equipment, disinfection equipment, heat pumps and water quality monitor equipment.
We work with top-level aquaculture research institutes and experts to develop best solutions for our customers in aquacultrure industry. Our engineering team is committed to develop best practices for each equipment and RAS based on customers' needs. We continue to be reliable and honest in what we do and how we act.Our mission is to improve sustainability and profitability for customers, and be a valuable partner for customers' long-term business.
Why Choose Us
Packing & Delivery
Our Service
Great Service is Our Misson
● Consulting service available and custom designs are welcomed!
● We offer practical solutions, premium quality products along side competitive prices and prompt delivery.
● All the equipment are guaranteed for 2 years and life-time warranty except for the wearing parts.
● Support onsite installation and sending engineer for debugging on demands.
● After-sales service and content: If the quality problems occur; even the equipment lose the ability of working, we will repair or replace them free of charge during the warranty period. The product is life-long maintenance and we will
provide all-round services except for factors such as artificial damage or irresistible force.
Contact us
For more information of eWater RAS for your applications.
