Product Description

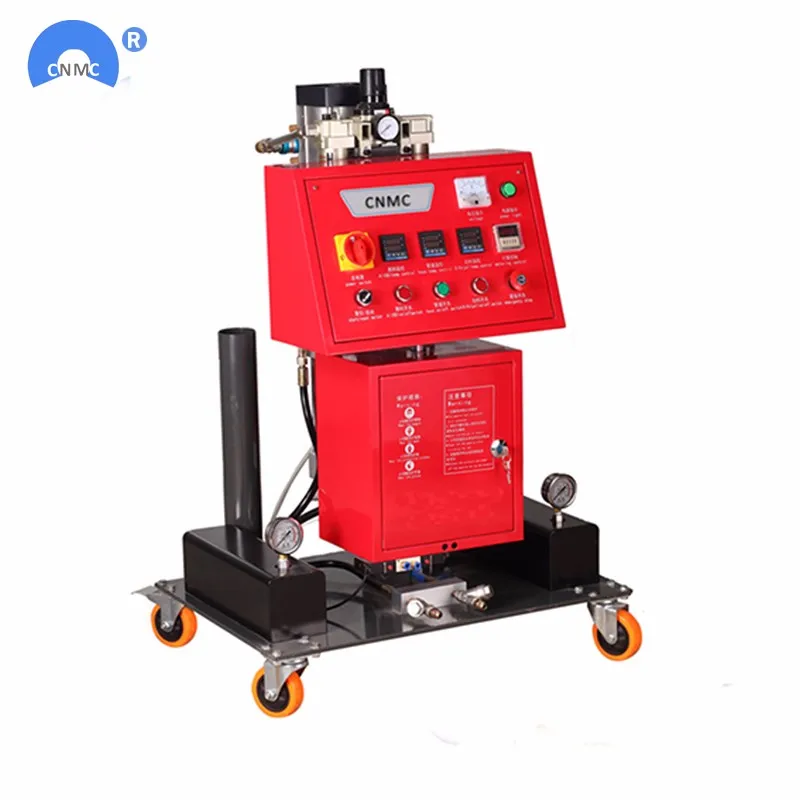

Low pressure pu polyurethane spray foaming machine for wall and roof insulation


Product Application

polyurethane foam injection machine

Hydraulic drive model polyurethane spraying machine is specially equipped with adjustment buttons according to different application habits of users. It can be adjusted according to the habits. The model specifications are different. Users can use it safely when using it to ensure that the polyurethane spraying machine equipment will not be used during use. Because of the application effect of polyurethane spraying, our manufacturer's polyurethane spraying machine equipment is equipped with special instructions at the moment, which can be put into use with confidence, and can meet the application needs of many users at present, easy to apply, fast, practical effect.

\t
SPECIFICATIONS FOR CNMC-600
\t

Parameter

\t
Power source
\t
3- phase 4- WIRES 380V 50Hz
\t
Heating power
\t
30KW
\t
Driven mode
\t
pneumatic
\t

Standard configuration

\t
Air source
\t
6-18 MPa ≥1.2m³/min
\t
Raw output
\t
2~17 kg/min
\t
Maximum output pressure
\t
36MPA
\t


Standard configuration

\t
AB material output ratio
\t
1:1
\t
Spray gun
\t
1 Set
\t
Feeding pump
\t
2 sets
\t


Standard configuration
\t
Heating hose
\t
15meters
\t
Gun connection pipe
\t
2pieces
\t
Feed delivery pipe
\t
2pieces
\t
pneumatic pipe
\t
5meters
\t

Standard configuration
\t
Spare parts
\t
1set
\t
Packing size
\t
1100mm X 1480mm X 740mm
\t
Machine weight
\t
310KG

Main Features

polyurethane foam injection machine

1.The heating power of new one is 30KW, making sure the fast heat-up even under cold weather.

2.The maximum material outflow has upgraded to 17kg/min so the machine can perform well during large volumn injection project.

3.The new one weights lighter than the previous one, because we use the best yet ligter material from outside to inside, frame, booster pump, all the main parts of the machine, making sure the good quality and durable.

4.We use the hydraulic station with the rock-solid quality, guaranteeing the heart of the machine-lasts longer.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

\t
Parts come with the machine

Spray gun


Heating hose :External heating 15 meters one roll


Transfer pump:stainless steel

Certifications
Packing & Delivery
\t
Packaging
\t
Size
\t
900 (L) * 900(W) * 1600(D)
\t
Weight
\t
300T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
