Сверхмощный Конвейерный направляющий станок для резки и снятия Фаски

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

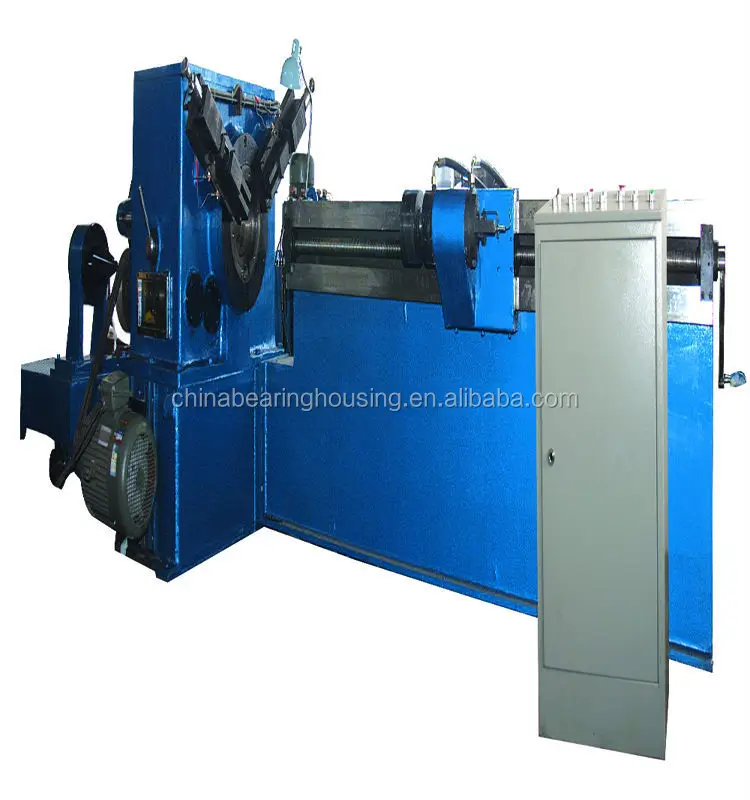

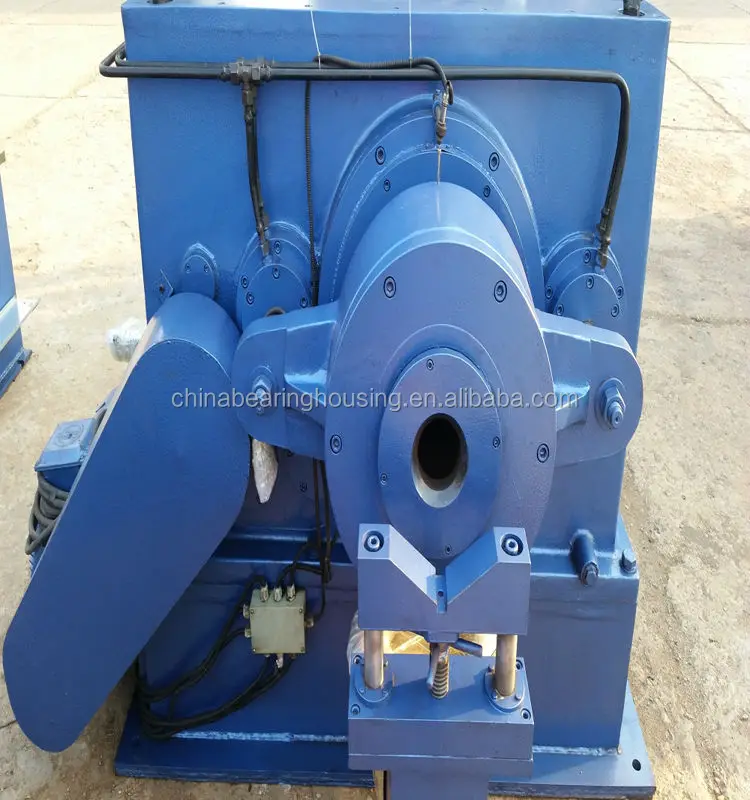

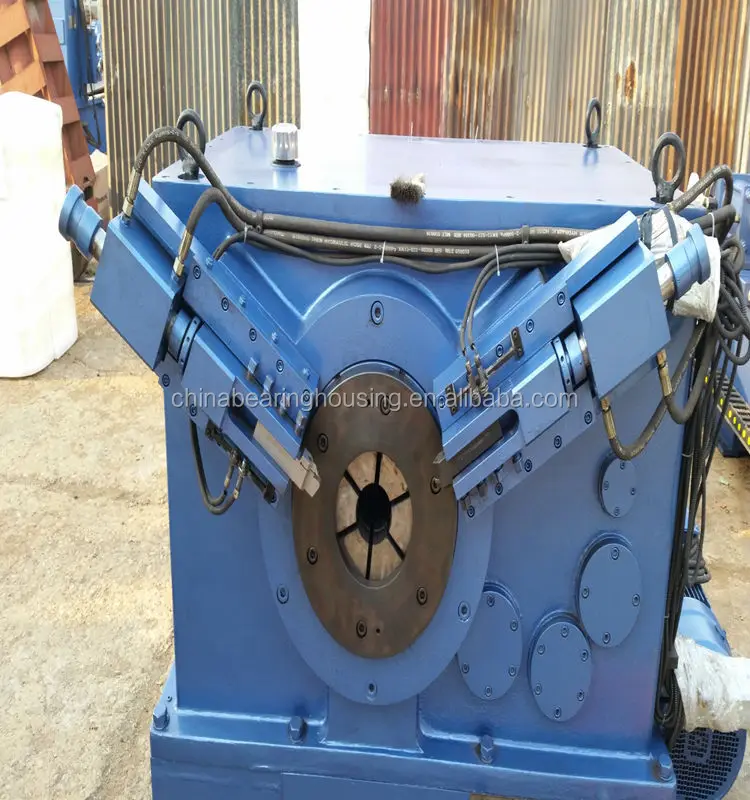

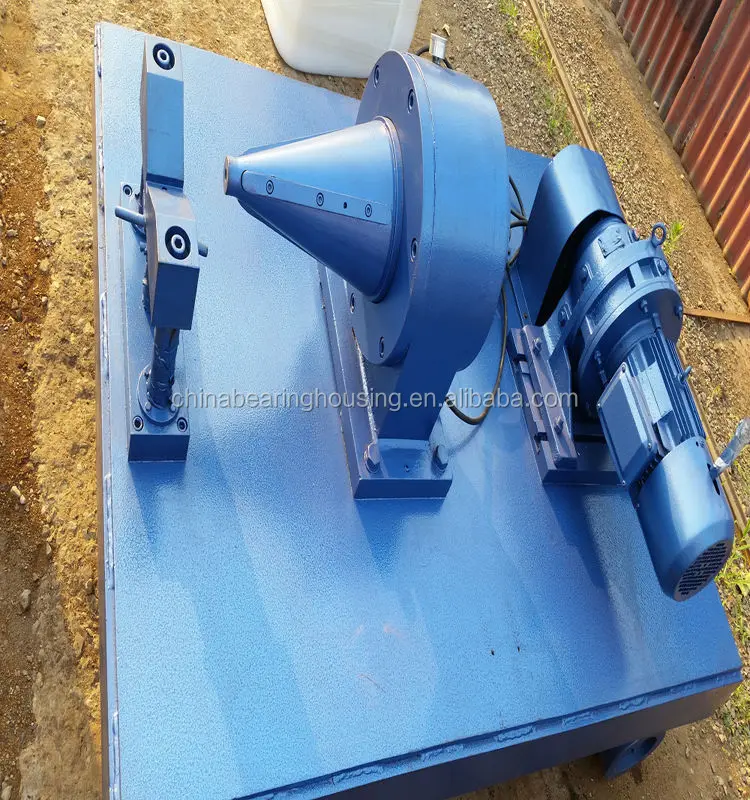

Heavy Duty Conveyor Idler Making Machine For Pipe Cutting And Chamfering

The main parameters

Specifications	QZ11-16×220	QZ11-22×260
Spindle center height	800mm	800mm
Hydraulic system working pressure	1.5-4MPa	1.5-4MPa
Spindle speed	150,220 r/min	100,160,250 r/min
Feed speed	Hydraulic stepless	Hydraulic stepless
Feeding speed	0-8m/min Hydraulic stepless	0-8m/min Hydraulic stepless
The maximum feed length	12000 mm	12000 mm
Spindle motor	15 kW	22 kW
Hydraulic System Motor	5.5 kW	5.5 kW
Feeding mechanism	Hydraulic motor 150NM	Cycloid reducer 2.2kw
Cut pipe length	200-2200 mm	200-2600 mm
Cut off the pipe diameter	Φ89-Φ160 mm	Φ89-Φ219 mm
Equipment Dimensions	19090×1640×1330 mm(Containing track)	20310×2420×1300 mm(Containing track)

Precision

Specifications	QZ11-16×220	QZ11-22×260
Cutting length Repeatability	≤0.5 mm	≤0.5 mm
Cut parallel to the surface of the pipe ends	≤0.4 mm	≤0.4 mm
Cut chamfered surface roughness Ra	6.3~12.5μm	6.3~12.5μm

We can offer:

1.Engineer available to service machinery overseas.

2.You can avoid transportation problem if you choose make a deal with

us.

3.We have many foreigner business partner ,you can be rest assured that

the quality will be done to your satisfaction.

4.I can promise the price is the most competitive for the same machine in

china.if you find this same machine with more cheapest price from

other factory in China,tell us,we will return your money.

5.The integrity is my aim.So please don’t worry to do business with me.I

will give you a good service so that you will never want to change

china supplier.
