Заводской фильтр HEPA FFU для чистых

Цена:15 067,58 ₽ - 30 135,16 ₽*

Стоимость в USD (на сегодня):Узнать

Количество:

FFU fans filters DC FFU unit for cleanroom

Product Description

WeChat _20190720231804.jpg

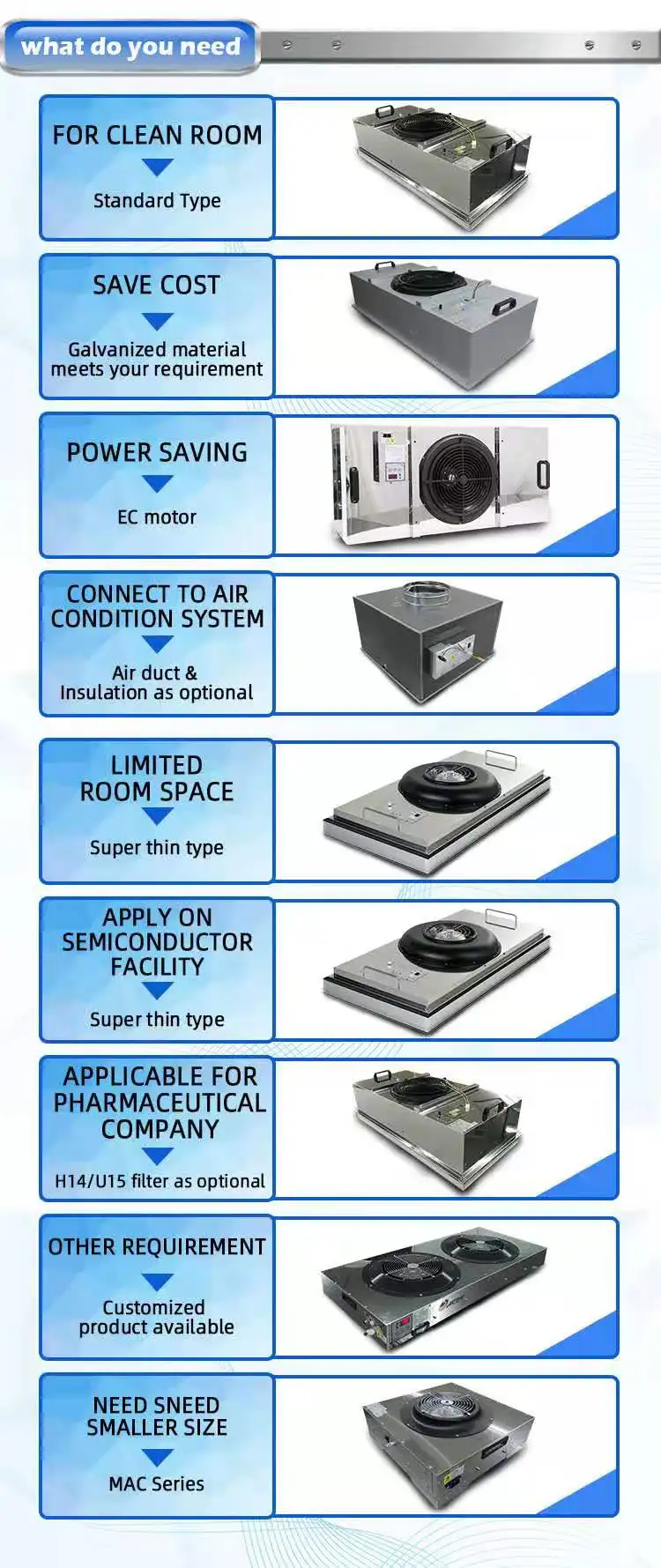

*WHAT DO YOU NEED*
For clean room	Save cost	Power saving
Connect to air condition system	Limited room space	Apply on semiconductor facility
Applicable for pharmaceutical company	Other requirement	Need smaller size

AC Type
Item		FFU-S420S			FFU-S430S			FFU-S525			FFU-S440S
Outside Dimension	W	1175			1175			1475			1175
	D	575			875			725			1175
	H	360			360			360			360
Boby Construction		SUS430 & AL-Zn
HEPA ULPA	Features	Alumium,Filtration Efficiency 99.99%,0.3um / 99.999%,0.1~0.12um
	Dimension	1170×570×50			1170×870×50			1470×720×50			1170×1170×50
Air speede		Lo	Mi	Hi	Lo	Mi	Hi	Lo	Mi	Hi	Lo	Mi	Hi
External Static Pressure (Pa)		170	170	170	170	170	170	170	170	170	170	170	170
Air Veloctity (m/s)		0.36	0.45	0.5	0.4	0.45	0.5	0.4	0.45	0.5	0.4	0.45	0.5
Air volume (CMM)		15	18	20	24	28	30	24	28	30	30	35	40
Noise (db)		53	56	59	50	55	58	50	55	58	55	58	60
Power consumption (W)		110	130	149	198	211	225	198	211	225	210	230	250
Total Weight (Kg)		38			43			46			57
Power Supply		AC 1Ø 220V 60Hz

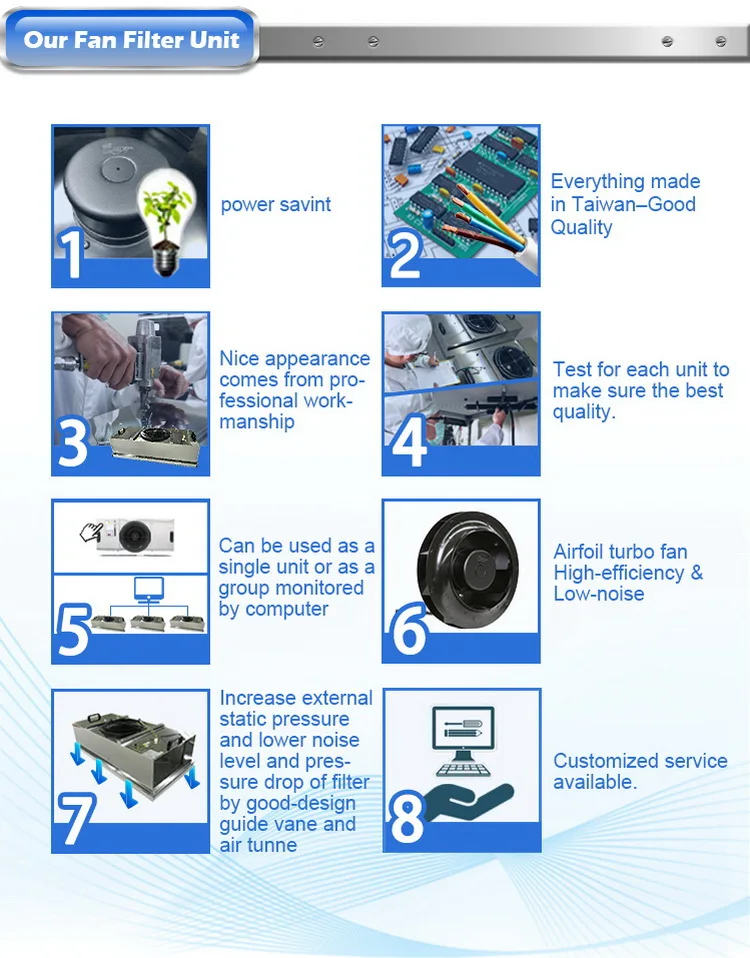

FFU motor is with DC brushless frequency converter motor. So that, it is with superior features of energy save and low noise level as well.
Power supply: AC200V, single phase, 50/60HZ

DC Type
Item		FFU-SD420S			FFU-SD430S			FFU-SD525			FFU-SD440S
Outside Dimension	W	1175			1175			1475			1175
	D	575			875			725			1175
	H	360			360			360			360
Body Construction		SUS430 & AL-Zn
HEPA ULPA	Features	Aluminum Frame,Filtration Efficiency99.99%,0.3um / 99.999%,0.1~0.12um
	Dimension	1170×570×50			1170×870×50			1470×720×50			1170×1170×50
Air Speed		Lo	Mi	Hi	Lo	Mi	Hi	Lo	Mi	Hi	Lo	Mi	Hi
External Static Pressure(Pa)		170	170	170	170	170	170	170	170	170	170	170	170
Air Velocity (m/s)		0.36	0.45	0.5	0.4	0.45	0.5	0.4	0.45	0.5	0.4	0.45	0.5
Air Volume (CMM)		15	18	20	24	28	30	24	28	30	30	35	40
Noise (db)		52	57	59	50	55	58	50	55	58	55	58	60
Power consumption (W)		62	80	95	100	102	123	100	102	123	150	158	200
Total Weight (Kg)		38			43			46			57
Power Supply		AC 1Ø 220V 60Hz

-Customized size and specification are available to meet customer's requirements.

.jpg
