Цифровой портативный измеритель толщины покрытия диапазон 0-мкм/0-50 мил Встроенный датчик F и NF (доступная
- Категории: Width Measuring Instruments >>>
- Поставщик: GAIN,EXPRESS,HOLDINGS,LIMITED
Поделиться:
Описание и отзывы
Характеристики
Our OEM Service
Product Description

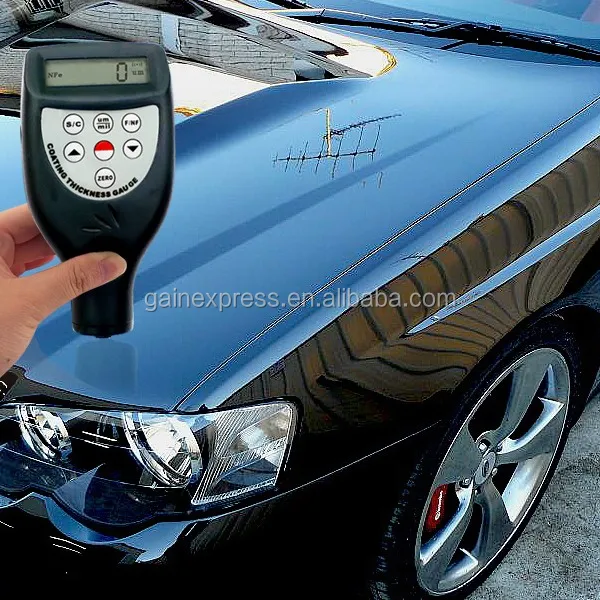

This Coating thickness meter conquers the difficulties of non-destructive measuring of coating thickness on both magnetic and non-magnetic base that can be used on many applications even on applications that require greater precision. Light weight and equipped with BUILT-IN F & NF probes it carries out high-speed and accurate results on either single or continuous measuring mode and covering a wide range of 0-1250umor 0-50mil.
The F probe (Magnetic Induction) measures the thickness of non-magnetic coating layers on magnetic substrate. Examples of non-magnetic coating layer: aluminum,chrome, copper, enamel, rubber, lacquer, dye, powder,varnish & paint.
While NF probe (Eddy Current) measures the thicknessof non conductive coating layers on non-ferrous substrate.Examples of nonconductive coating layer:enamel, rubber, paint, varnish, plastic anodic-oxidelayer. Samples of Nonferrous substrate are the following: aluminum, brass, zinc, tin and nonmagneticstainless steel.
Features
- Capable to measure magnetic & nonmagnetic materials in high resolution
- Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
- Conforms and passed the standards of international standards including ASTM, DIN, BSandISO-2178 aswell as ISO-2360

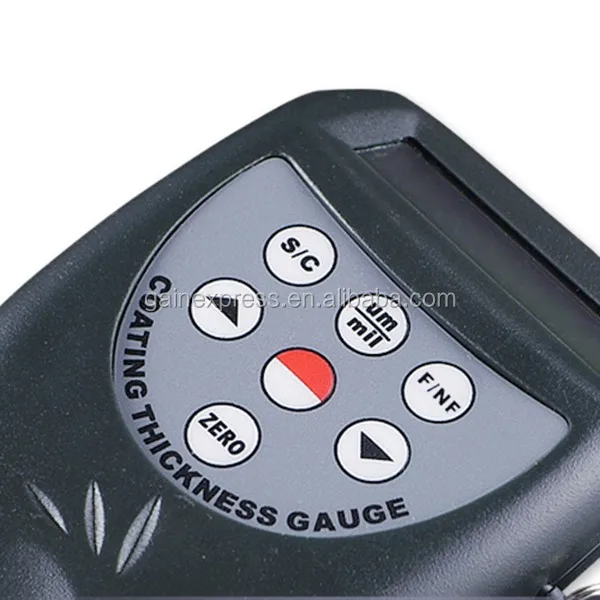

- Light weight and provides Single-handed menu navigation
- With automatic substrate recognition
- Provides Single & Continuous measurement mode with Metric/English conversion
- With manual and automatic shut down

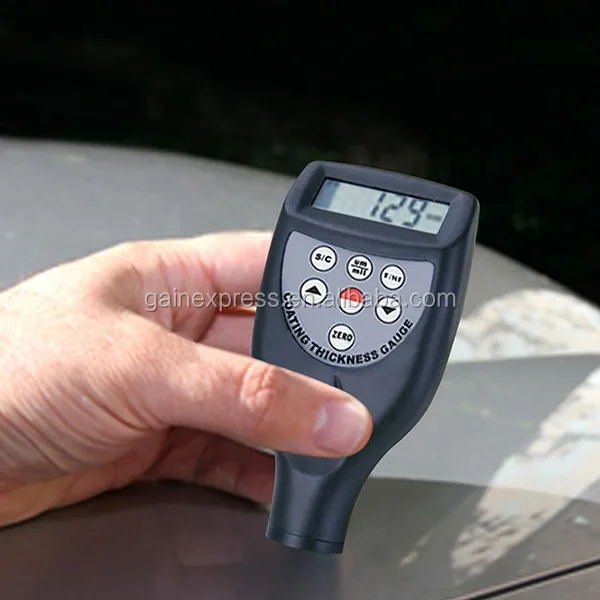

instant results that's clearly & legibly shown on an easy-to-read LCD screen and gives exact reading with no guessing or errors
- Suitable for the laboratory, Powder Coating Companies,Manufacturing Companies, Paint Suppliers,Manufacturing Companies, Steel and Aluminum Refinishing, Automobile Dealers, Auto Auctions,Body Shops, Auto Detailers and any company needing a highly accurate measurement of the dry coating thickness and can be used even in harsh field conditions
- Durable,long lasting components with a strong & light weight ABS plastic housing assures maintenance free
- FREE Protective & sturdy carrying case
Specifications

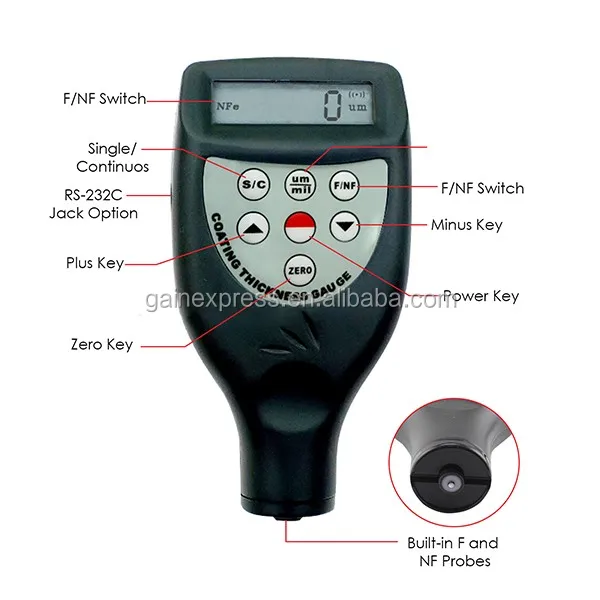

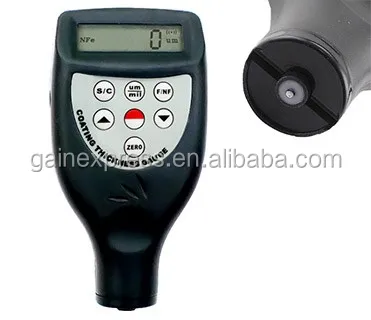

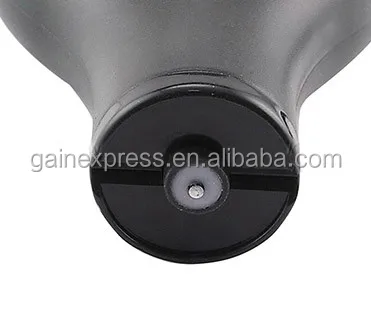

- Probes : Built-in F probe & NF probe
- Operating Principle : magnetic induction and eddy current(F & NF)
- Measuring Range: 0-1250um/0-50mil
- Resolution : 0.1um (0~99.9um) , 1um (over 100um)
- Accuracy : ±1-3%n or ±2.5um or 0.1mil(which ever is greater)
- Measuring Area : 6mm
- Min.Sample Thickness : 0.3mm
- Modes : Single & Continuous
- Battery Indicator : low battery indicator
- Metric / Imperial : convertible

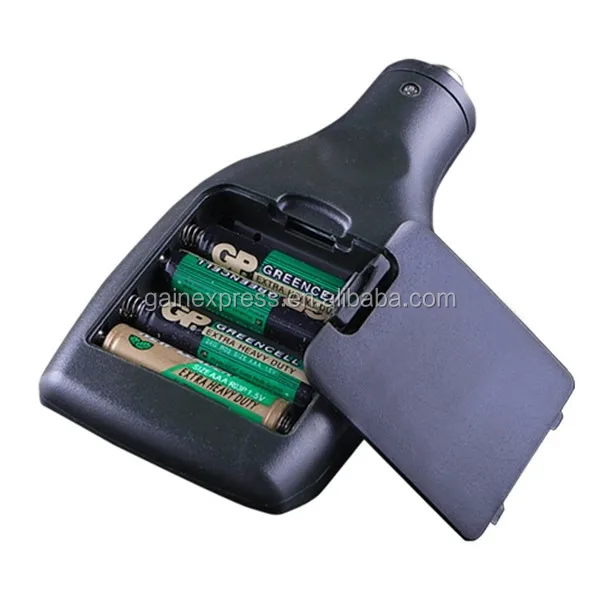

- Power supply : 4x1.5V AAA(UM-4)battery
- Manual or Auto power off
- Operating Conditions : 0~50°C(32°F-104°F) Temperature, <80% Humidity

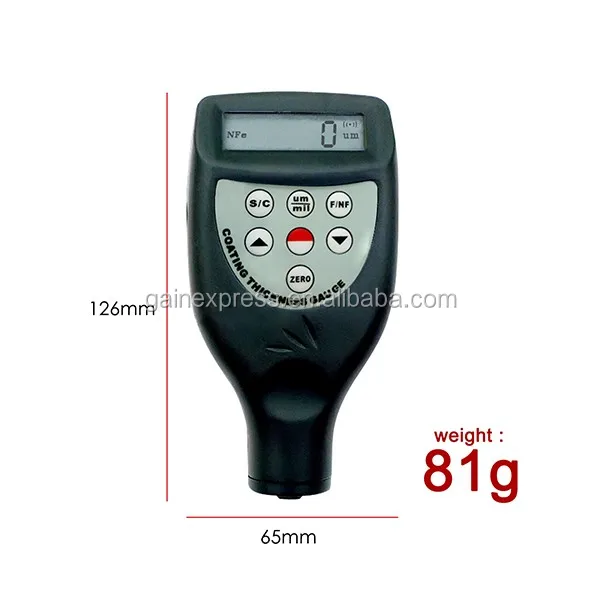

- Dimensions :126mm x 65mm x 27mm
- Weight :81g (not including battery)
Detailed Images

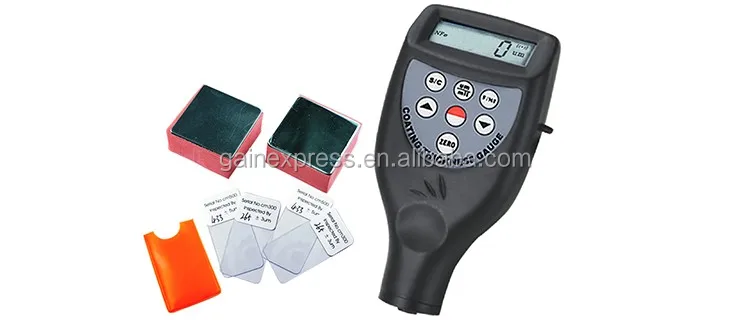

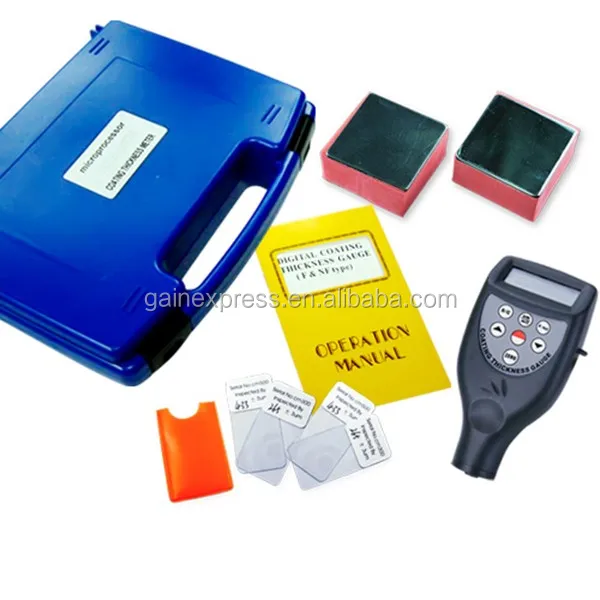

Set Includes
- 1 x Coating Thickness Meter

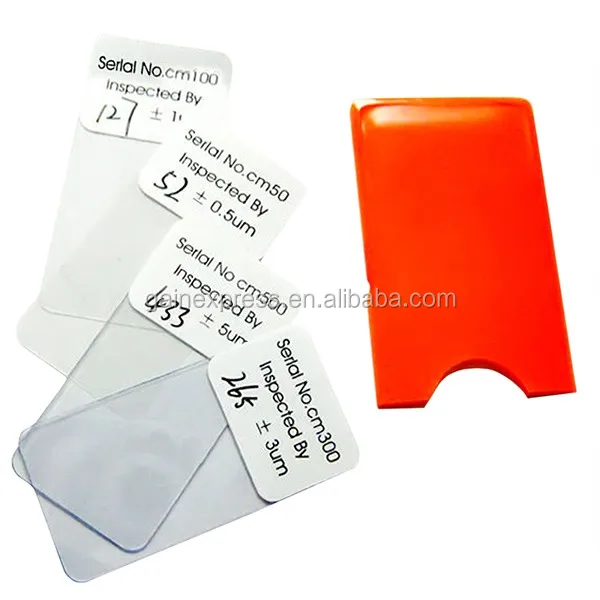

- 4 x Calibration foils

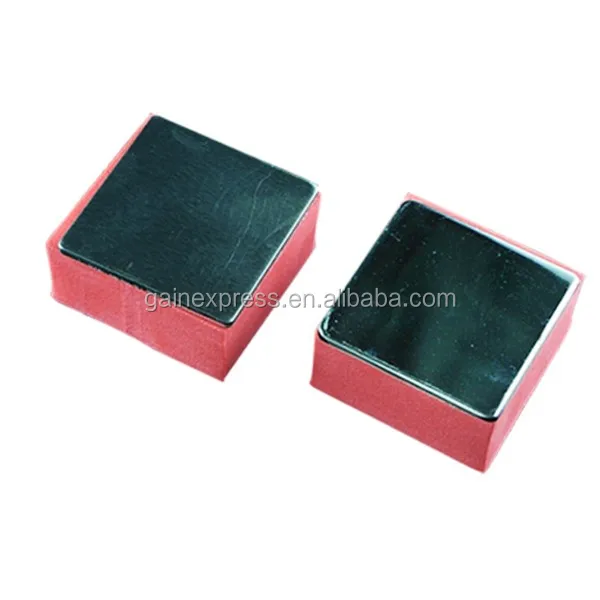

- Aluminum& Iron substrates
- English Operation/User'sManual

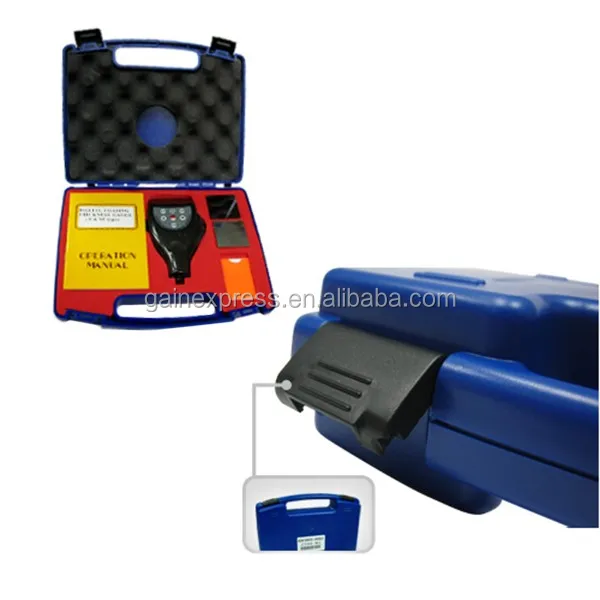

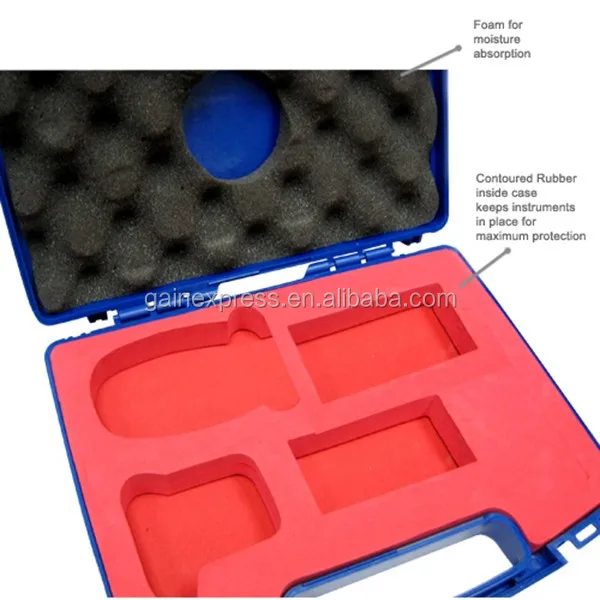

- Protective Carrying Case with Shock absorbent contoured rubber inside
Optional Item (not included in set):
Please click here to buy this optional item CD Software and USB Cable
or you may contact us at sales(at)gainexpress.com if you want an optional items to be included in your order.
Packing & Delivery
Selling Units: Single item
Single package size: 23X13X8 cm
Single gross weight: 0.68 kg
Package Type: Standard Factory Packaging
Lead Time:
Quantity(Piece) | 1 - 5 | 6 - 10 | 11 - 20 | >20 |
Est. Time(days) | 3 | 7 | 14 | To be negotiated |
