Product Description

The tool installed on a machine's workbench to hold a fixed material so that it does not move during processing. The structure is similar to a vice and is an institution that presses the material at two points.
The wedge vise used in the machining of machine tools such as Milling, Drilling, Lapping and Grinding.

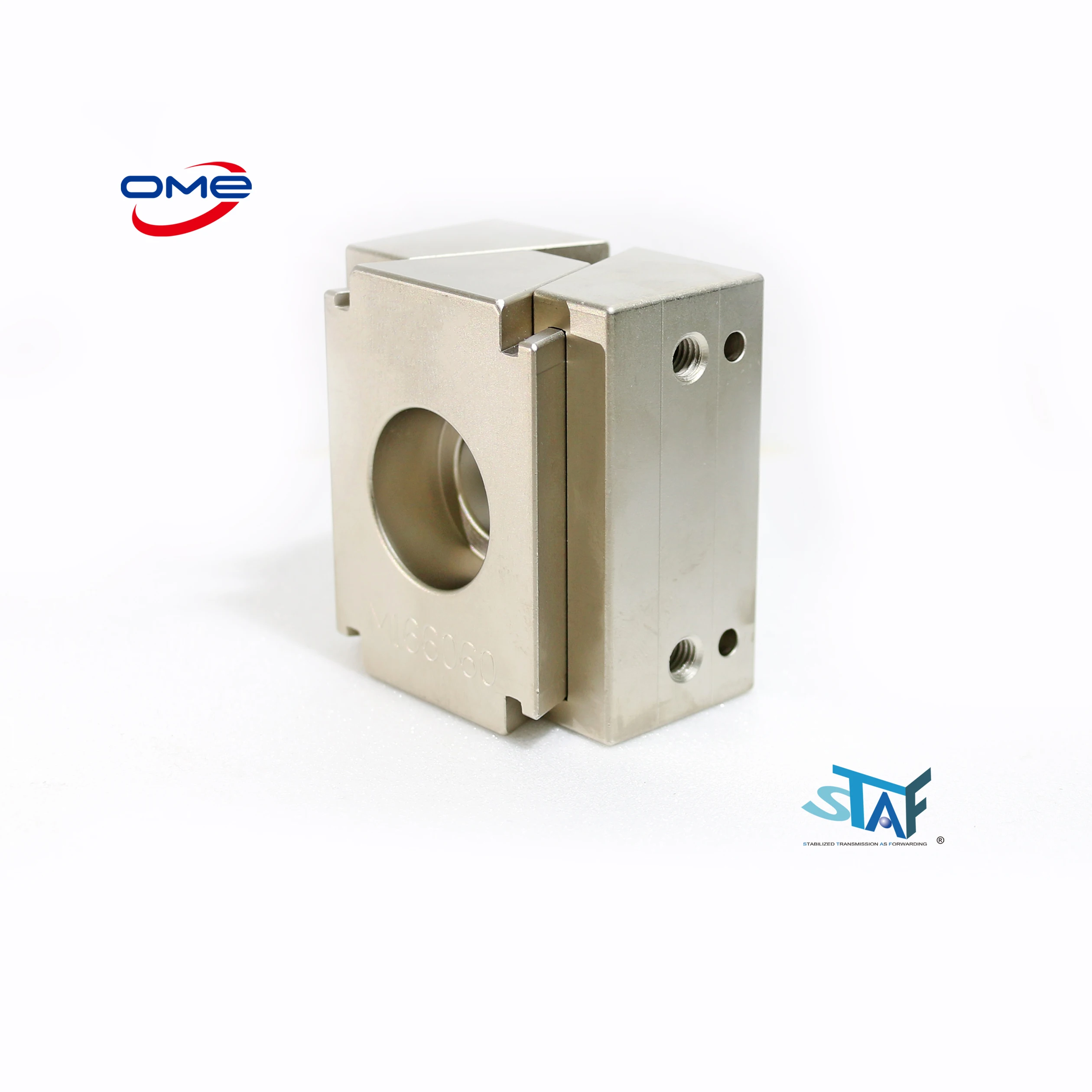

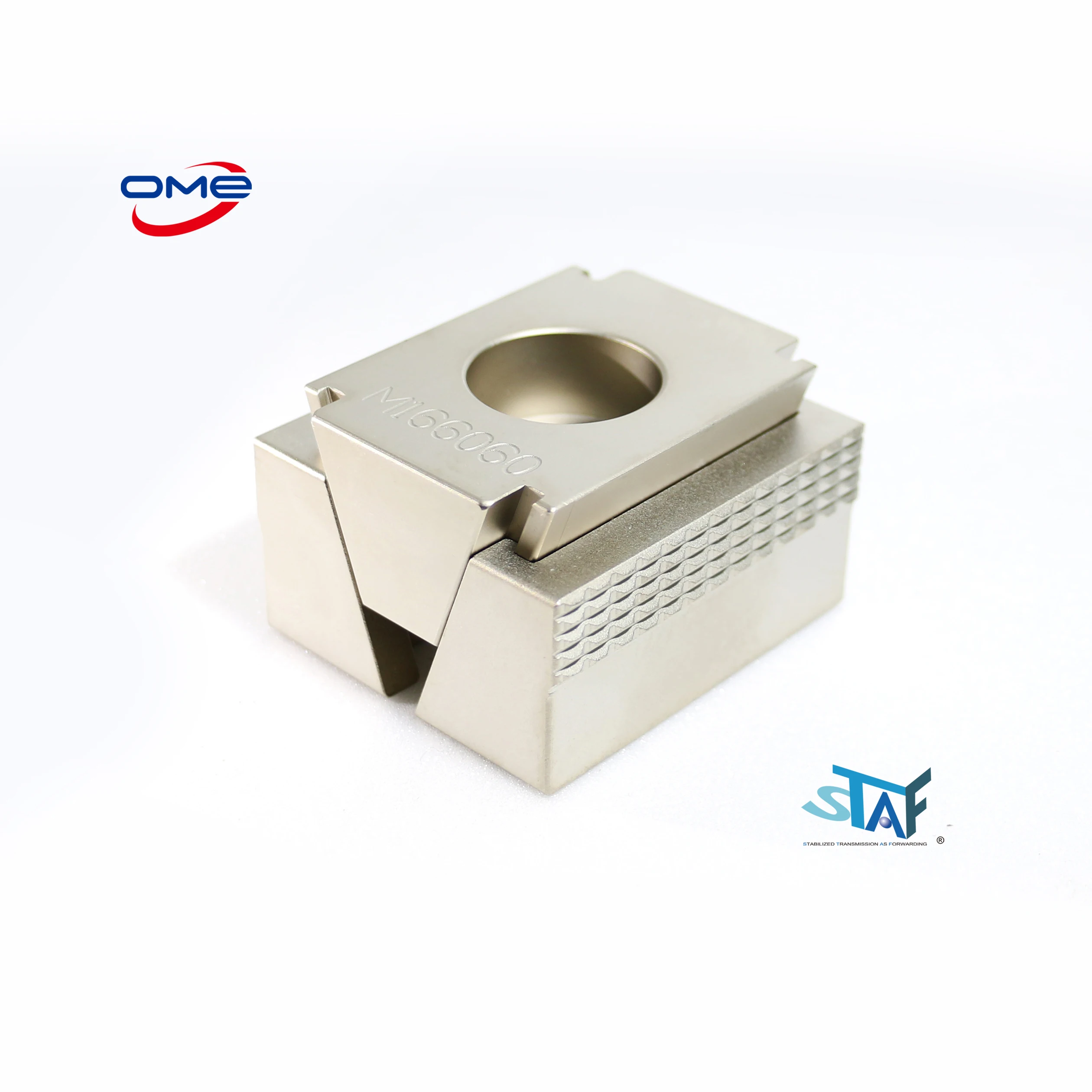

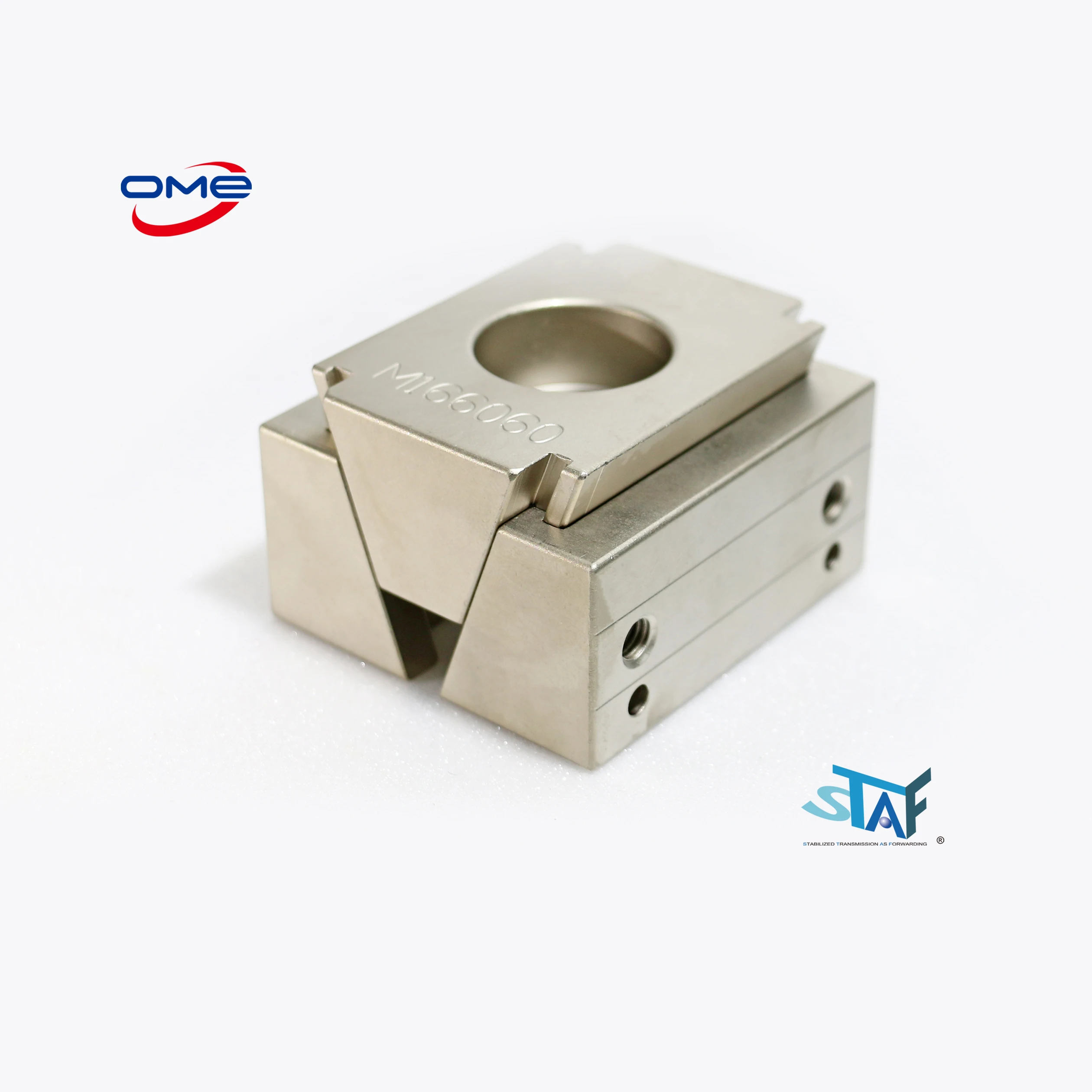

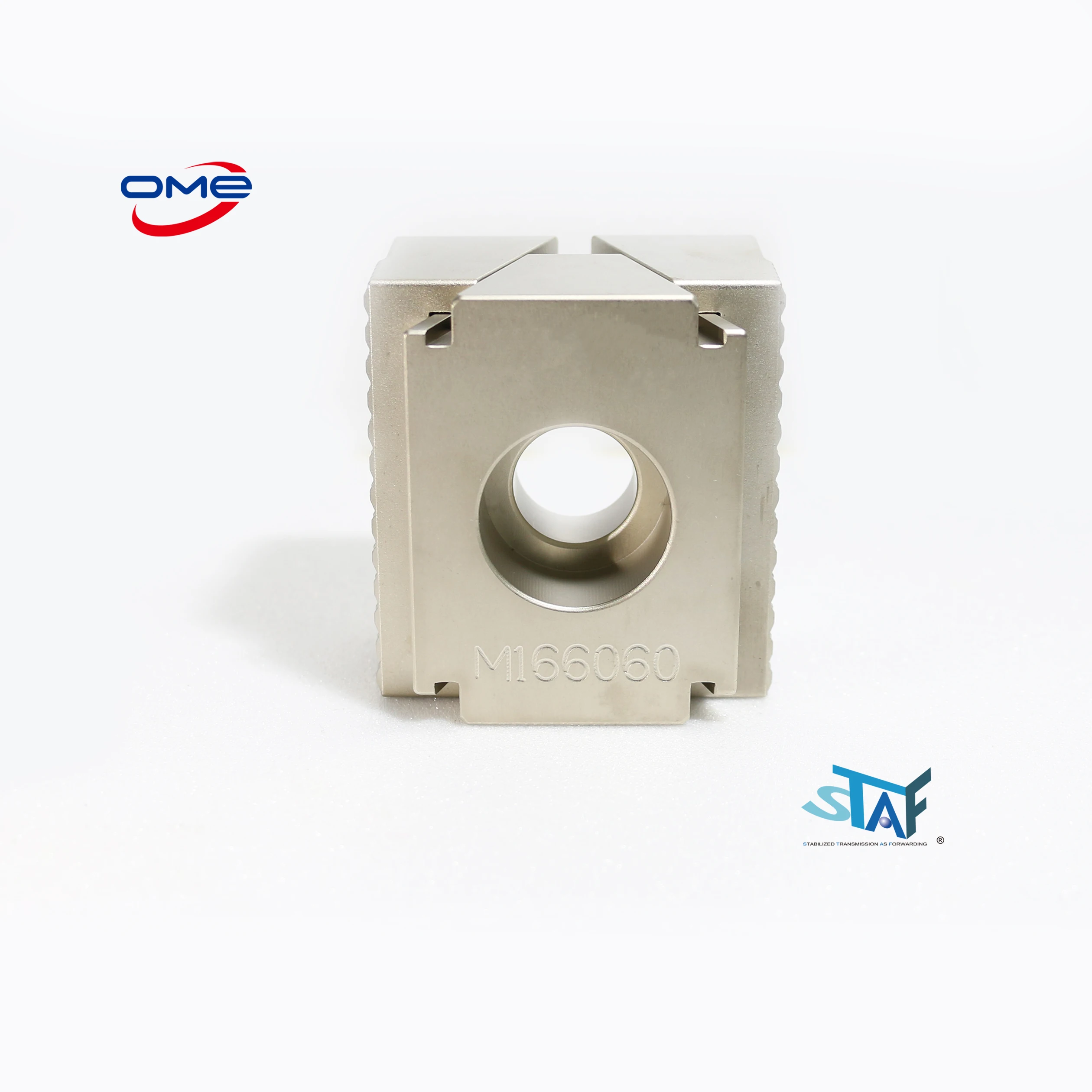

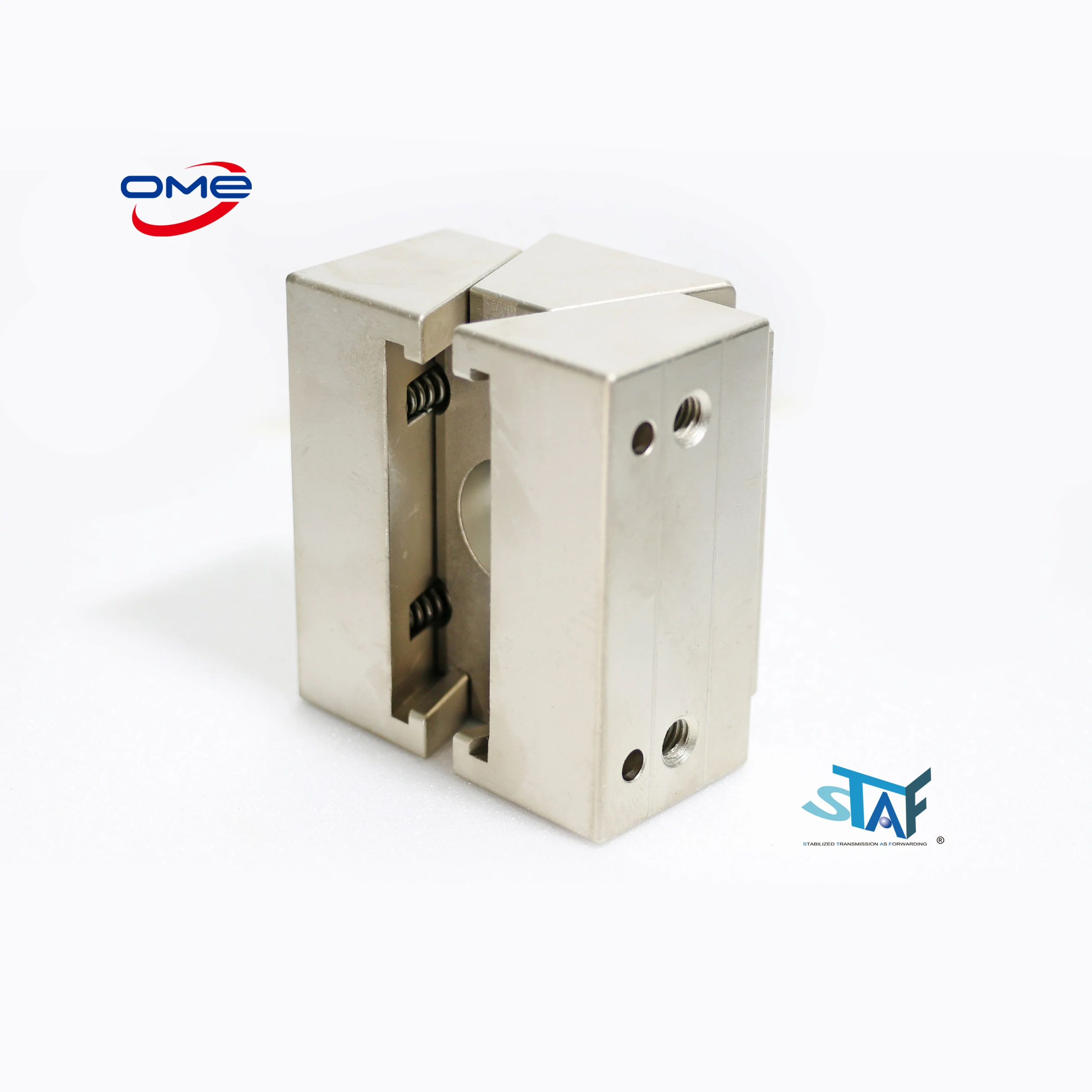

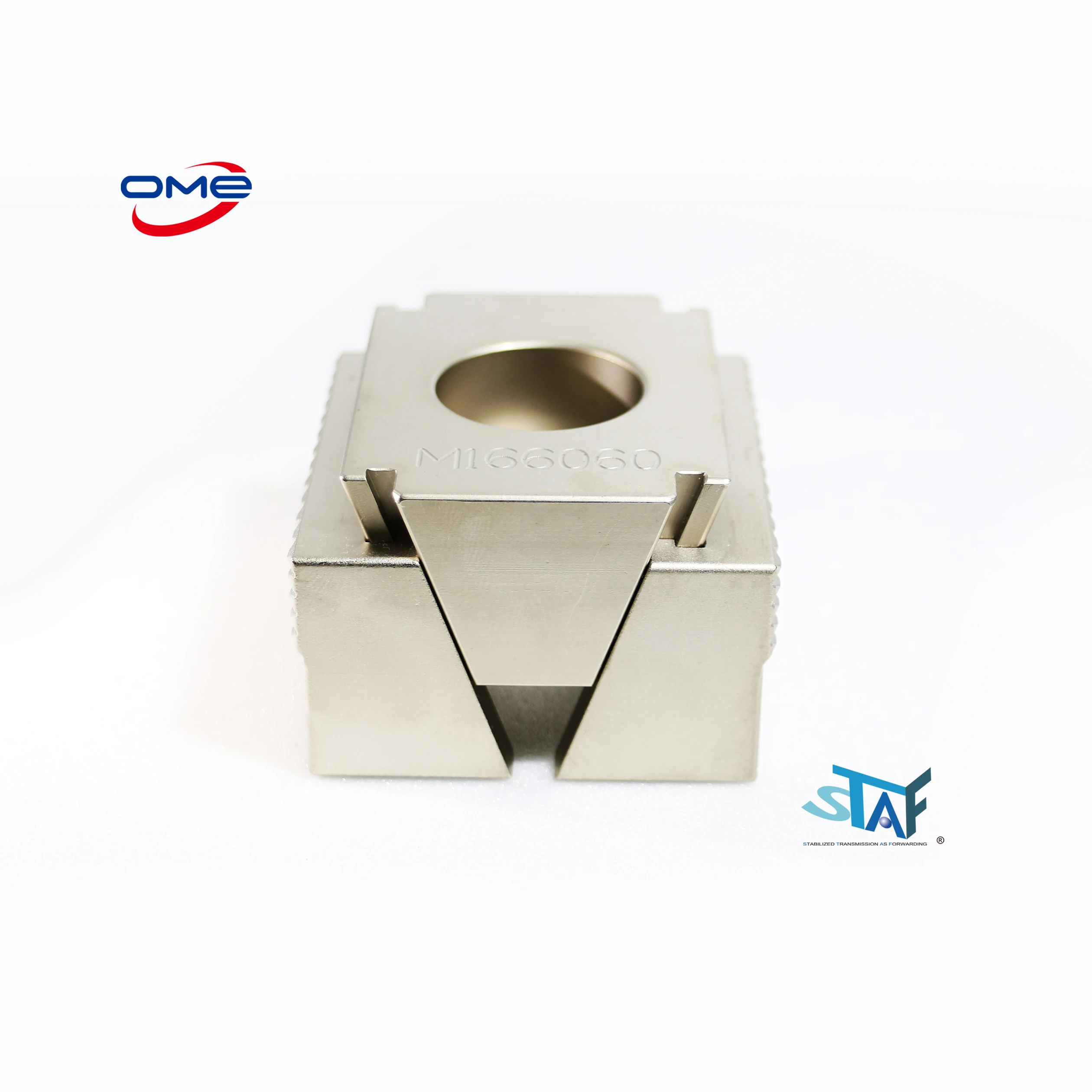

The model M166060 Be st describes this extremely powerful clamp design for a M16 socket head screw.

Features & Advantage
General Specification: Easy to used.
Customization: Customized fixture development and manufactures.
Quality control: All our products are through precision test before shipping.
Reduce Changeover Times: Our Vise can be modular design quick release or custom-made, that reducing changeover time unlocks more productive (value-added) time for running production.
Vise system solutions: Manual plante, Hyduralic plante, Tombstone tower.

Used
It is mainly used to fix serrated jaws/smooth jaws/grip jaws/machinable jaws and square materials.

Drive Mode
1. Manual
2. Pneumatic
3. Hydraulic

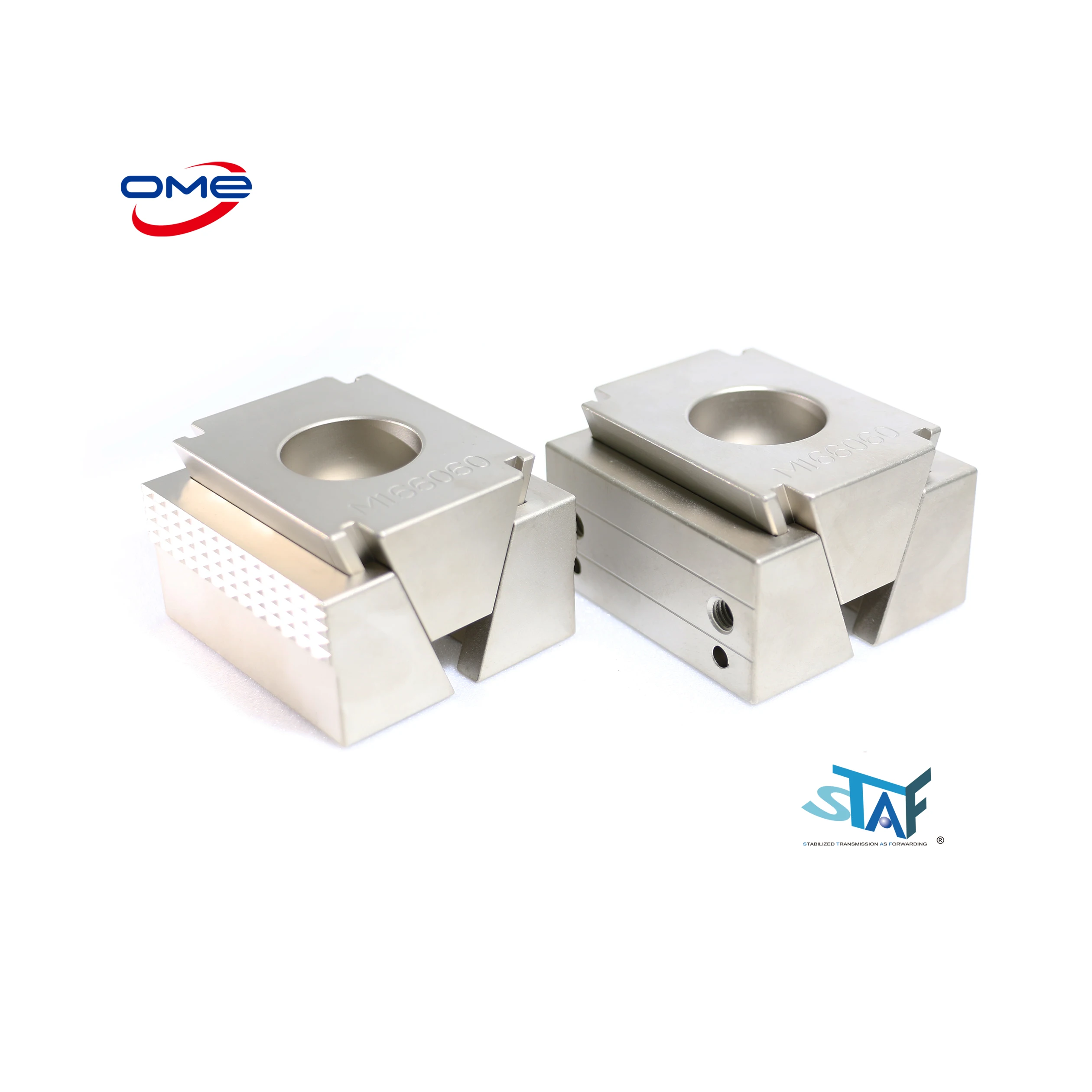

Serrated jaws series

The serrated jaws series apply to forging plane or surface having bumps & valleys, such as raw material, rougher surface workpiece. It has secure tightening and clamping result.

Specification

Smooth jaws series

The smooth jaws series apply to smooth workpiece, manufacture a part with perfectly smooth surface. Decreased damage to the surface of the workpiece.

Model Number	L max (mm)	Suitable (mm)	L min (mm)	A (mm)	H (mm)	Screw cage nut	Clamping Force(KN)	Surface hardness(HRC)
M062525	23	25	26	25	12	M6*16	18	48-52
M083030	27	30	31	30	15	M8*20	25	48-52
M104040	36	40	42	40	20	M10*25	45	48-52
M124540	40	45	47	40	22	M12*30	65	48-52
M166060	54	60	63	60	29	M16*40	110	48-52

Products Show

Our Service

Our Certifications

Certifications

We deploy Intellectual Property from China, Taiwan, Japan, American and Germany.
• Total Applications : 152
• Approved : 125
• New Type : 91
• Invention : 34
• Applied : 12

Company Certifications

∙ Certificate of GMP for Biomedical Equipment Manufacturing
∙ Acquisition of ISO 13485 Certificated by SGS
∙ Acquisition of ISO 9001 Certificated by SGS
∙ Acquisition of ISO 50001 The Energy Management
∙ Acquisition of PAS 2050 Verifications for Carbon Footprint

Related Products

With over 10 years of experience in Linear Guide Motion industry.
Our skill set would be a perfect match for what you're looking for.

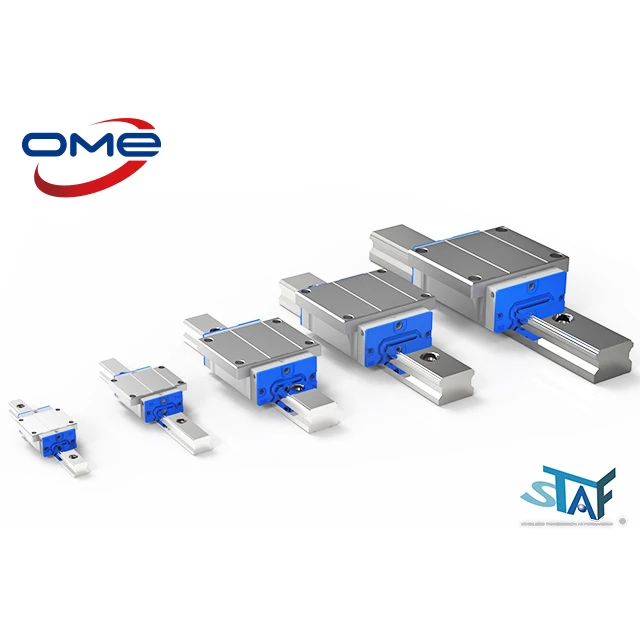

Linear guideway & Ball screw
