Portable rock driller pneumatic rock drill machine YO18

The rock drill is used for rock drilling,blasting holes and other drilling works in the quarries,small coal mines and other constructions.

It's suitable for drilling of horizontal or inclined holes on the medium hard and hard rock.
When it's matched with air leg Model FT100, it can blast holes from different directions and angles.



Weight	About 18	kg
Length	About 550	mm
Cylinder Diameter	58	mm
Piston Stroke	45	mm
Air Hose Inner Diameter	19	mm
Water Hose Inner Diameter	8	mm
Shank Size	22x108±1	mm
Using Air Pressure	0.4~0.5	Mpa
Using Water Pressure	0.2~0.3	Mpa

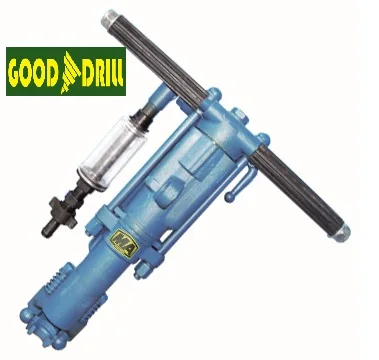

Hand held  Air Leg Rock Drill YO18

FY200 MODEL OIL INJECTOR
Weight	≤0.9	kg
Oil Reserves	150	ml



Hand held and Air Leg Rock Drill YO18

Hand held and Air Leg Rock Drill YO18



Hand held Air Leg Rock Drill YO18d held and Air Leg Rock Drill YO18
