Product Description
Fezer vacuum handling tube lifter for carton
Different from the traditional crane need to hook and up and down buttons to carry items, fast vacuum handling machine will be suction function, up and down control in a control grip, just use the sucker to quickly move to improve the traditional crane operation slow Disadvantages.
Whether it is stacked cartons, moving iron or wood, loading oil drums, placed slate can be used. Fast vacuum conveyors can be operated in one hand and provide a flexible and fast handling solution when handling heavy objects.
VacuPowerlift multifunctional and flexible

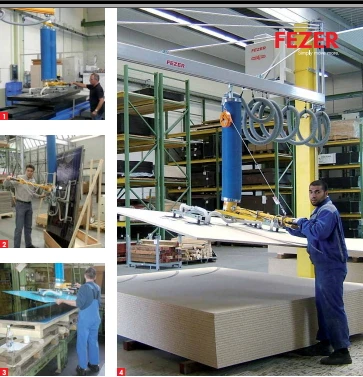

The application areas of the VacuPowerlift are almost limitless. It is being used
in many industries and trade companies to simplify production processes and
to increase the profitability.
Packing and logistics for cardboard boxes
Chemical and pharmaceutical industry for drums and container
Window and solar industry for window panes and prefab parts
Wood, plastic and sheet metal industry for plate materials
Construction industry for stones and concrete parts
Loading of CNC machines of all sorts
Handling of machines and machine parts
Electronical industry for electrical appliances
and many more

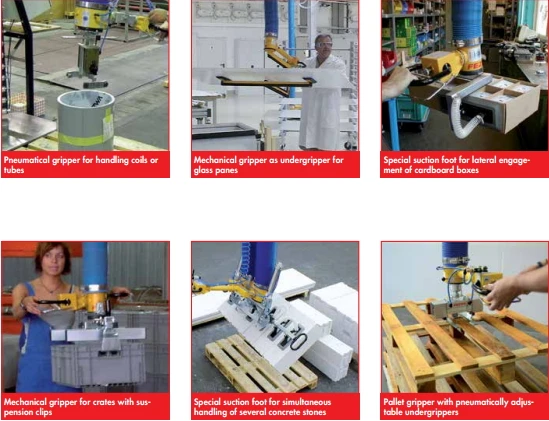

VacuPowerlift -manifold Selection of Suction Feet and Grippers
There is a multitude of standard suction feet which allows to adjust the VacuPowerlift to individual applications.
Single suction feet in flat or bellows design
Single suction feet for handling sacks
Double suction feet for handling cardboard boxes
Fourfold suction feet for large-sized plates
Special suction feet for individual tasks
Mechanical grippers for parts that cannot be engaged by vacuum
Pneumatical grippers to clamp workpiece
Crate grippers
VacuPowerlift – Accessories and Options
There is a multitude of standard elements available for various tasks. These elements allow to adjust the VacuPowerlift to individual requirements.
Quick-change couplings for changing suction feet quickly without need to interrupt the operation proces

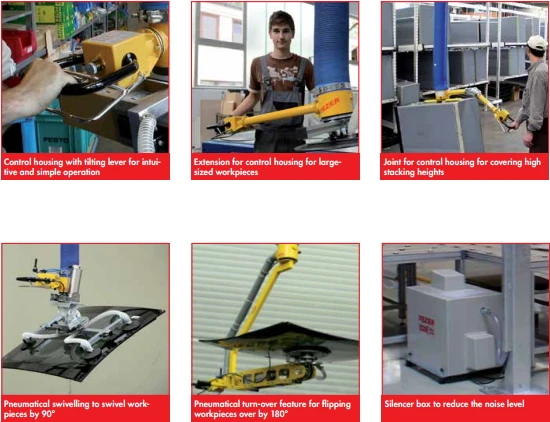

Extensions and joints for the control housing to adjust to workpiece dimensions and working heights
Endless rotation feature to rotate engaged workpieces
Suction head extention for dipping into crates or boxes
Silencer box for vacuum generator to reduce the noise level
Manual and pneumatical swivel and turn-over feature
Quick-ventilation for simple and quick disengagement of dense workpieces
Remote control on control housing for switching the blower on and off
VPL Machine Specification
Specification/Type
VPL 100
VPL 120
VPL 140
VPL 160
VPL 180
VPL 200
VPL 230
Loading Capacity
Dense Material
30 kg
40 kg
50 kg
65 kg
85 kg
110 kg
140 kg
Porous Material
25 kg
35 kg
45 kg
60 kg
80 kg
100 kg
120 kg
Blower/Pump
Dense Material
T 4.40
SKE 2,2
SKE 2,2
SKE 2,2
SKE 3,0
SKE 3,0
SKE 3,0
Porous Material
SKE 2,2
SKE 3,0
SKE 3,0
SKE 3,0
SKE 4,0
SKE 4,0
SKE 4,0
Technical data
Stroke Speed
50 m/min
50 m/min
50 m/min
50 m/min
50 m/min
50 m/min
50 m/min
Lifting tube D
100 mm
120 mm
140 mm
160 mm
180 mm
200 mm
230 mm
Total Height F
2750 mm
2750 mm
2750 mm
2750 mm
2750 mm
2750 mm
2750 mm
Compressed Height G
750 mm
750 mm
750 mm
770 mm
770 mm
800 mm
800 mm
Stroke length of tube H
1750 mm
1750 mm
1750 mm
1730 mm
1730 mm
1700 mm
1700 mm
Total length of tube A
2500 mm
2500 mm
2500 mm
2500 mm
2500 mm
2500 mm
2500 mm
Height of suspension E
100 mm
100 mm
100 mm
100 mm
100 mm
100 mm
100 mm
Height of suction head B
150 mm
150 mm
150 mm
180 mm
180 mm
180 mm
180 mm
Connection K
52 mm
52 mm
52 mm
52 mm
52 mm
52 mm
52 mm
Height of suction foot HS
Depending on suction foot (min 35mm max 160mm)
Noise level
<75 dB(A)
<75 dB(A)
<75 dB(A)
<75 dB(A)
<75 dB(A)
<75 dB(A)
<75 dB(A)
Construction of Lifting Tube (from the inside outwards)
• bronze plated spring steel wire helix (2) • 1 ply of neoprene-coated glass fabric (1) • 1 ply of neoprene-coated polyester fabric (1)
• Colour: black • Standard length: 4000 mm • Shorter and longer lengths on request • Other diameters on request • Also available with integral, vulcanised, wire-free cuffs at both ends, reinforced ends
KYEC vacuum lifting tube / hose
Model Number
Internal
Diameter (mm)
Length (m)
Working
Vacuum (mmWG)
Axial compressibility of hose (%)
Fabric wall thickness (mm)
Temperature, continues operation
Temperature, intermittent operation
GS-T80-2.5
80
2.5
N/A
approximately 30% - 35% of the extended length
around 0.6
-30℃~+120℃
-35℃~+135℃
GS-T80-4
4
GS-T102-2.5
102
2.5
GS-T102-4
4
GS-T120-2.5
120
2.5
9000
GS-T120-4
4
GS-T140-2.5
140
2.5
8000
GS-T140-4
4
GS-T160-2.5
160
2.5
7200
GS-T160-4
4
GS-T178-2.5
178
2.5
6800
GS-T178-4
4
GS-T180-2.5
180
2.5
6800
GS-T180-4
4
GS-T203-2.5
203
2.5
6500
GS-T203-4
4
GS-T250-2.5
250
2.5
5500
GS-T250-4
4
GS-T305-2.5
305
2.5
4200
GS-T305-4
4
