SINOTRUK HOWO 18 м3 крюк подъемник мусоровоз 5 куб. М Мусоровоз 2 оси уплотнитель небольшие для продажи двигатель


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


SINOTRUK HOWO 5m3 garbage truck 5ton dump garbage truck 8t upper body structure for hook lift garbage truck











Product Description





Features of garbage truck:





Chassis for option: SINOTRUK,  Dongfeng, Forland, Beiben , JMC , JAC. etc


Material of the led screen: carbon steel


Axles: 2 axles / 3 axles





Type: compactor garbage truck








Application of garbage truck:





Garbage Compactor truck is the machinery of choice for door to door collection of waste. The collected waste is simultaneously compacted and eventually transported to the dumping site. Compactors have multiple benefits over conventional waste trolleys namely: Waste is covered and there is no chance of "spillage" of waste during transportation. Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men are required to perform the entire functionality of the compactor namely, driver and operator.





Main advantages of trash garbage trucks:



1. Collection way of garbage compactor truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and realiable.






2. Best Quality with competitive price.







Paraters of hook lift trash truck








































































Specifications for HOWO Hook Lift Garbage Truck










Cabin



Driving Model: 6x4 Left Hand Drive or Right Hand Drive


HW76 cabin with one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.


Condition: brand new







Engine



Model: SINOTRUK WD615.87


Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling.
Emission Standard: Euro II



Displacement: 9.726L





Transmission



HW15710 manual gearbox, 10F & 2R


Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)


Steering


ZF power steering, model ZF8118, hydraulic steering with power assitance



Front Axle



HF9, 1x9000 KGS
Steering with doubleT-cross section beam





Rear Axle


HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 4.8





Brake



Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake







Electrics


Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light


Tires


315/80R22.5 or 12R22.5, tubeless tires with one spare tire.
Optional: 12.00R20, radial tires


Fuel Tank


400 Liters


Overall Dimension


9500*2550*3400 mm





Detailed image

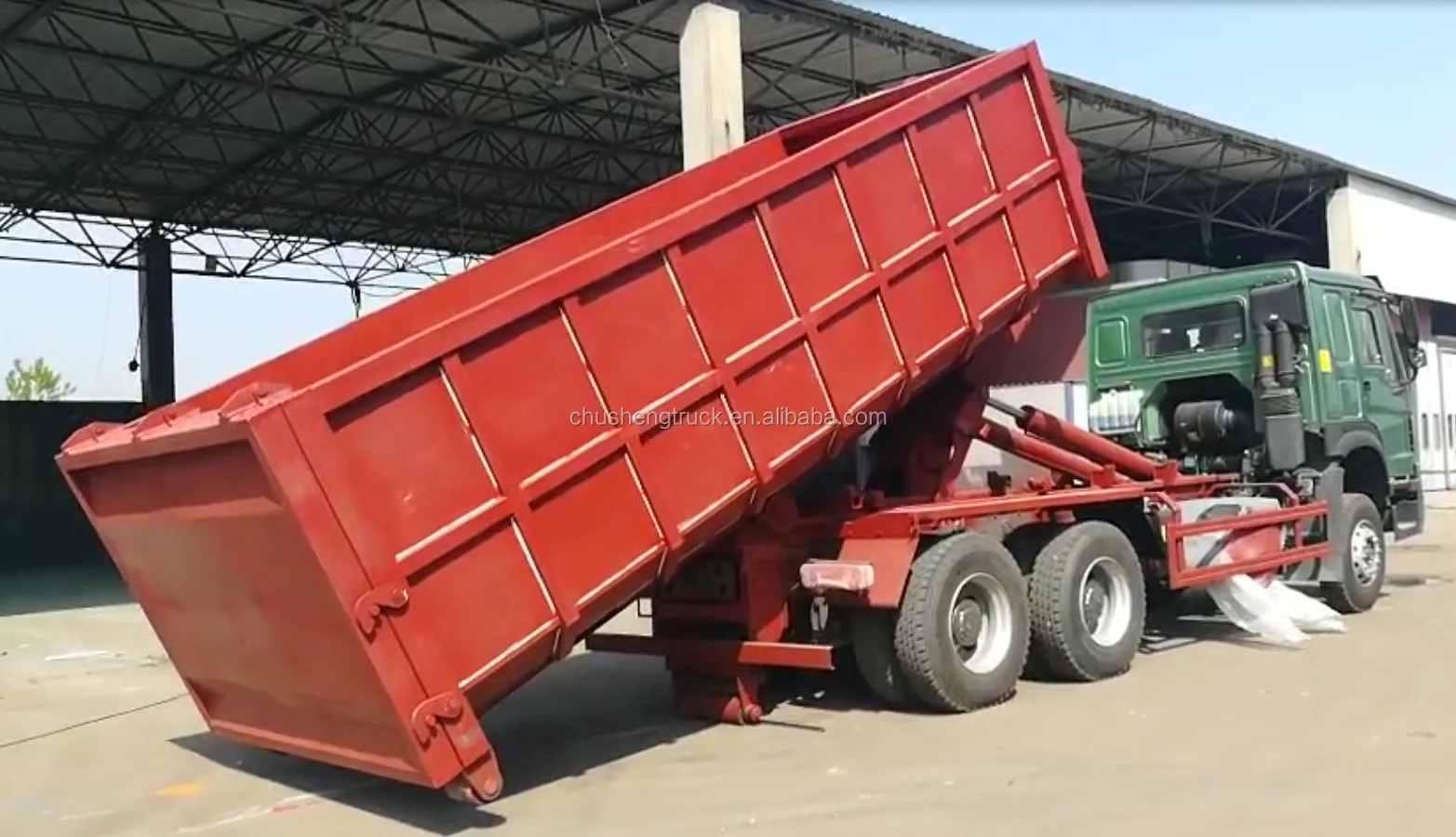

 detailed images of the hook lift garbage truck 1514443685(1).jpg



















Packaging & Shipping


 packing and shipping.jpg








Company Information


1.     Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.



2.     Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.



3.     We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.



We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.


.jpg








FAQ


1. How long will I receive my product?


Answer: Usually 25-30 days after the deposit is received.





2. What's the payment terms?


Answer: TT, LC, Cash





3. What's the trade terms?


Answer: FOB, CIF, CFR etc.





4. How can I know the quality?


Answer: we can offer quality report; you can send someone to check  or your autherize some agent to test.





5. How can I place order?


Answer: confirm the products details , sign the contract and then pay the deposit.
