Пластиковый ПВХ профиль пенопластовые фаски/пенопластовые филе/полосы/фаски бетонные

Описание и отзывы

Характеристики

Description:

Foam PVC Chamfer (Chamfer Strip/Chamfer Concrete Formers)

The Secret to Chamfer strip - Small Boss Foam PVC Chamfer

 Fireproof, waterproof, antiseptic,No broken by nailing ,No broken by Curving,replacing Wood



Specification:

Chamfer strip is a triangular strip of rigid PVC or Foam PVC , nailed to concrete formwork in various places: outside corners, around window or door openings, at the top of an exposed wall, etc.

Fireproof, waterproof, antiseptic,No broken by nailing ,No broken by Curving,replacing Wood

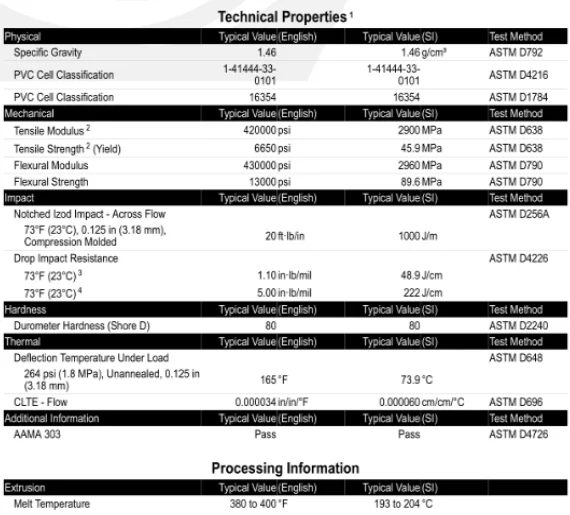

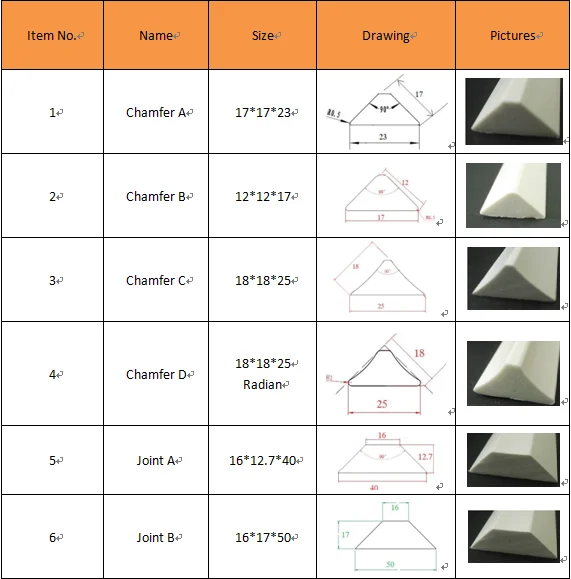

Technical Specifications:



Package:

2.5/2.8/3.0 meters per pcs , 30pcs per bundle, 100 bundles per pallets ,12 pallets per 20ft container.

50 pcs per bags. 1000 bags for 20ft container



 Usage:

Chamfer strip is a triangular strip of rigid PVC or Foam PVC , nailed to concrete formwork in various places: outside corners, around window or door openings, at the top of an exposed wall, etc.

Such as the follow :

I will be installing 3/4" chamfer strip for an outside 98 degree corner in a concrete foundation wall. Not the boy band, actually ninety-eight degrees!
For this application, 1 1/2" common nails are sufficient.

Pre-set your nails parallel to one side of the chamfer strip, every 8-12"
Press the chamfer into the corner of the form and carefully nail it off. Because the nails were set parallel to one side, you get a solid bite into one side of the form, rather than the small gap where the two sheets of plywood meet in the corner.
Below is an example of a chamfered concrete corner, which looks tidy and will resist chipping much better than a 90 degree corner.



What's the Details of SmallBoss PVC Profile?

Company Introduction	SmallBoss is the best PVC products and materials manufacturer in China since 1992
Location	ZheJiang, near ShangHai and NingBo
Main Business	PVC extrusion profiles,PVC materials
Moulds	We can set/design new moulds for customers. We already had more then 2,000 moulds you can choose from our catalogue too
Size	All sizes are acceptable, including large profiles
Process	Extrusion, Slotting, Punching, Cutting all can be done in automatic lines.
Certification	ISO9001,RoHS,SGS
Capacity	More than 90 extrusion profile production line and 15 PVC granules production line. Monthly output: 3,000 tons
Quality	We produce materials ourselves, So we control the quality from beginning to end
Get the Latest Price and Catalogue Click “here”! send your Inquire Details to us

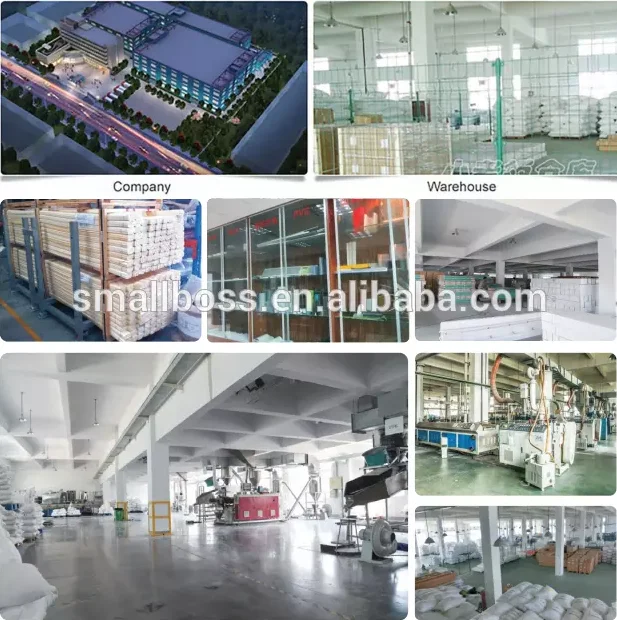

Welcome to visit SmallBoss

Tongxiang Smallboss Special Plastic Products co., Ltd

Address:

No. 431, Tongsheng Road, Development zone, Tongxiang, China
