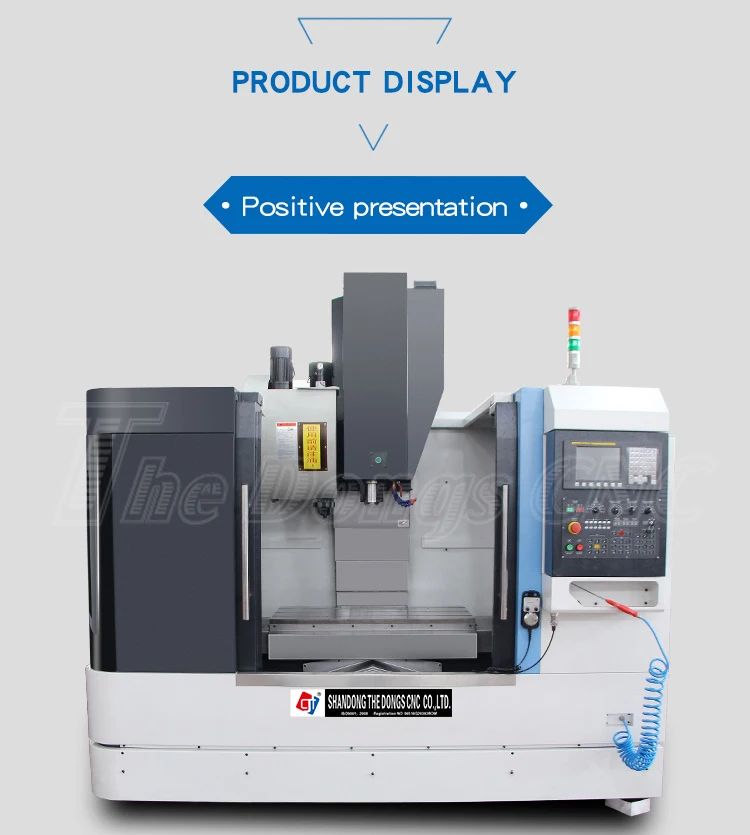

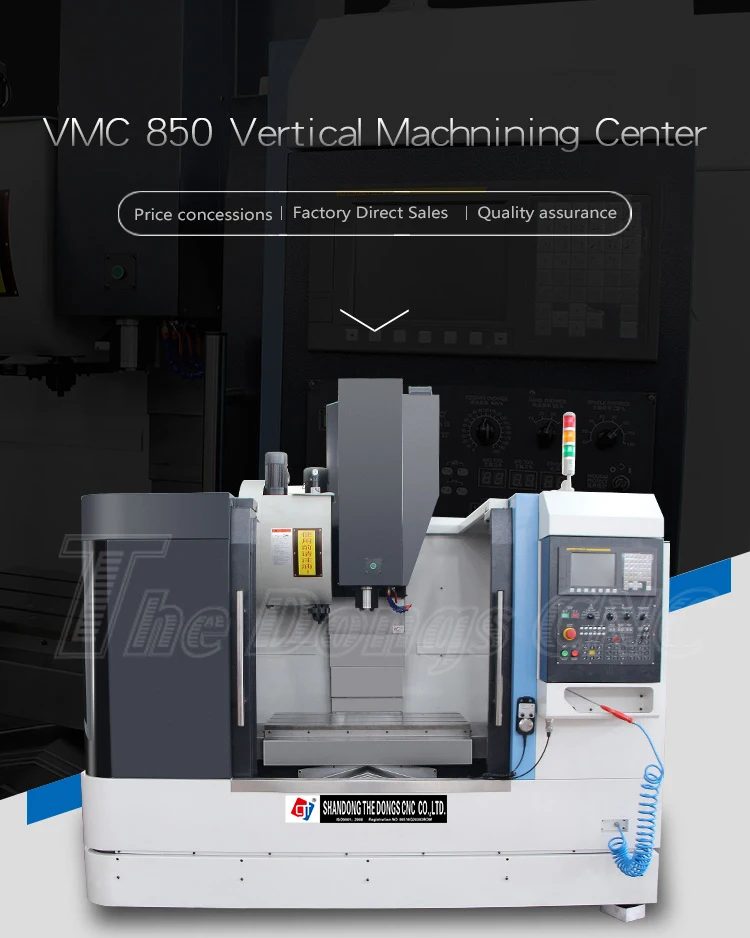

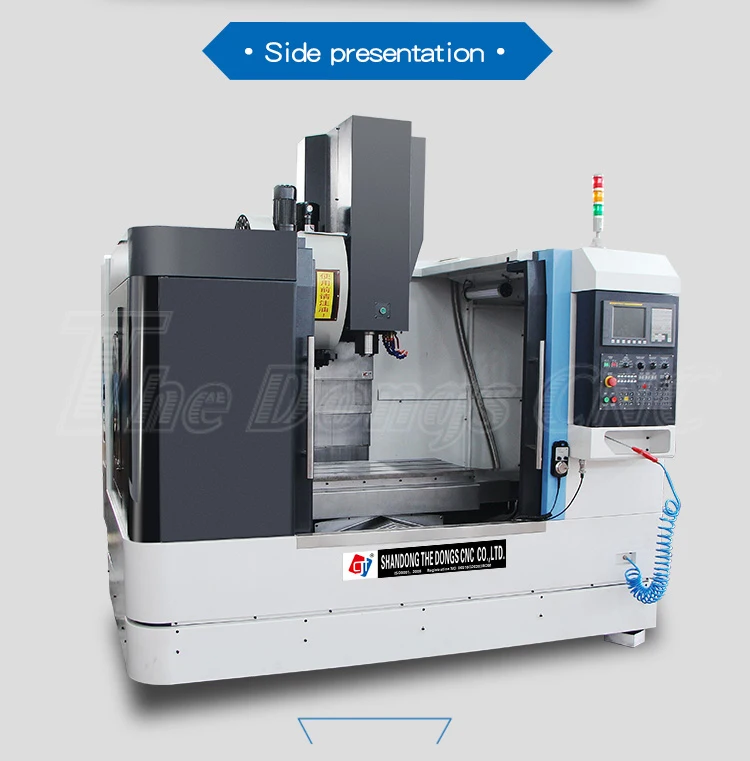

Вертикальный обрабатывающий центр с ЧПУ цена

Technical Parameters

Unit

Specifications

Table size

mm

1050*500

Table maximum load

kg

600

X/Y/Z axis travel

mm

800*500*600

Distance between spindle center and column guide surface

mm

550

Distance between spindle end face and worktable surface

mm

140-740

X/Y/Z Max.feed speed

mm/min

10000

X/Y/Z Max.rapid traverse

m/min

20/20/15

The spindle maximum speed

R/min

8000

The spindle taper hole

type

BT40

Spindle motor

kw

7.5/11

X/Y/Z axis servo motor

kw

2.0/2.0/2.0

X/Y/Z motor connection

Direct connection

The workbench T slot

mm

5-18*90

Repeat positioning accuracy

mm

+-0.004

Max.toll weight

kg

8

Max.toll length

mm

250/350

Electric capacity

kva

11

Machine size(L/W/H)

mm

2700*2250*2700

Net.weight(about)

kg

6000
