Product Description

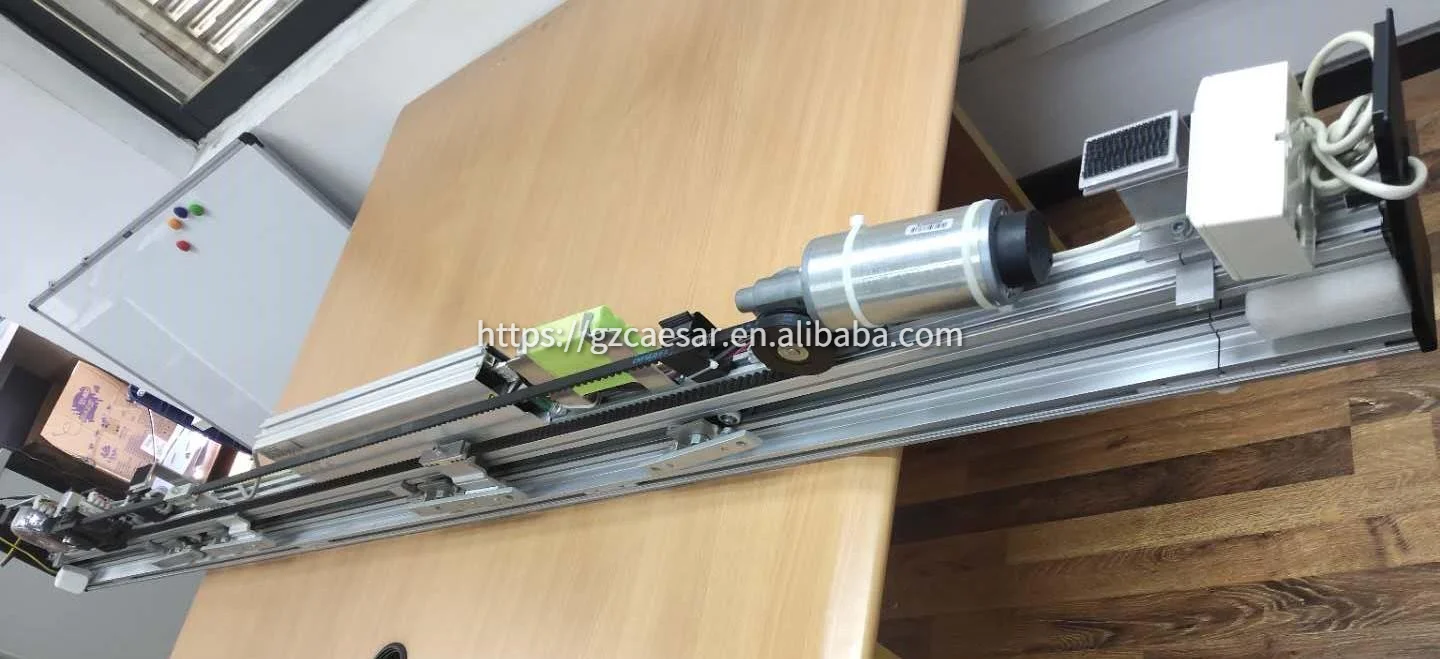

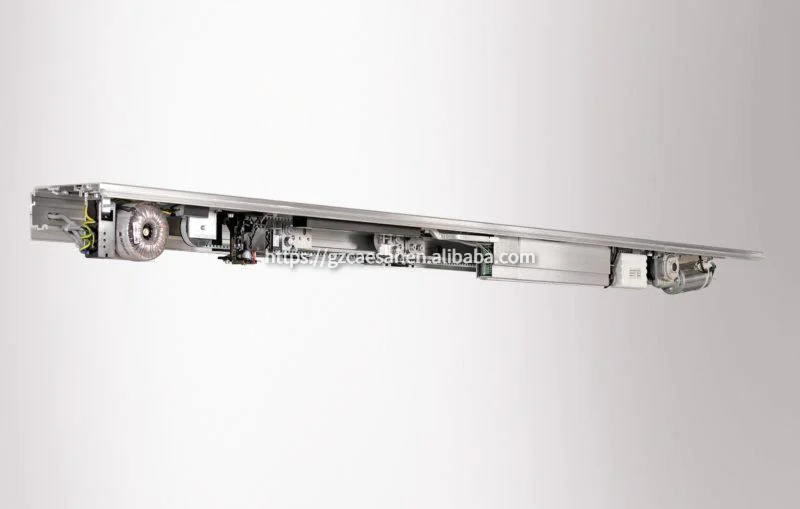

New design ESdrive automatic sliding door system with sensor
Drive system for linear sliding doors in high traffic
The linear sliding door system ESdrive offers numerous convincing benefits at an excellent cost/performance ratio. The drive is suitablefor doors in high traffic areas. The ESdrive covers door leaf weights of up to 120 kg and is uncompromisingly reliable. High-quality materials and the latest control technology guarantee high efficiency. Servicing costs are considerably reduced thanks to the selfcleaning roller carriage. Therounded cover in the elegant design gives the system an attractive appearance.

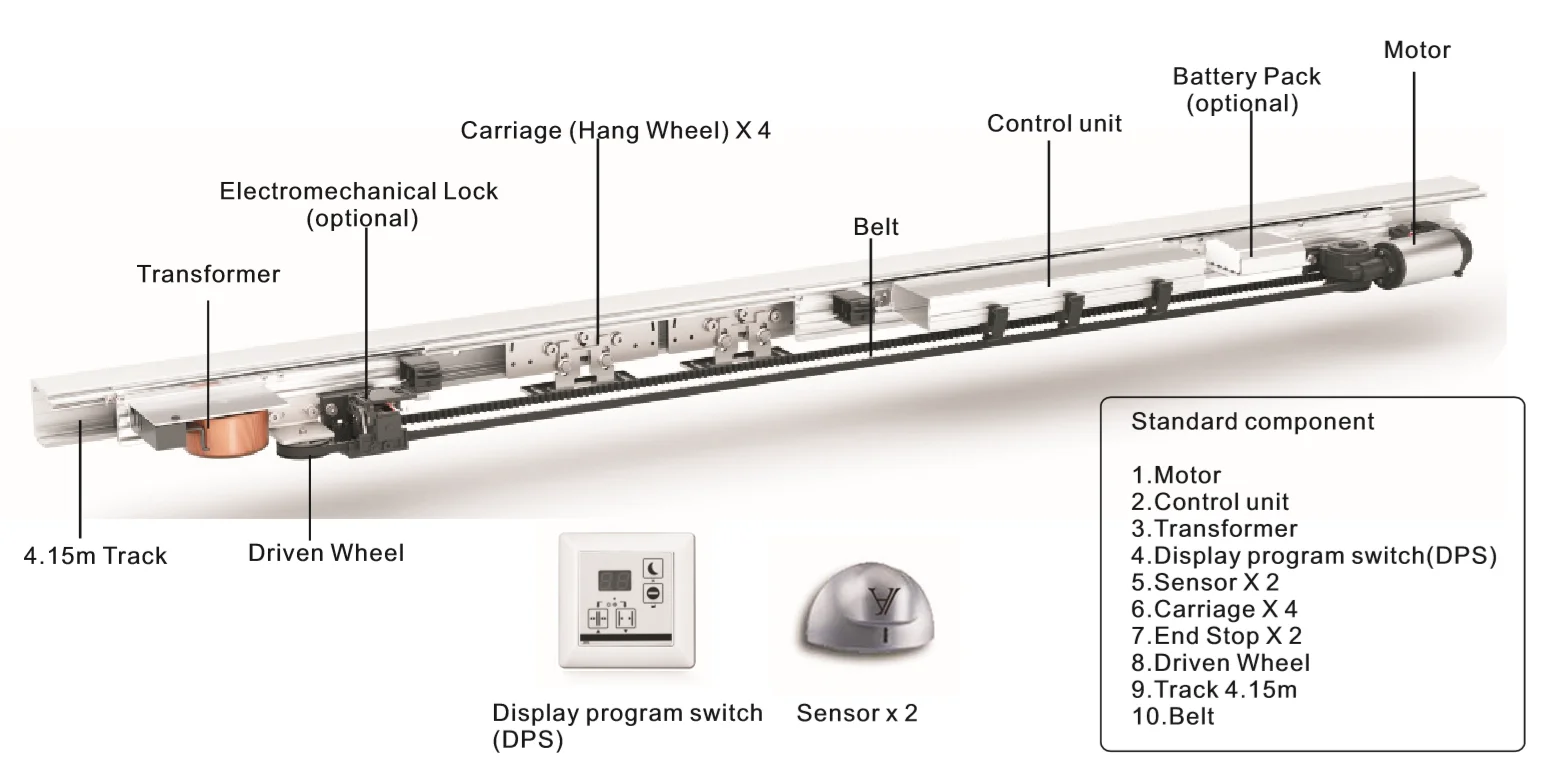

Caesar ESdrive automatic door system Features and benefits:
1.Driving motor adopts brush speed regulating motor, which has large torque, wide adjustable speed range and overheat protection of motor;
2.Transformer: high power, low temperature rise, small size;
3.The pulley comes with a cleaning brush, which has high strength, good abrasion resistance and low noise;;

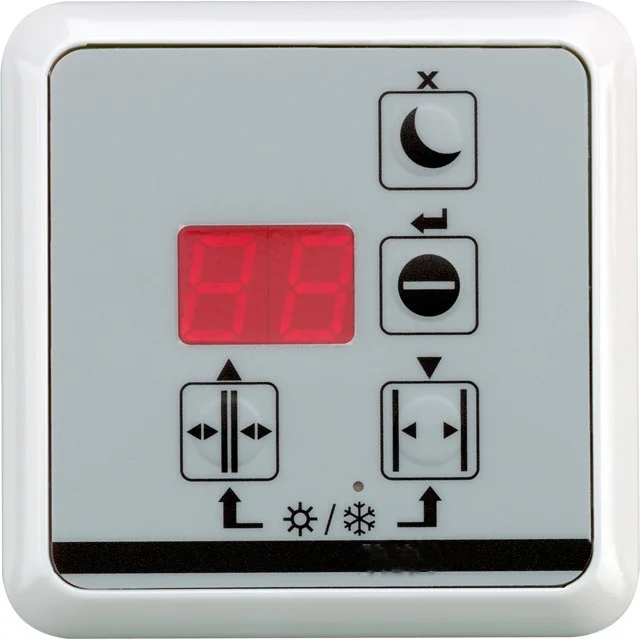

4.CPU control unit has self-learning program; All parameters and fault diagnosis of the system can be adjusted by display programme switch (DPS);
5.With automatic reverse function, when the door encounters obstacles in the process of closing, it will automatically move in the opposite direction.
6.May be combined with all standard door profiles
7.Fully comprehensive range of accessories
8.Reliable investment due to compliance with all relevant European standards.
The following modes of operation can be set:
1.“Permanently open” The door moves to the OPEN position and remains open. Movement detector or opening button are deactivated.
2.“Night mode” The movement detectors are switched inactive, the door closes. Option: the door leaves are locked electrically to prevent forced opening.
3.“Exit only” (one- way) The door only opens and closes when someone goes out from the inside. The movement detector outside is switched inactive, the one inside is switched active.
4.“Automatic” The door opens as soon as it is activated via the movement detector or keys, and closes after a certain time which can be individually adjusted. Safety sensors protect the leaves’ travel path. If there is someone in the door opening, the door will not close.
5.“Reduced opening width” The door opens only part of the possible opening width (can be set). In escape doors, the reduced opening width must be at least as large as the necessary escape route width. The reduced opening width may not be less than 30% of the opening width.
Also can set the speed and width of opening and closing doors.
Judging System Faults by Displaying Error Codes
