Корпус сервера 2U для хранения в стойке с 6 популярными разъемами SATA/SAS Drive Bay MiniSAS

Описание и отзывы

Характеристики

Product Description

Model	NP-S206550
Form Factor	2U Rackmount Server case with 6 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal
M/B support	microATX (9.6″ x 9.6″), CEB (12″ x 10.5″), ATX (12″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)

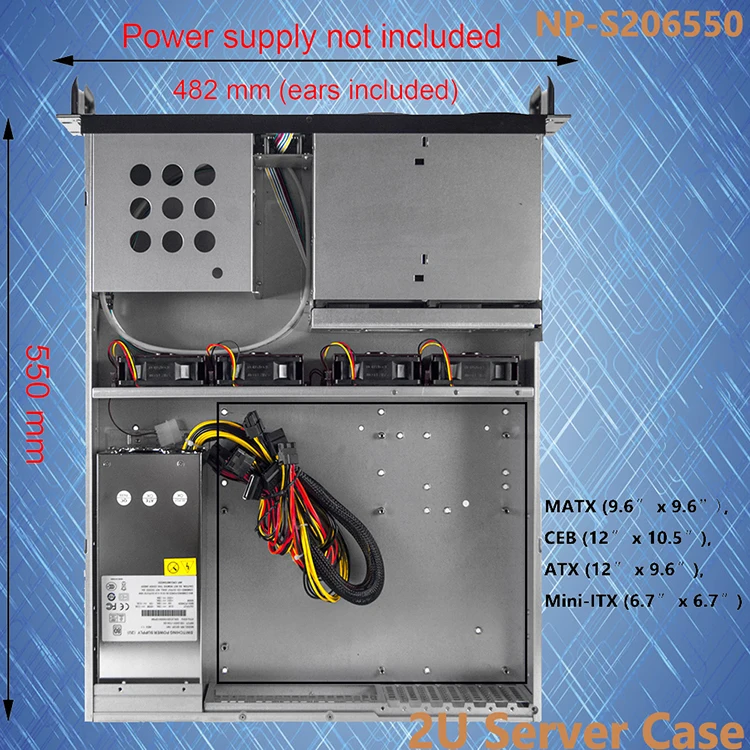

Size	D*W*H(mm)	550 x 482 x 88
	D*W*H(inch)	21.6  x 19 x 3.5

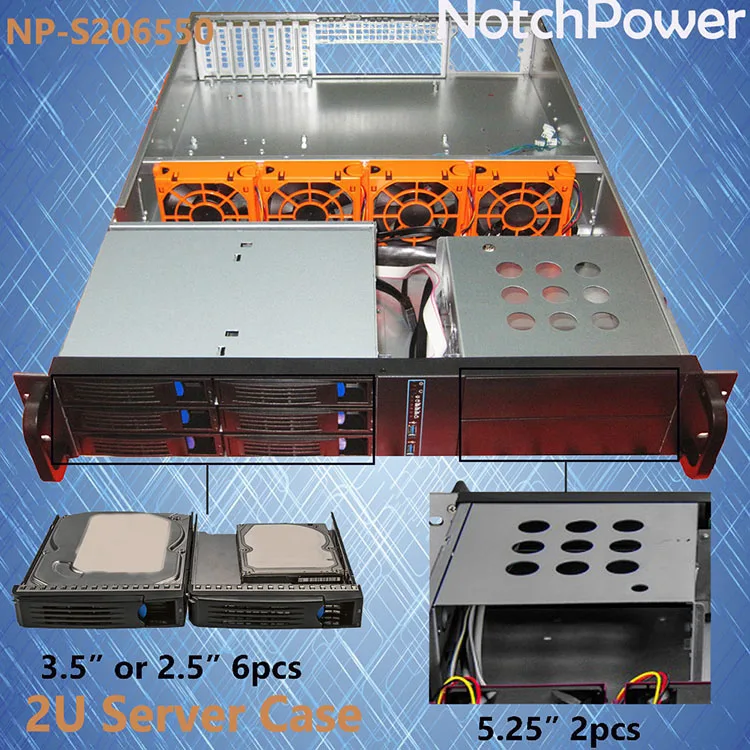

Drive Bay	3.5 "or 2.5" external (hot-swap)	6
	5.25" external	2
Power Supply support	2U power supply / 2U redundant power supply

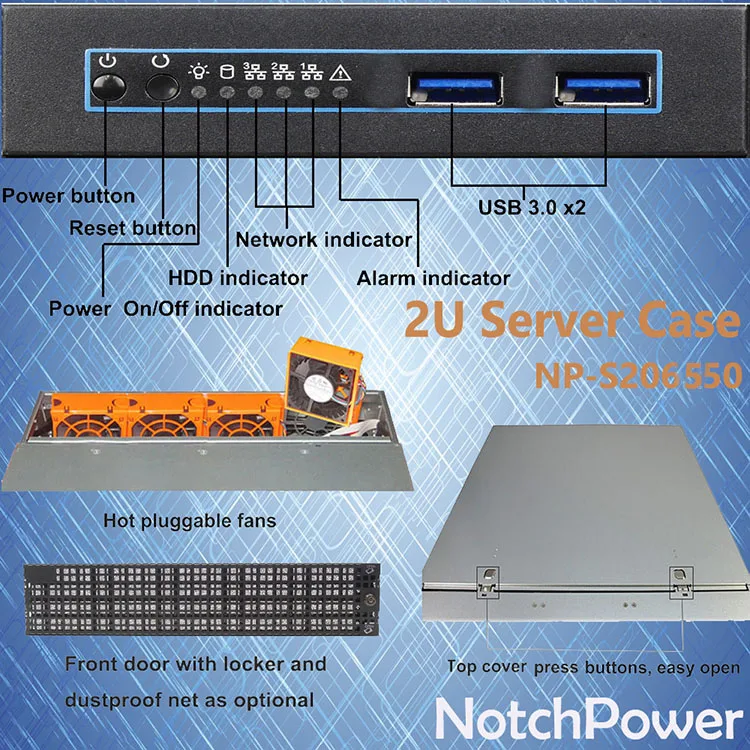

Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB3.0 x 2
Expansion	Riser Slot	7pc (low-profile) or 3 pcs (full size)
Hot-swap Backplane	S-ATA backplane (12Gbit / s)
System cooling(optional)	Front	NO
	Middel	4 x 80mm ball bearing fans PWM (hot-pluggable)
	Rear	NO
Net weight	9kg
Gross weight	11kg
Packing size	D*W*H(mm)	730*555*155
	D*W*H(inch)	28.7*21.8*6.1
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

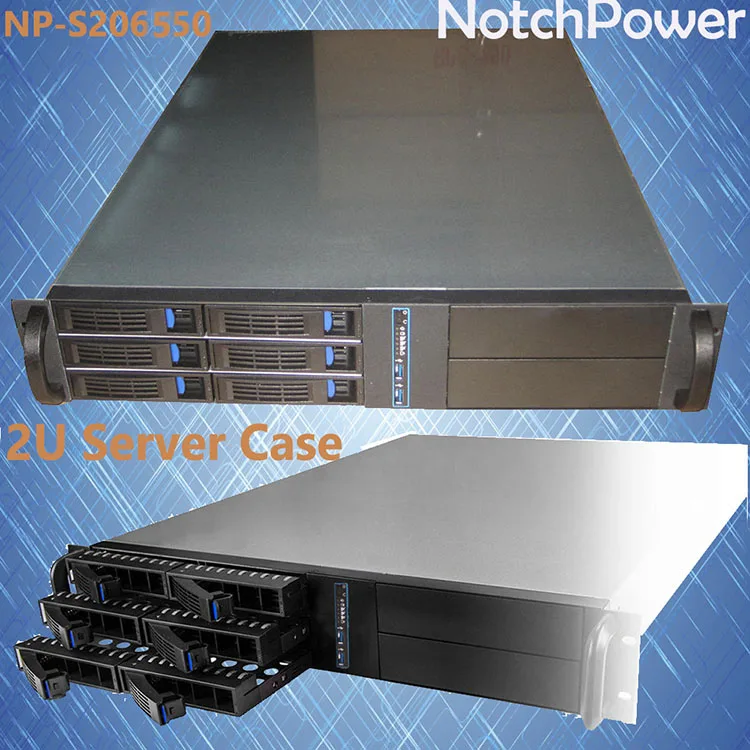

Detailed Images
