32inch wall mount floor standing Android Win10 10-point smart PCAP touch screen LCD payment machine with thermal printer, QR code scanner with NFC card reader and POS Space

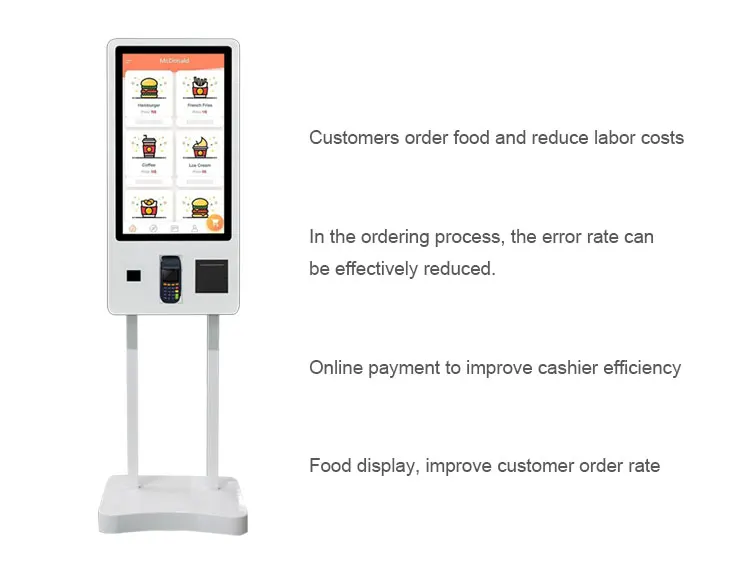

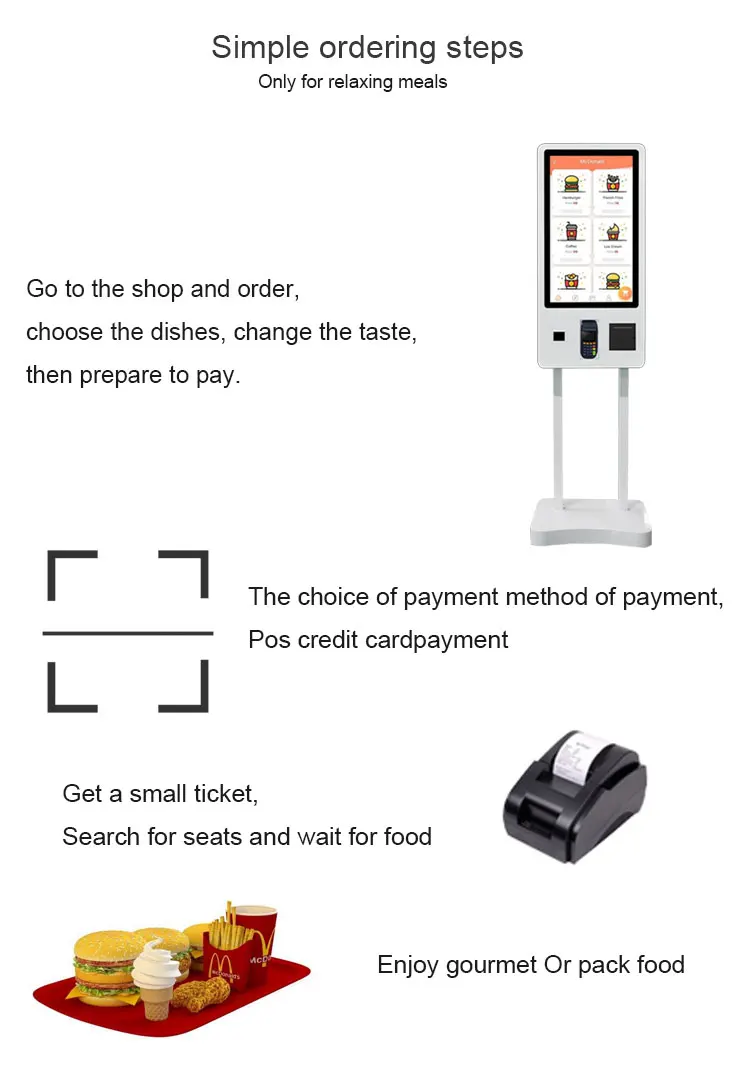

This self service payment kiosk is designed for restaurant, so people can order food by themselves, easily and fast, for restaurant boss, they save cost to hire waiters.

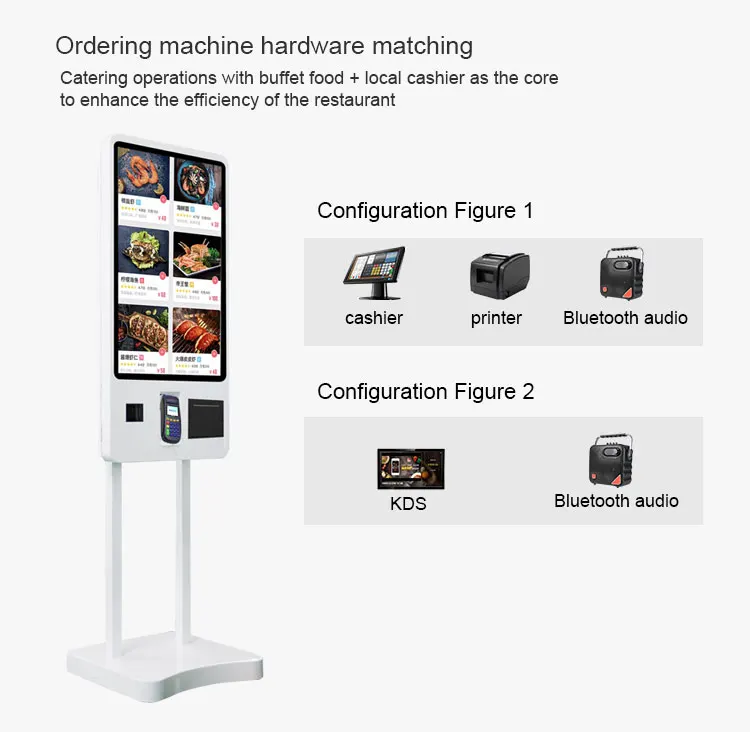

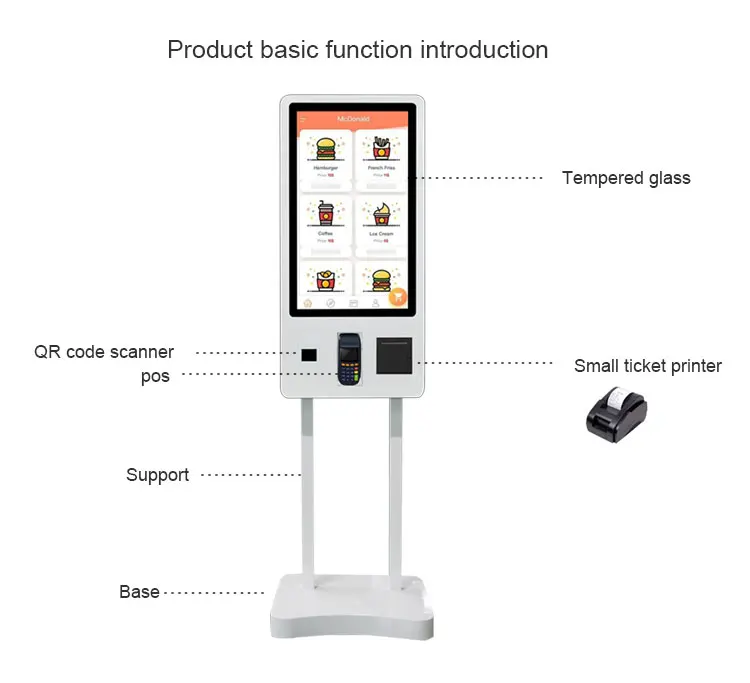

The screen has 80mm paper width thermal printer, QR code scanner which also has NFC card reader and POS space ( Pos from buyer), just connect POS to the motherboard by USB cable, easy to install, as we can't buy POS for different countries, so we prepfer end user buy it locally.

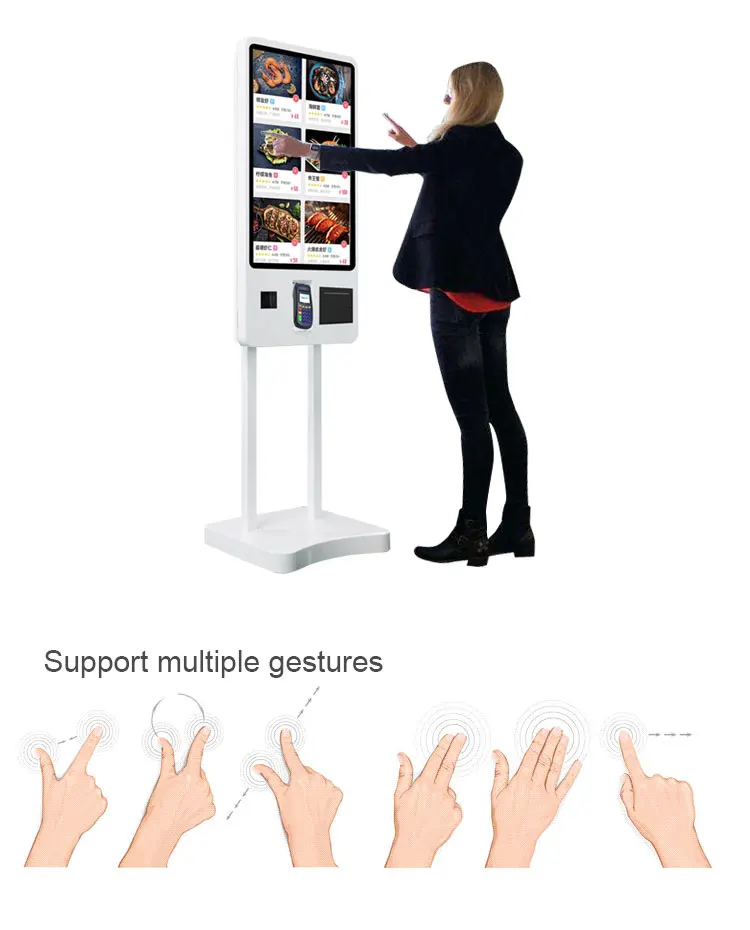

10-point PCAP touch screen has fast and smooth touch capability, capacitive touch screen is very common these days and cost is lower can lower day by day.

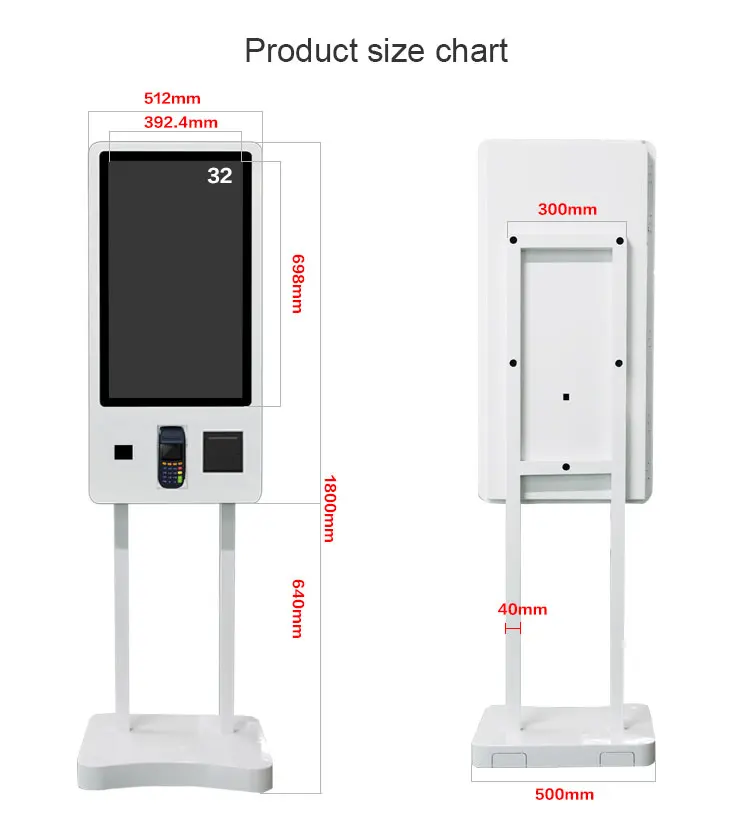

This lcd payment machine can be hang on the wall or with a floor stand, the stand height is adjustable, which is designed for the payment machine and is quite steady standing on the floor, also it can be fixed on the floor with screws.
For this payment machine,we usually have it ready in stock with delivery time of one week, welcome to take a sample to test also.
Resolution | 1920*1080 | |||||
Panel | BOE original panel, A level | |||||
Display area | 934*525mm | |||||
Brightness | 350cd/m2 | |||||
Number of Color | 16.7M | |||||
Response time | 8 (ms) approximately | |||||
Contrast | 1200:1 | |||||
View angle | 178°/178°(H/V) | |||||
Life Time | > 50000 (hours) | |||||
Power Supply | AC 110V~240V,50/60HZ | |||||
Power Consumption | 80W | |||||
Photo Formats | JPEG ,BMP ,GIF ,PNG | |||||
Audio Formats | MP3,WAV,WMA | |||||
Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V | |||||
Shell Material | Aluminum+Metal | |||||
Bare dimension | TBC | |||||
Wooden box dimension | 3pc screen/box: 1.26*0.71*0.81M, 3pc stand/crate: 1.72*0.84*0.71M, total weight: 230KG | |||||
Color | White / black | |||||
QR code scanner | Inbuilt, has NFC card reader function | |||||
Touch Type | 10 points PCAP touch screen | |||||
Printer | Thermal printer inbuilt | |||||
Pos machine | From client | |||||
Normal Working Temperature | 0°——50° | |||||
Normal Storage Temperature | -20°——60° |
CPU | RK3288 Quadcore Cortex-A17 1.8GHz | |||||
Network connection | LAN, WIFI | |||||
RAM | DDR3 2G | |||||
Memory | 8G | |||||

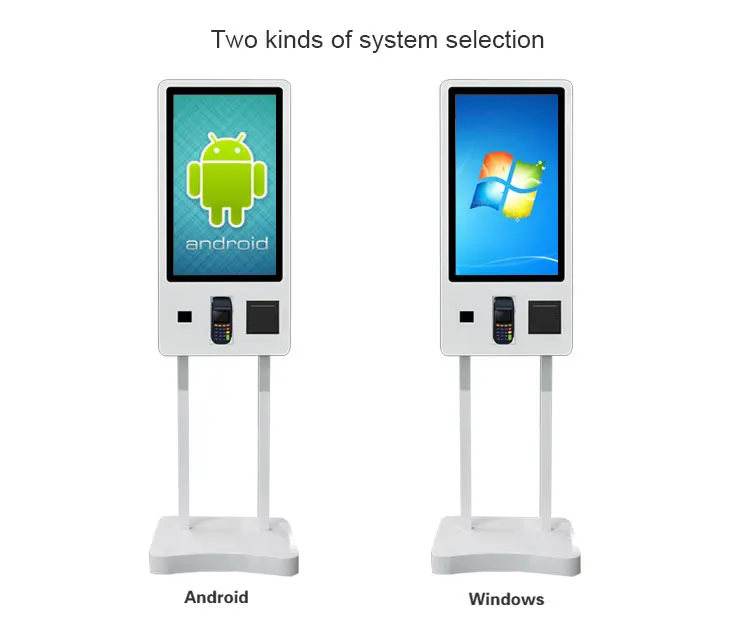

The operating system | Android 7.1, support Google play | |||||
Interface | HD.MI out*1, USB*1, USB OTG*1, Lan*1, SD card*1 |
CPU | i3 | |||||
Network connection | LAN, WIFI | |||||
Memory | DDR3 4G | |||||
SSD | 128G | |||||
The operating system | Trial Win10 | |||||
Interface | HD.MI out*1,USB *4 ,LAN *1, VGA*1 |

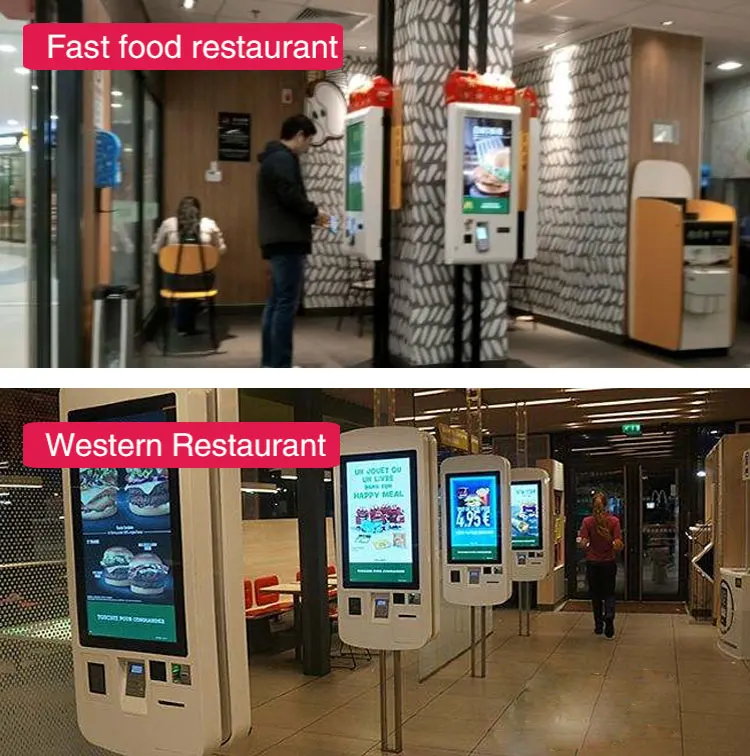

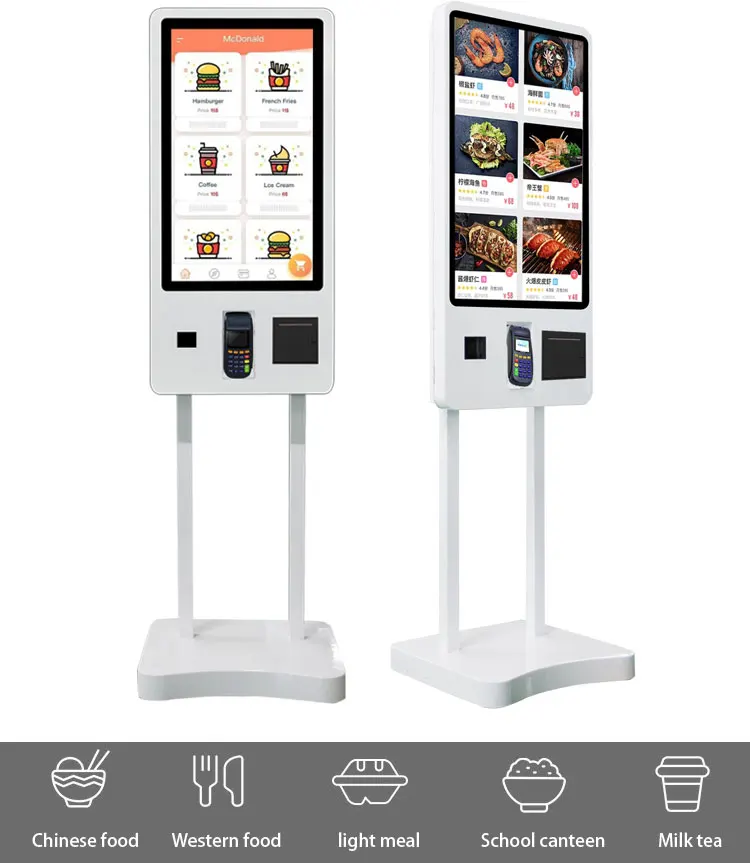

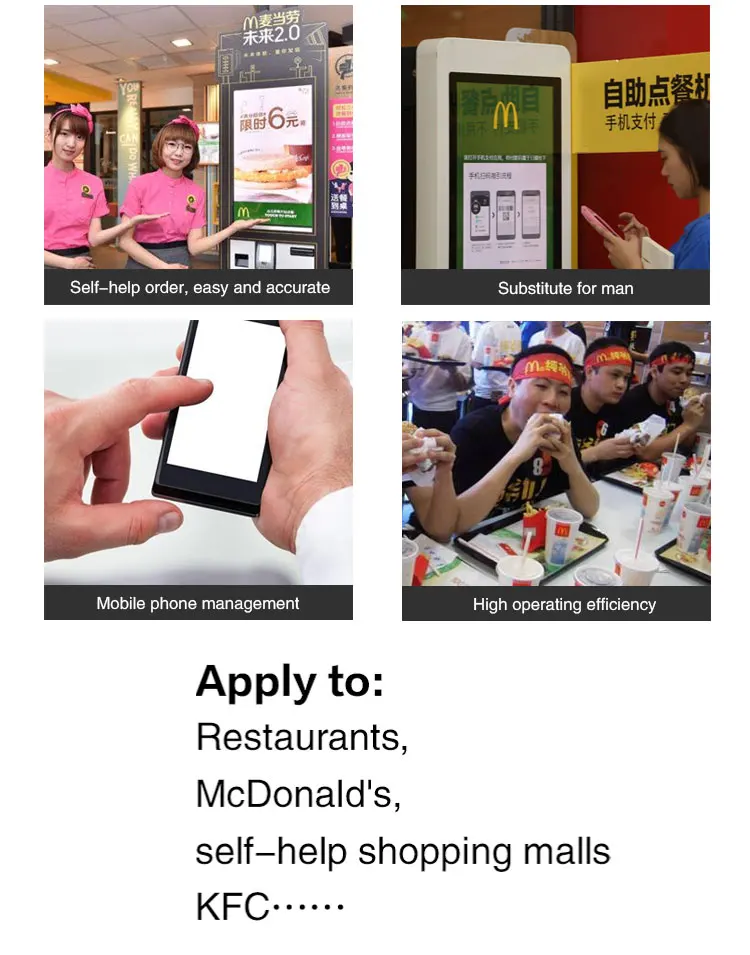

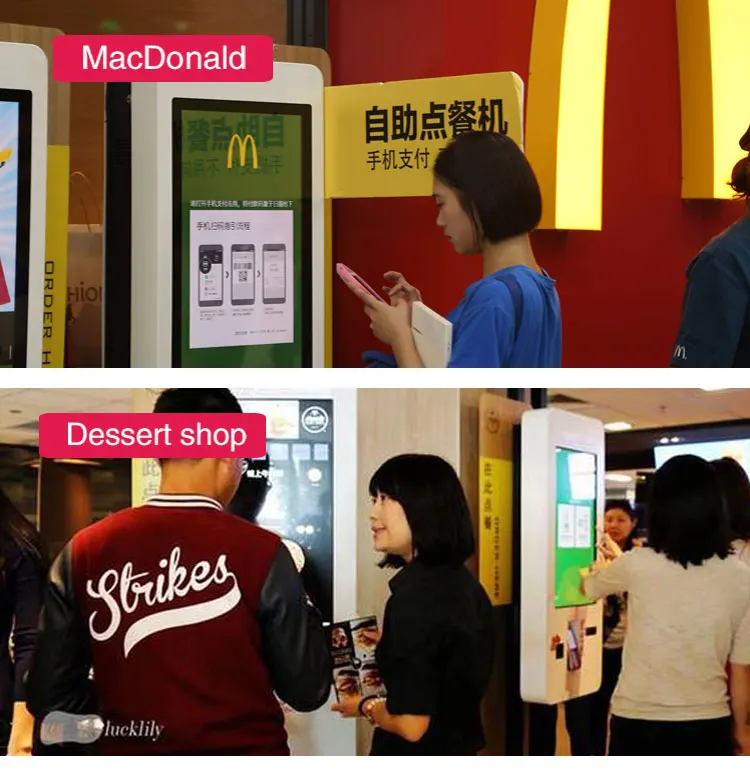

This lcd payment machine self service payment kiosk can be widely used in restaurant, KFC, Mcdonald's, pizzahut
