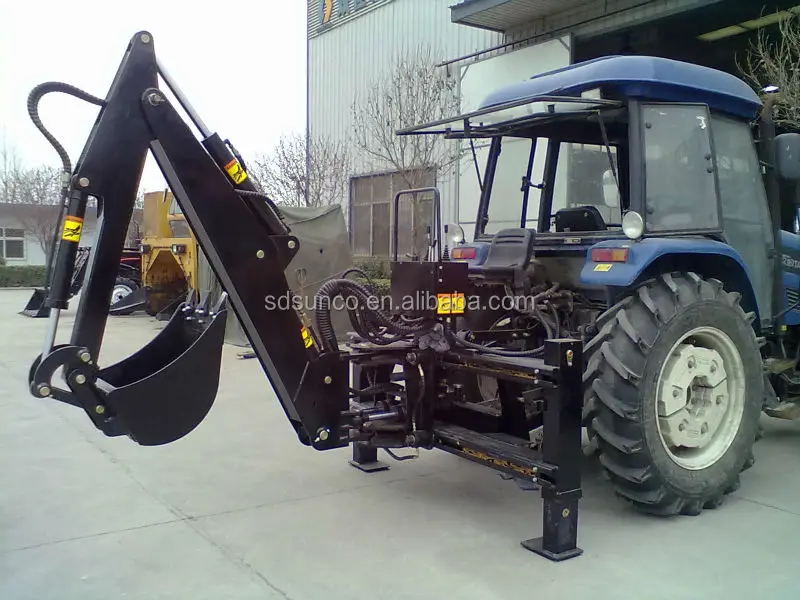

Back hoe for tractor with CE Certificate

Features of Back hoe :

SUNCO CE Tractor towable backhoe (LW-03,LW-05,LW-06 LW-07 LW-08 ,LW-12) are mainly used for ditching in farms and grazing lands, digging pool cleaning waterways as well as assistant excavating work in construction and building roads.

Advantage of Back hoe :

1.use hydraulic transmission

2.compact structure

3.flexibility and convenient operation

4.quick mounting and dismounting

5.Share hydraulic oil with tractor

6.highly standardized hydraulic elements

7.meets multi-working demands with different sizes buckets

8,can meet customers' requirements abroad

Specification of Back hoe :

Backhoe Model			LW-5	LW-6	LW-6E	LW-7	LW-7E	LW-8	LW-8E	LW-10	LW-10E	LW-12
Matching Tractor		hp	15~25	20~35		30~55		50~90		70~120		100~180
Max.Digging Depth	A	mm	1650	2000		2400		2800		3200		3655
Max.Unloading Height	B	mm	1530	1860		2050		2380		2650		3627
Max.Digging Height	C	mm	2600	2970		3210		3460		3770		5040
Working Radius	D	mm	2300	2700		3140		3600		3920		4510
Ground Clearance	E	mm	450					500				700
Side Shift Distance	F	mm	0	0	770	0	770	0	1000	0	1200	0
Min.Transporting Width	G	mm	1150	1700	1470	1700	1470	1700	1700	1850	2000	2100
Max.Width of Supporting Legs	H	mm	2100	2200	1470	2200	1470	2200	1700	2300	2000	2550
Bucket Width		in.	14			16		18		20		22
Bucket Capacity		m³	0.03	0.03	0.04	0.05		0.06		0.07		0.13
Weight		kg	360	550	600	560	620	630	700	800	1000	1500
PTO Hydraulic System	6/8/21 Splines(Option)
Thumb Grab	Option
