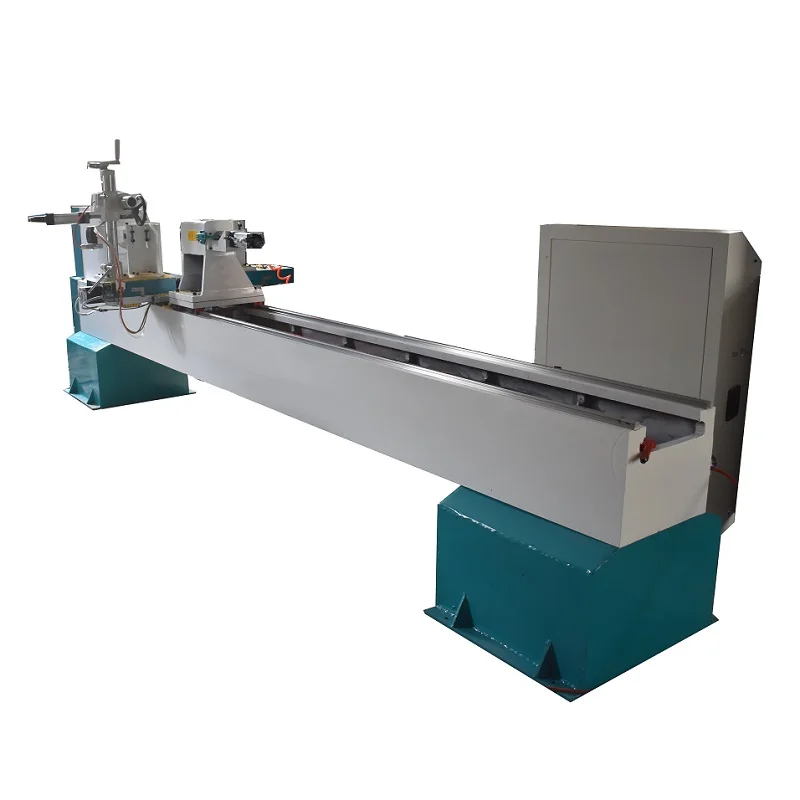

rough and finishing knife double cutters cnc wood lathe machine price

1. Advantages of cnc wood lathe machine price

1. This machine with one spindle, one chuck and one backlash. This model support upgrade to two chucks and two backlash. You can mount on material to two chucks and compelete the work piece simultaneously. One operator could run 2-3 pcs of cnc wood lathe at the same time for saving salary cost.





2. Most Advanced Material Loading Skill: When you load workpiece to cnc wood lathe, you do not have to fix workpiece on the chuck, then get the other edge of workpiece to find the center. And we loade the workpiece to machine, machine 4 points could help to find the center. And it only takes 3 seconds for whole material loading material, with higher precision then auto loading. When you process larger diameter vase, you could use auto cutter and adjustable air-cylinder, this improve the workpiece surface finish and last the cutter life time. The center supporter fix workpiece center when it is under the condition of self weight. This workpiece center fixing way is with higher precision.



3. Easy Programming. Usually, programing is the important step before working, and this is also a time-spending work. cnc wood lathe machine price program assit you to reduce this time and improve working efficiency for more benefit. GoodCut programing could be processed with photo. When photo is taken then scan, then could get into programming automatically. And you can measure and change size in the PC directly.



2. Applications of cnc wood lathe machine price

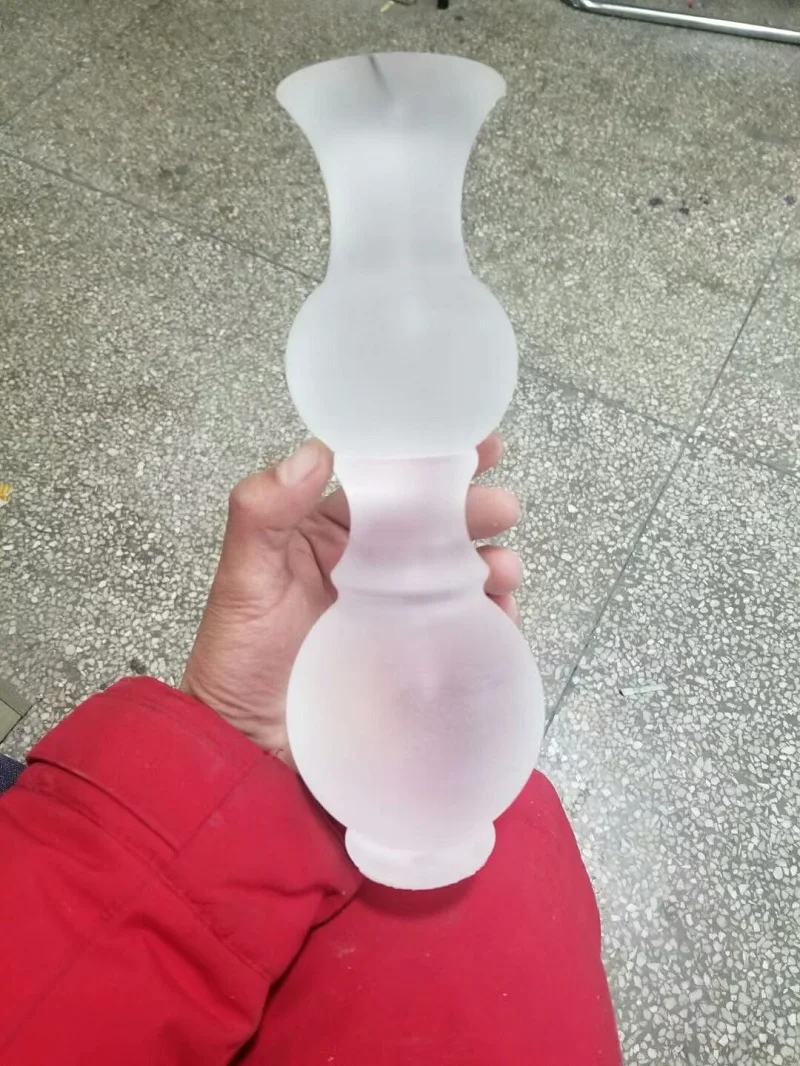

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, various staircase column, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs,cRoman column, general column, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.etc.





3. Technical Parameters of cnc wood lathe machine price

Model	GC1530-L
Max processing length	1500mm(can custom 2000/2500/3000mm)
Max turning diameter	300mm

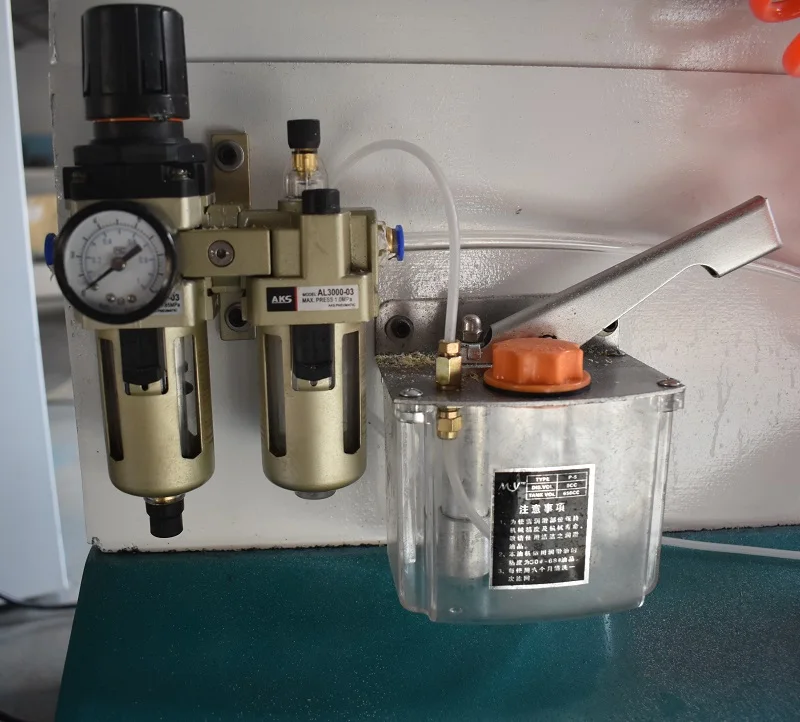

Air pressure	0.6-0.8Mpa
Powersupply	AC 380V 3 phase 50HZ/60HZ (can custom 220V)
Max feed rate	2000mm/min
min setting unit	0.01cm
Transimission type	ballscrew for X Z axis,gear for Y axis
Guider	Taiwan Hiwin orbit
Main shaft rotating speed	0-3000r/min

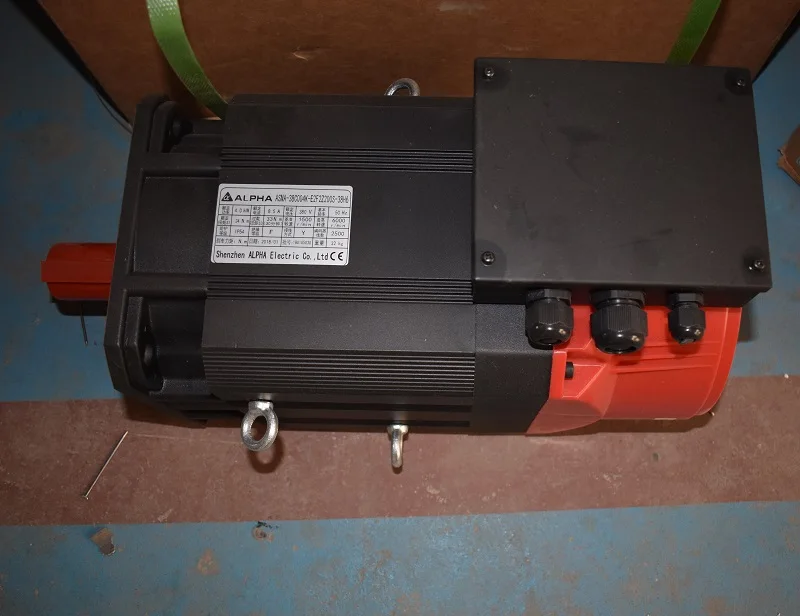

Motor power	4kw
Cutter material	Super hard alloy
Control System	DSP control system
Motor	Stepper motor

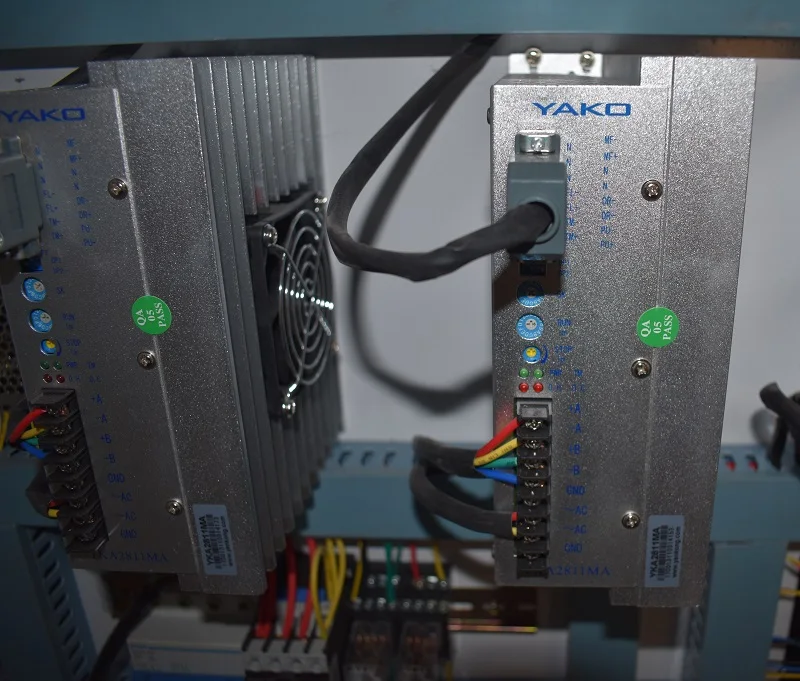

Driver	Yako driver

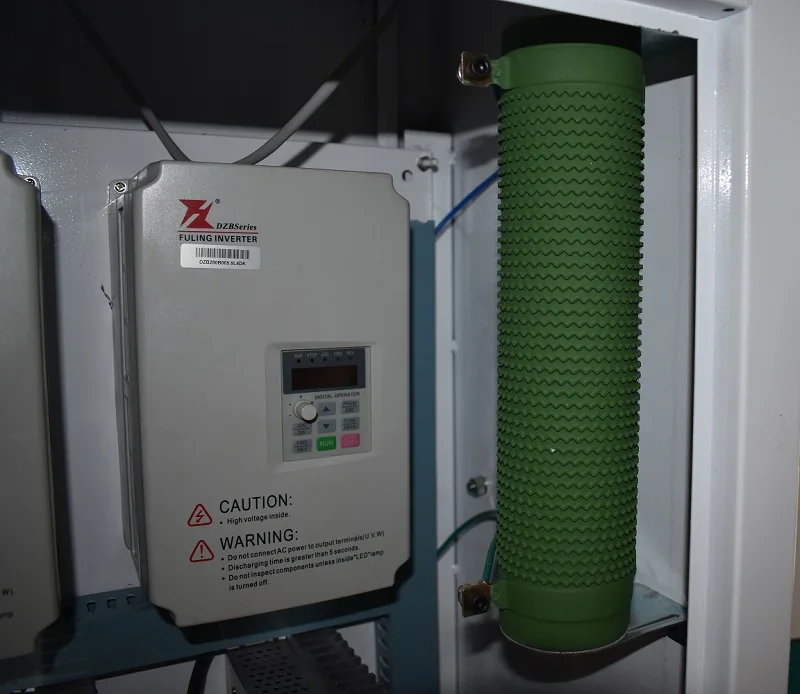

Inverter	Best inverter
Drawing Software	AutoCAD
Interface	Internet cable

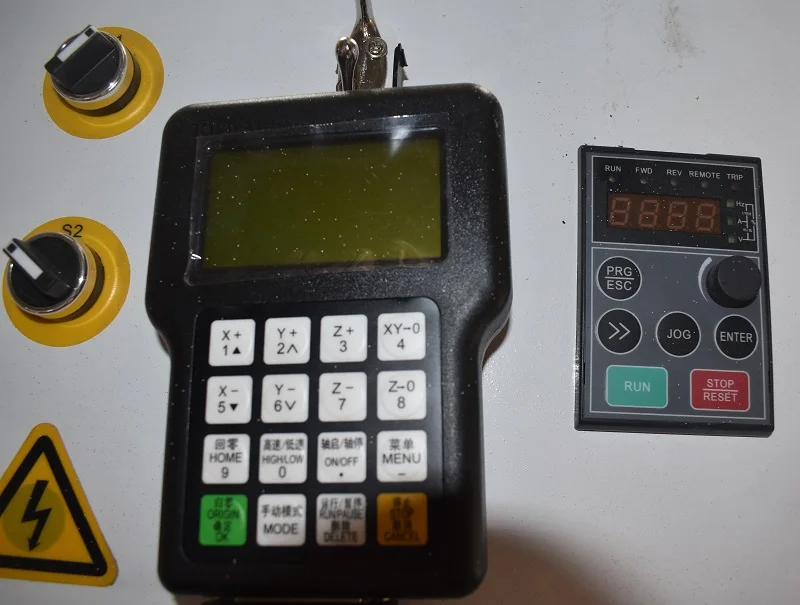

Hand controller recognise file	*.dxf











Guarantee:
The machine is guarantee for 12 months.Within 12 months under normal using and maintenance.If the machine has something problem,you will get spare part for free.More than 12 months,you will get the cost price for accessories.You will also get technical support and service all the time.

Technical Support:
-Technical support by Phone,Email,Wechat,Whatsapp and Skype 24 hours online
-We provide English version manual.
-Engineer available to service machinery overseas.

Afer sales service:
Our machine is installed and tested well before delivery.You can operation the machine immediately after received machine.If you don't know how to use the machine,we will offer you free training until you can use machine freely.And if there is still have any question,please contact us by Email,Skype,Phone and Trademanager online service at any time.
