The best feature of this model is not only its sheer size, but also its tubeless tires that offer deeper treads for greater traction. It offers all the advantages of the SL50W series but with upgraded performance, strength and efficiency. With their tight wheel bases, the turn radius on these machines will amaze you.
Performance Paramete

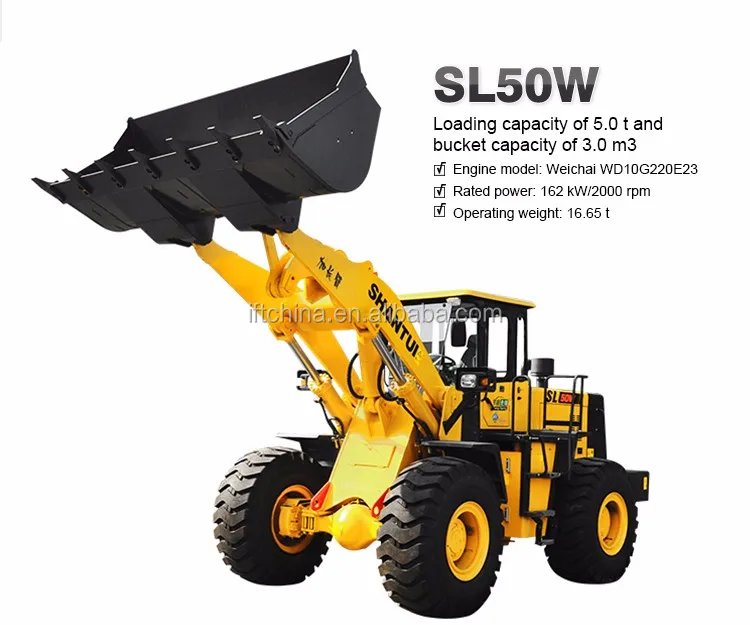

SL50W
Technical
specifications:
Overall width: 3082 mm
Overall length: 8351 mm
Overall height: 3480 mm
GENERAL SPECIFICATIONS
Operating weight
19500 kg
Related loading
5000 kg
Bucket capacity
3.5 m3
Maximum lifting force
185 kN
Static tipping load
(full turn)
12000 kg
Dumping height
3238 mm
Dumping reach
1218 mm
ENGINE
Engine model
WEICHAI WD10G240E21
Type
In-line, water-cooled, 6-cylinder,
direct injection, turbocharged
Rated power
175 kW
Rated speed
2200 rpm
Displacement
9.726 L
Maximm torque
920 N·m
Minimum fuel consumption
225 g/kW·h
AXLES AND
DRIVES FINAL
DRIVE SYSTEM
Four-wheel drive
Gradeability
30°
Maximum traction
167 kN
BRAKE SYSTEM:
Service brakes
Air over oil four-wheel dual-loop disc brake system
Parking brake
Automatically air-cut brake, disc brake
STEERING SYSTEM:
Type
Articulated type, full-hydraulic power steering
Maximum steering angle
35° each direction
The center of outside tire
-
The center of outside bucket
7200 mm
TIRES
Type
23.5-25 16PR
Pattern level
L3
Center distance of tires
2250 mm
Wheel base
3250 mm
HYDRAULIC SYSTEM
Hydraulic cycle time
(rated load in bucket)
Lifting time/ Lifting,
dumping and lowering
6.0/12.0 s
Technical Features
Working Condition
Trading information
Company Information
Replying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts. Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad and made great contribution to get Chinese machinery out into the world. We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. We aim to make our service famous around the world, to have more opportunity to make friends from worldwide, let’s seize the chance for a better future!
FAQ
1,How long will take to delivery the goods after placing an order?
It will take about 7days after getting the deposit if we have machine in stock. Some customized goods will need about 30days to delivery.
2,If our machines have any problems, When will your side can reply to us?
We will solve your problems immediately once get your message. Usually it will take 1~2hours to give you the solution or explanation.
3,What kind of good policy your can supply if we want to be your distributor?
Special discount and protection of sales area can be provided to your distributor.
4,Which incoterms 2010 terms can we work?
We are a professional and sophisticated international player, can handle all Incoterms 2010 terms, and we normally work on FOB,CFR,CIF,CIP,DAP Etc.
Please kindly provide us the following information before you send us email
