free AutoCAD drawing design mini lathe for wood





Jinan GoodCut CNC Machinery CO.,LTD we are leading enterprise specializing in manufacturing, marketing and R&D of cnc router, laser, plasma cutting machine, fiber laser cutting machine Panel furniture production line, CNC working center, CNC wood turning lathe, CNC spare parts and other CNC machines.
We are committed to providing customers with high quality products, competitive prices and excellent services.

For over 10 years development, our efforts bring us stable customers from home and abroad. Our products have exported to Europe, Africa, Mid east, America, Oceania and Southeast Asia,etc.

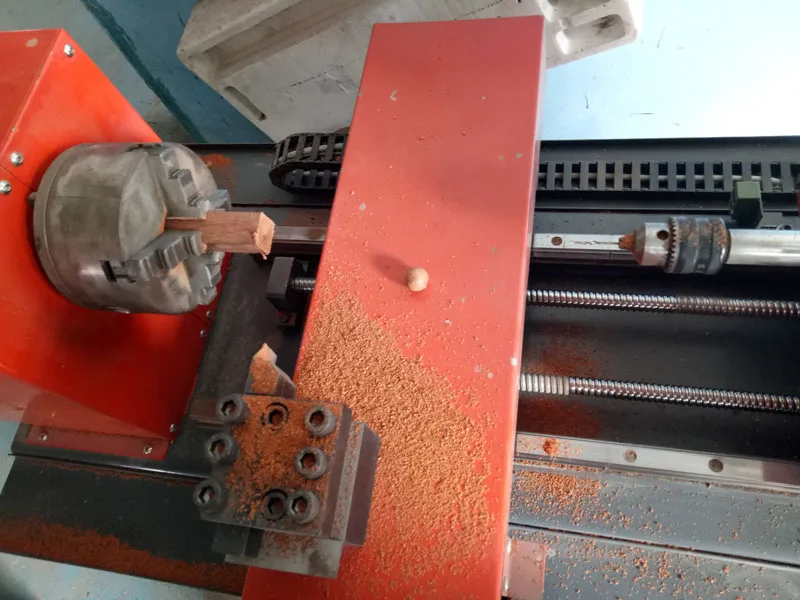

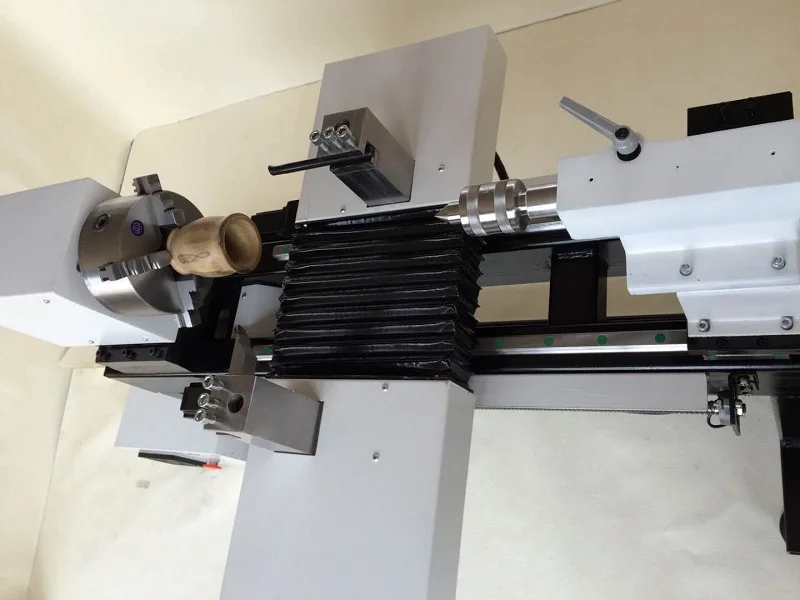

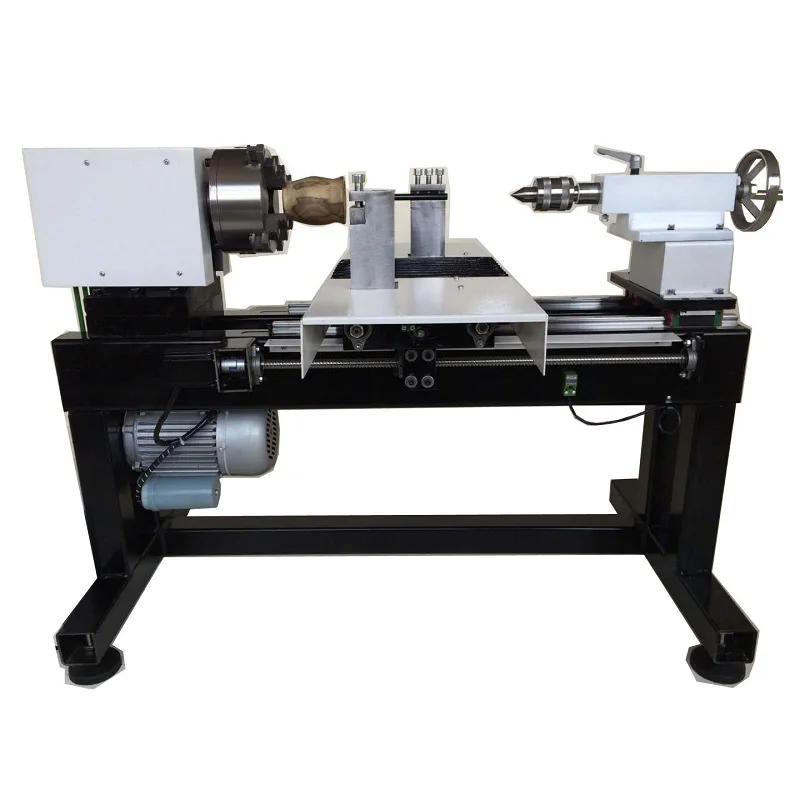

Advantages of mini lathe for wood

1.Computer numerical controlled

2. 600 kinds drawing gallery special for round beads

3.Professional wood beads machine control system , easy to operate

4. Super quality wood lathe cutter special for any kind of wood,with long lifespan

5. Imported square guide rail and high precision ball screw transmission

6. high precision and stable working performance







Operate way of mini lathe for wood

1.Input required drawing in the software

2.Set Bead diameter,  select the shape, size.

3.No programming, easy to use.

4.You can also design your own style, drawing of contour line, also can support BMP, JPG etc format



Cutter lifespan of mini lathe for wood

Adopt super hard alloy CNC cutter,no wear for turning and milling red wood.

Such as processing 3000 pieces Lobular red sandal wood whose with diameter 2cm, no need changing cutter.





Processing speed of mini lathe for wood

For example:

1.2 size beads shall prevail, Lobular Rosewood automatic Hole, 38 seconds per piece , 30 seconds without holes.

2.Phoebe play hole turning 25 seconds per piece,19 seconds without punching;

3.5cm diameter handball, 2 minutes one piece.

4.5cm diameter and 11cm length hand-grip gourd needs 5 minutes



Applications of mini lathe for wood

Various wood materials can be processed, such as beech, oak, pile of wood, birch, teak, Sapele, ashtree, merbau, sandalwood, rosewood and other wood material.

Bead, barrel, all kinds of Buddha head pagoda, gourd pendant, hoist pieces, wood rhinoceros-horn,cup, bowl, whip,cigarette holder, eggs,ashtray, scroll painting head,wooden handle etc





3. Technical Parameters of mini lathe for wood

NO.   Description		Parameter
1	max process length	500mm
2	process beads diameter	3-160mm
3	machine size	1300*750*700mm
4	transmission way	Ball screw with imported bearings
5.	orbit	Square guide orbit
6	Interface	internet wire
7	system	Profeesional beads making
8	Surroundings for software	windows98/2000/XP/WIN7/WIN8
9	Power	1.5KW
10	Working voltage	AC220V 50Hz





Application:

Bead, barrel, all kinds of buddha head pagoda, gourd pendant, hoist pieces, wood rhinoceroshorn cup, bowl, whip,cigarette holder, eggs,ashtray, scroll painting head.



Processing size:

max diameter 10cm, max length 40cm



make drill way:

with automatic drill, computer controlled automatic concentric perforated



power:

220V

whole machine power: 1000w

spindle motor power: 750w



operate way:



Direct input required in the software



Bead diameter can be simple parameters; pagoda gourd, direct



Select the shape, size. No programming, easy to use.



You can also design your own style, drawing of contour line, put into



BMP, JPG image can be processed.



Precision:

imported square orbit and ballscrew transmission

long lifespan, high precision

processing precision: 0.01mm



Cutter lifespan:

Adopt super hard alloy cnc cutter(special for stainless steel),no wear for turning and milling red wood.

processing 3000 pieces  Lobular red sandalwood whose diameter 2cm, no need chang cutter.



Very long service life, is the standard

Piece. If there is damage to the direct replacement, without understanding thesharpening technique.



Processing speed:



In the processing of 2 size beads shall prevail, lobular Rosewood automatic



Hole, turning every 38 seconds, 30 seconds without holes.

Phoebe play hole turning, every 25 seconds, not punching every 19 seconds;



The processing of 5 cm diameter handball, 2.5 minutes  one piece.



Processing handgrip gourd, diameter 5 cm, 11 cm long with 5 minutes.



Machine size:

length: 100cm

wideth: 50cm

heighth: 80cm

weight: 150kgs

package weight: 200kgs











Guarantee:
The machine is guarantee for 12 months.Within 12 months under normal using and maintenance.If the machine has something problem,you will get spare part for free.More than 12 months,you will get the cost price for accessories.You will also get technical support and service all the time.

Technical Support:
-Technical support by Phone,Email,Wechat,Whatsapp and Skype 24 hours online
-We provide English version manual.
-Engineer available to service machinery overseas.

Afer sales service:
Our machine is installed and tested well before delivery.You can operation the machine immediately after received machine.If you don't know how to use the machine,we will offer you free training until you can use machine freely.And if there is still have any question,please contact us by Email,Skype,Phone and Trademanager online service at any time.
