Odoelec ANR200 24В мотор стартера контактор 200A 1NO аккумулятор автомобильное реле

Odoelec ANR200 24В мотор стартера контактор 200A 1NO аккумулятор автомобильное реле

Категории: Пускатели мотора >>>
Поставщик: Yueqing Wodu Electric Co., Ltd. [Zhejiang,China]Yueqing Wodu Electric Co., Ltd. [Zhejiang,China]Yueqing Wodu Electric Co., Ltd.

Цена:376,69 ₽ - 828,72 ₽*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Description

ANR200 24V Motor Starter Contactor 200A 1NO Battery Car Power Relay

The product have one normally open contact, for the battery or the rectification power and supplies power, using for handling drawing, the pump motor and other electronic vehicles.

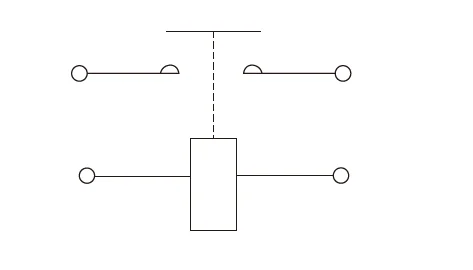

Circuit Diagram

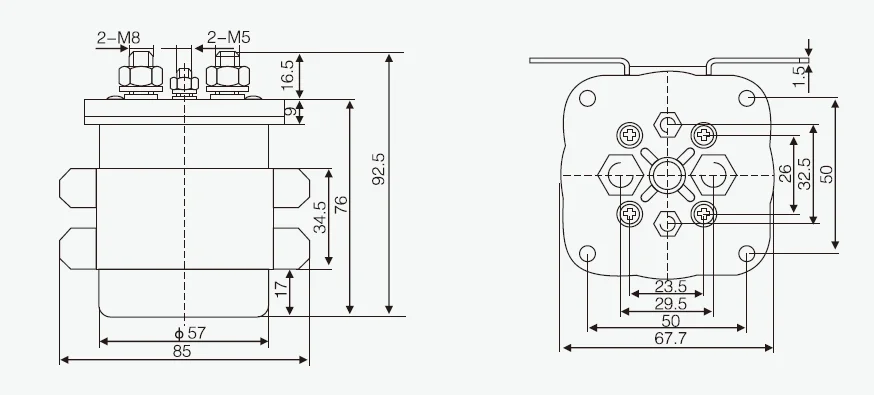

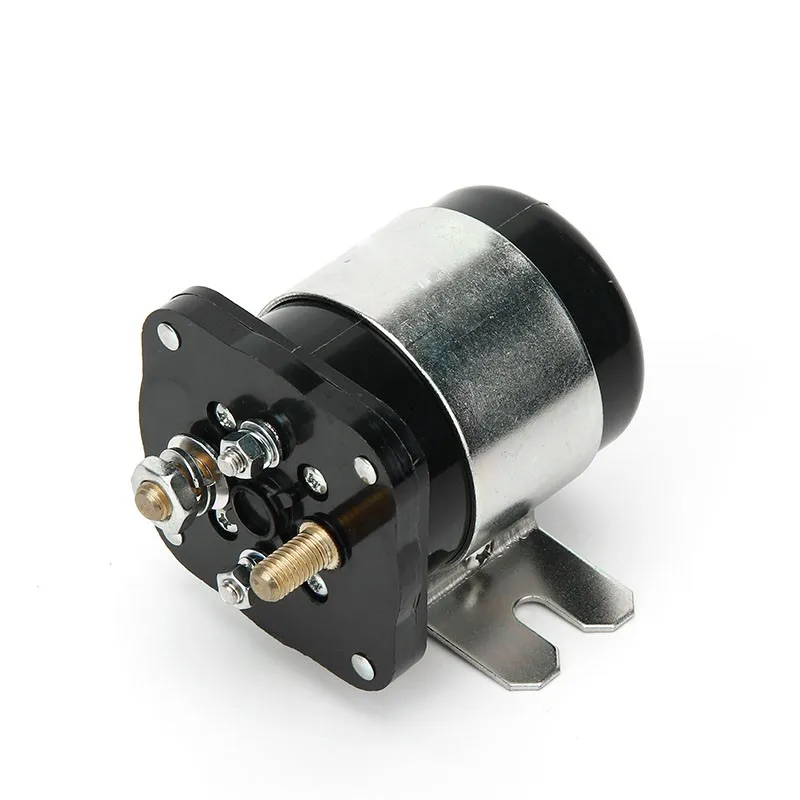

Detailed Images

ANR200 24V Motor Starter Contactor 200A 1NO Battery Car Power Relay

1) Rated Voltage: 24V

2) Current: 200A

3) Contact form:1 NO

Technical Parameters

Rated Voltage	12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, etc.
Contact circuit rated load current	200A 500A
Typical voltage drop across contacts per 100A	≤80mV
the cooling pull-in voltage at (20+5)°C	≤70%
The allowed range of coil voltage	±20%
insulation resistance	≥50mΩ
The Cooling Drop-out Voltage at (20±5℃)	≥40%,≤5%
Coil power	≤38.0W
Electrics strength to resist	50Hz/60Hz 1000VAC/1min
Contact form	1NO
Contact material	AgCdO/AgCuO
Work specification	continuous
Mechanical life	300 thousand times
Overload Current	≤7Ie,less than 1s
Technical Specification	GB14048.4-2010
