Product Description
NodeMcu V3 Lua WiFi Wireless Module CH340 Development Board ESP8266 ESP12E
Description:
Build on ESP8266 sdk
Lua core based on eLua project
File system based on spiffs
Easy to access wireless router
Based on Lua 5.1.4 (without debug, os module.)
Event-Drive programming preferred.
Build-in json, file, timer, pwm, i2c, spi, 1-wire, net, mqtt, coap, gpio, wifi, adc, uart and system api.
GPIO pin re-mapped, use the index to access gpio, i2c, pwm.
Both Integer version(less memory usage) and Float version(Default) firmware provided.
Features:
WiFi Module – ESP-12E.
USB – Power 5v and program via micro USB port
Fits on a standard breadboard and gives access to a row of holes either side
10 GPIO, every GPIO can be PWM, I2C or 1-wire
Headers – 2 x 2.54mm 15-pin header with access to GPIOs, SPI, UART, ADC, and power pins
Misc – Reset and Flash buttons
USB-TTL included, plug n play FCC CERTIFIED WI-FI module, PCB antenna
Can see the Nodemcu LUA development environment as an alternative to the UNO ESP8266
Lua core based on eLua project
File system based on spiffs
Easy to access wireless router
Based on Lua 5.1.4 (without debug, os module.)
Event-Drive programming preferred.
Build-in json, file, timer, pwm, i2c, spi, 1-wire, net, mqtt, coap, gpio, wifi, adc, uart and system api.
GPIO pin re-mapped, use the index to access gpio, i2c, pwm.
Both Integer version(less memory usage) and Float version(Default) firmware provided.
Features:
WiFi Module – ESP-12E.
USB – Power 5v and program via micro USB port
Fits on a standard breadboard and gives access to a row of holes either side
10 GPIO, every GPIO can be PWM, I2C or 1-wire
Headers – 2 x 2.54mm 15-pin header with access to GPIOs, SPI, UART, ADC, and power pins
Misc – Reset and Flash buttons
USB-TTL included, plug n play FCC CERTIFIED WI-FI module, PCB antenna
Can see the Nodemcu LUA development environment as an alternative to the UNO ESP8266

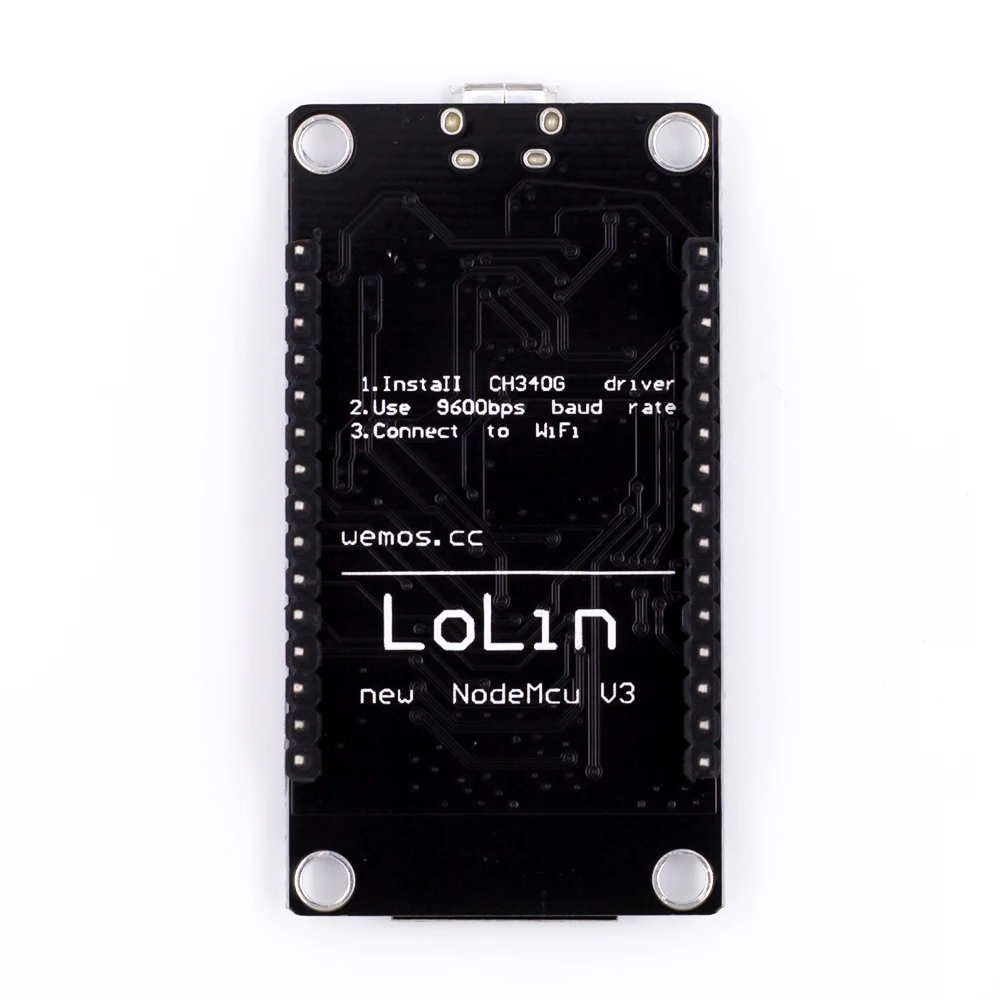

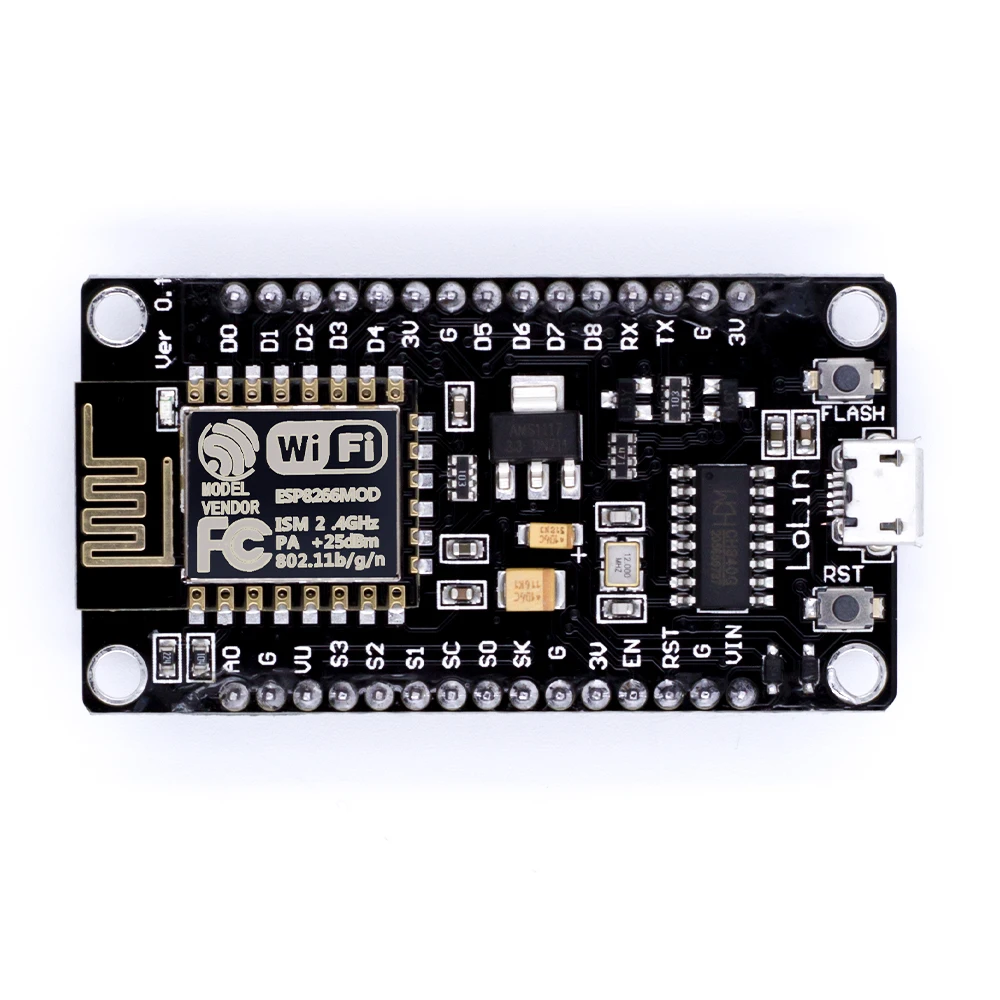

Detailed Images
NodeMcu V3 Lua WiFi Wireless Module CH340 Development Board ESP8266 ESP12E
