Санитарная обработка воды фильтрация молока напитков жидкости один несколько корпус фильтра из нержавеющей
- Категории: Cleaning Equipments >>>
- Поставщик: Wenzhou,Leno,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
| Profile/type | Sanitary water treatment milk beverage liquid filtration single multiple stainless steel bag filter housing | ||
| material | SS304 or SS316L | ||
| Capacity | 0-300T/H (Customized) | ||
| Working Pressure | 0-5bar | ||
| Design pressure | 10bar | ||
| Connection type | FLANGE | CLAMP | UNION |
| bag cartridges material | PP | PE | nylon |
| O-ring | SILICON | EPDM | PTFE |
| bag cartridges micron | 0.22micron-1000micron | ||
| bag types | 1#,2#,3#,4#,5# | ||

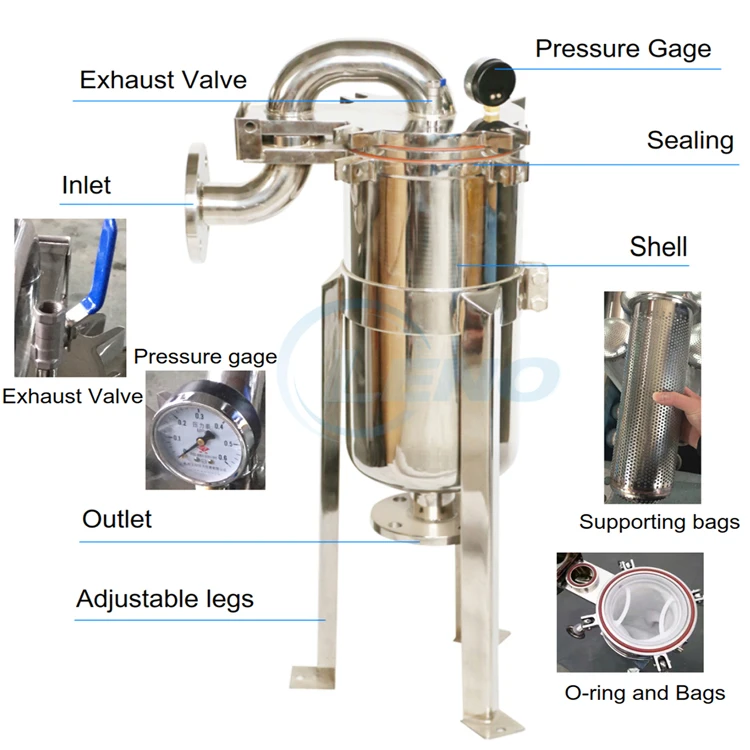

| PARTS DETAILS | 1.Inlet outlet Clamp type | ||
| 2.drain valve | |||
| 3.exhaust valve | |||
| 4.pressure gage | |||
| 5.Adjustable Legs | |||

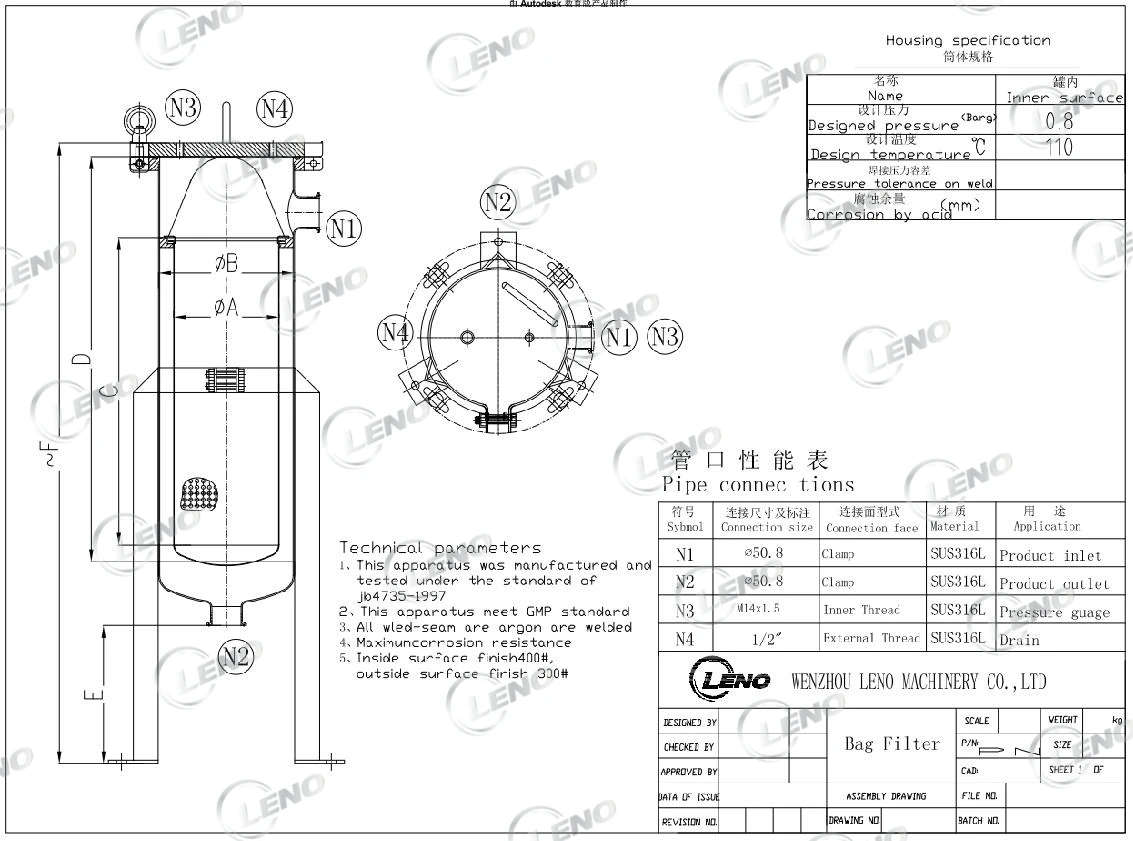

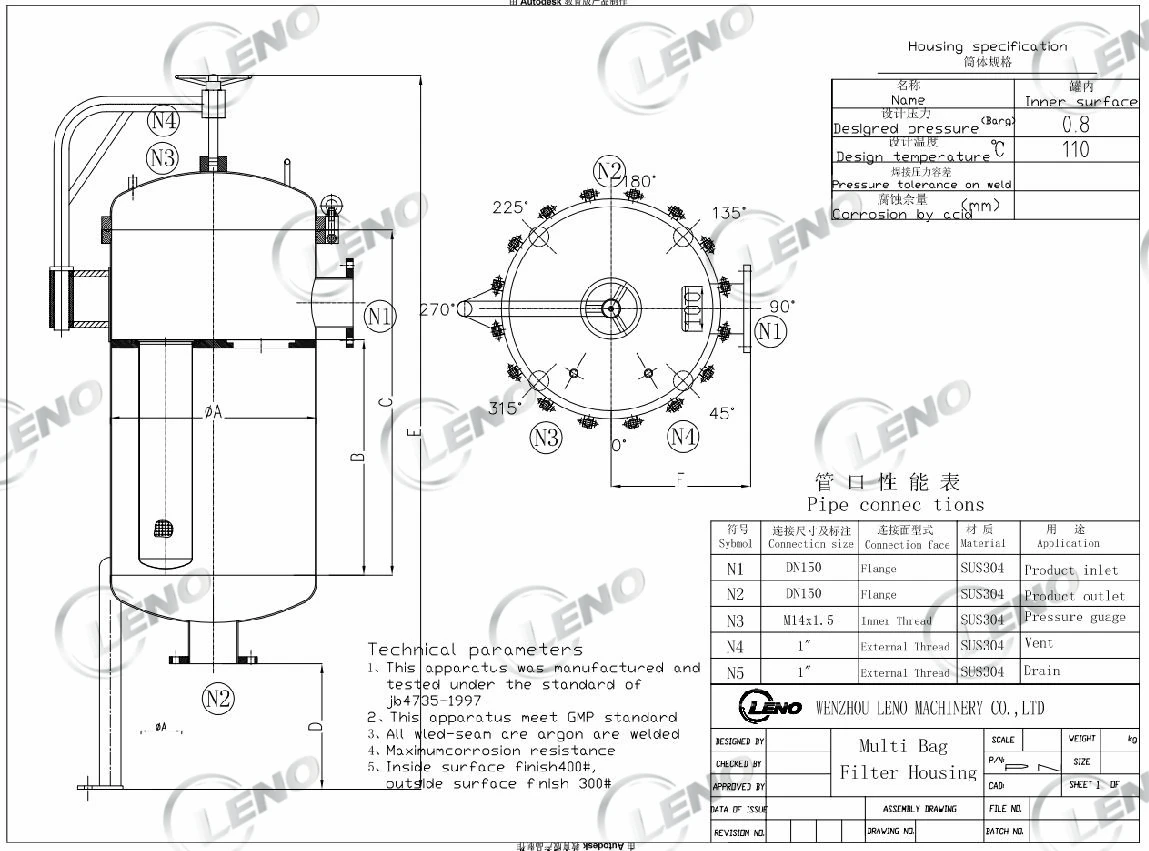

Drawing
| Technical Parameters | |||||
| Model | Diameter | Thickness(mm) | Inlet outlet(mm) | capacity(T/H) | filter areas(m²) |
| LNF-1P-1S | 219 | 2 | 51mm | 20 | 0.25 |
| LNT-1P-2S | 219 | 2 | 51mm | 40 | 0.5 |
| LNT-1P-3S | 133 | 2 | 32mm | 5 | 0.1 |
| LNT-1P-4S | 133 | 2 | 25mm | 12 | 0.15 |
| LNT-2P-1S | 400 | 3 | 51mm | 40 | 0.5 |
| LNT-2P-2S | 400 | 3 | 51mm | 80 | 1 |
| LNT-3P-1S | 450 | 3 | 80mm | 60 | 0.75 |
| LNT-3P-2S | 450 | 3 | 80mm | 120 | 1.5 |
| LNT-4P-1S | 550 | 4 | 100mm | 80 | 1 |
| LNT-4P-2S | 550 | 4 | 100mm | 160 | 2 |
| LNT-5P-2S | 600 | 4 | 125mm | 200 | 2.5 |
| LNT-6P-2S | 700 | 4 | 125mm | 240 | 3 |
| LNT-8P-2S | 800 | 4 | 150mm | 320 | 4 |
| We can customize the equipment according to customers' requirment. | |||||

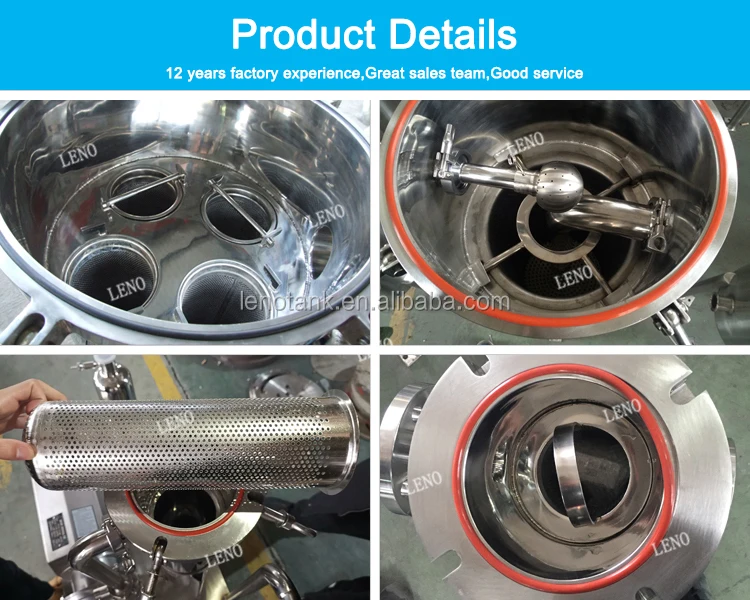

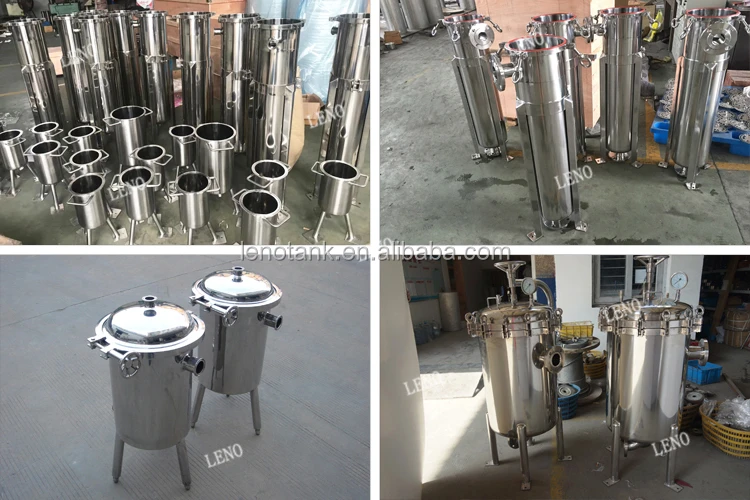

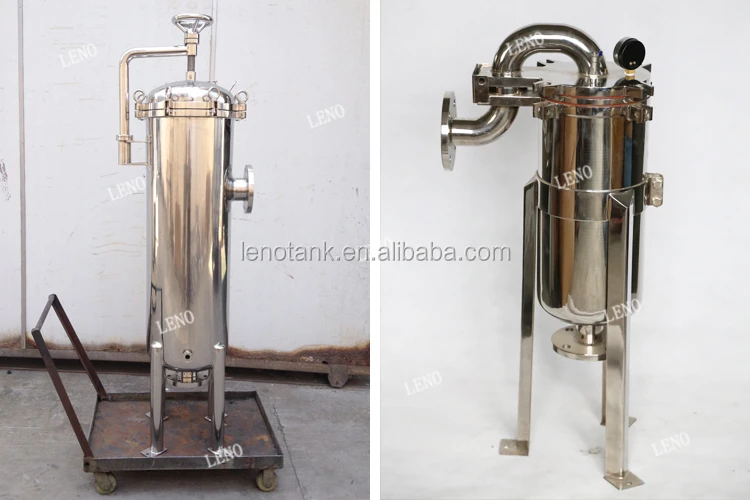

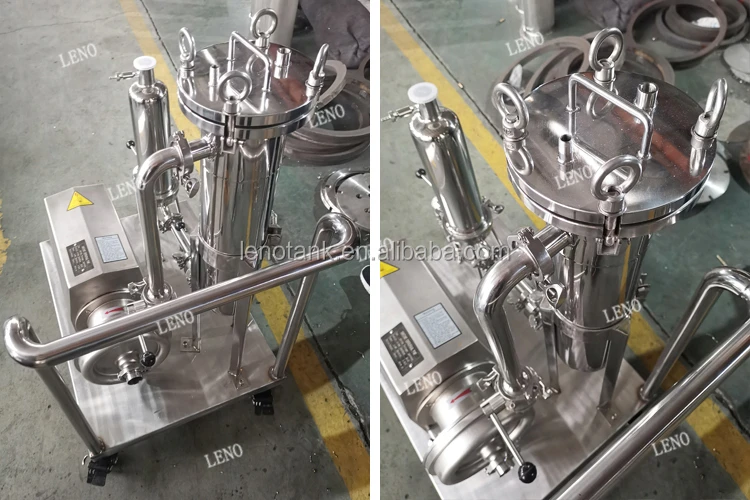

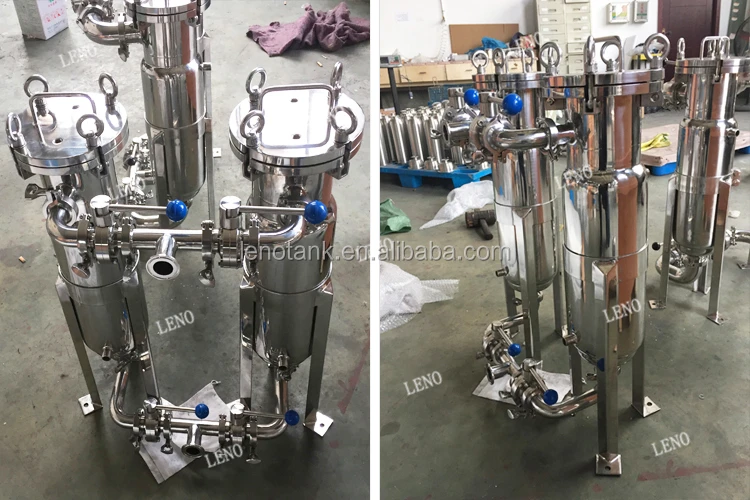

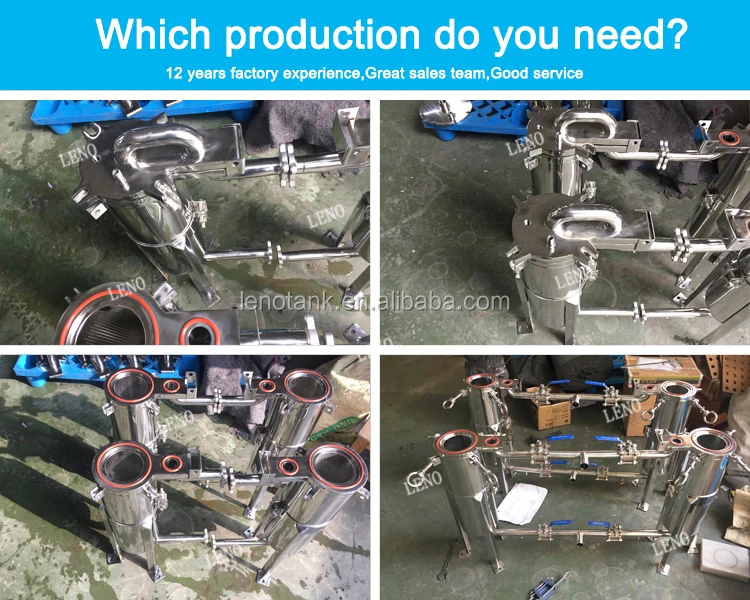

More details picture
Application:
Best price Food grade economical industrial bag filter housing filter ca
Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.
a. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
b. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
c. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.
d. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.
